Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / OVERRUN DEVICES / OVERRUN DEVICES SQUARE / OVERRUN DEVICE SQUARE, WITH DRAWBAR SECTION / OVERRUN DEVICES SQUARE WITH DRAWBAR SECTION STRAIGHT 450 TO 3500KG / OVERRUN DEVICES SQUARE WITH DRAWBAR SECTION STRAIGHT TYPE 2,8VB/1-C - R35 VERS. B TO 3500KG WITHOUT HITCH COMPONENT / Braked half axles 1600kg axle type B 1600-1 (Paar) EURO1 for welding on

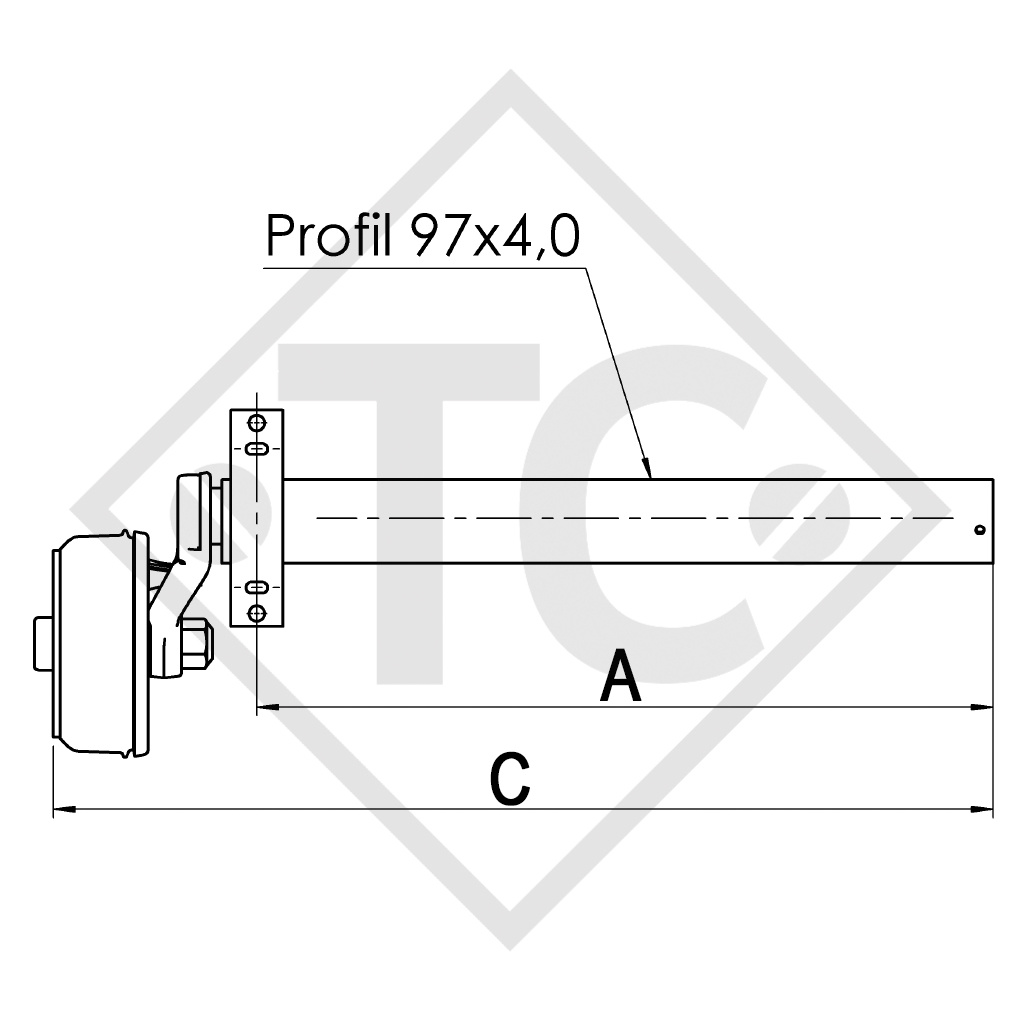

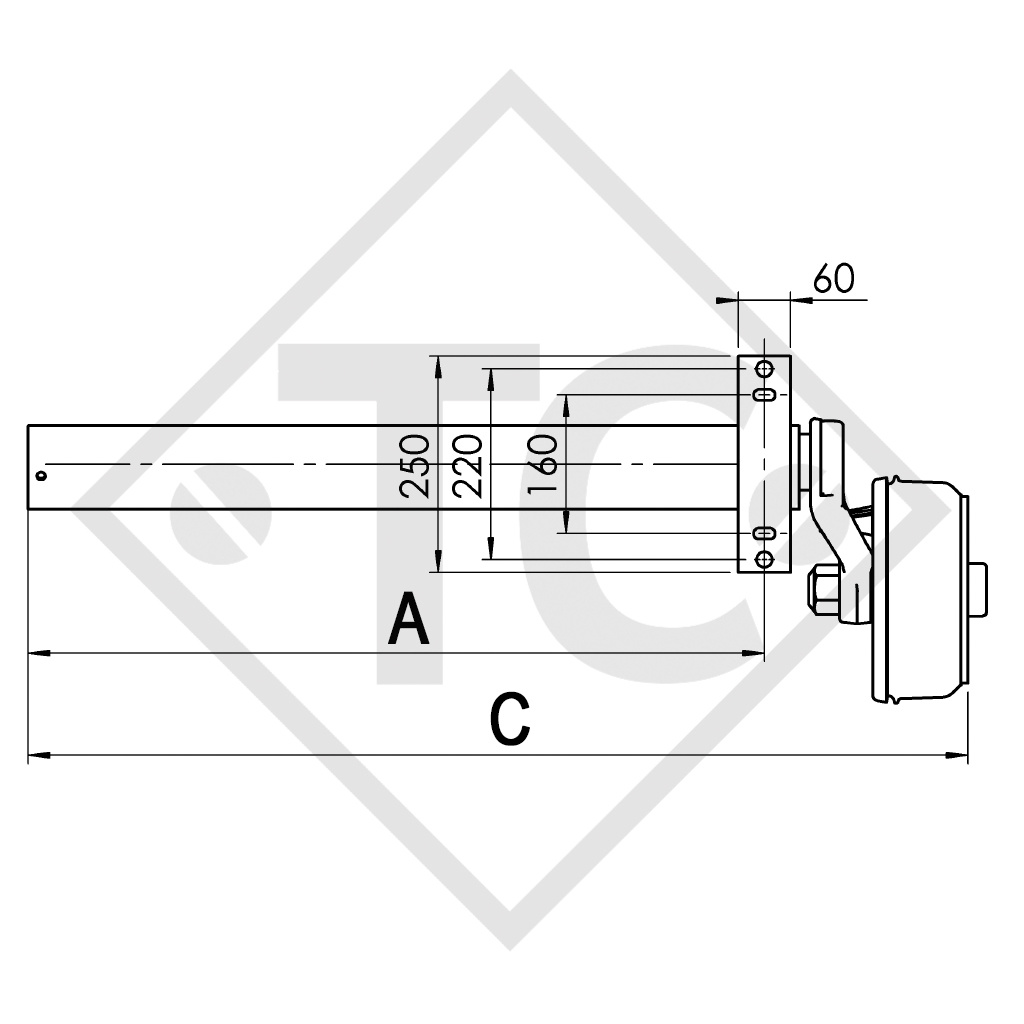

BC: dimension A 850mm, OHF: dimension C 1085mm, wheel connection 140x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 5°, axle profile 97mm, ball-head wheel bolts M14x1.5. Read more...
Part no. 20003841
| Braked half axles |
| Axle load per pair |
1600kg |
| Type | B 1600-1 |
| Wheel brake |
2361 |
| Wheel connection |
140x5 |
| BC: dimension A | 850mm |
| OHF: dimension C | 1085mm |
| Offset: ET |
30mm |
Original operating instructions
Replacement part identification number (ETI) 811136
SCOPE OF DELIVERY
Half axles
Adapter bracket single axle loose
Single axle trailer compensation profile loose
Bowden cables loose
Wheel bolts M14x1.5 loose
SURFACE TREATMENT
Raw to weld axle profile
