Braked half axles 1800kg axle type BRA1800-9 (pair)

BC: dimension A 456mm, OHF: dimension C 731mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 35mm, swing arm position 15°, axle profile 110mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Price 2.863,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 1226570

Braked half axles

Axle load per pair

1800kg

Type

BRA1800-9

Wheel brake

2361

Wheel connection

112x5

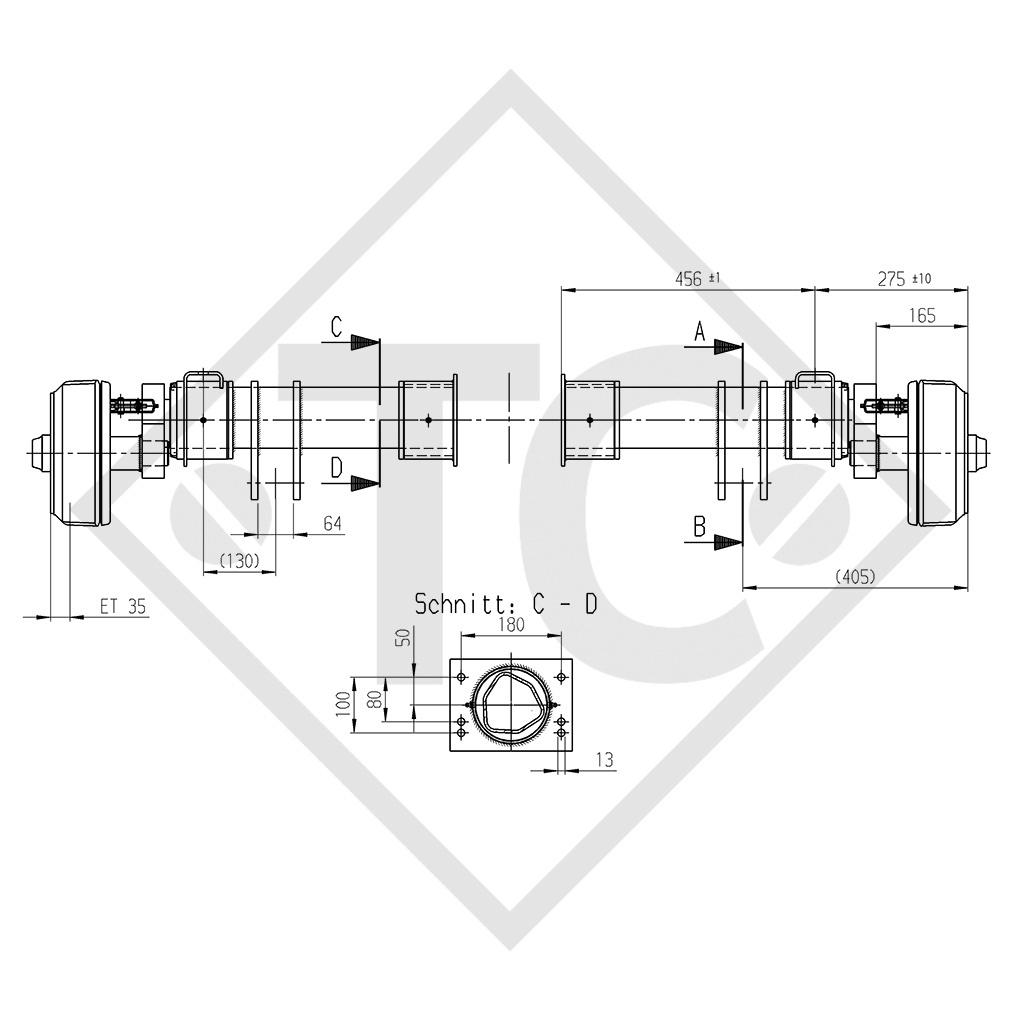

BC: dimension A

456mm

OHF: dimension C

731mm

Offset: ET

35mm

SCOPE OF DELIVERY
Half axles
Adapter bracket single axle loose
Single axle trailer compensation profile loose
Bowden cables loose
Wheel bolts loose

SURFACE TREATMENT
Hot-dip galvanised axle profile

AL-KO Lowering braked half axles 1800kg axle type BRA1800-9 (pair)
