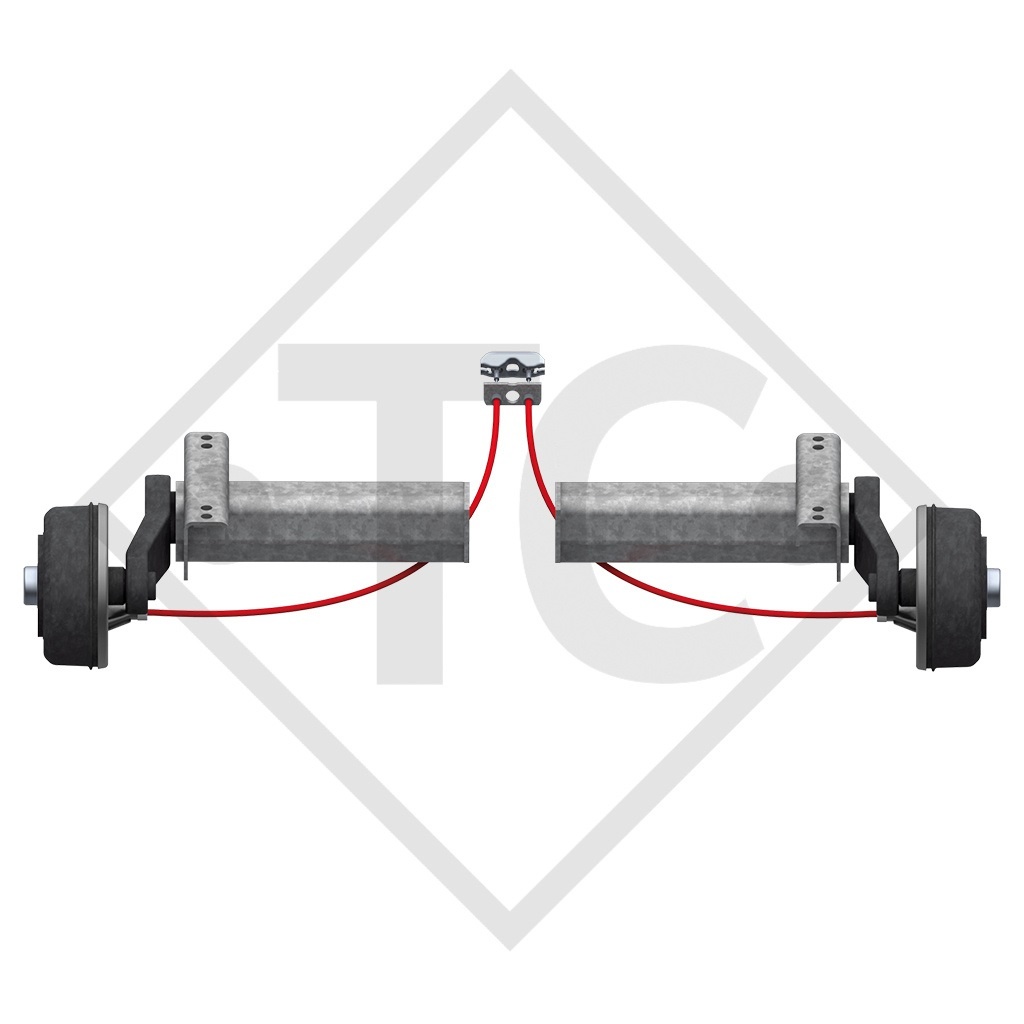

Braked half axles 900kg axle type B850-5 (pair) EURO COMPACT

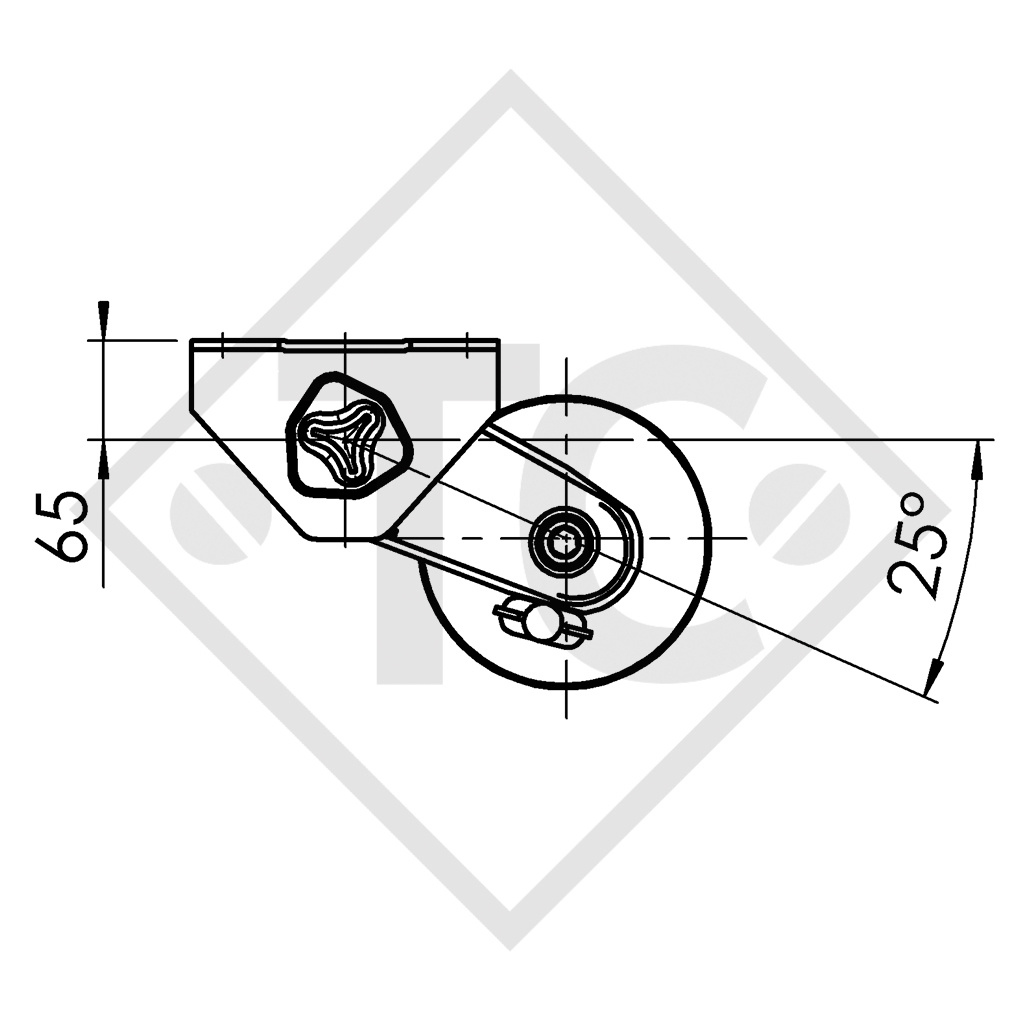

BC: dimension A 850mm, OHF: dimension C 1075mm, wheel connection 130x4, wheel brake type 1637, offset (ET) 30mm, swing arm position 25°, axle profile 80mm, ball-head wheel bolts M14x1.5. Read more...

Wishlist: Add to comparison:

Price 750,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 1745014

Braked half axles

Axle load per pair

900kg

Type

B 850-5

Wheel brake

1637

Wheel connection

130x4

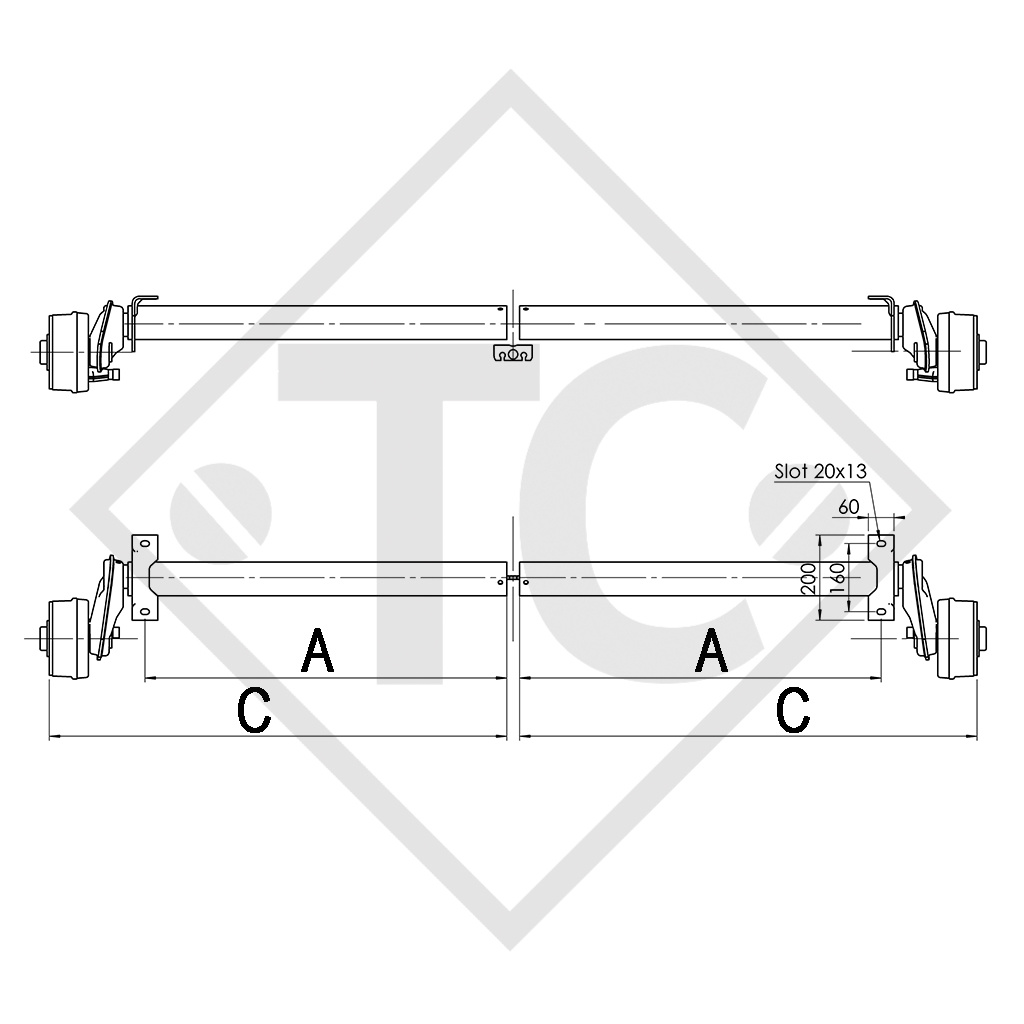

BC: dimension A

850mm

OHF: dimension C

1075mm

Original operating instructions
Replacement part identification number (ETI) 811136

SCOPE OF DELIVERY
Half axles
Adapter bracket single axle loose
Single axle trailer compensation profile loose
Bowden cables loose
Wheel bolts M14x1.5 loose

SURFACE TREATMENT
Raw to weld axle profile

AL-KO Braked half axles 900kg axle type B 850-5 (pair) EURO COMPACT for welding on

Product description
