FTF Braked half axles 1300kg axle type B 1200-5 (pair)

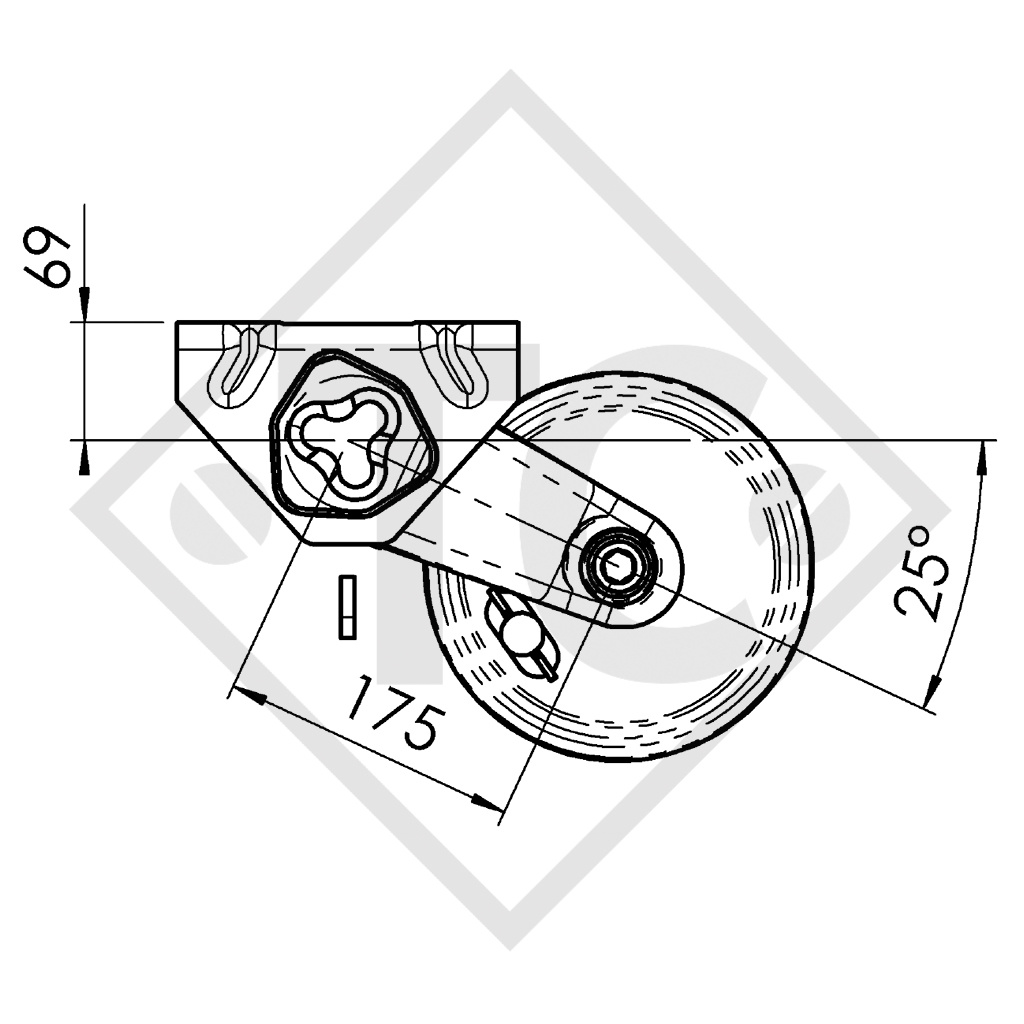

BC: dimension A 850mm, OHF: dimension C 1075mm, wheel connection 130x4, wheel brake type 2051 vers. A, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Price 1.691,90 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 1705947

Braked half axles

Axle load per pair

1300kg

Type

B 1200-5

Wheel brake

2051 vers. A

Wheel connection

130x4

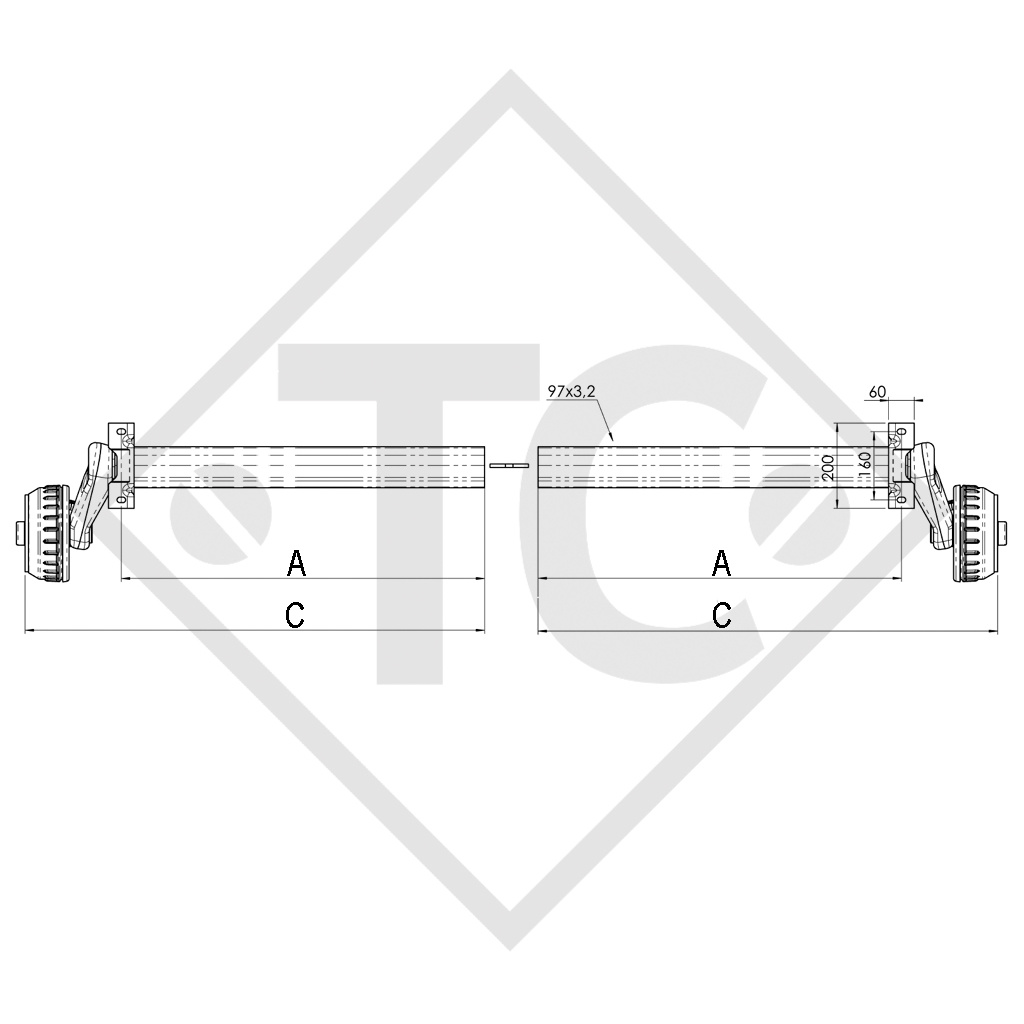

BC: dimension A

850mm

OHF: dimension C

1075mm

Offset: ET

26-30mm

SCOPE OF DELIVERY
Half axles

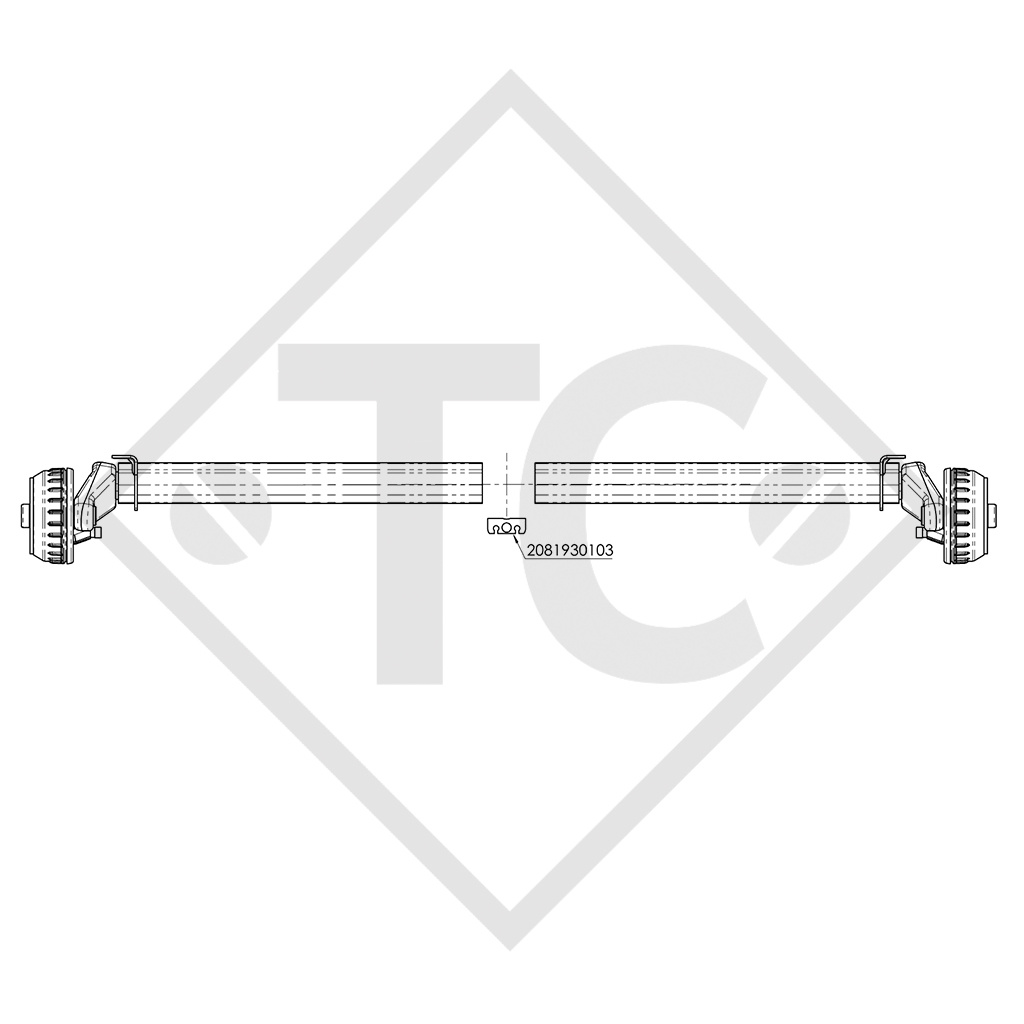

Adapter bracket single axle loose 2081930103
Wheel bolts loose

SURFACE TREATMENT
Hot-dip galvanised axle profile

AL-KO FTF Braked half axles 1300kg axle type B 1200-5 (pair)
