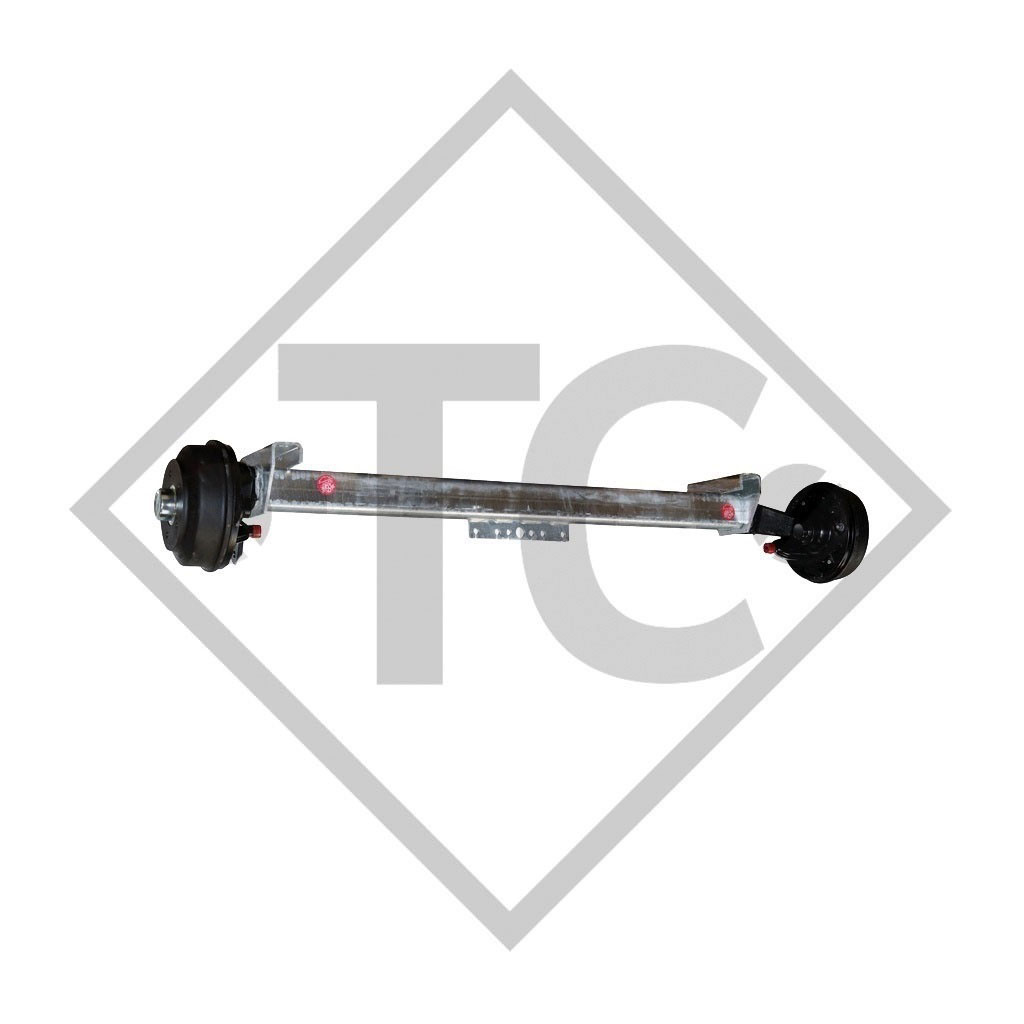

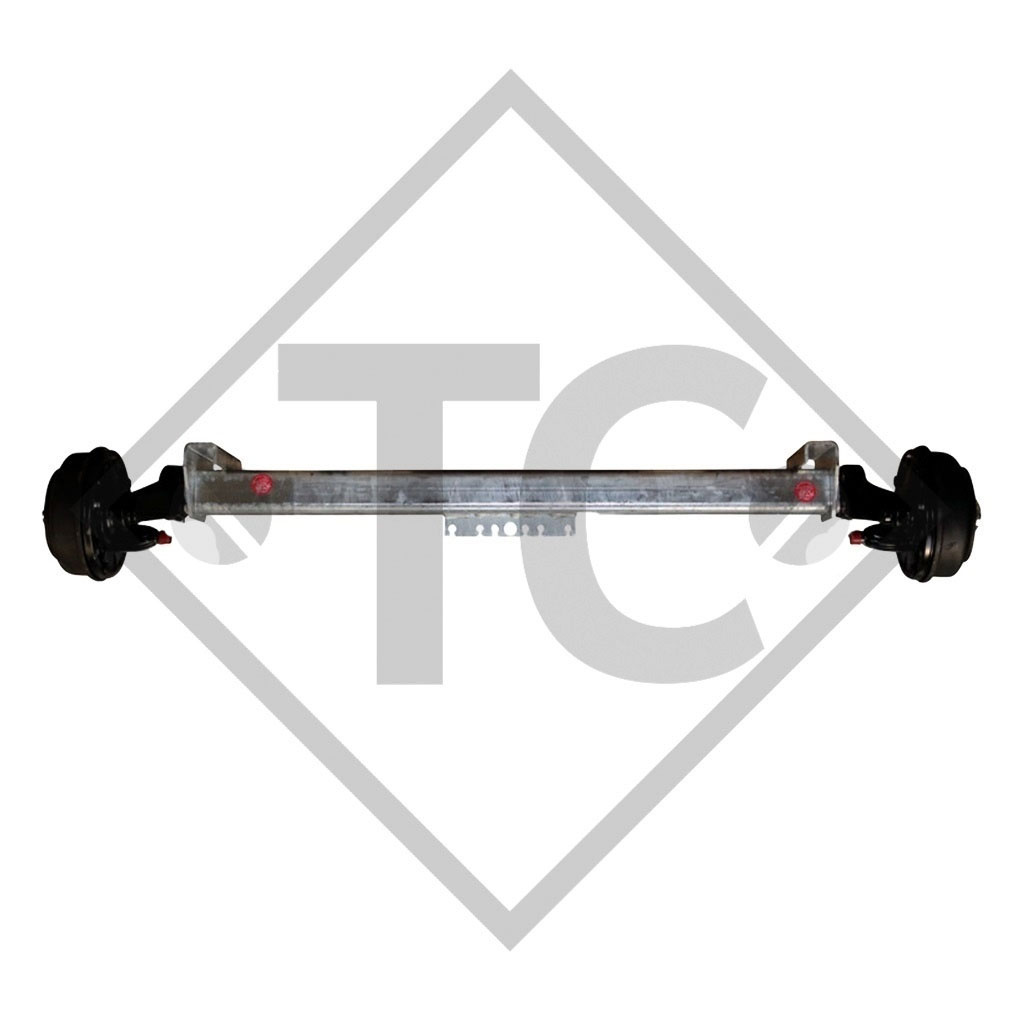

Braked axle SWING 1500kg axle type CB 1505, 46.27.379.680

BC: dimension AM 1690mm, OHF: dimension FL 2160mm, wheel connection 165x5, wheel brake type S 2005-7 RASK, offset (ET) 27-35mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M16x1.5. Read more...

Wishlist: Add to comparison:

Price 699,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20-25 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to info@trailer-center-shop.com

- +

Add to cart

Part no. 46.27.379.680

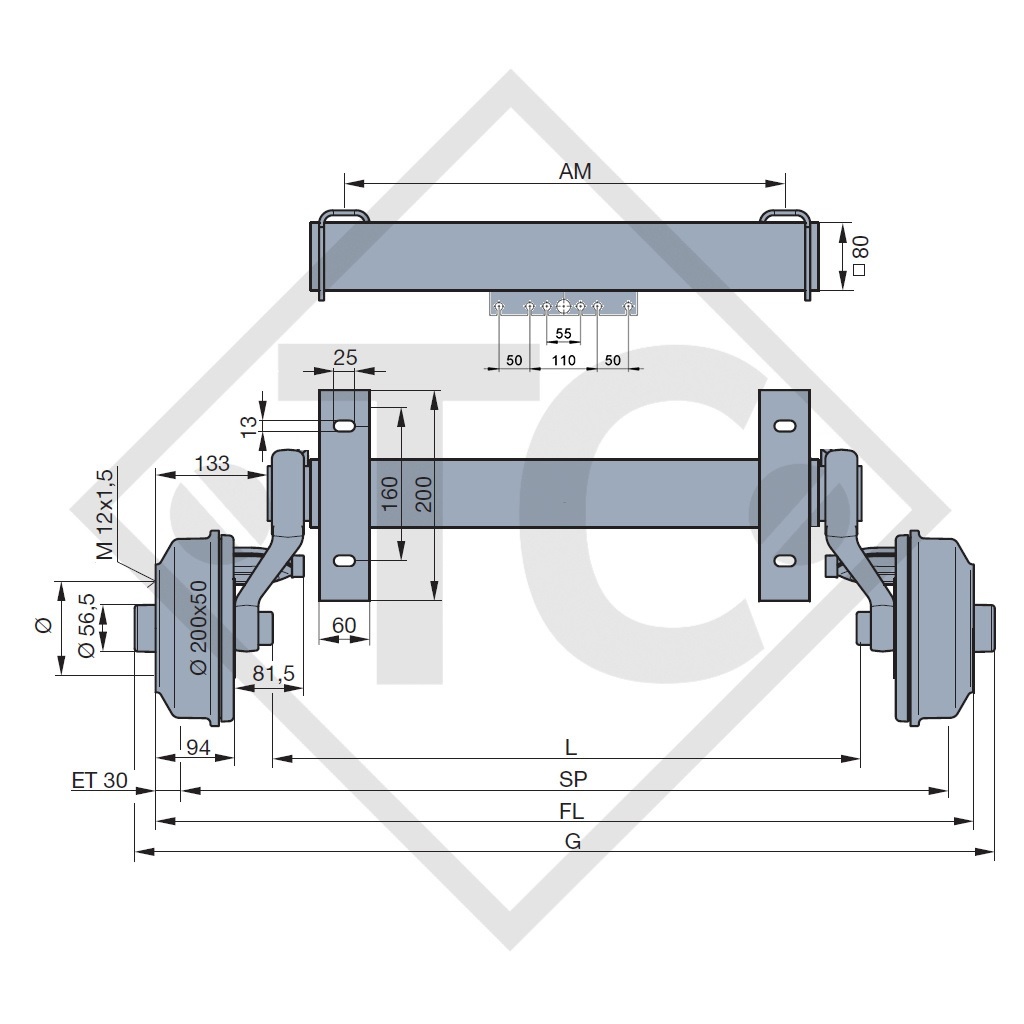

Dimension FL

2160mm

Dimension SP

2090mm

Dimension AM

1690mm

Dimension L

1874mm

Dimension G

2213mm

Model

SWING

Axle type

CB1505

Axle load single axle

1500kg

Axle load: Tandem axel

3000kg

Wheel brake

S 2005-7 RASK

Suspension

Square rubber suspension

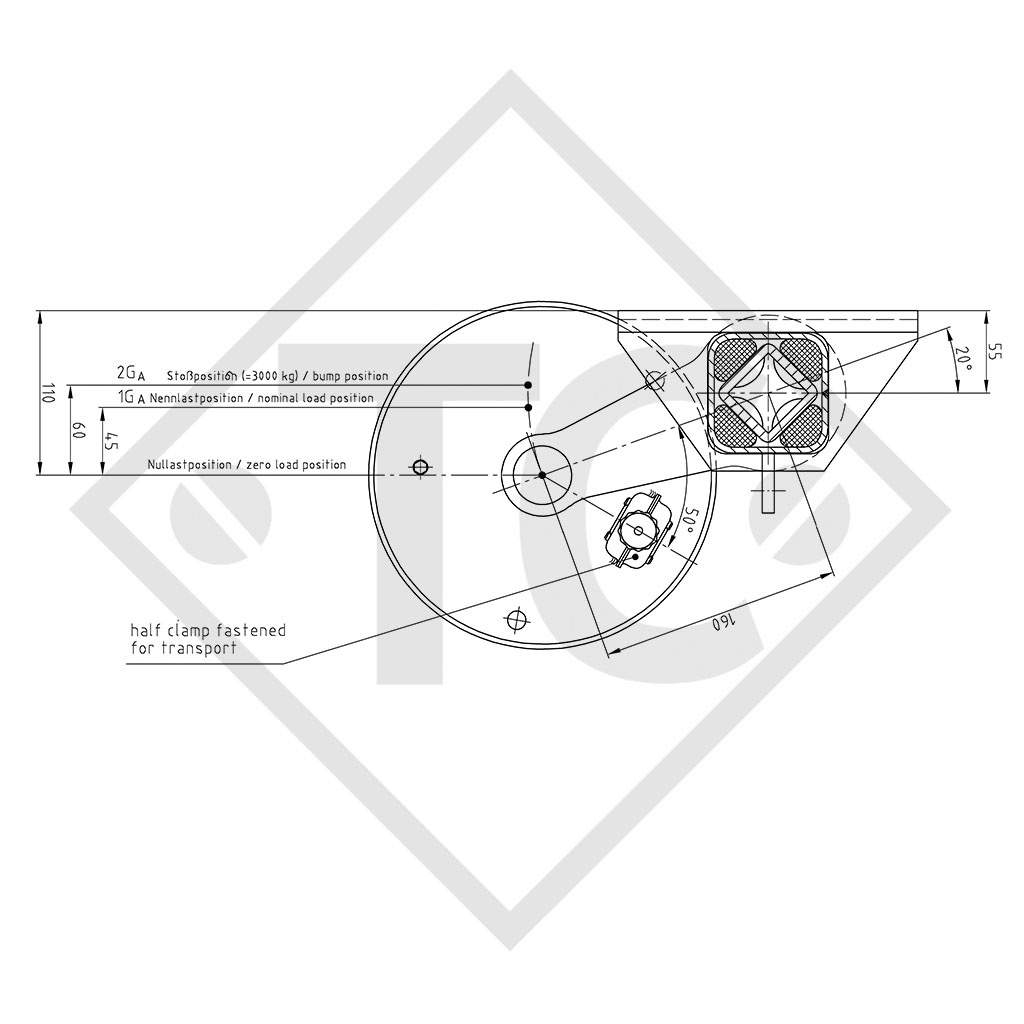

Swing arm

160mm

Wheel connection

165x5

Wheel bearing

Compact bearings

Centre hole rim

min. 56.5mm

Original operating instructions
Replacement part identification number (ETI) OLD XX.XX.379.XXX
Replacement part identification number (ETI) NEW 827030

SCOPE OF DELIVERY
Axle incl. brake
M16x1.5

DETAILS

Speed up to 140 km/h
Drawbar connection: Clamping shells see Accessories
Axle shock absorber see Accessories
Wheel connections: 140x5 on demand
Special axle mounts and drawbar connections on demand
Also available with watertight bearings
Axle body fully hop-dip galvanised: Permanent surface protection
Independent wheel suspension: Optimum compensation of uneven road surfaces
Maintenance-free suspension: Lower maintenance costs
Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
