BPW Braked axle SWING 1500kg axle type CB 1505, 46.27.379.152

Home / CHASSIS PARTS / CHASSIS PARTS SCHLEGL / AXLES / UNBRAKED AXLES & ACCESSORIES / UNBRAKED AXLE 1400KG, AXLE TYPE MB14 WITH SHACKLE AND HIGH AXLE BRACKET / Braked axle SWING 1500kg axle type CB 1505, 46.27.379.152

BC: dimension AM 1090mm, OHF: dimension FL 1535mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm. Read more...

Wishlist: Add to comparison:
Price 685,00 EUR Incl. tax Excl. Shipping costs
Delivery time: approx. 1-3 working days (Mon-Fri)
- +
Add to cart

Product description

Part no. OLD 46.27.379.152
Part no. NEW 4013412

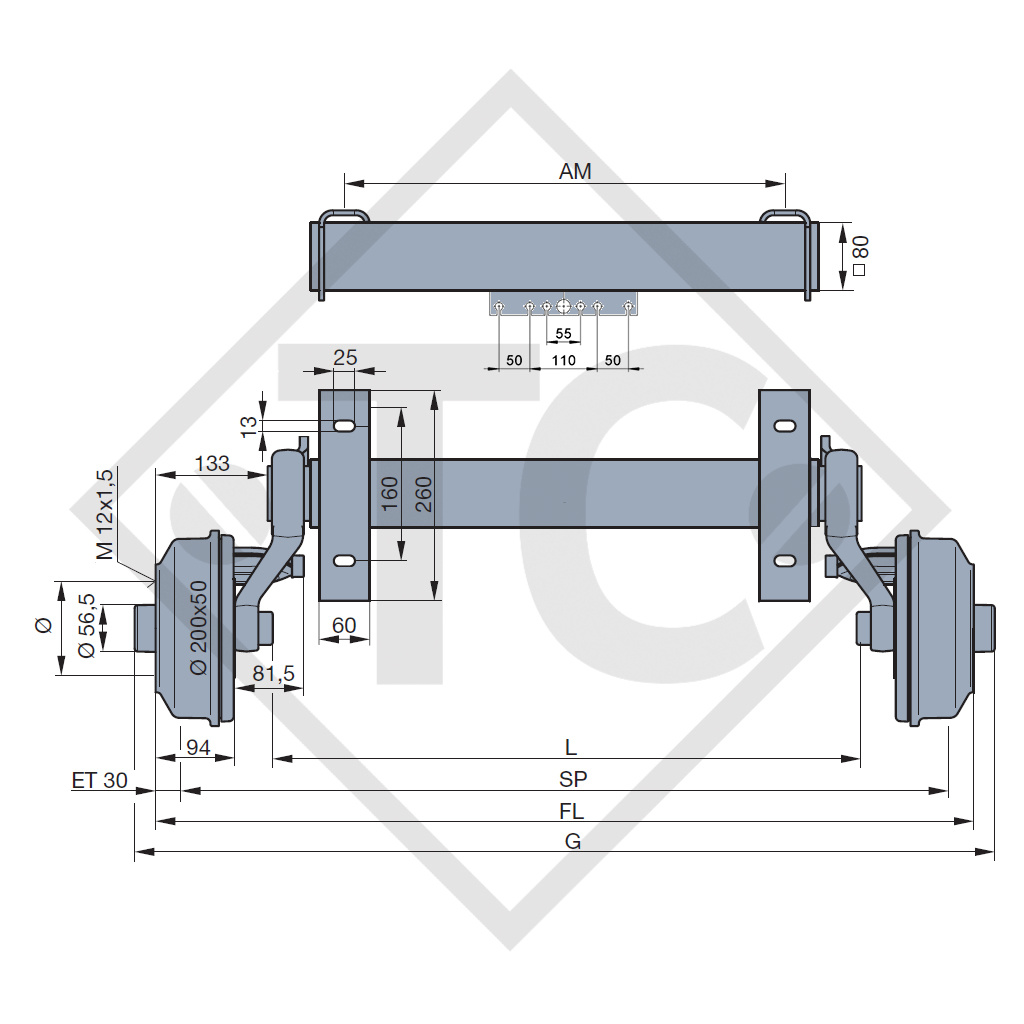

Dimension FL
 1535mm
Dimension SP
 1475mm
Dimension AM
 1090mm
Dimension L
 1257mm
Dimension G 1587mm
Model SWING
Axle type CB1505
Axle load single axle 1500kg
Axle load: Tandem axel 3000kg
Wheel brake S 2005-7 RASK
Suspension Square rubber suspension

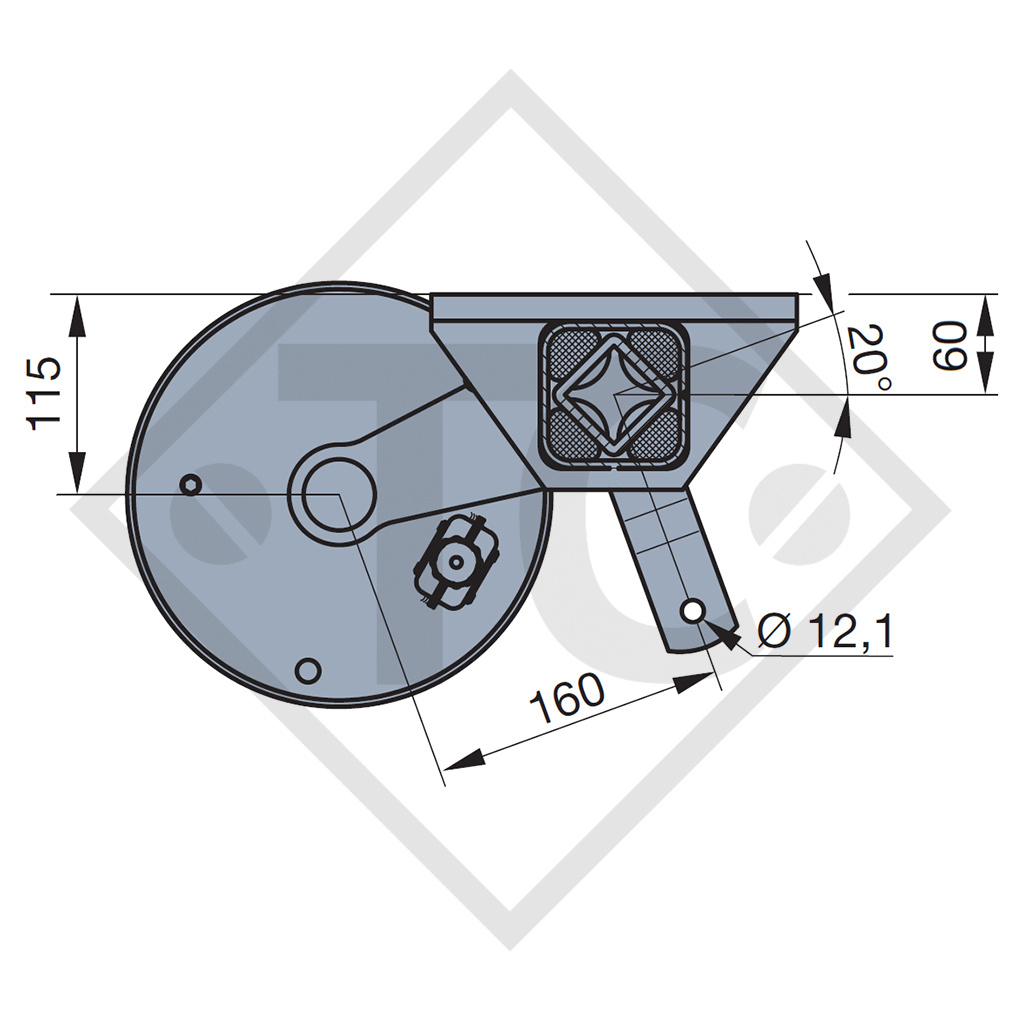

Swing arm 160mm
Wheel connection 112x5
Wheel bearing Compact bearings
Centre hole rim min. 56.5mm



Original operating instructions
Replacement part identification number (ETI) OLD XX.XX.379.XXX
Replacement part identification number (ETI) NEW 827030

SCOPE OF DELIVERY
Axle with brake
Welded-on shock absorber brackets

DETAILS

  • Speed up to 140 km/h
  • Drawbar connection: Clamping shells see Accessories
  • Axle shock absorber see Accessories
  • Wheel connections: 140x5 on demand
  • Special axle mounts and drawbar connections on demand
  • Also available with watertight bearings
  • Axle body fully hop-dip galvanised: Permanent surface protection
  • Independent wheel suspension: Optimum compensation of uneven road surfaces
  • Maintenance-free suspension: Lower maintenance costs
  • Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
  • Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
  • Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
  • Incl. shock absorber bracket
