Braked axle SWING 1350kg axle type CB 1355, 53.25.1.16.387, FLAMINGO, SARIS Braked axle SWING 1350kg axle type CB 1355, 53.25.1.16.387, FLAMINGO, SARIS Braked axle SWING 1350kg axle type CB 1355, 53.25.1.16.387, FLAMINGO, SARIS
Braked axle SWING 1350kg axle type CB 1355, 53.25.1.16.387, FLAMINGO, SARIS
Braked axle SWING 1350kg axle type CB 1355, 53.25.1.16.387, FLAMINGO, SARIS
Braked axle SWING 1350kg axle type CB 1355, 53.25.1.16.387, FLAMINGO, SARIS

BPW Braked axle SWING 1350kg axle type CB 1355, 53.25.1.16.387, FLAMINGO, SARIS

Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / AXLES / BRAKED AXLES & ACCESSORIES / ACCESSORIES FOR BRAKED AXLES / AXLE BOWDEN CABLES / BOWDEN CABLES WITH BELL AND THREADED PIECE M8 / Braked axle SWING 1350kg axle type CB 1355, 53.25.1.16.387, FLAMINGO, SARIS

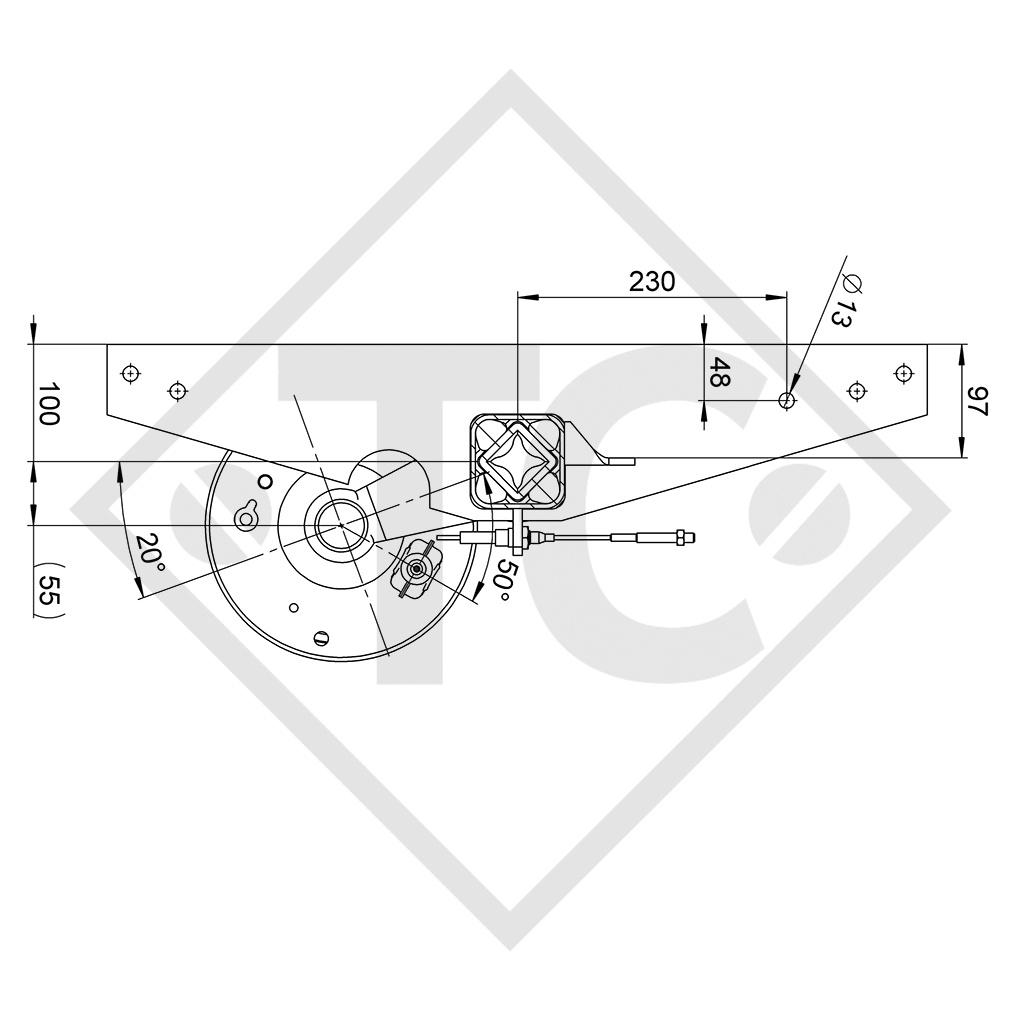

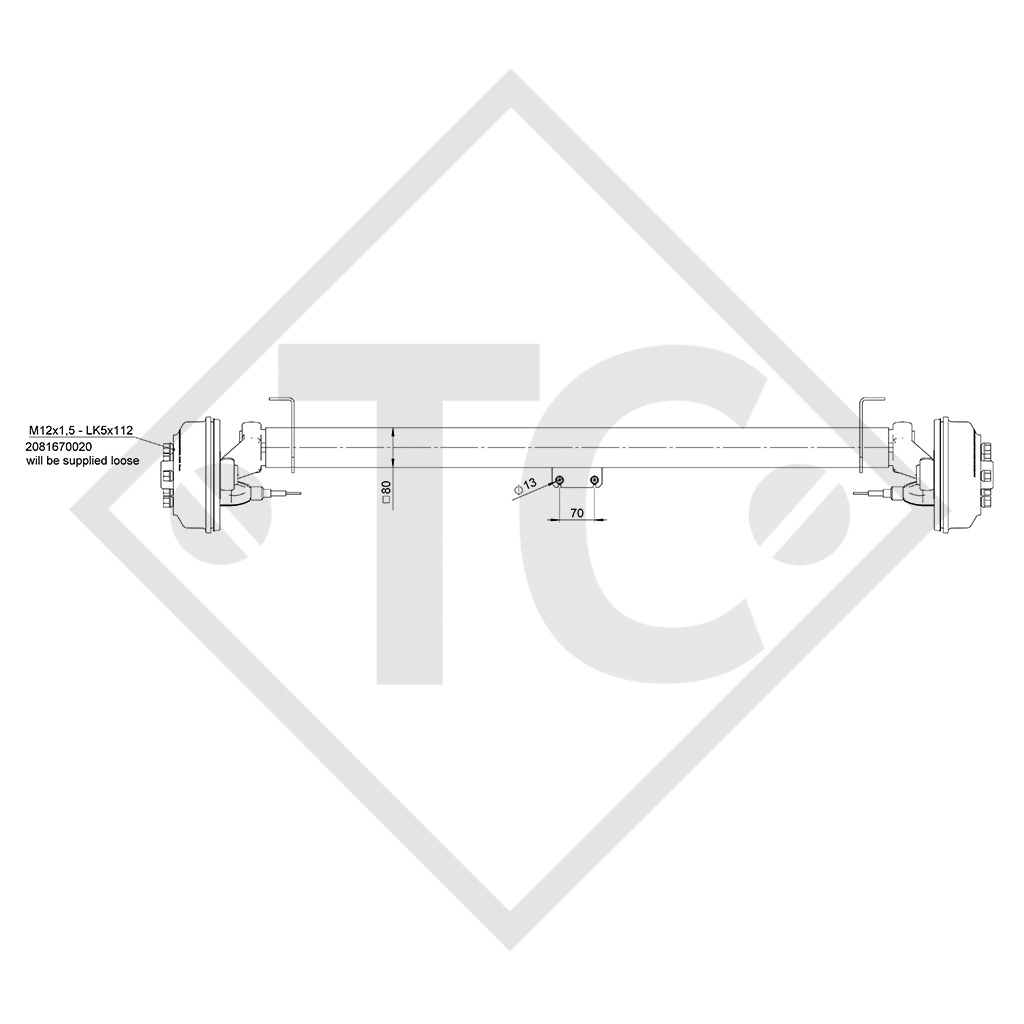

BC: dimension AM 1200mm, OHF: dimension FL 1620mm, wheel connection 112x5, wheel brake type S 2005 RASK, offset (ET) 30-35mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Product description

Part no. OLD 53.25.1.16.387 / 46.24.316.215
Part no. NEW 4024808

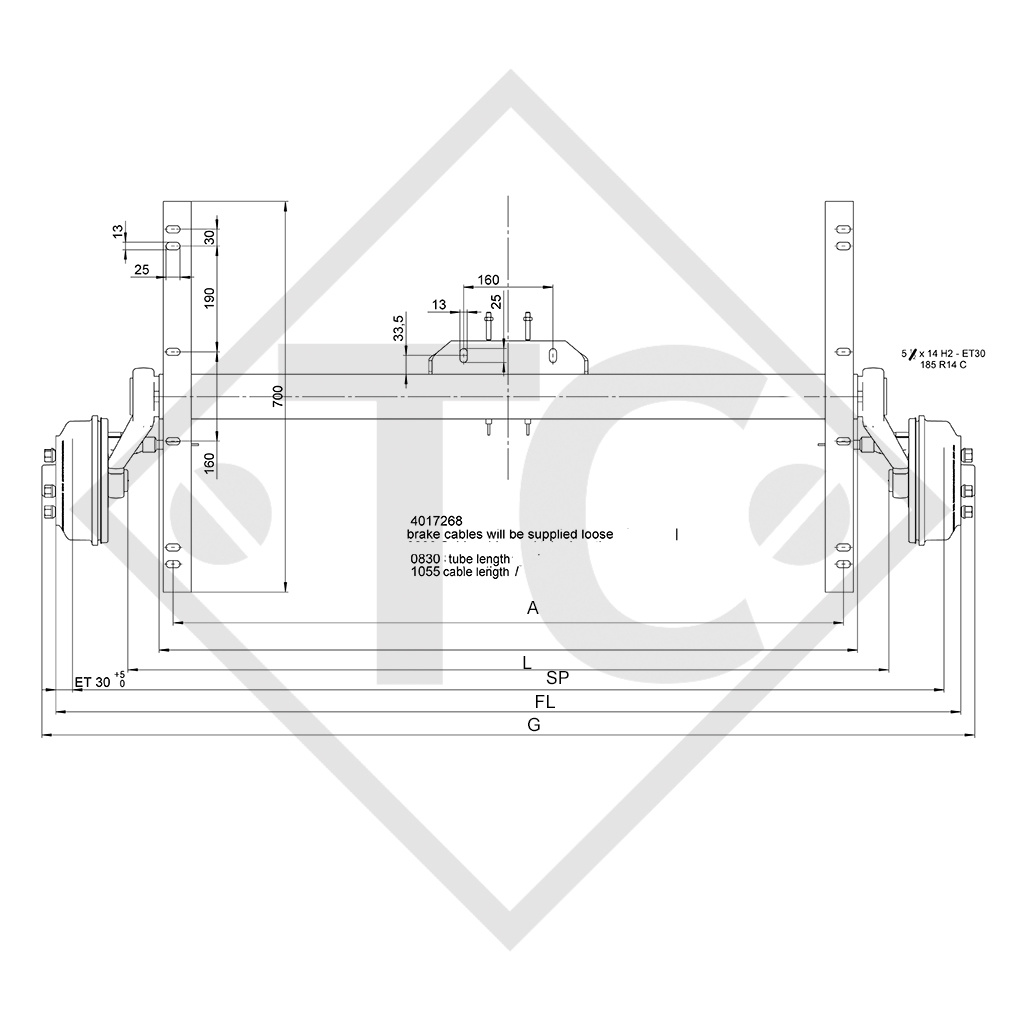

Dimension FL
 1620mm
Dimension SP
 1560mm
Dimension AM
 1200mm
Dimension L
 1362mm
Dimension G 1670mm
Axle type CB1355
Axle load single axle 1350kg
Axle load: Tandem axel 2700kg
Wheel brake S 2005 RASK
Suspension Square rubber suspension
Swing arm 160mm
Wheel connection 112x5
Wheel bearing Compact bearings
Centre hole rim min. 56.5mm



Original operating instructions
Replacement part identification number (ETI) OLD XX.XX.382.XXX
Replacement part identification number (ETI) NEW 827032

SCOPE OF DELIVERY
Axle incl. bowden cables loose
Welded-on shock absorber brackets
Ball-head wheel bolts M12x1.5 loose

DETAILS

  • Speed up to 140 km/h
  • Drawbar connection: Clamping shells see Accessories
  • Axle shock absorber see Accessories
  • Wheel connections: 98x4, 130x4, 120x5, 140x5 on demand
  • Special axle mounts and drawbar connections on demand
  • Also available with watertight bearings
  • Axle body fully hop-dip galvanised: Permanent surface protection
  • Independent wheel suspension: Optimum compensation of uneven road surfaces
  • Maintenance-free suspension: Lower maintenance costs
  • Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
  • Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
  • Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
  • Incl. shock absorber bracket
