AL-KO Braked axle 900kg EURO Compact axle type B 850-5

Part no. 185000466

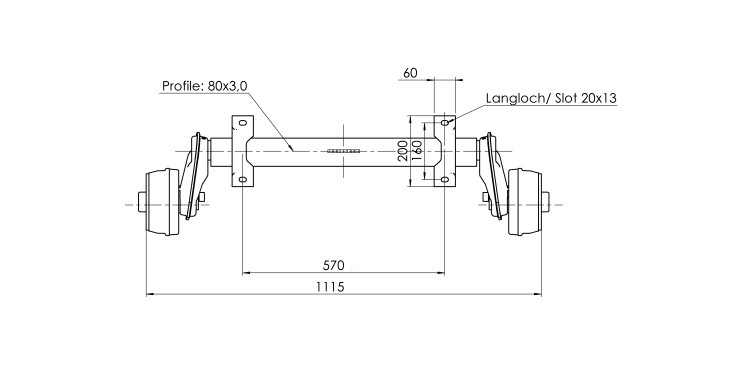

BC: dimension A 570mm
OHF: dimension C 1115mm
Wheel connection 100x4
Offset (ET) 27-33mm
Swing arm position 25°
Axle profile 80mm

Original operating instructions
Replacement part identification number (ETI) OLD 811267
Replacement part identification number (ETI) NEW 811944

TECHNOLOGY
Model: EURO Compact
Axle type: B 850-5
Axle load: Single axle 900kg
Axle load: Tandem axle 1800kg
Wheel brake: 1637
Suspension: Hexagonal rubber suspension
Swing arm length: 158mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle with wheel brake

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
