Braked axle 900kg axle type B 1000-1, TABBERT 600

Braked axle 900kg EURO PLUS axle type B 1000-1, TABBERT Comtesse 600

BC: dimension A 1756mm, OHF: dimension C 2269mm, wheel connection 100x4, wheel brake type 2051 vers. A, offset (ET) 27-33mm, swing arm position 25°, axle profile 97mm, taper-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Price 1.215,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 1344753

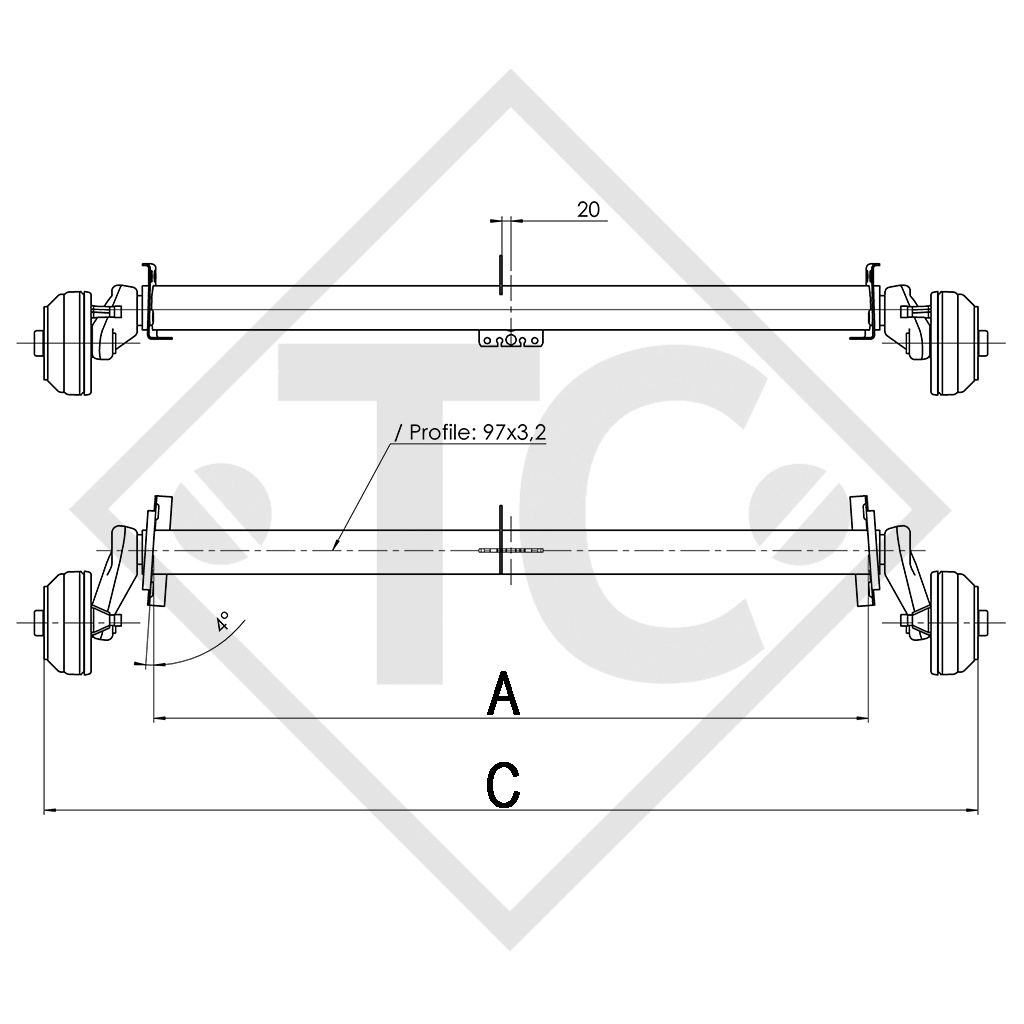

BC: dimension A 1756mm
OHF: dimension C 2269mm
Wheel connection 100x4
Offset (ET) 27-33mm

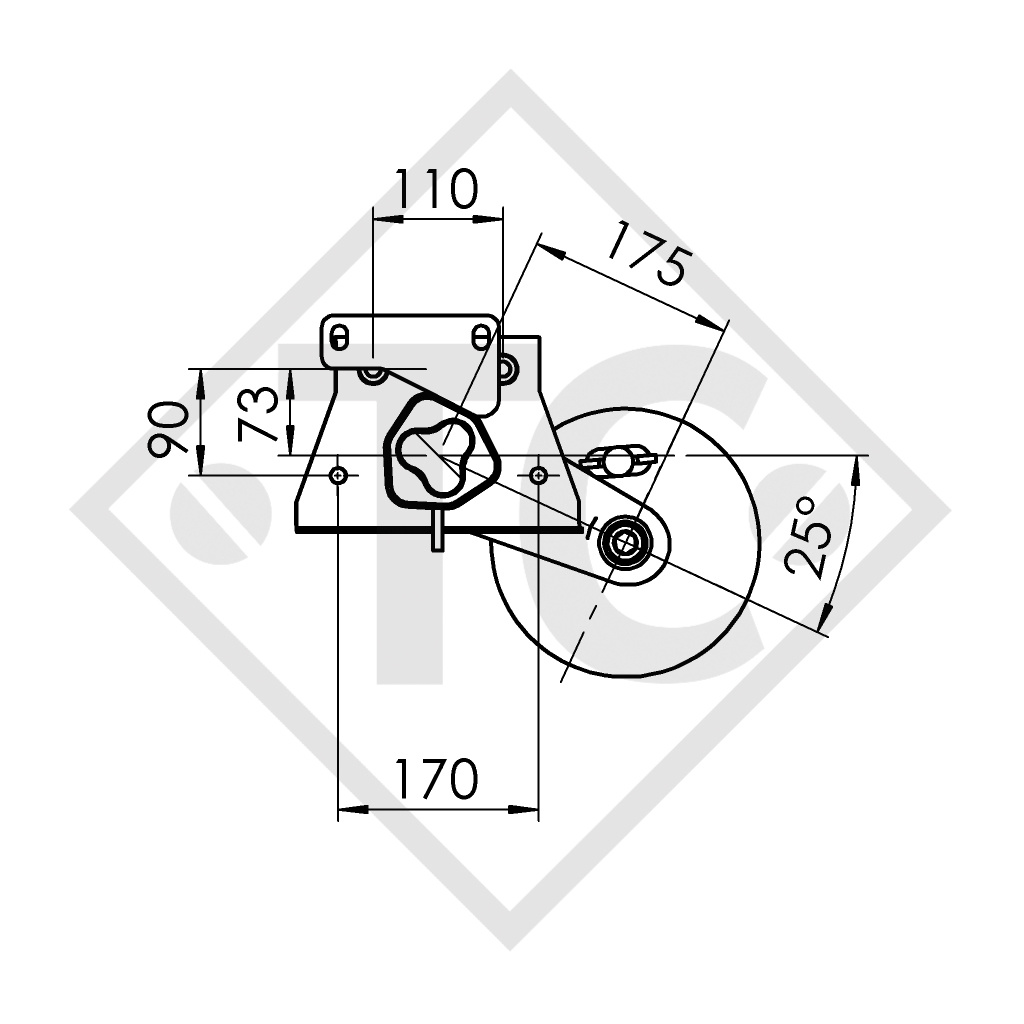

Swing arm position 25°
Axle profile 97mm

TECHNOLOGY
Model: EURO PLUS
Axle type: B 1000-1
Axle load: Single axle 900kg
Axle load: Tandem axle 1600kg
Wheel brake: 2051 vers. A
Suspension: Hexagonal rubber suspension
Swing arm length: 161,5mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle with brake
Taper-head wheel bolts M12x1.5 loose
Compensation profile for single axle supplied
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

AL-KO Braked axle 900kg EURO PLUS axle type B 1000-1, TABBERT Comtesse 600
