Braked axle 1000kg SWING axle type CB 1005, 46.20.382.074 Braked axle 1000kg SWING axle type CB 1005, 46.20.382.074 Braked axle 1000kg SWING axle type CB 1005, 46.20.382.074 Braked axle 1000kg SWING axle type CB 1005, 46.20.382.074
Braked axle 1000kg SWING axle type CB 1005, 46.20.382.074
Braked axle 1000kg SWING axle type CB 1005, 46.20.382.074
Braked axle 1000kg SWING axle type CB 1005, 46.20.382.074
Braked axle 1000kg SWING axle type CB 1005, 46.20.382.074

BPW Braked axle 1000kg SWING axle type CB 1005, 46.20.382.074

Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / AXLES / BRAKED AXLES & ACCESSORIES / ACCESSORIES FOR BRAKED AXLES / BOLT-ON DRAWBAR CONNECTION PROFILES FOR AXLES B 850-5, B 850-10, B 1000, B 1200-5, B 1200-6, B 1600-1 AND B 1600-3 / Braked axle 1000kg SWING axle type CB 1005, 46.20.382.074

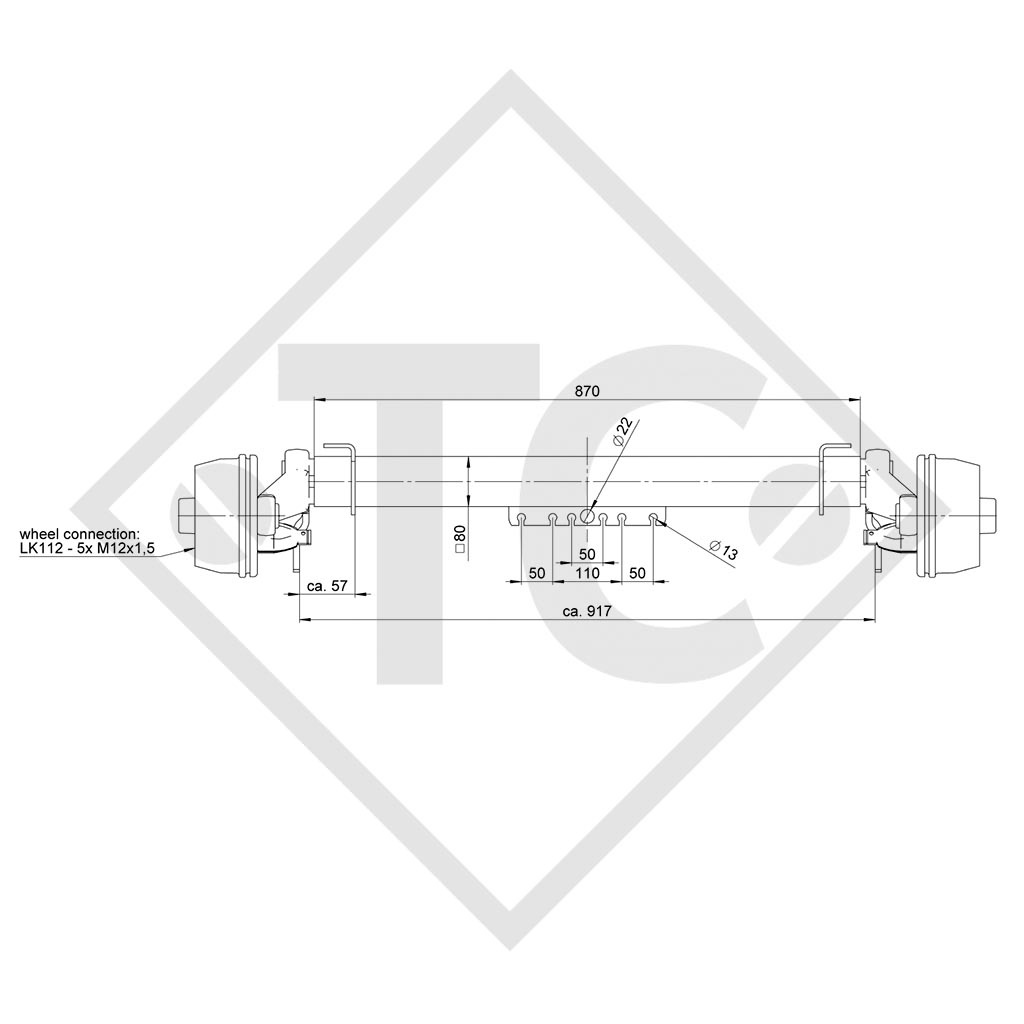

BC: dimension AM 800mm, OHF: dimension FL 1250mm, wheel connection 112x5, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Product description

Part no. OLD 46.20.382.074
Part no. NEW 4012755 or 4024936

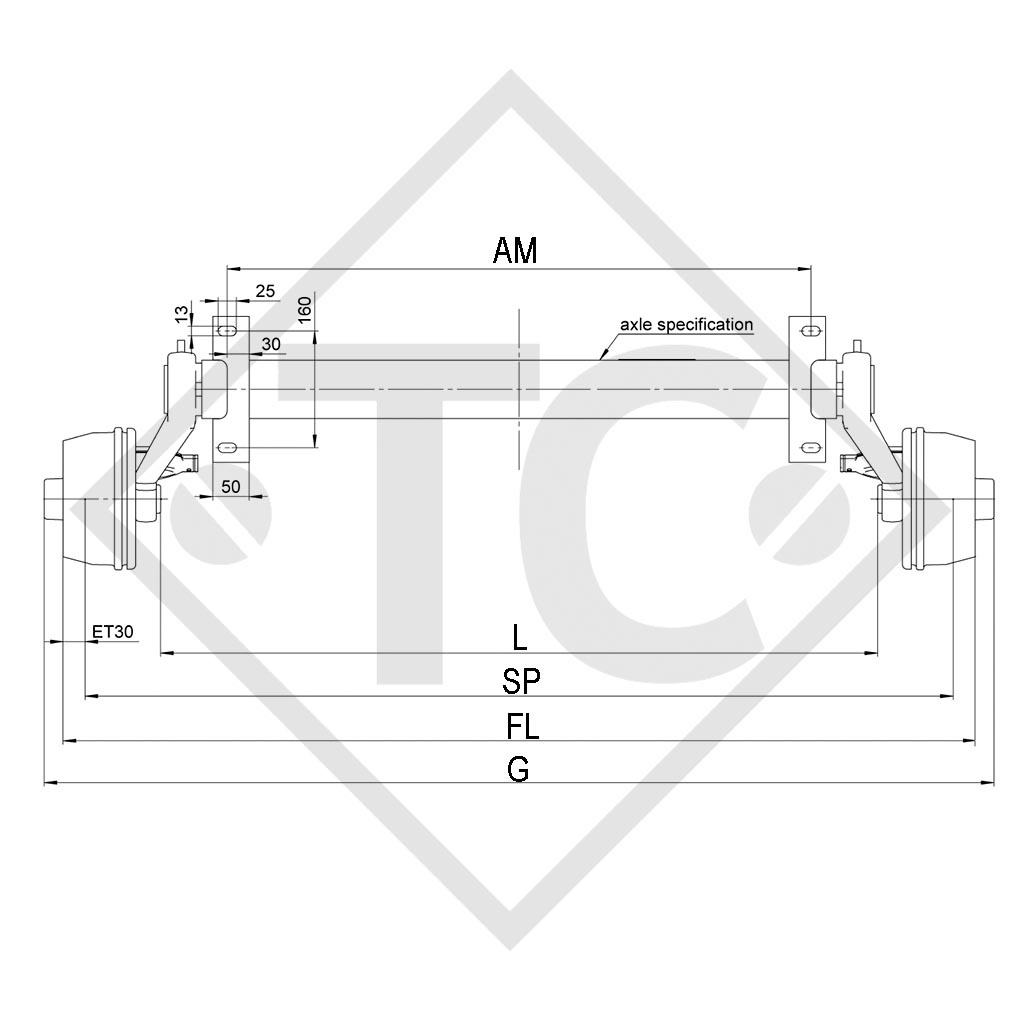

Dimension FL
 1250mm
Dimension SP
 1190mm
Dimension AM
 800mm
Dimension L
 983mm
Dimension G 1302mm
Model SWING
Axle type CB1005
Axle load single axle 1000kg
Axle load: Tandem axel 2000kg
Wheel brake S 1704-7 RASK
Suspension Square rubber suspension

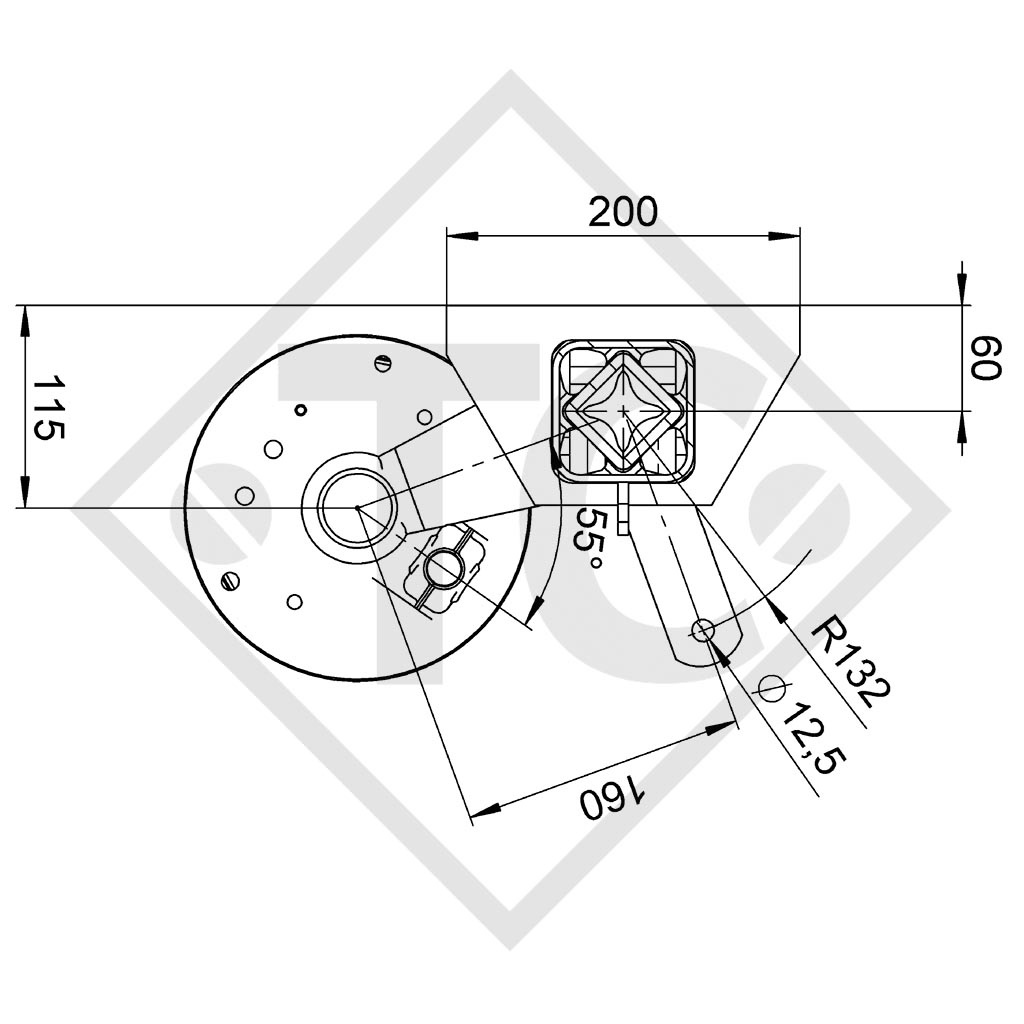

Swing arm 160mm
Wheel connection 112x5
Wheel bearing Compact bearings
Centre hole rim min. 56.5mm



Original operating instructions
Replacement part identification number (ETI) OLD XX.XX.382.XXX
Replacement part identification number (ETI) NEW 827032

SCOPE OF DELIVERY
Axle incl. bowden cables loose
Welded-on shock absorber brackets
Ball-head wheel bolts M12x1.5 loose

DETAILS

  • Speed up to 140 km/h
  • Drawbar connection: Clamping shells see Accessories
  • Axle shock absorber see Accessories
  • Wheel connections: 4x98; 4x130 on demand
  • Special axle mounts and drawbar connections on demand
  • Also available with watertight bearings
  • Axle body fully hop-dip galvanised: Permanent surface protection
  • Independent wheel suspension: Optimum compensation of uneven road surfaces
  • Maintenance-free suspension: Lower maintenance costs
  • Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
  • Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
  • Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
  • Incl. shock absorber bracket
