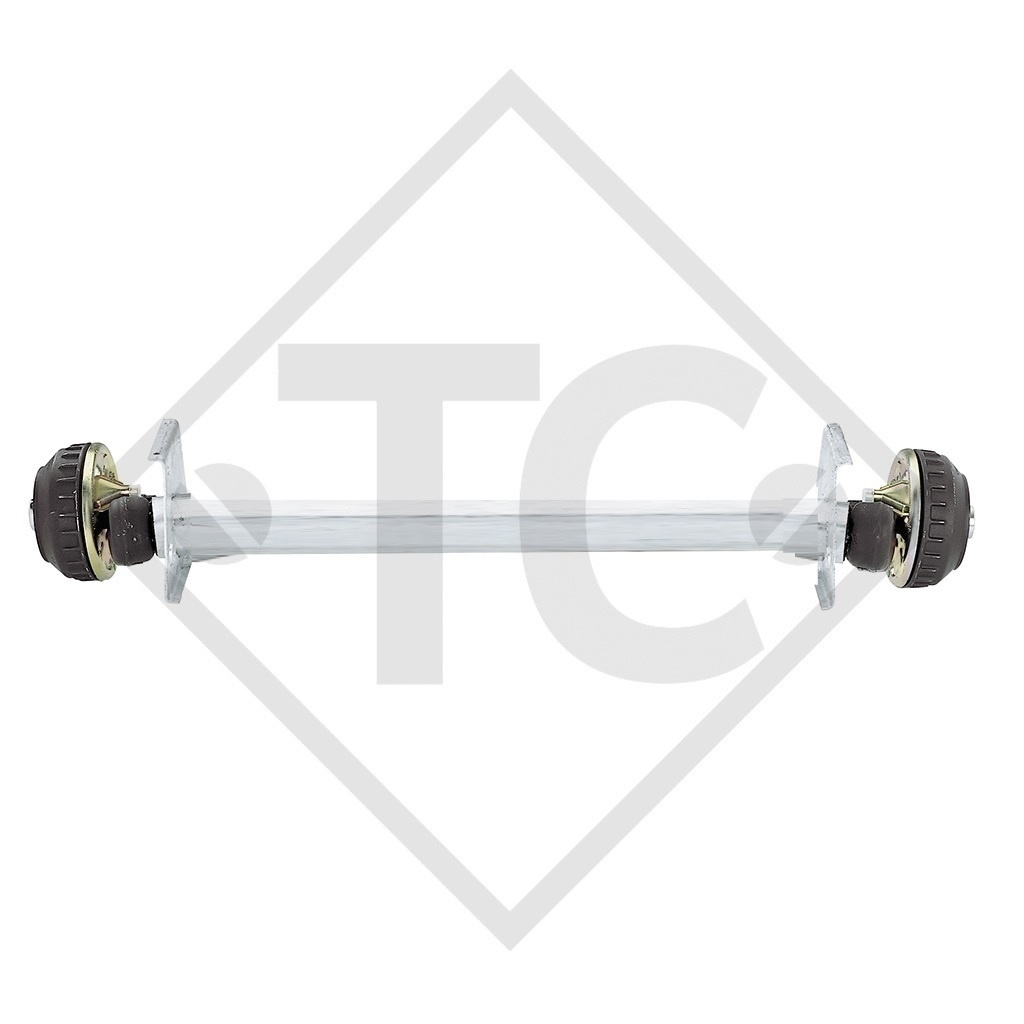

AL-KO Braked axle 850kg EURO1 axle type B 850-4, RAPIDO caravan

Part no. 1942017
BC: dimension A 1237mm
OHF: dimension C 1715mm
Wheel connection 130x4
Offset (ET) 30mm
Swing arm position 25°
Axle profile 80mm

Original operating instructions
Replacement part identification number (ETI) 811944

TECHNOLOGY
Model: EURO1
Axle type: B 850-4
Axle load: Single axle 850kg
Axle load: Tandem axle 1700kg
Wheel brake: 1637
Suspension: Hexagonal rubber suspension
Swing arm length: 160mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle with wheel brake

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber
