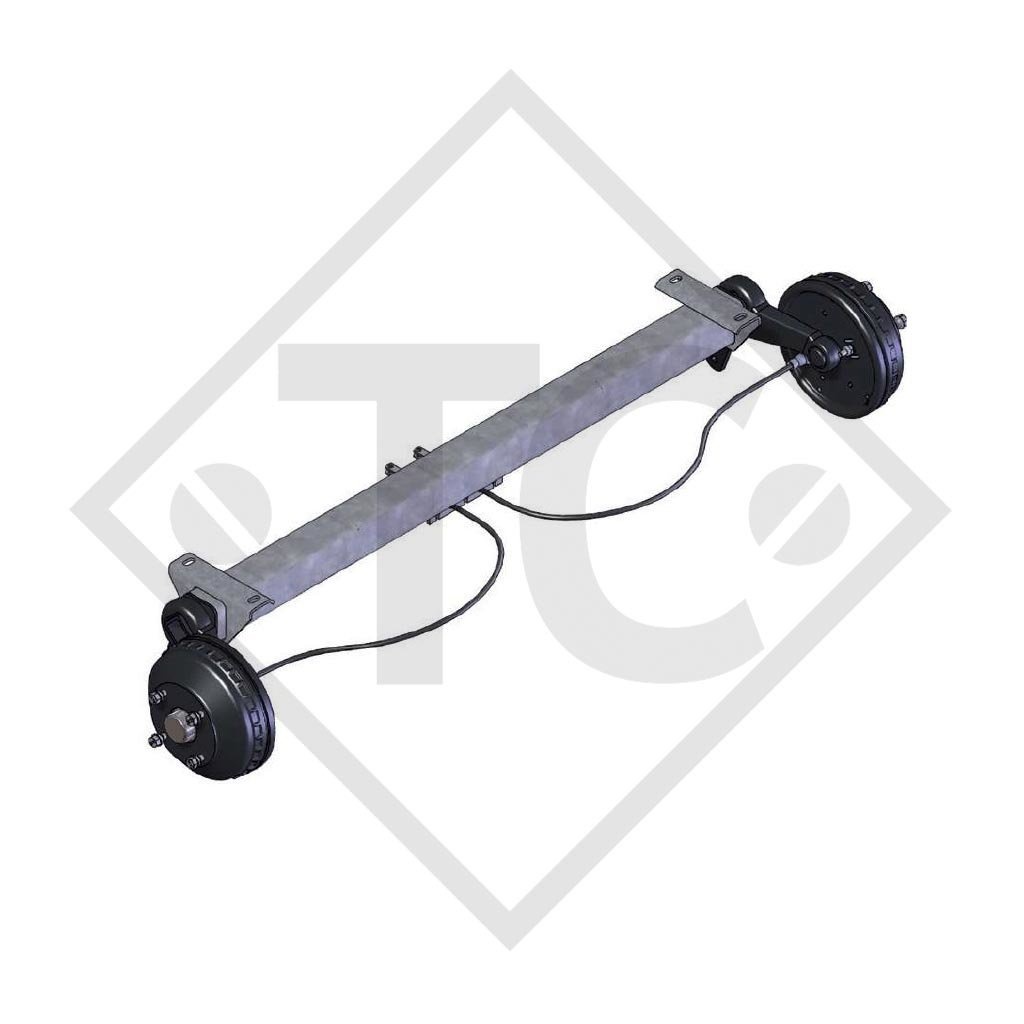

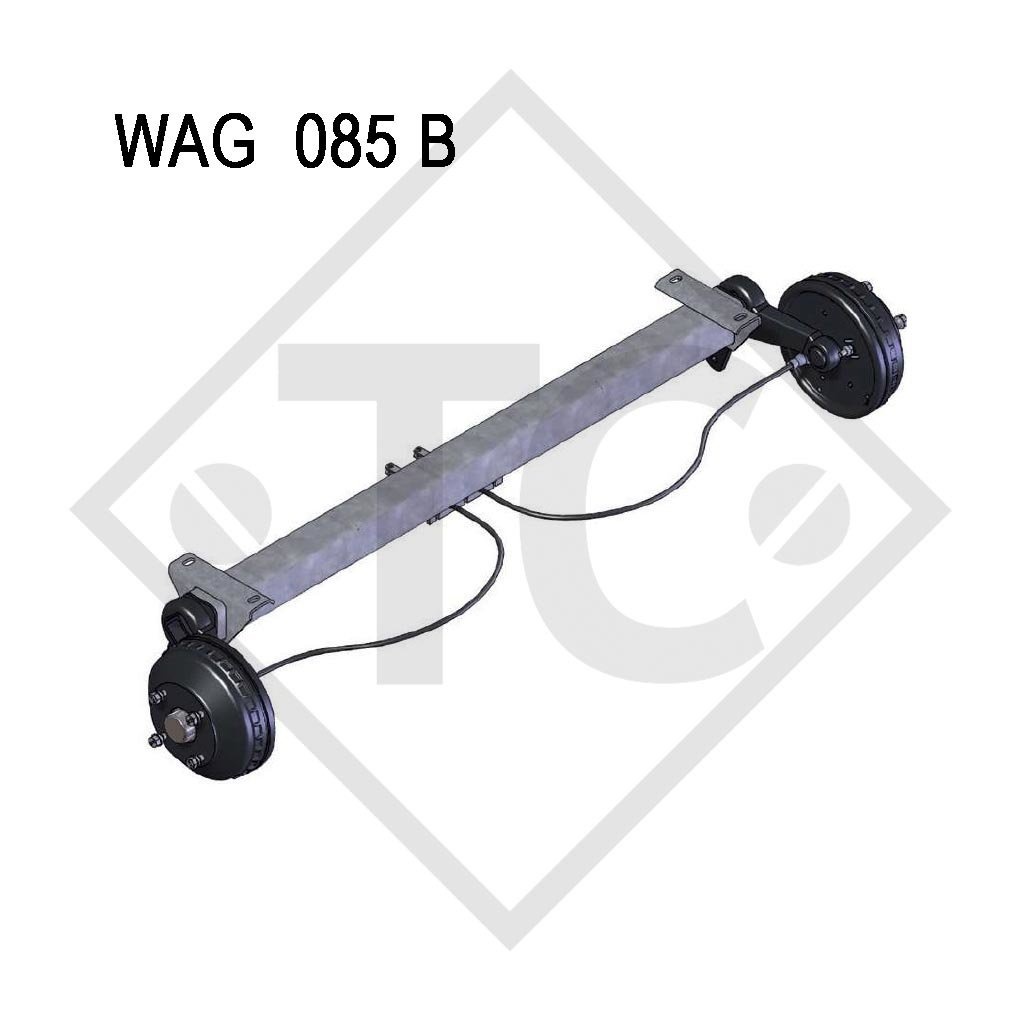

Braked axle 850kg axle type WAG 085 B

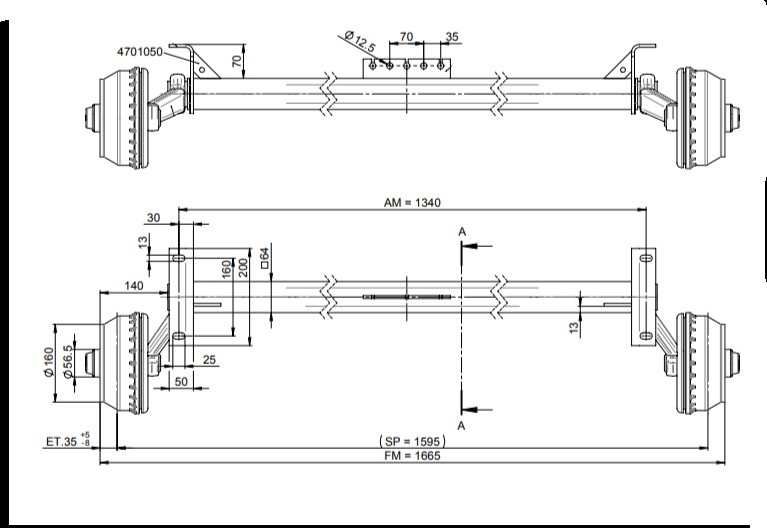

BC: dimension AM 1340mm, OHF: dimension FM 1665mm, wheel connection 112x5, wheel brake type W 184 RS, offset (ET) 35mm. Read more...

Wishlist: Add to comparison:

Price 800,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20-25 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no.

WAPWAG085B1/184

Dimension AM

1340mm

Dimension FM

1665mm

Wheel connection

112x5

Spare part list.pdf

TECHNOLOGY
Model: WAG-B
Axle type: WAG 085 B1/184
Axle load: 850kg
Suspension: Square rubber suspension
Swing arm length: 145mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle with brake
Ball-head wheel bolts M12x1.5 loose

SURFACE TREATMENT
Axle profile hot-dip galvanised

WAP Braked axle 850kg axle type WAG 085 B

Product description

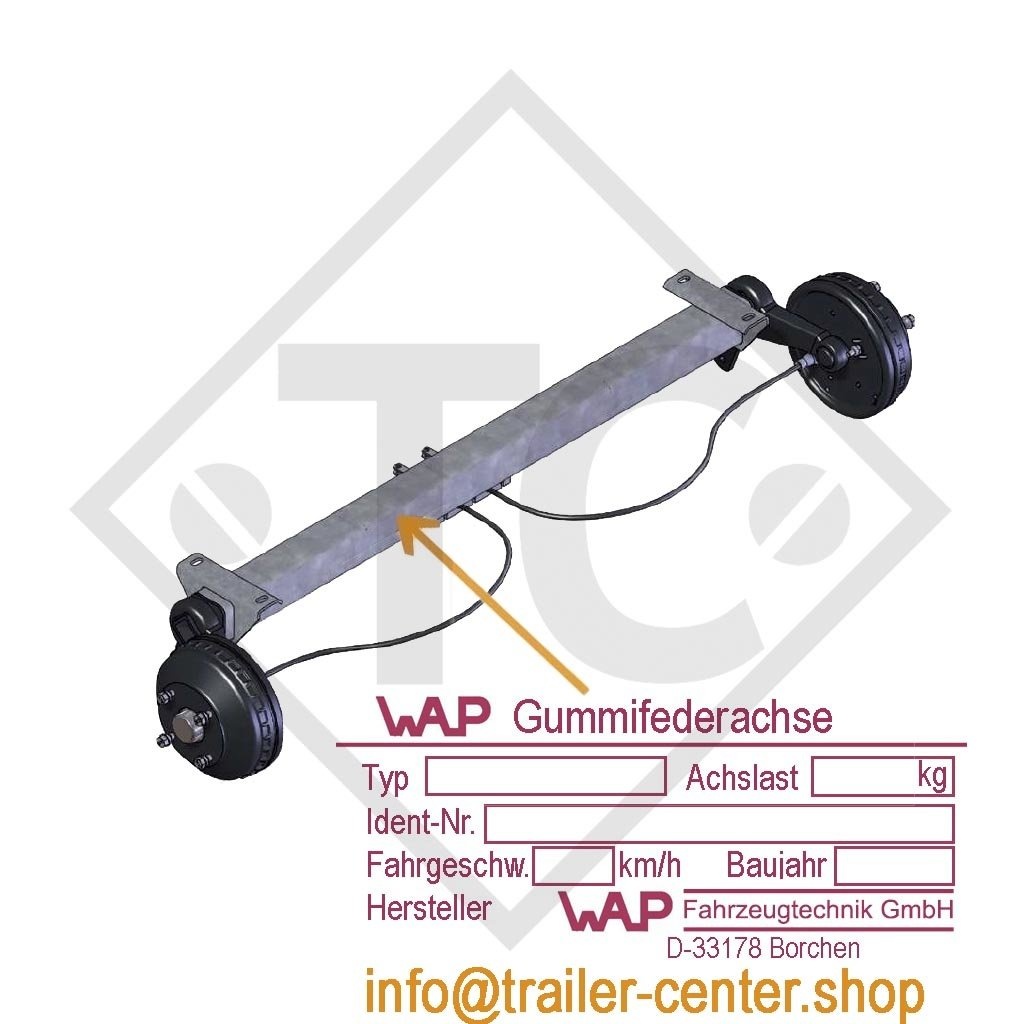

Simply send us a photo of your axle type plate, together with your address and telephone number to

[email protected]

Please feel free to avail of our service and request a non-binding offer by email today!
