AL-KO Braked axle 750kg axle type B 700-5 - HYMER, Eriba puck L 225

Part no. 1270495

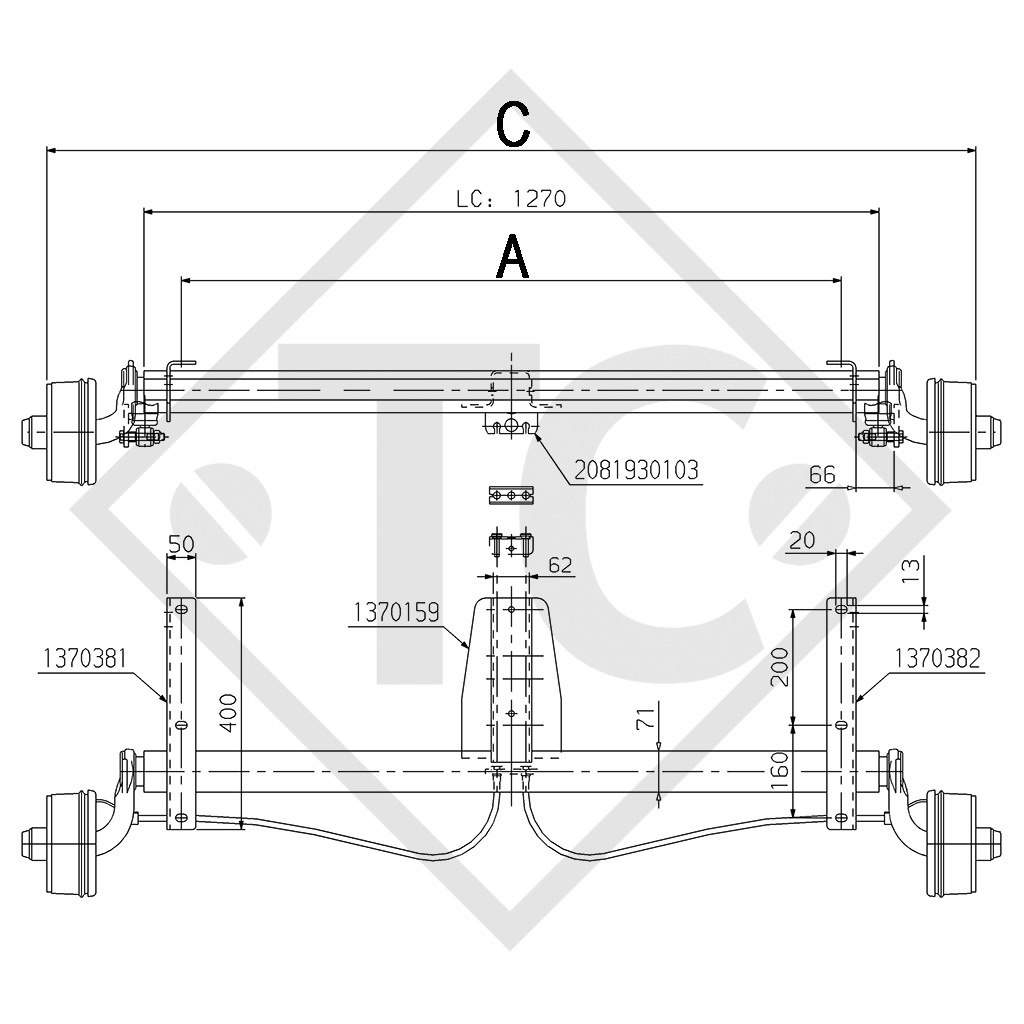

BC: dimension A 1140mm
OHF: dimension C 1605mm
Wheel connection 100x4
Offset (ET) 20-33mm

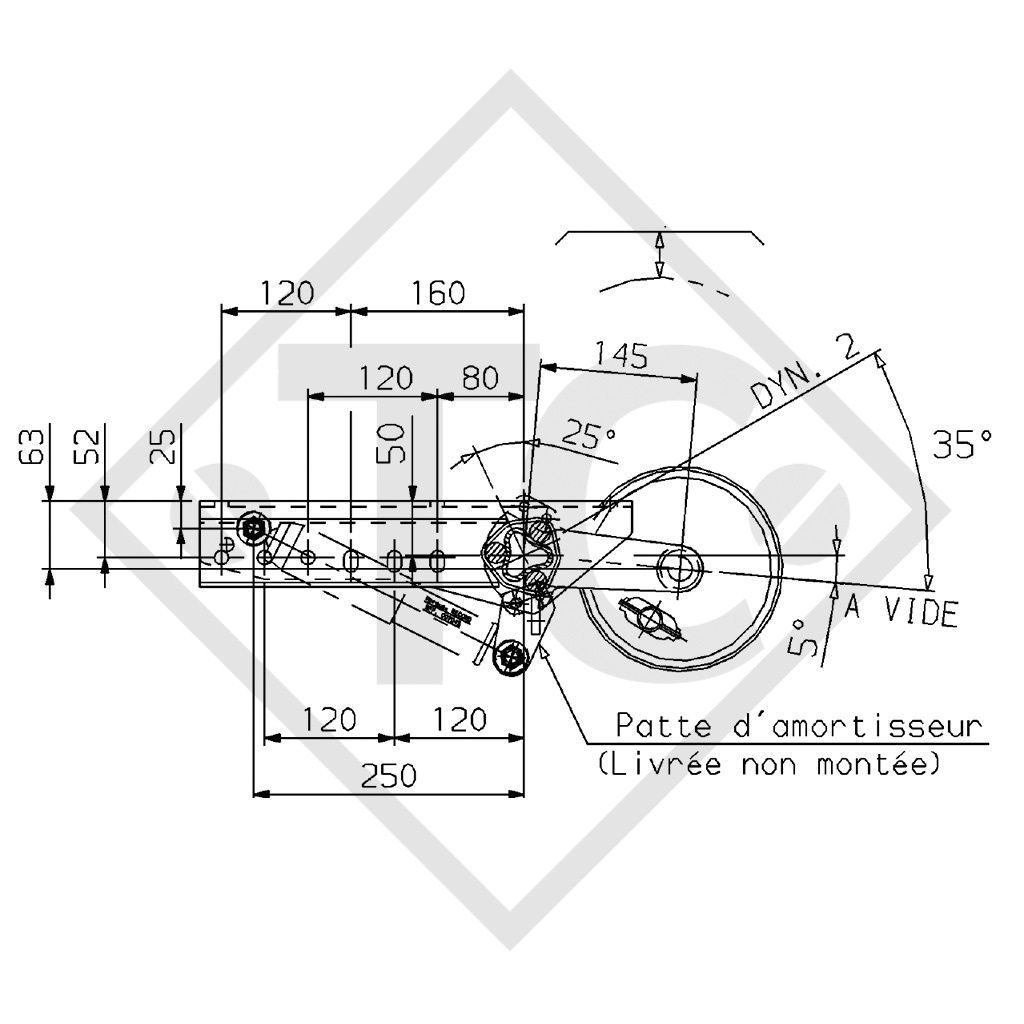

Swing arm position 5°
Axle profile 71mm

Original operating instructions
Replacement part identification number (ETI) OLD 811267
Replacement part identification number (ETI) NEW 811944

TECHNOLOGY
Model: GU 750
Axle type: B 700-5
Axle load: 750kg
Suspension: Hexagonal rubber suspension
Swing arm length: 145mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle with brake and shock absorber brackets

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake black-primed
