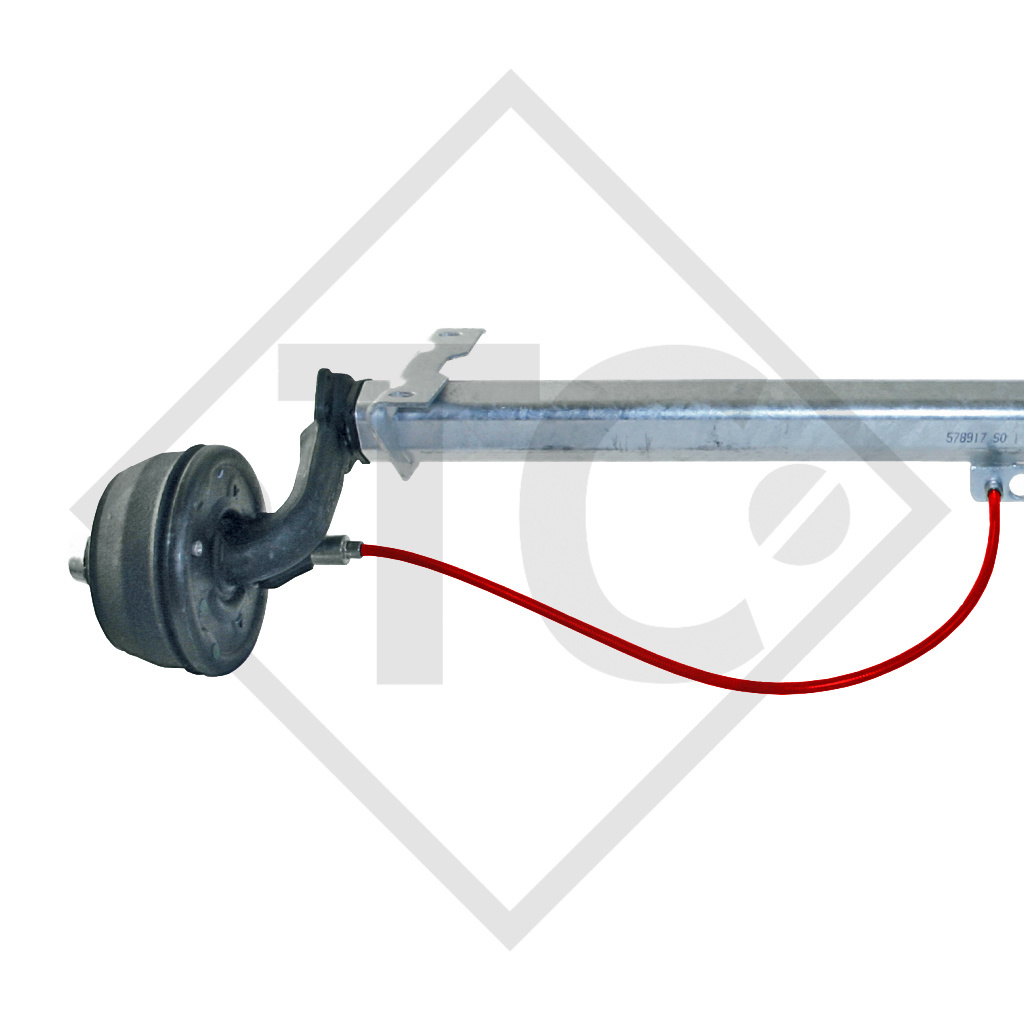

Home / Tags / alko axle b 700-5 / Braked axle 750kg axle type B 700-5
BC: dimension A 1400mm, OHF: dimension C 1840mm, wheel connection 98x4, wheel brake type 1636, offset (ET) 27-45mm, swing arm position 30°, axle profile 71mm, taper-head wheel bolts M12x1.5. Read more...
Part no. 1227061

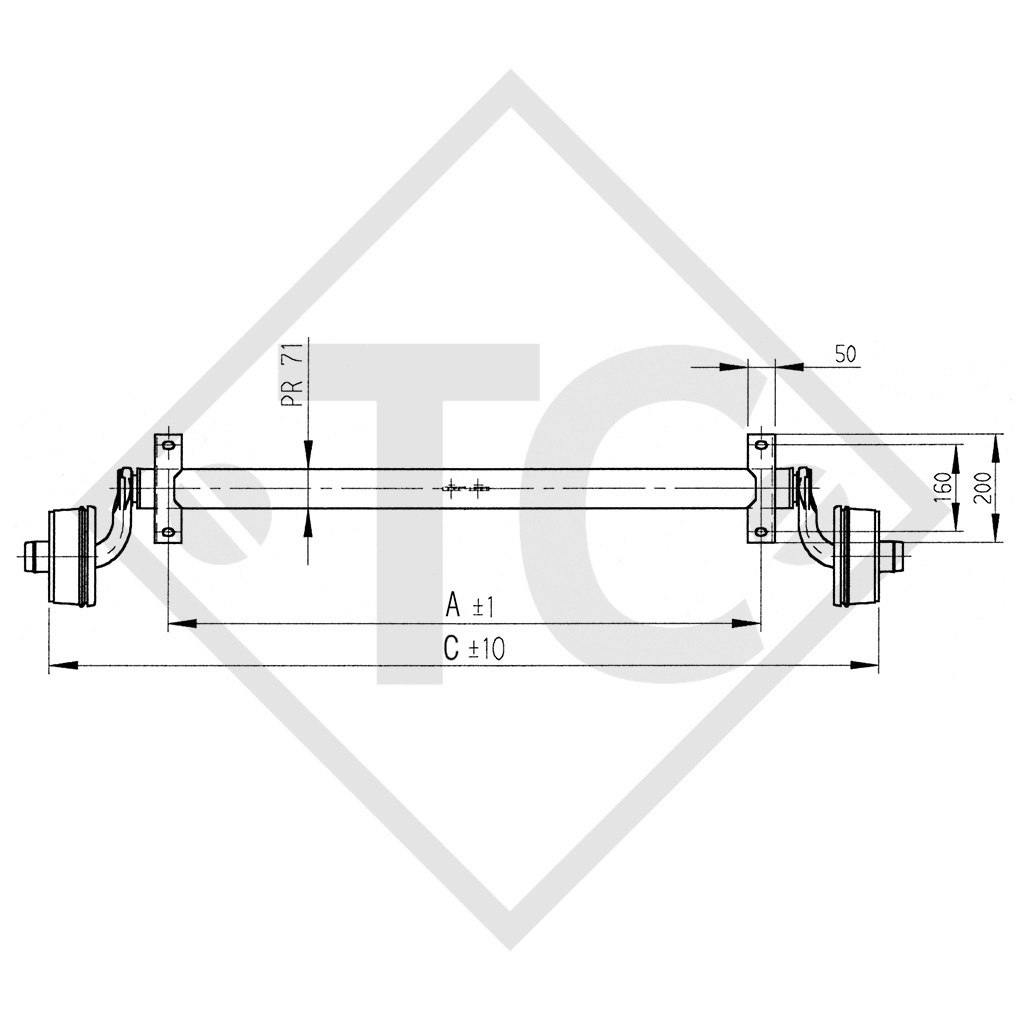

BC: dimension A 1400mm
OHF: dimension C 1840mm
Wheel connection 98x4

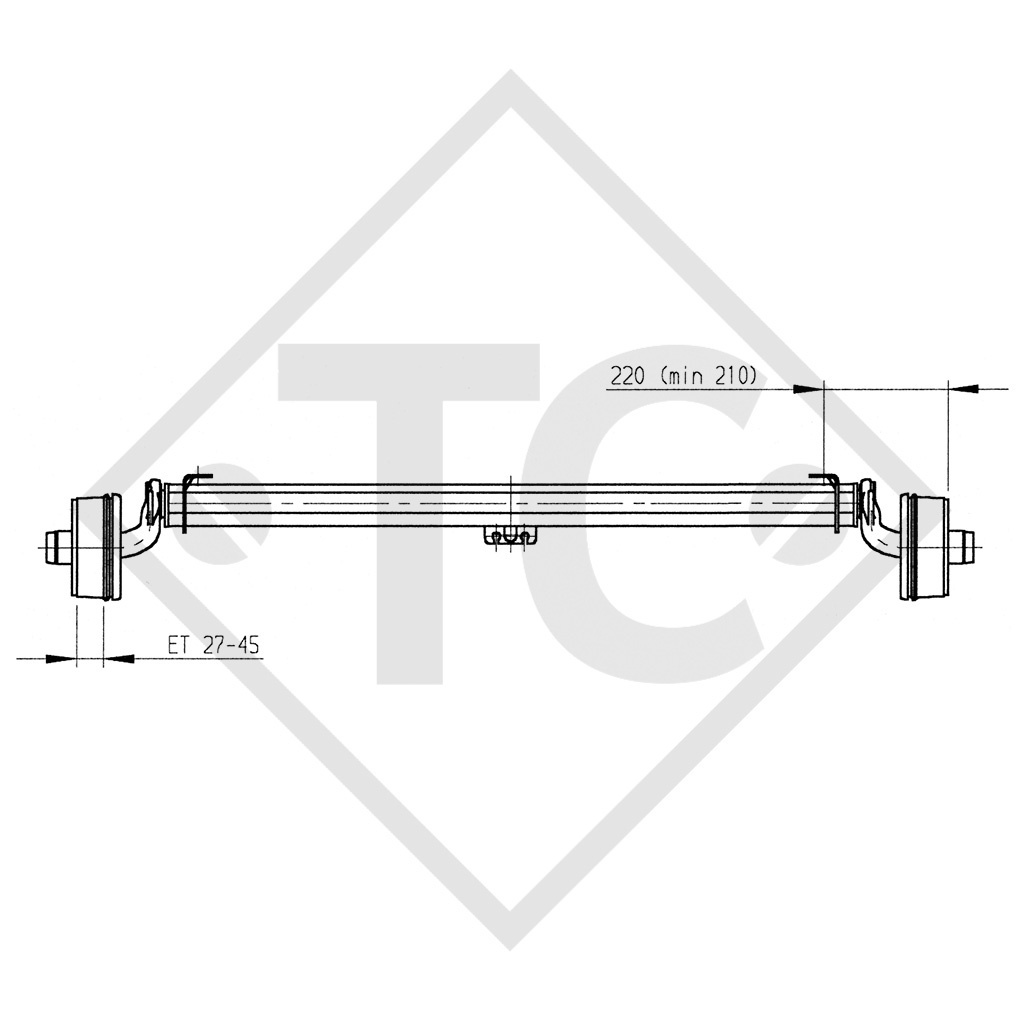

Offset (ET) 27-45mm

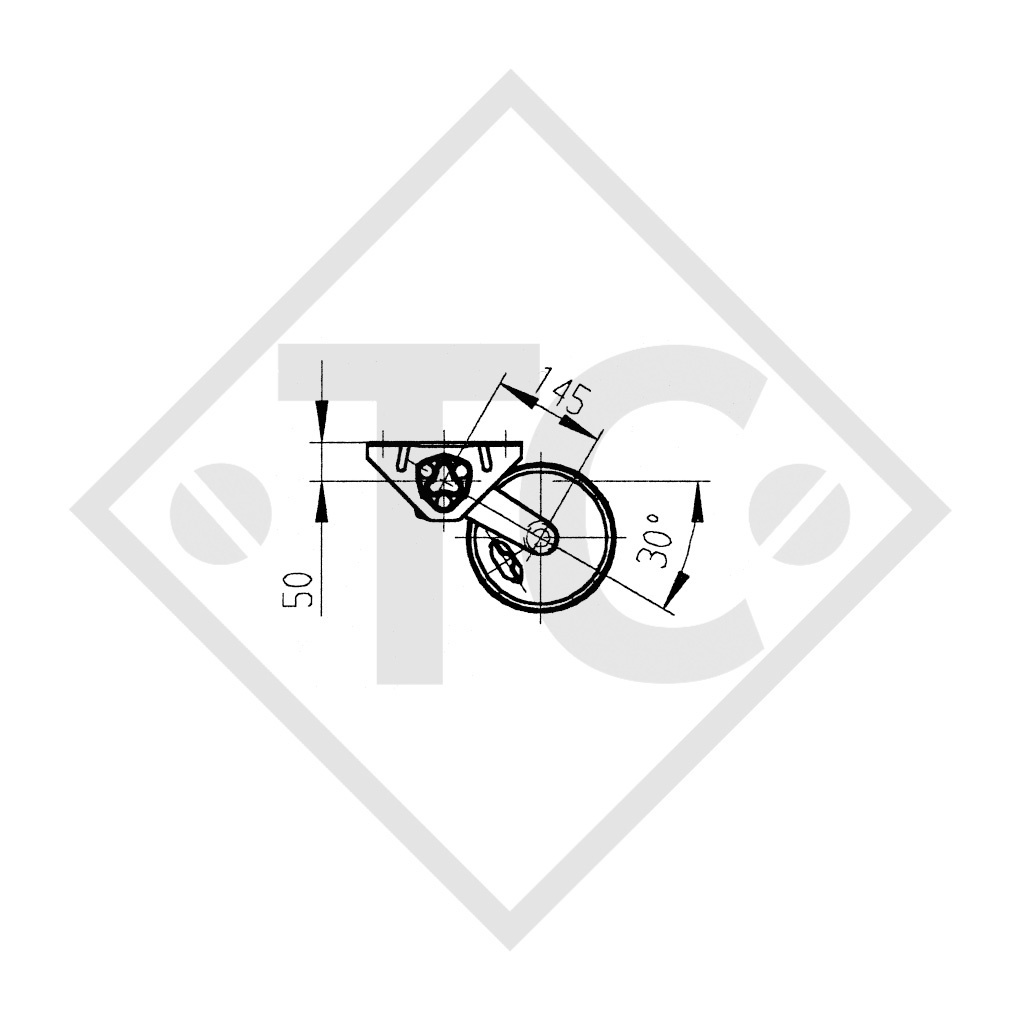

Swing arm position 30°
Axle profile 71mm
Original operating instructions
Replacement part identification number (ETI) 811285
TECHNOLOGY
Model: GU LNGS GRM EA 750
Axle type: B 700-5
Axle load: 750kg / tandem: 1300kg
Suspension: Hexagonal rubber suspension
Swing arm length: 145mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY

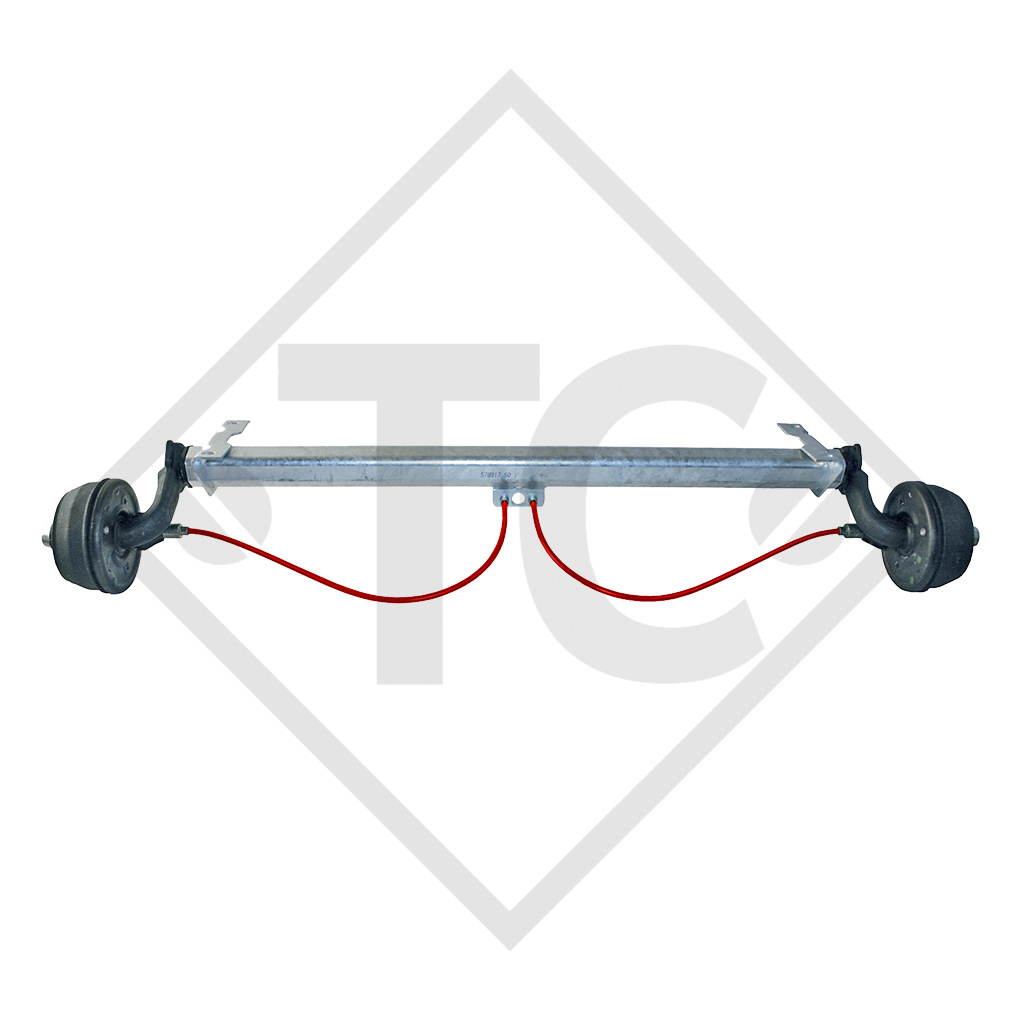

Axle with brake
Taper-head wheel bolts M12x1.5 loose
Bowden cables loose
Without shock absorber brackets
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake black-primed
