Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / OVERRUN DEVICES / OVERRUN DEVICES V / TOWBAR CONNECTIONS V, TOWBAR CONNECTION, JOCKEY WHEEL CROSSMEMBER, BRAKE ROD / PULL BAR WITH FIXING BOLTS / Braked axle 750kg axle type B 700-5, Rapido, Orline

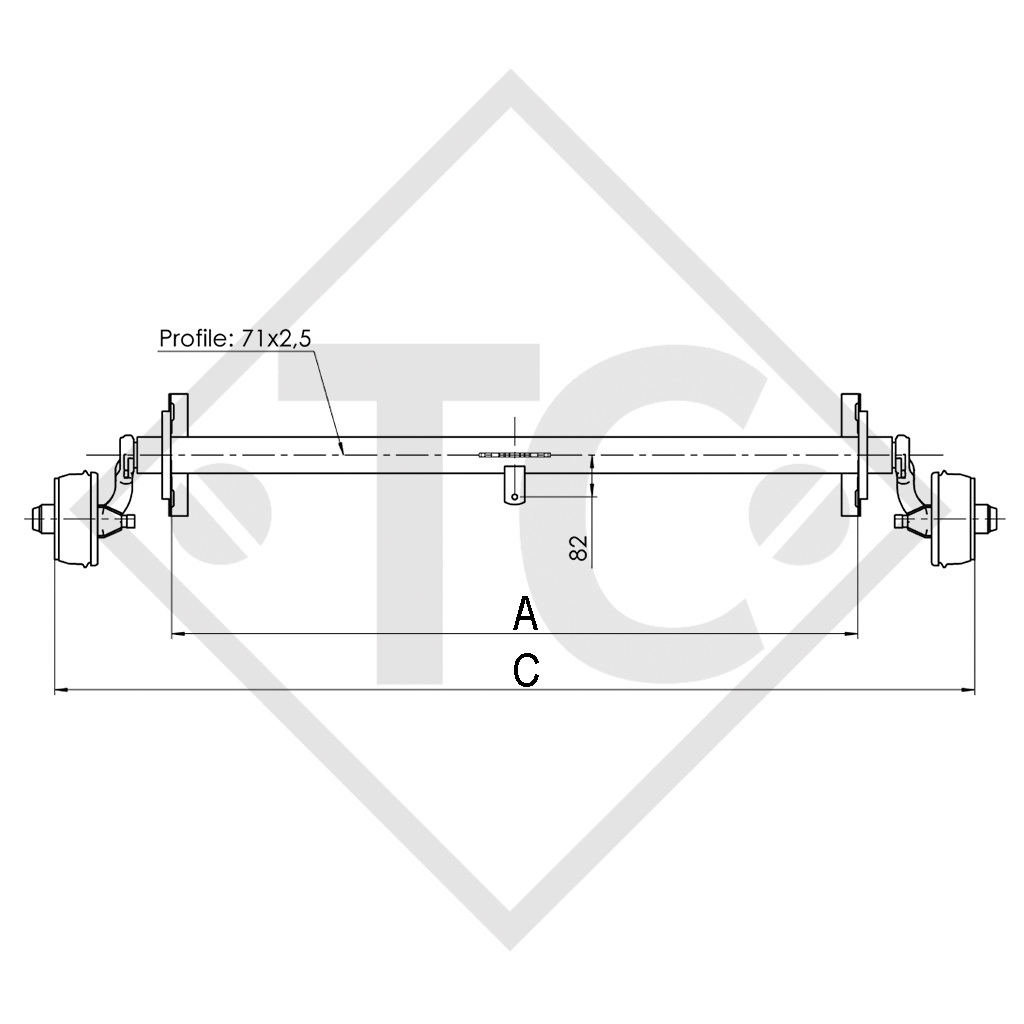

BC: dimension A 992mm, OHF: dimension C 1465mm, wheel connection 130x4, wheel brake type 1637, offset (ET) 27-45mm, swing arm position 30°, axle profile 71mm. Read more...
Part no. 1905726XX
BC: dimension A 992mm
OHF: dimension C 1465mm
Wheel connection 130x4
Offset (ET) 27-45mm

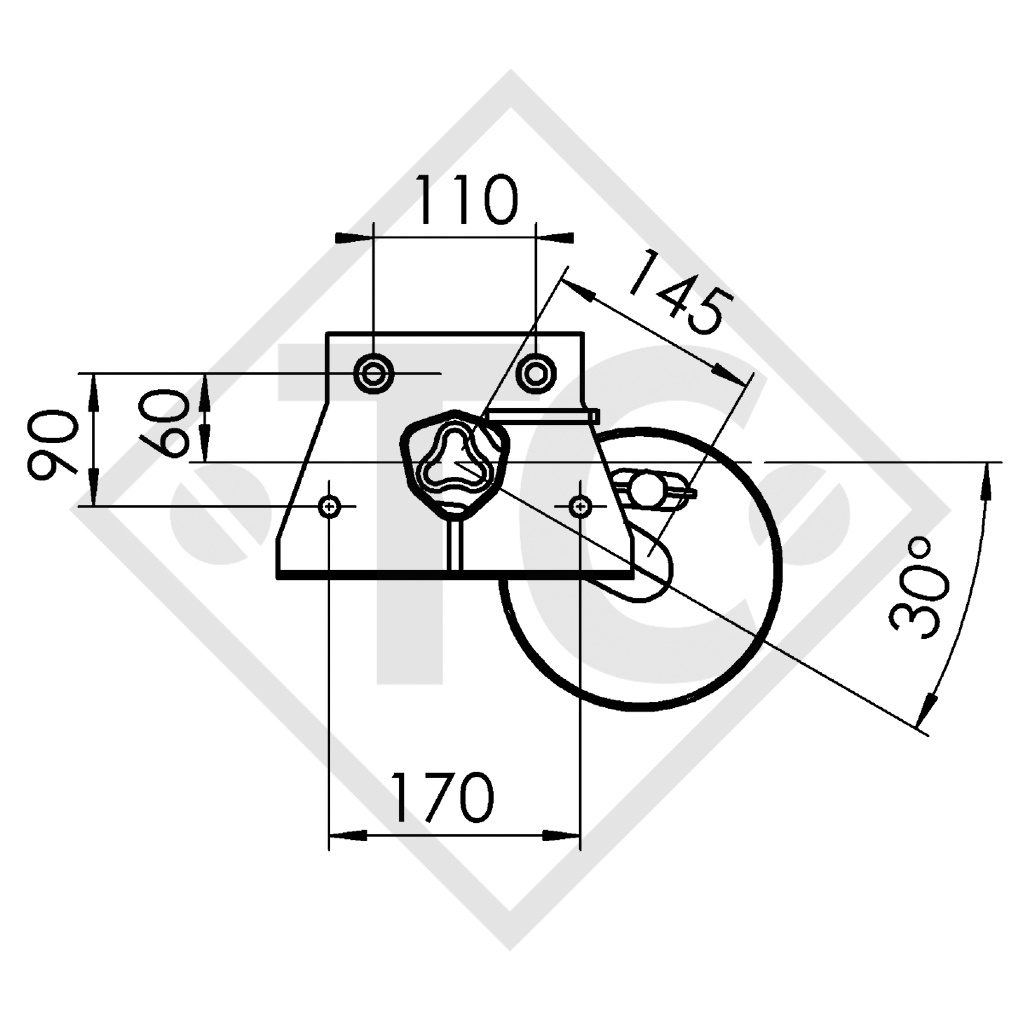

Swing arm position 30°
Axle profile 71mm
Original operating instructions
Replacement part identification number (ETI) 811285
TECHNOLOGY
Model: FTF
Axle type: B 700-5
Axle load: 750kg
Suspension: Hexagonal rubber suspension
Swing arm length: 145mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Compensation profile for single axle supplied
Without shock absorber brackets
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake black-primed
