Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / OVERRUN DEVICES / OVERRUN DEVICES SQUARE / OVERRUN DEVICE SQUARE, WITH DRAWBAR SECTION, SIDEWAYS SWIVELLING / SQUARE OVERRUN DEVICE, WITH SIDEWAYS SWIVELLING DRAWBAR SECTION TYPE 2,8 VB/1-C - K35-S TO 3500KG WITHOUT HITCH COMPONENT / Braked axle 650kg axle type WAG 065 B

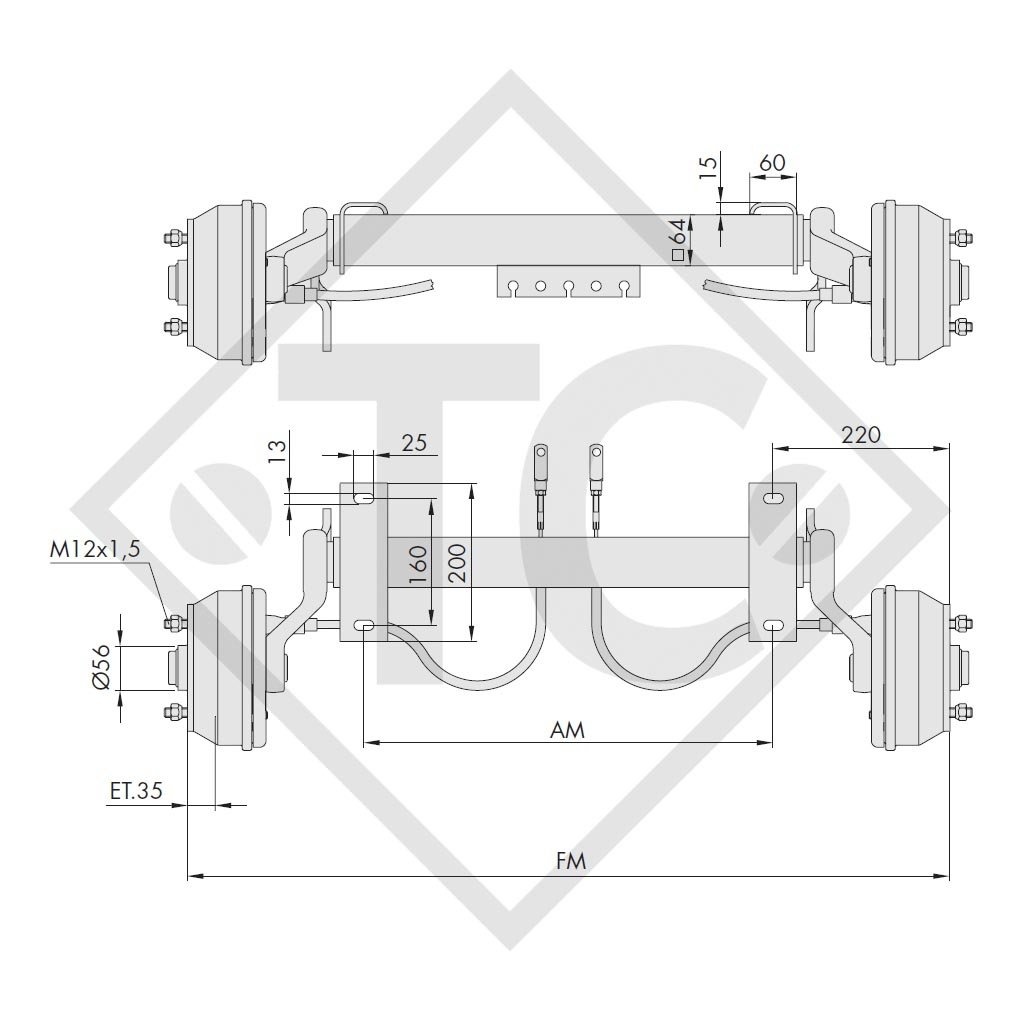

BC: dimension AM 1950mm, OHF: dimension FM 2390mm, wheel connection 100x4, wheel brake type W 184 RS, offset (ET) 35mm, taper-head wheel bolts M12x1.5. Read more...
| Part no. | WAPWAG065B048 |
| Dimension AM |
1950mm |
| Dimension FM |
2390mm |
| Wheel connection | 100x4 |
TECHNOLOGY
Model: WAG-B
Axle type: WAG 065 B
Axle load: 650kg
Suspension: Square rubber suspension

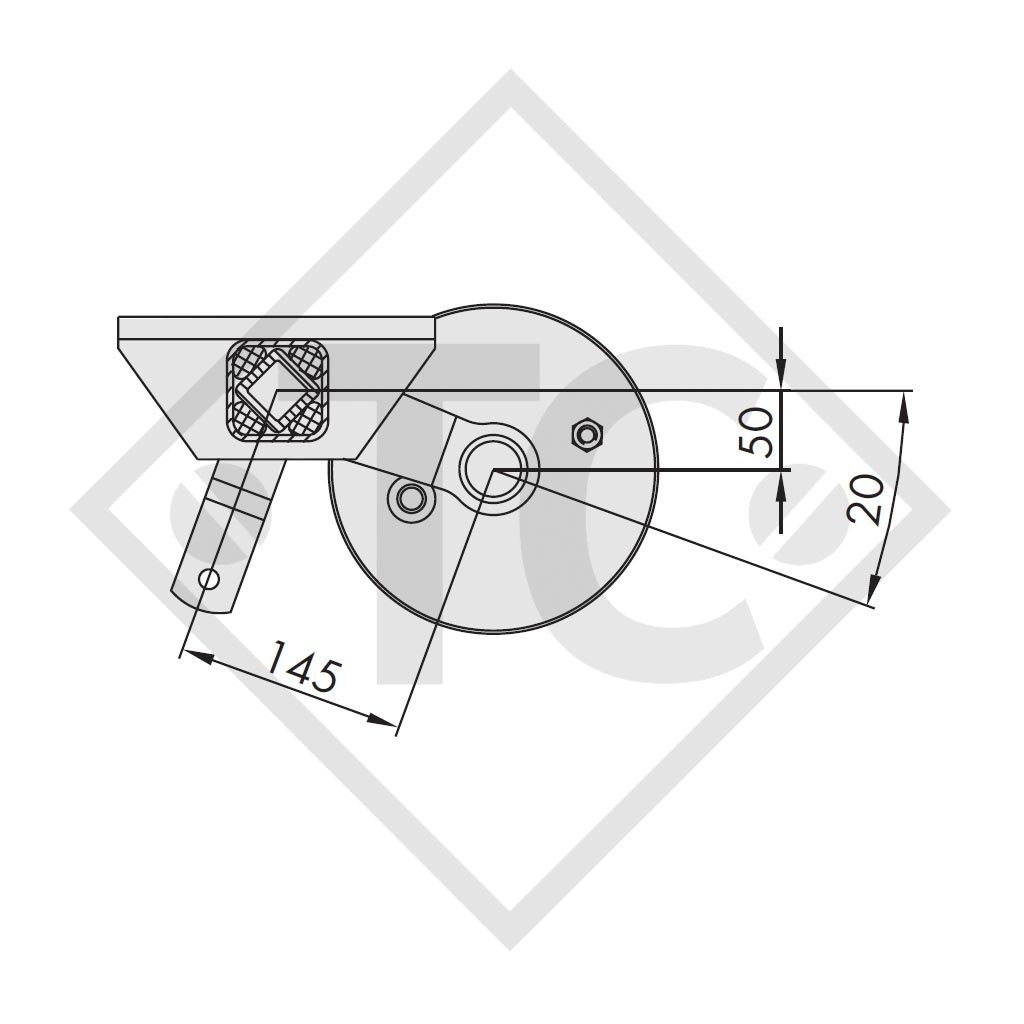

Swing arm length: 145mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
