Part no. 1250405

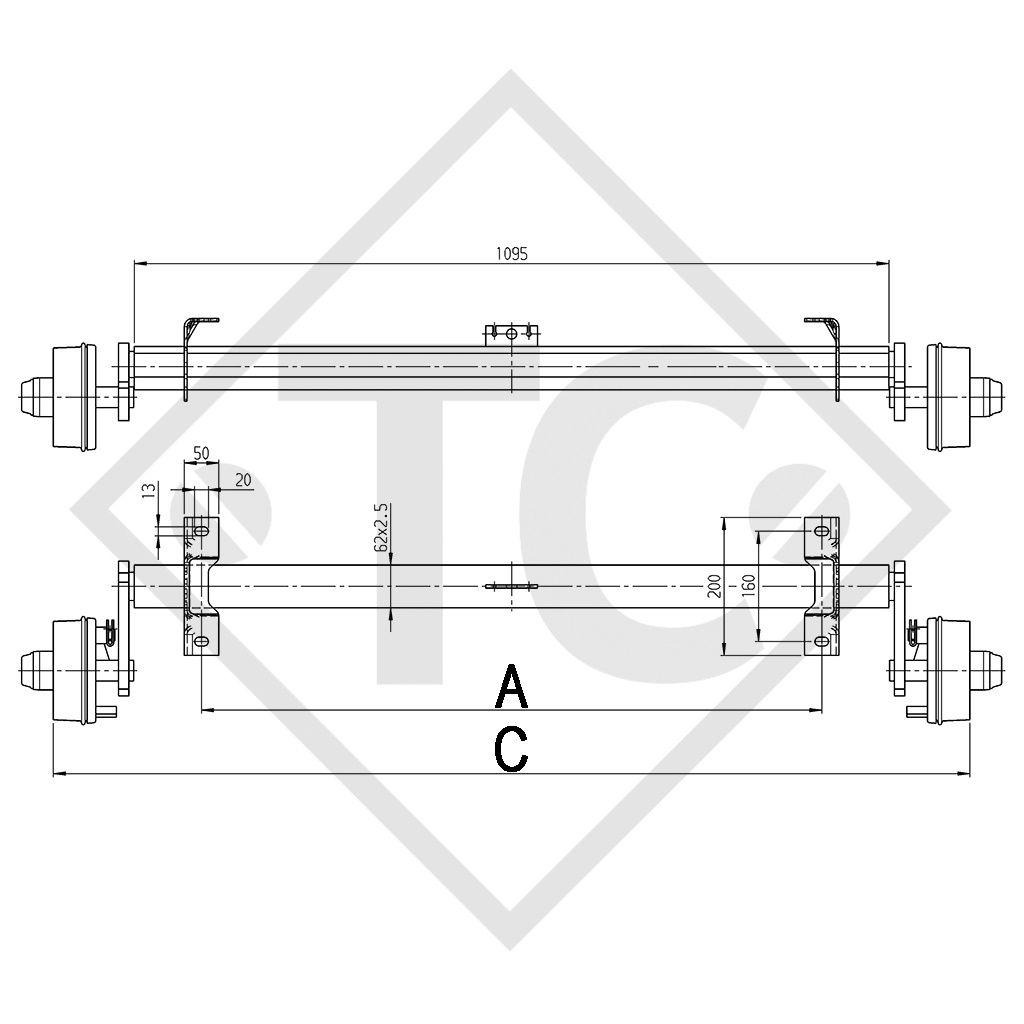

BC: dimension A 900mm
OHF: dimension C 1330mm
Wheel connection 98x4
Offset (ET) 27-45mm

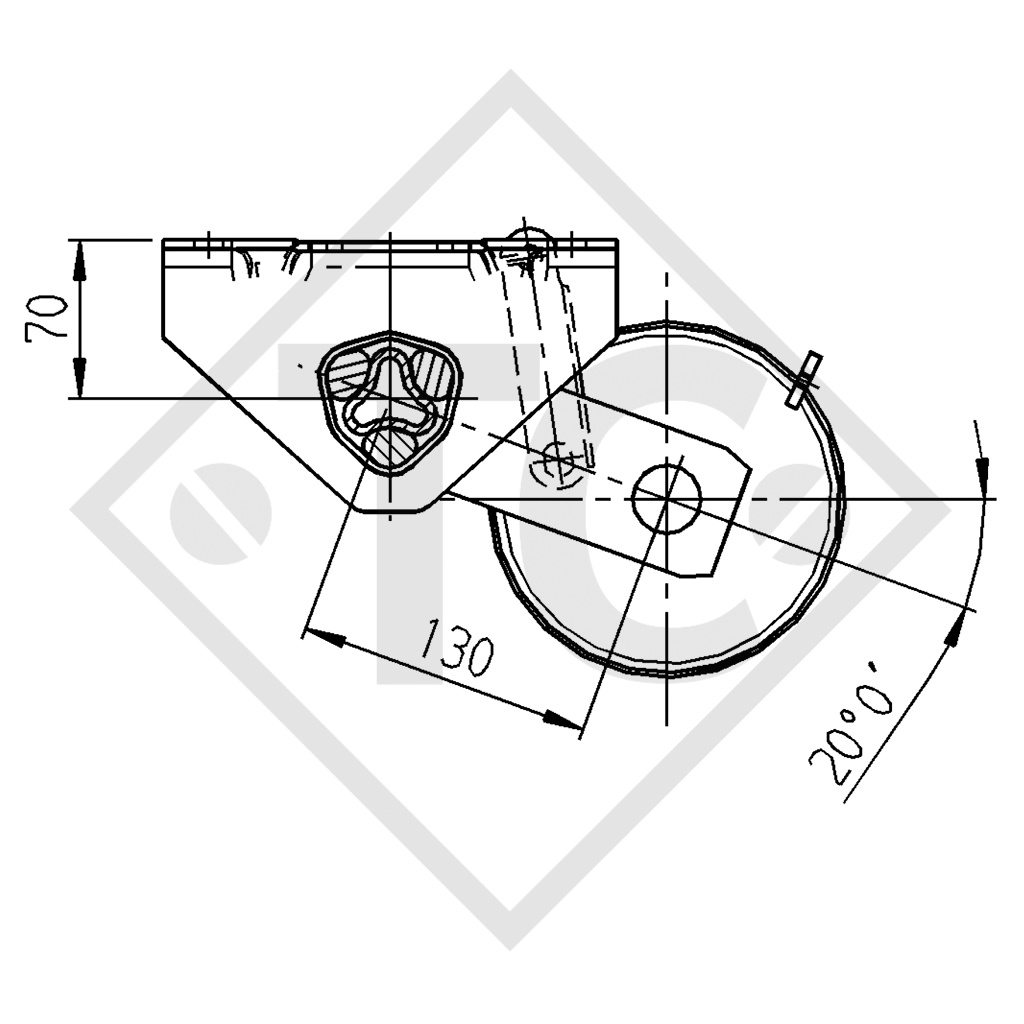

Swing arm position 20°
Axle profile 62mm

Original operating instructions
Replacement part identification number (ETI) 811233

TECHNOLOGY
Model: BASIC
Axle type: B 400-2
Axle load: 450kg
Suspension: Hexagonal rubber suspension
Swing arm length: 130mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
Compensation profile for single axle supplied
Bowden cables loose
Without shock absorber brackets

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake black-primed
