BC: dimension A 1000mm, OHF: dimension C 1480mm, wheel connection 130x4, wheel brake type 1637, offset (ET) 27-45mm, swing arm position 20°, axle profile 71mm, taper-head wheel bolts M14x1.5. Read more...
Part no. 272503

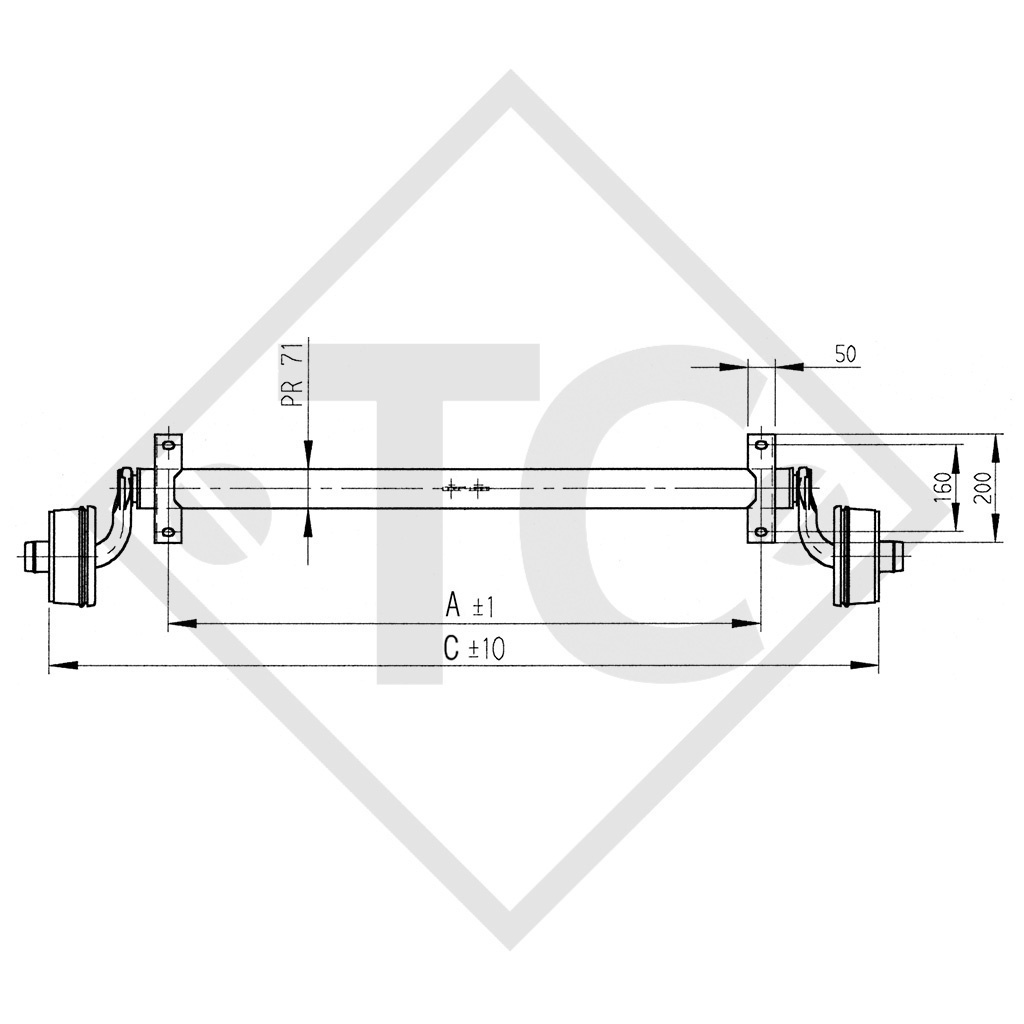

BC: dimension A 1000mm
OHF: dimension C 1480mm
Wheel connection 130x4

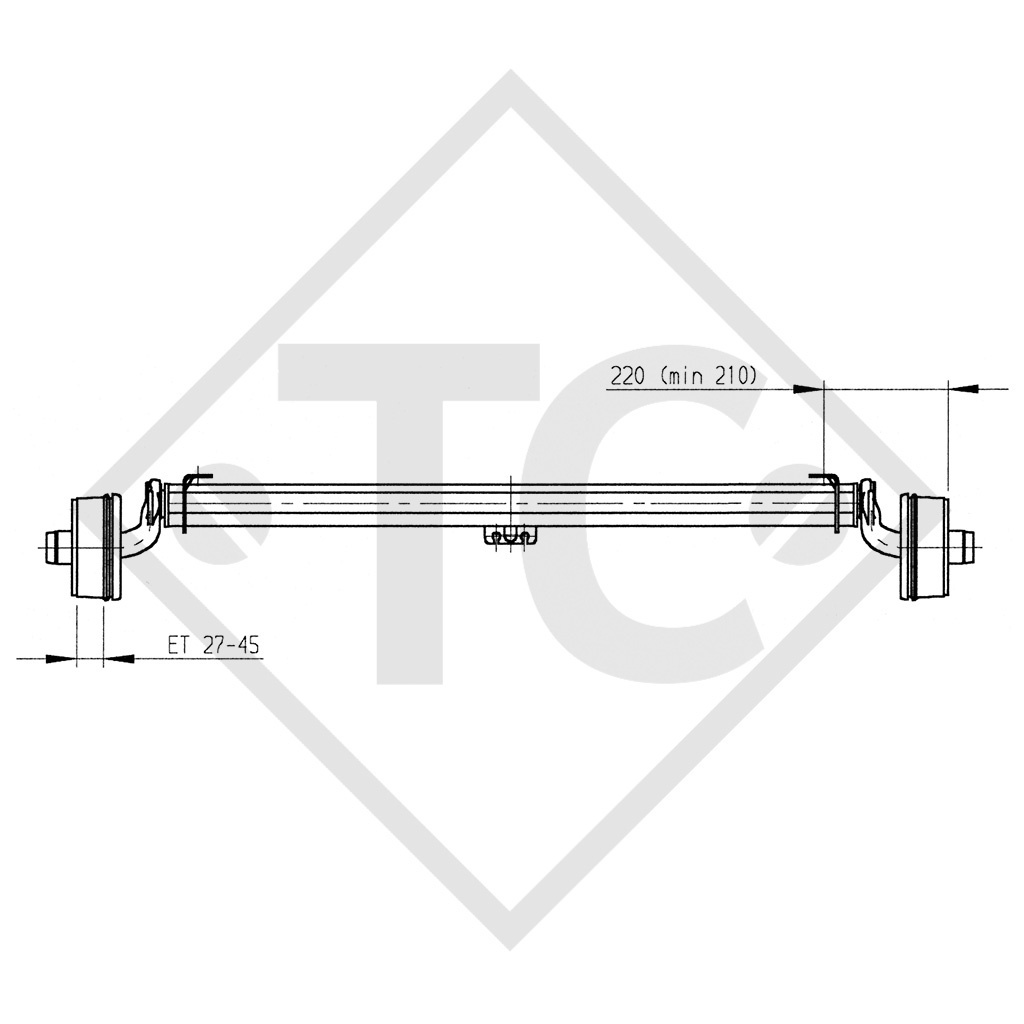

Offset (ET) 27-45mm
Swing arm position 20°
Axle profile 71mm
Original operating instructions
Replacement part identification number (ETI) 812026
TECHNOLOGY
Model: B 600-4
Axle type: B 600-4
Axle load: 650kg
Suspension: Hexagonal rubber suspension

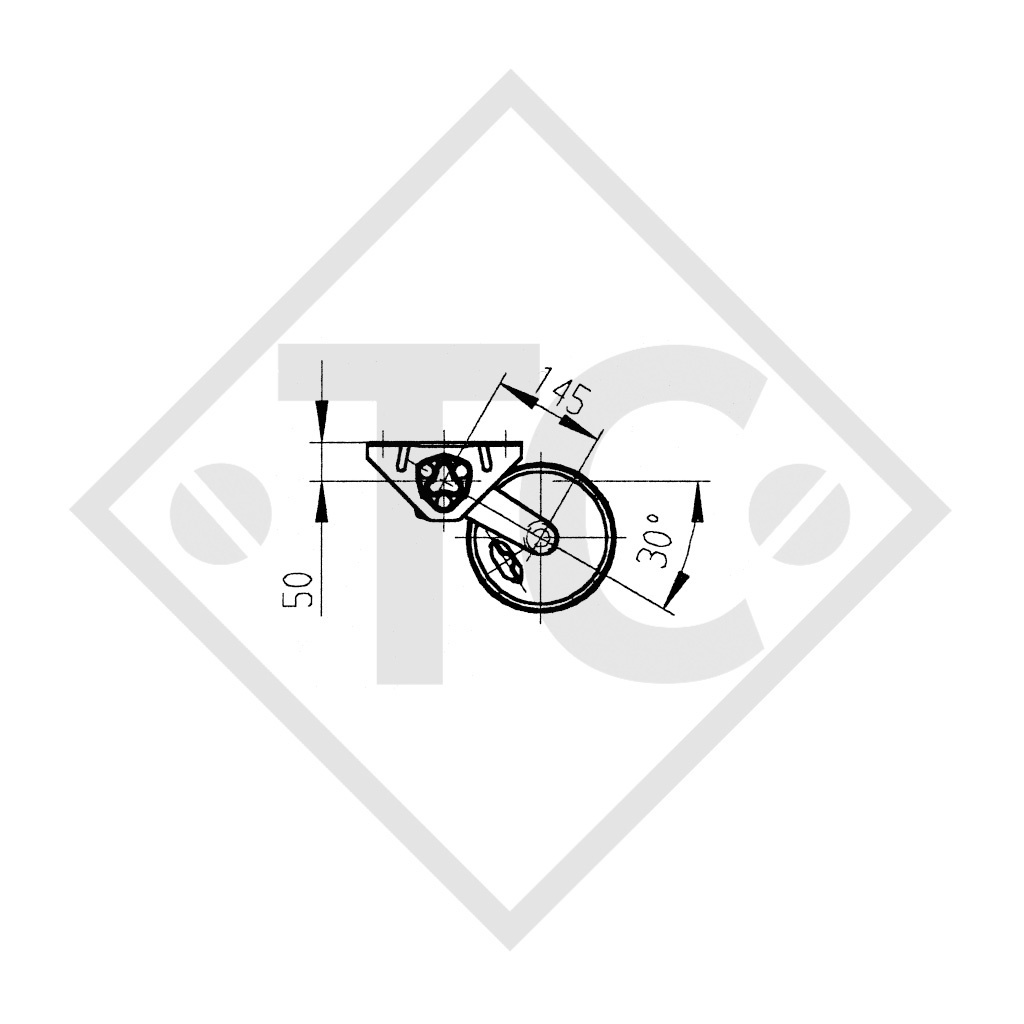

Swing arm length: 145mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M14x1.5 loose
Without shock absorber brackets
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake black-primed
