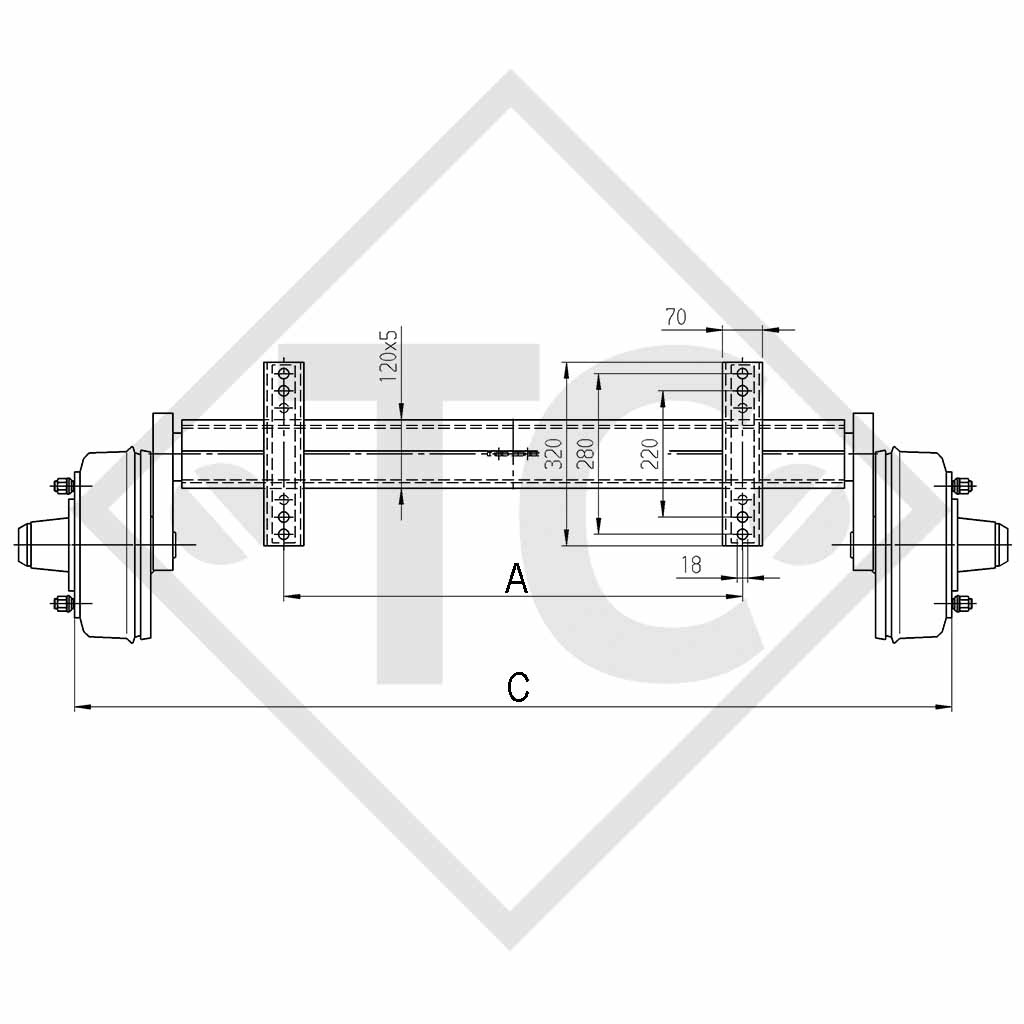

BC: dimension A 800mm, OHF: dimension C 1530mm, wheel connection 205x6, wheel brake type 3081 B, offset (ET) 0mm, swing arm position 25°, axle profile 120mm, wheel nuts M18x1.5 ball. Read more...
Part no. 249794
BC: dimension A 800mm
OHF: dimension C 1530mm
Wheel connection 205x6
Offset (ET) 0mm
Swing arm position 25°
Axle profile 120mm
Original operating instructions
Replacement part identification number (ETI) 811161
TECHNOLOGY
Model: PLUS
Axle type: B 2700-3
Axle load: 2750kg
Wheel brake: 3081B
Suspension: Hexagonal rubber suspension

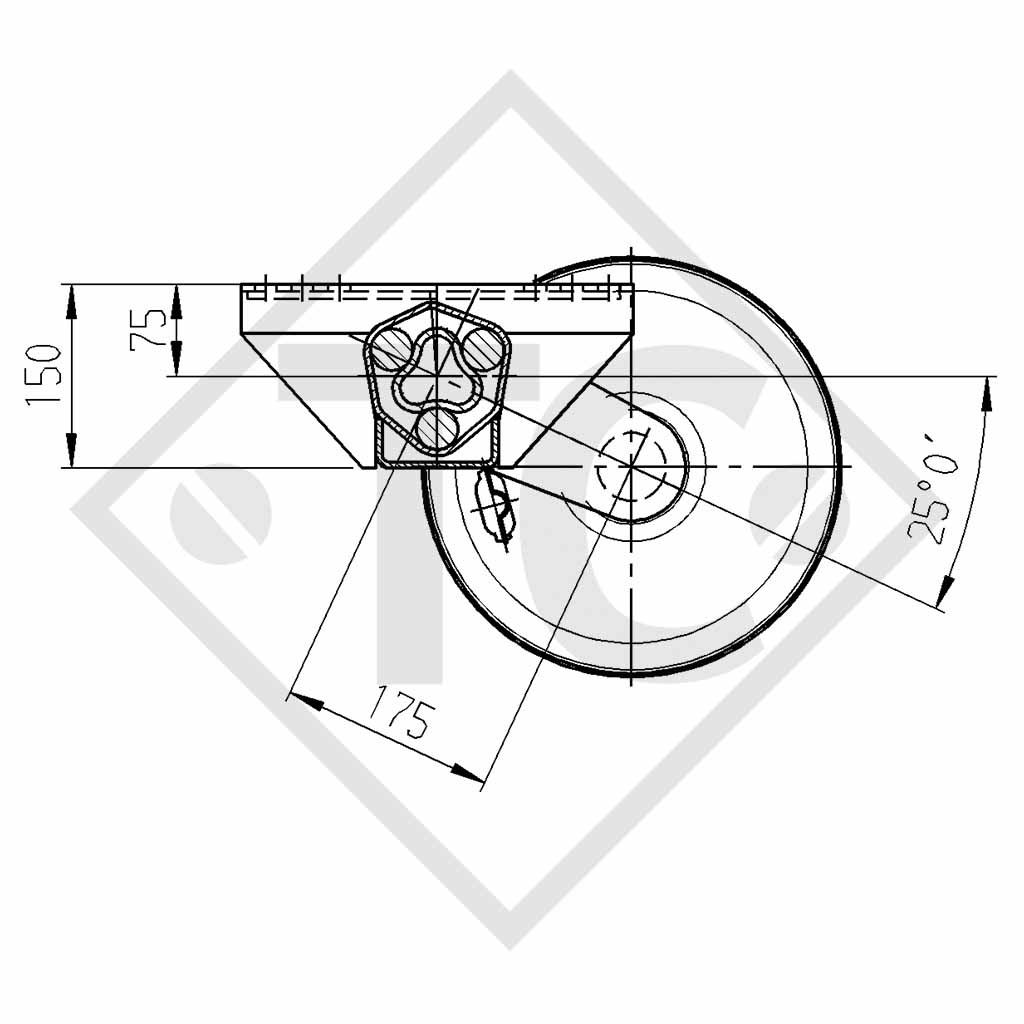

Swing arm length: 175mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 161mm
SCOPE OF DELIVERY
Axle
Wheel nuts ball mounted M18x1.5
Single axle adapter bracket welded on
Compensation profile
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brakes dip primed black
ACCESSORIES (not included in scope of delivery)
Shock absorber
