BC: dimension A 1670mm, OHF: dimension C 2200mm, wheel connection 205x6, wheel brake type 3081 A, offset (ET) 0mm, swing arm position 20°, axle profile 120mm, wheel nuts M18x1.5 ball. Read more...

Wishlist: Add to comparison:

Part no. 20039013

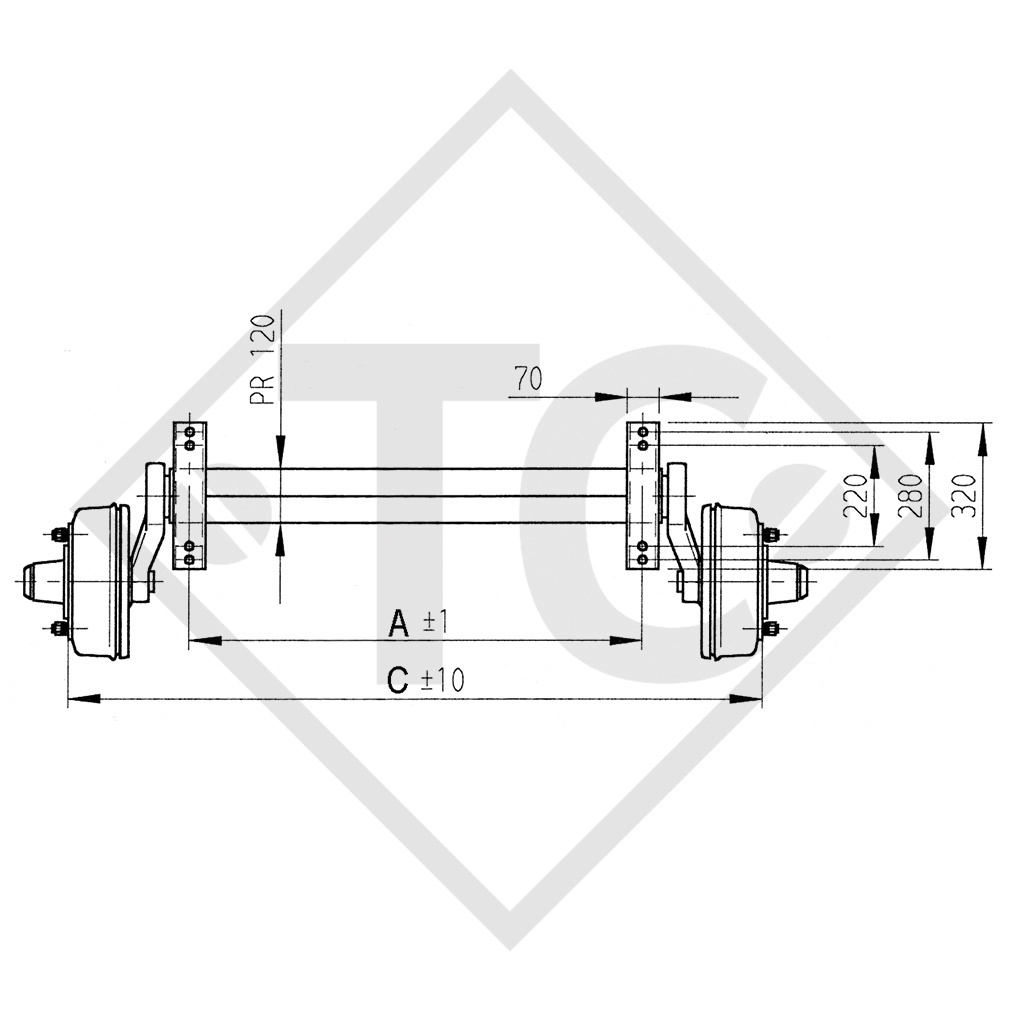

BC: dimension A 1670mm
OHF: dimension C 2200mm
Wheel connection 205x6

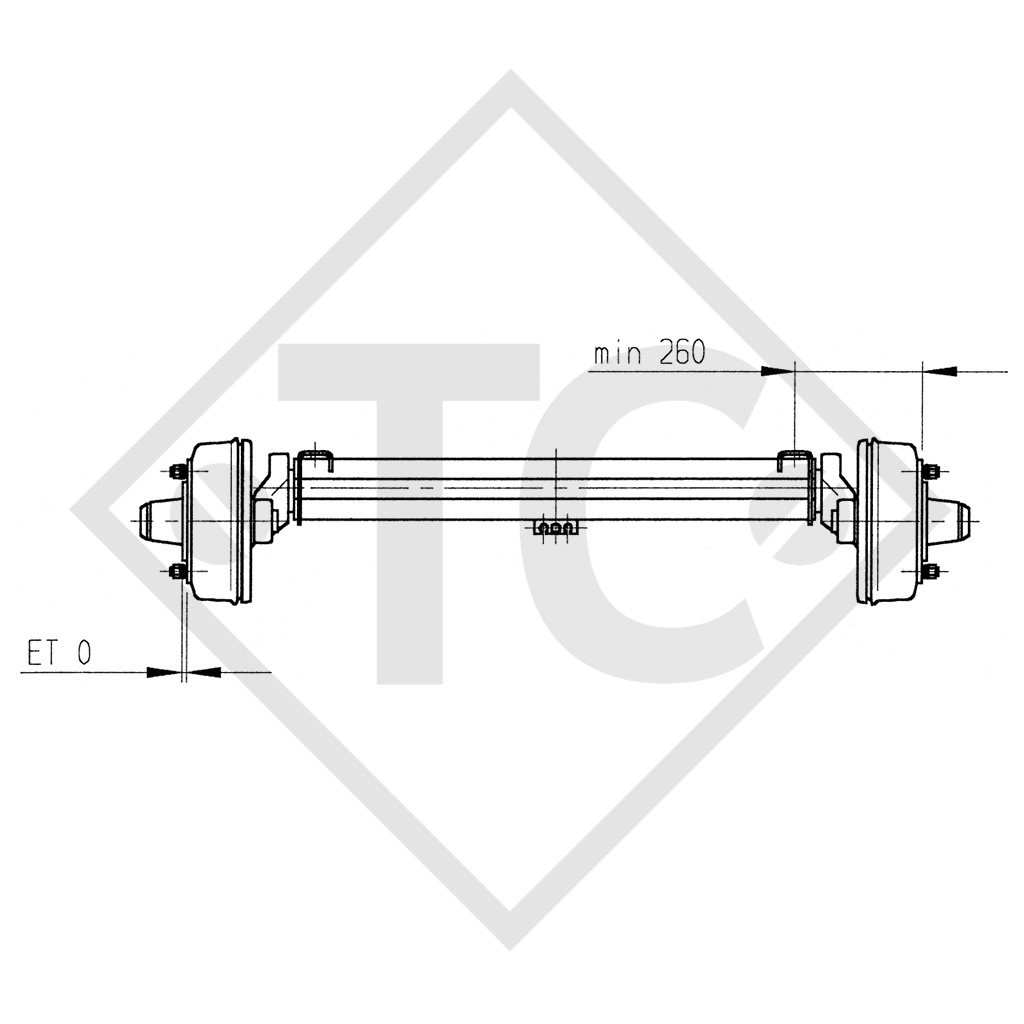

Offset (ET) 0mm

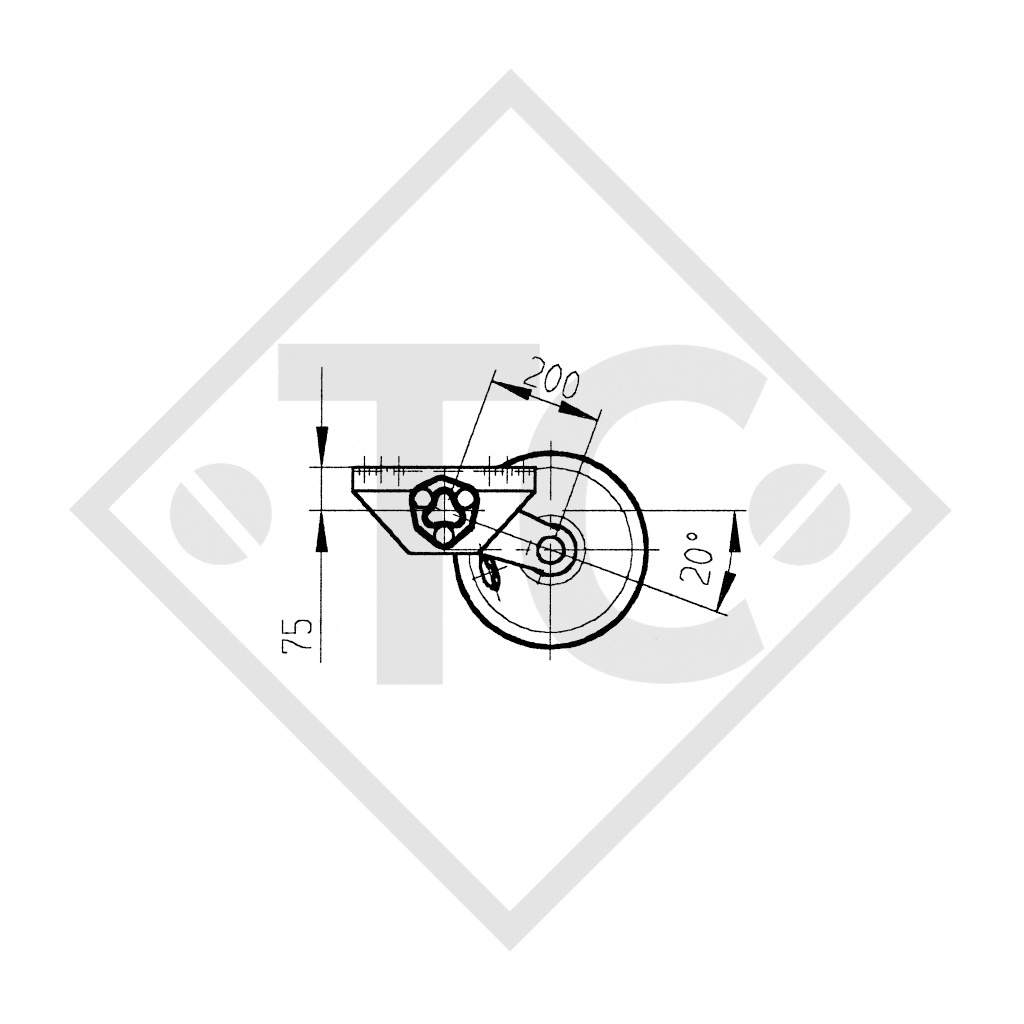

Swing arm position 20°
Axle profile 120mm

Original operating instructions
Replacement part identification number (ETI) 811161

TECHNOLOGY
Model: PLUS
Axle type: B 2500-8
Axle load: 2500kg
Wheel brake: 3081A
Suspension: Hexagonal rubber suspension
Swing arm length: 200mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 161mm

SCOPE OF DELIVERY
Axle
Wheel nuts ball mounted M18x1.5
Single axle adapter bracket welded on
Compensation profile
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brakes dip primed black

ACCESSORIES (not included in scope of delivery)
Shock absorber
