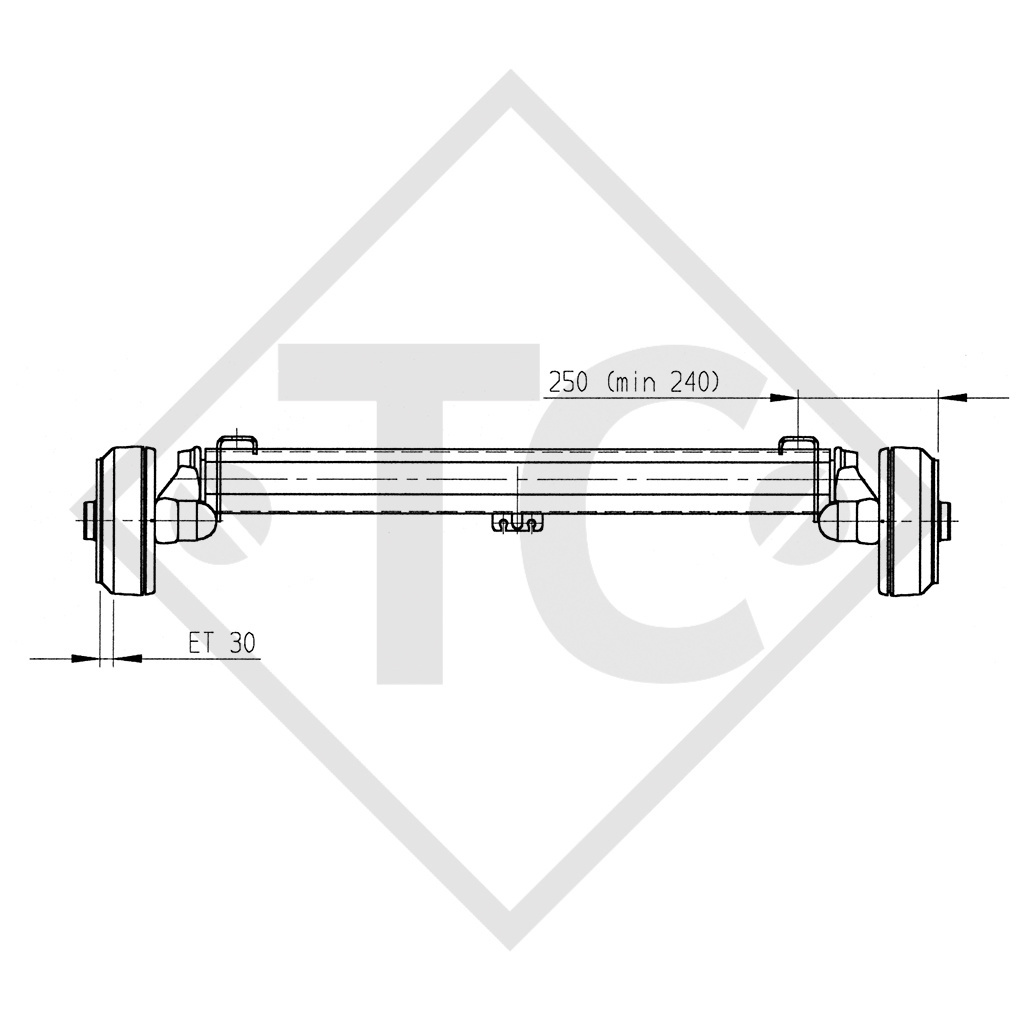

BC: dimension A 900mm, OHF: dimension C 1400mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 25°, axle profile 110mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

TECHNOLOGY
Model: PLUS
Axle type: B 1800-9
Axle load: Single axle 1800kg
Axle load: Tandem axle 3500kg
Wheel brake: 2361 or 2361 AAA (automatic adjustment of the brake pads)
Suspension: Hexagonal rubber suspension
Swing arm: 175mm
Wheel connection: 112x5
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm

SCOPE OF DELIVERY
Single axle adapter bracket welded onto top hat profile (single axle and tandem adapter bracket)
Compensation profile for single axle supplied
Bowden cables loose
Wheel bolts loose

Separate order for tandem
Bolt-on tandem adapter bracket 249236
Tandem compensation 238576

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber

Original operating instructions

Replacement part identification number WITHOUT AAA (automatic adjustment of the brake pads)
Replacement part identification number (ETI) 811136

Replacement part identification number WITH AAA (automatic adjustment of the brake pads)
Replacement part identification number (ETI) 811731

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

Axles according to order overview optionally available with AAA = AL-KO Automatic Adjustment (automatic adjustment of the brake pads)



Simply send us a photo of your axle type plate, together with your address and telephone number to



[email protected]


Please feel free to avail of our service and request a non-binding offer by email today!



... ...
