Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / OVERRUN DEVICES / OVERRUN DEVICES V / TOWBAR CONNECTIONS V, TOWBAR CONNECTION, JOCKEY WHEEL CROSSMEMBER, BRAKE ROD / PULL BAR WITH FIXING BOLTS / Braked axle 1800kg BASIC axle type CB1800, 4024869

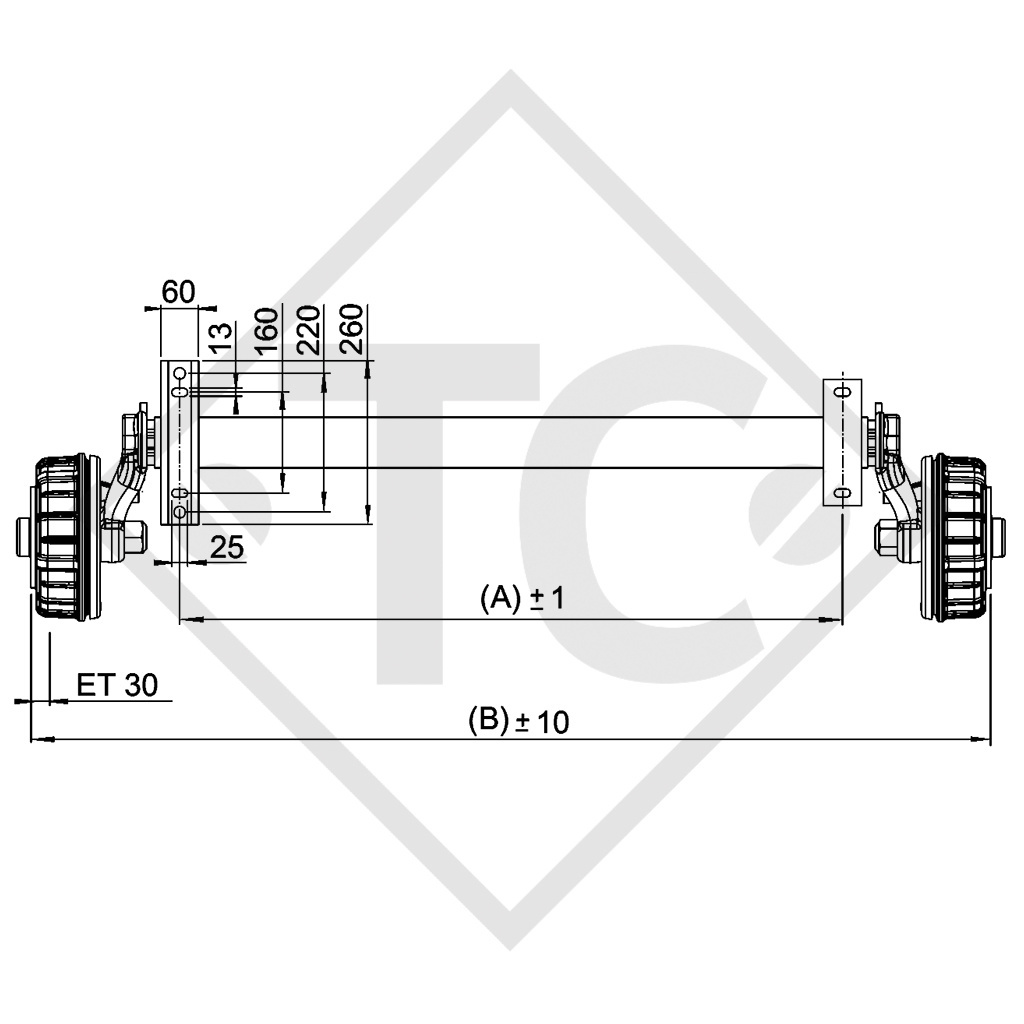

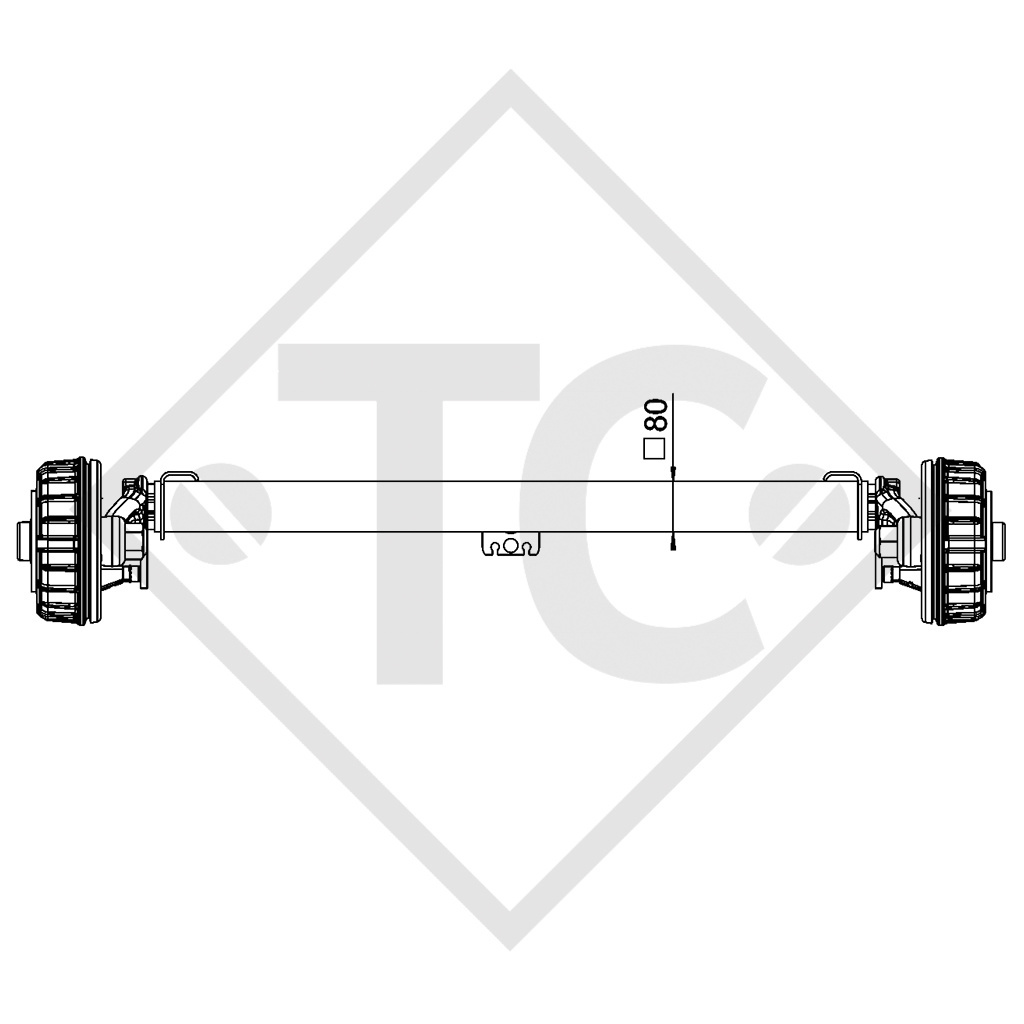

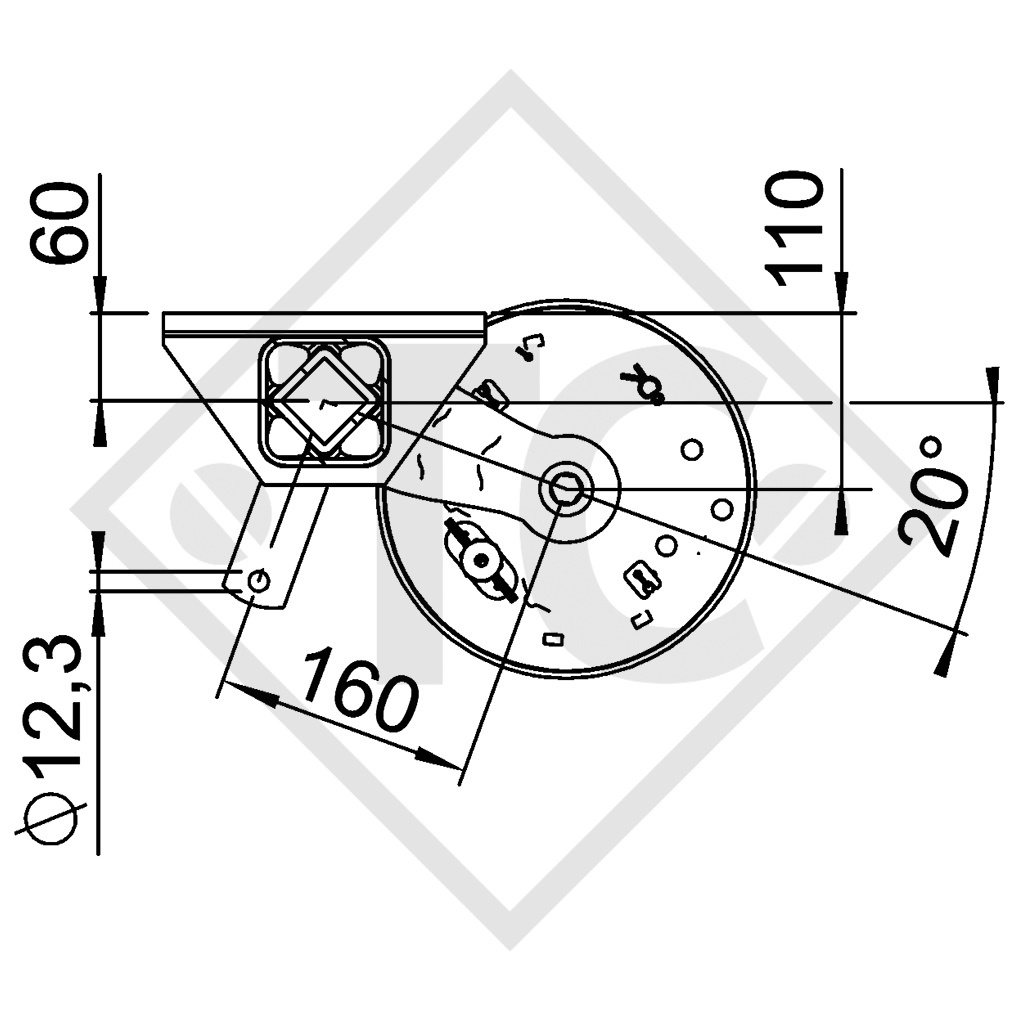

BC: dimension A 1644mm, OHF: dimension B 2133mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 20°, axle profile 80mm. Read more...
Part no. 4024869
| BC (A) |
1644mm |
| OHF (B) |
2133mm |
| Model | BASIC |
| Axle type |
CB1800 |
| Axle load single axle | 1800kg |
| Axle load: Tandem axel | 3500kg |
| Wheel brake | 2361 |
| Suspension | Square rubber suspension |
| Swing arm |
160mm |
| Wheel connection |
112x5 |
| Wheel bearing |
Compact bearings |
| Centre hole rim |
min. 63mm |
Replacement part identification number (ETI) 807014
SCOPE OF DELIVERY
Axle with brake
Welded-on shock absorber brackets
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
Axle link cataphoretically coated
