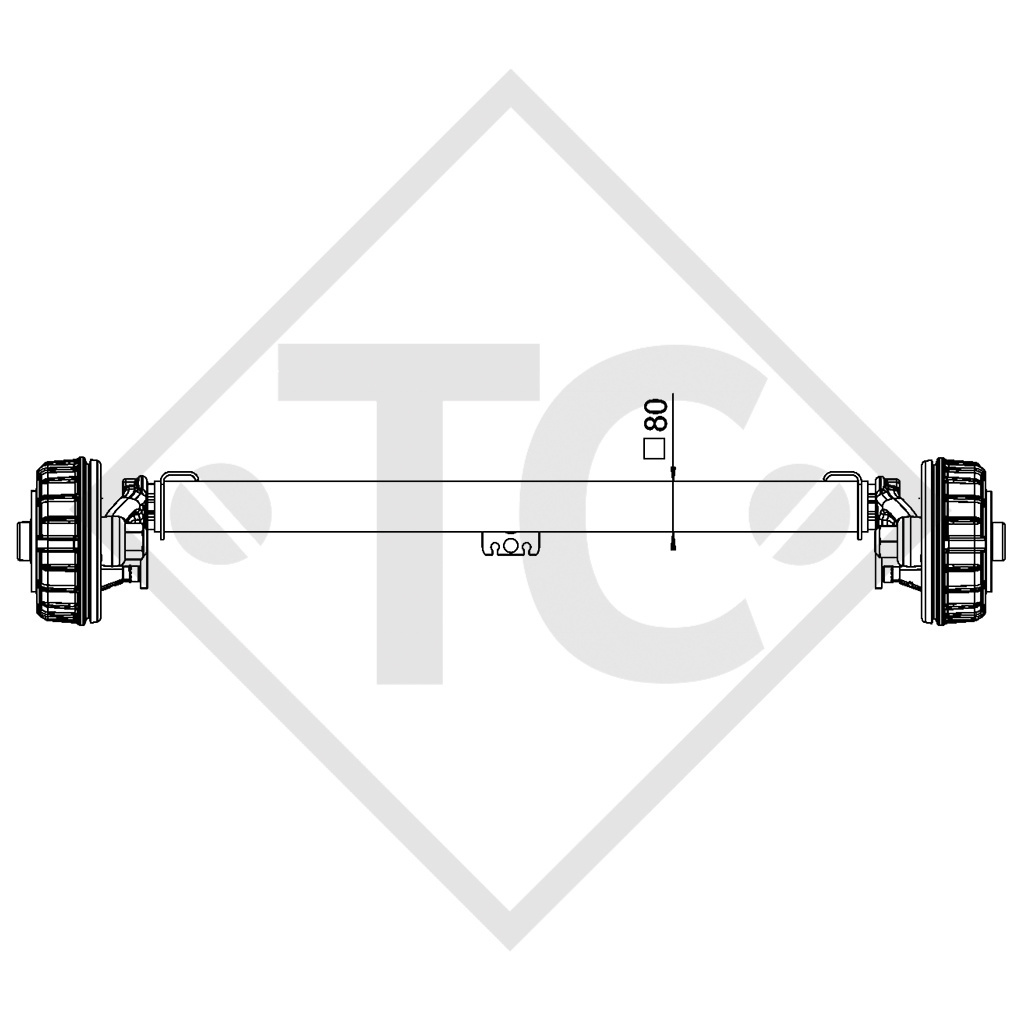

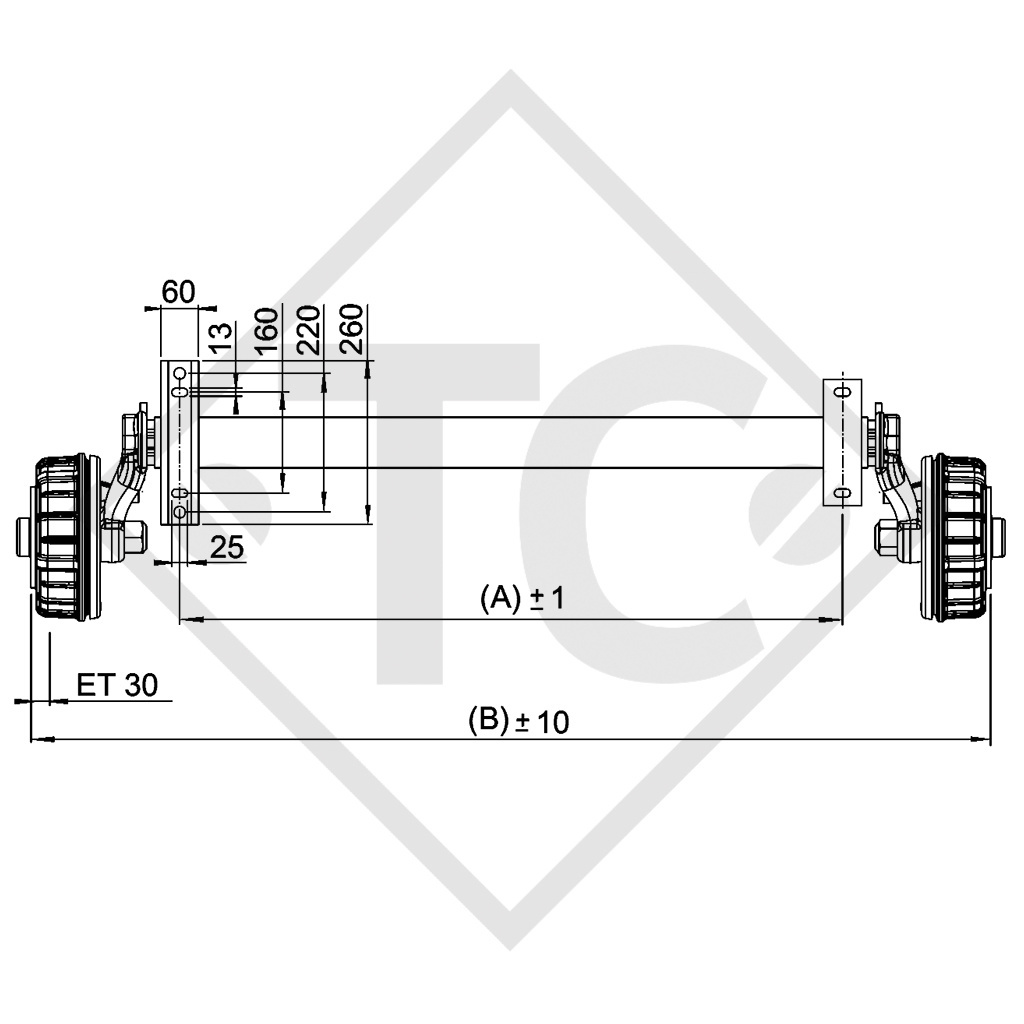

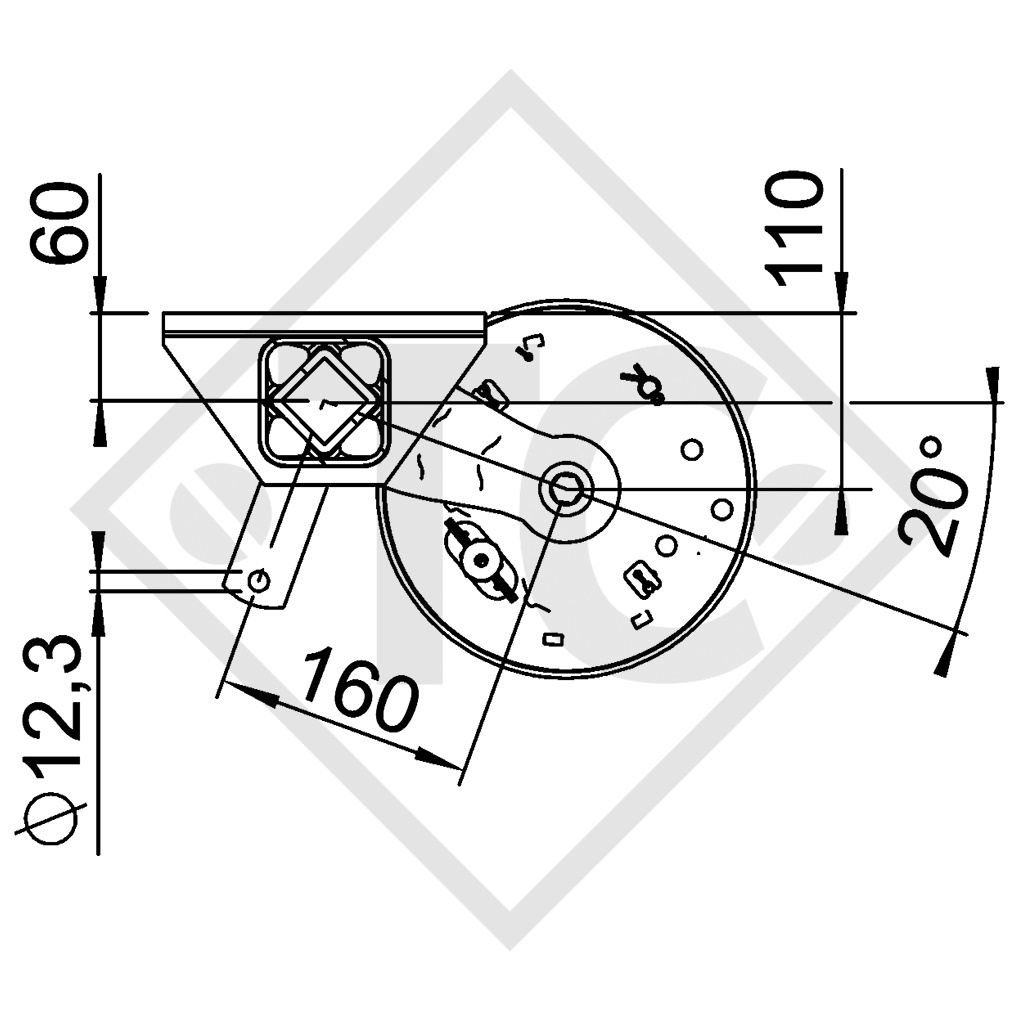

BC: dimension A 1400mm, OHF: dimension B 1890mm, wheel connection 112x5, wheel brake type 2361 with AAA, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 4023603
BC (A) |
1400mm |
OHF (B) |
1890mm |
Model | BASIC |
Axle type |
CB1800 |
Axle load single axle | 1800kg |
Axle load: Tandem axel | 3500kg |
Wheel brake | 2361 with AAA |
Suspension | Square rubber suspension |
Swing arm |
160mm |
Wheel connection |
112x5 |
Wheel bearing |
Compact bearings |
Centre hole rim |
min. 63mm |
Replacement part identification number (ETI) 811CB1800
SCOPE OF DELIVERY
Single axle adapter bracket welded on
Welded-on shock absorber brackets
Compensation profile for single axle supplied
Bowden cables loose
Wheel bolts loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
Axle link cataphoretically coated
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
