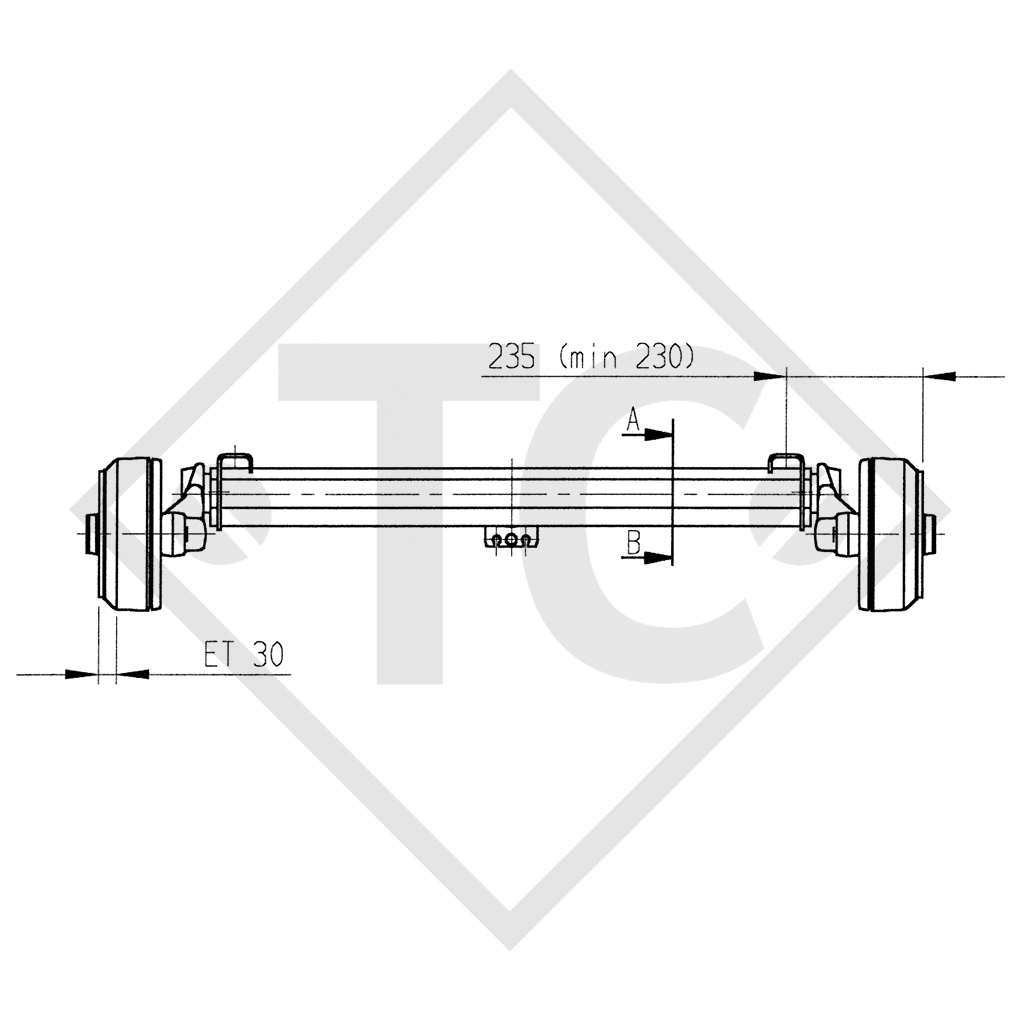

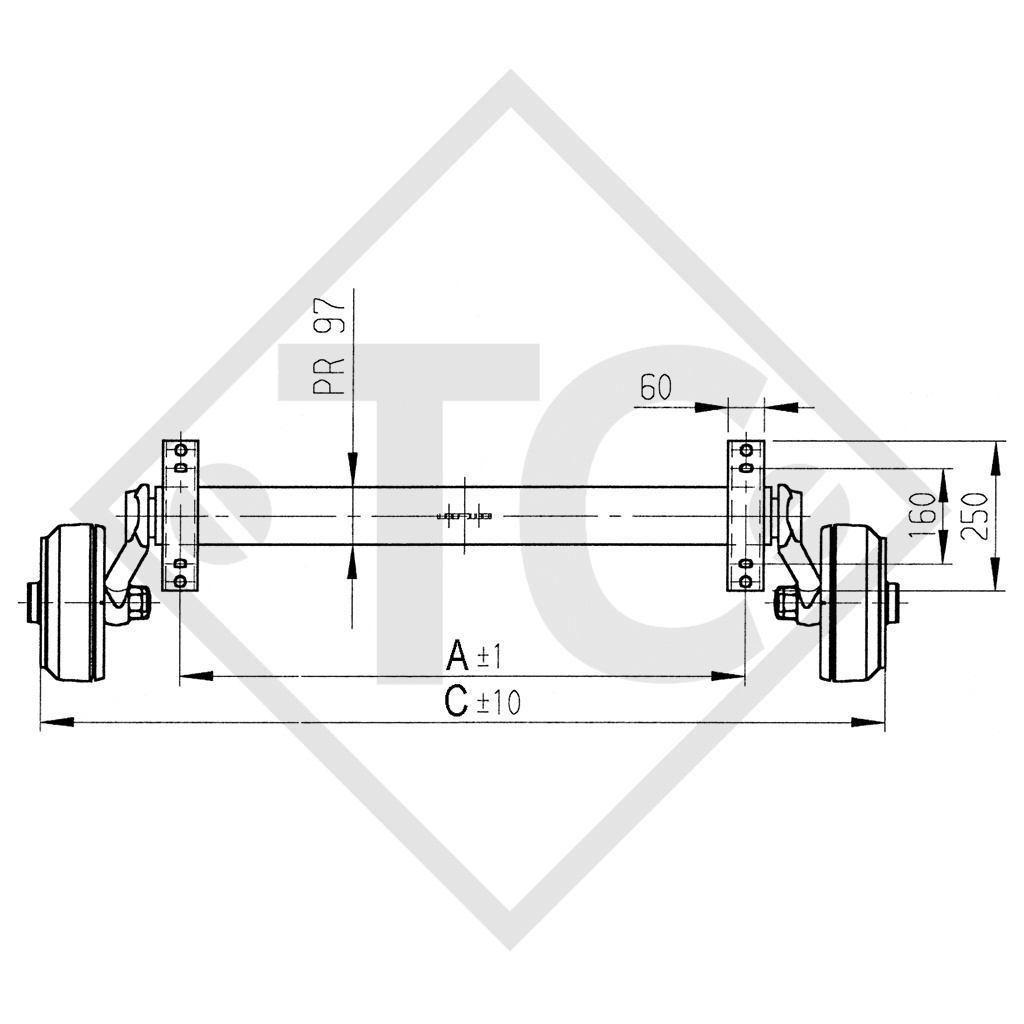

BC: dimension A 750mm, OHF: dimension C 1250mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 25°, axle profile 97mm. Read more...
20001901_750_1250
TECHNOLOGY
Model: BASIC
Axle type: B 1600-1
Axle load: Single axle 1600kg
Axle load: Tandem axle 3200kg
Wheel brake: 2361 or 2361 AAA (automatic adjustment of the brake pads)
Suspension: Hexagonal rubber suspension

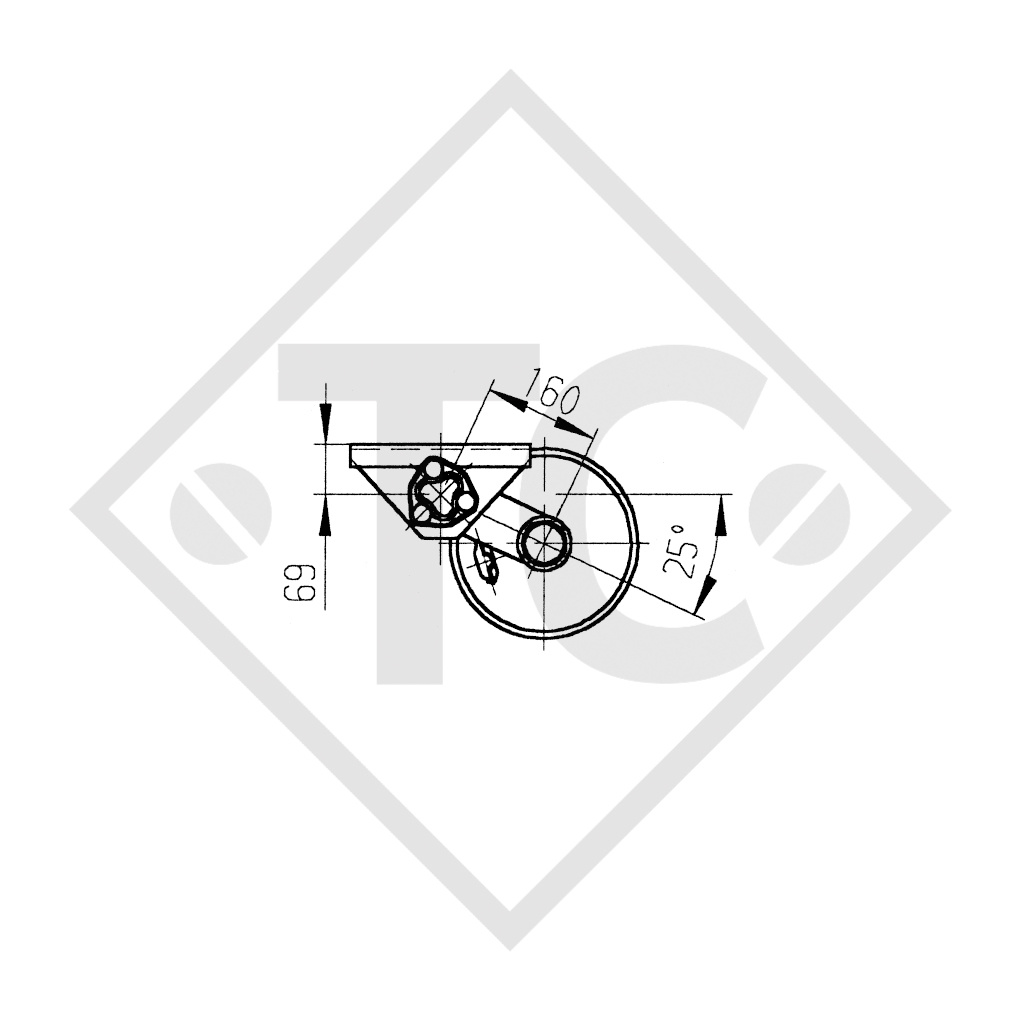

Swing arm: 160mm
Wheel connection: 112x5
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm
SCOPE OF DELIVERY
Axle with brake
Separate order for tandem
Bolt-on tandem adapter bracket 249236
Tandem compensation 238576
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
Original operating instructions
Replacement part identification number WITHOUT AAA (automatic adjustment of the brake pads)
Replacement part identification number (ETI) 811136
Replacement part identification number WITH AAA (automatic adjustment of the brake pads)
Replacement part identification number (ETI) 811731
Axles according to order overview optionally available with AAA = AL-KO Automatic Adjustment (automatic adjustment of the brake pads)

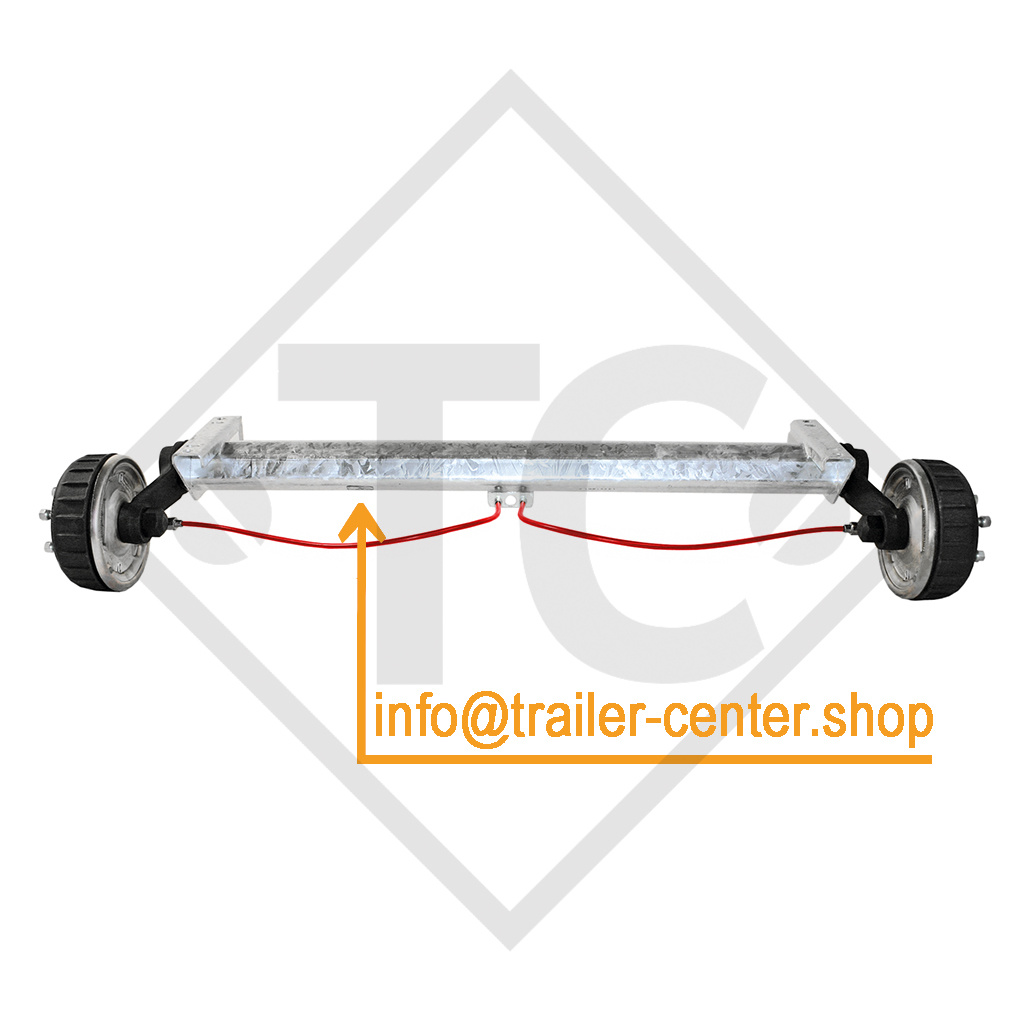

Simply send us a photo of your axle type plate, together with your address and telephone number to
[email protected]
|
