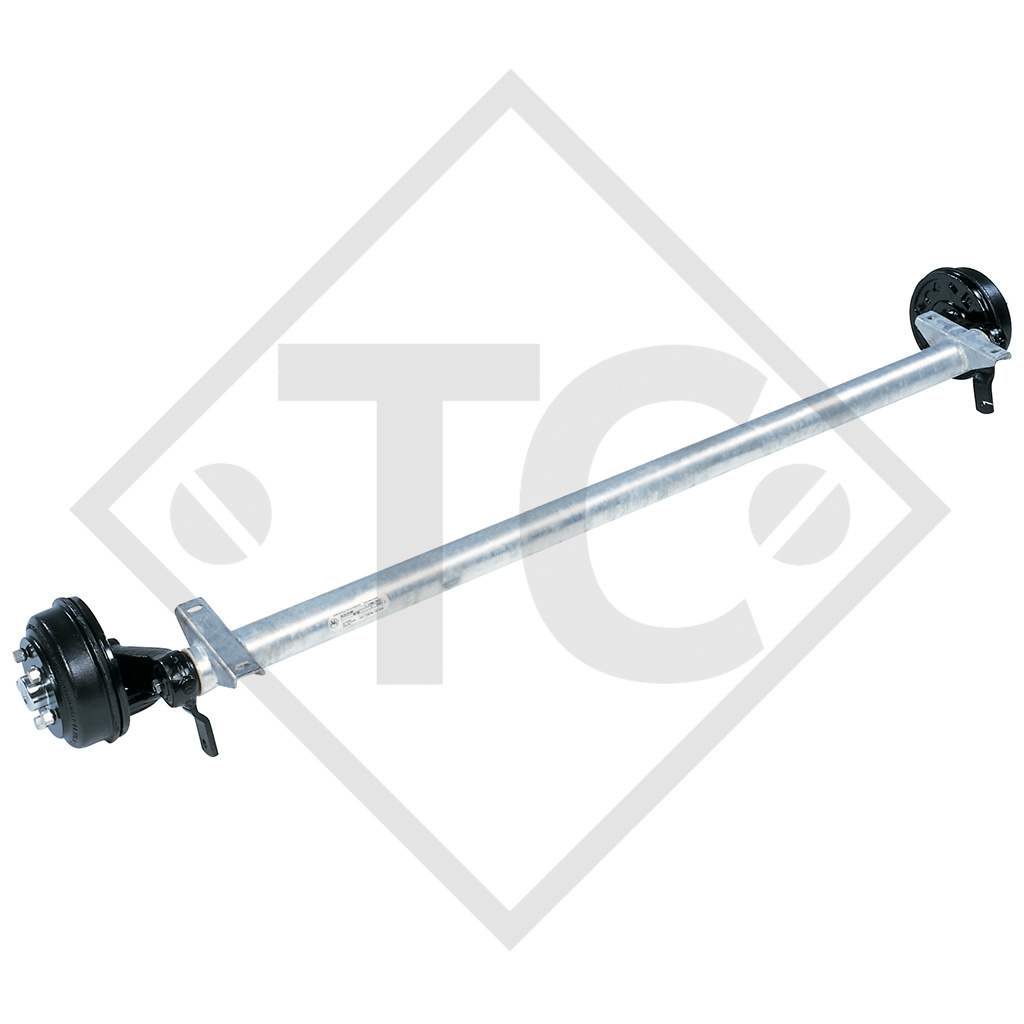

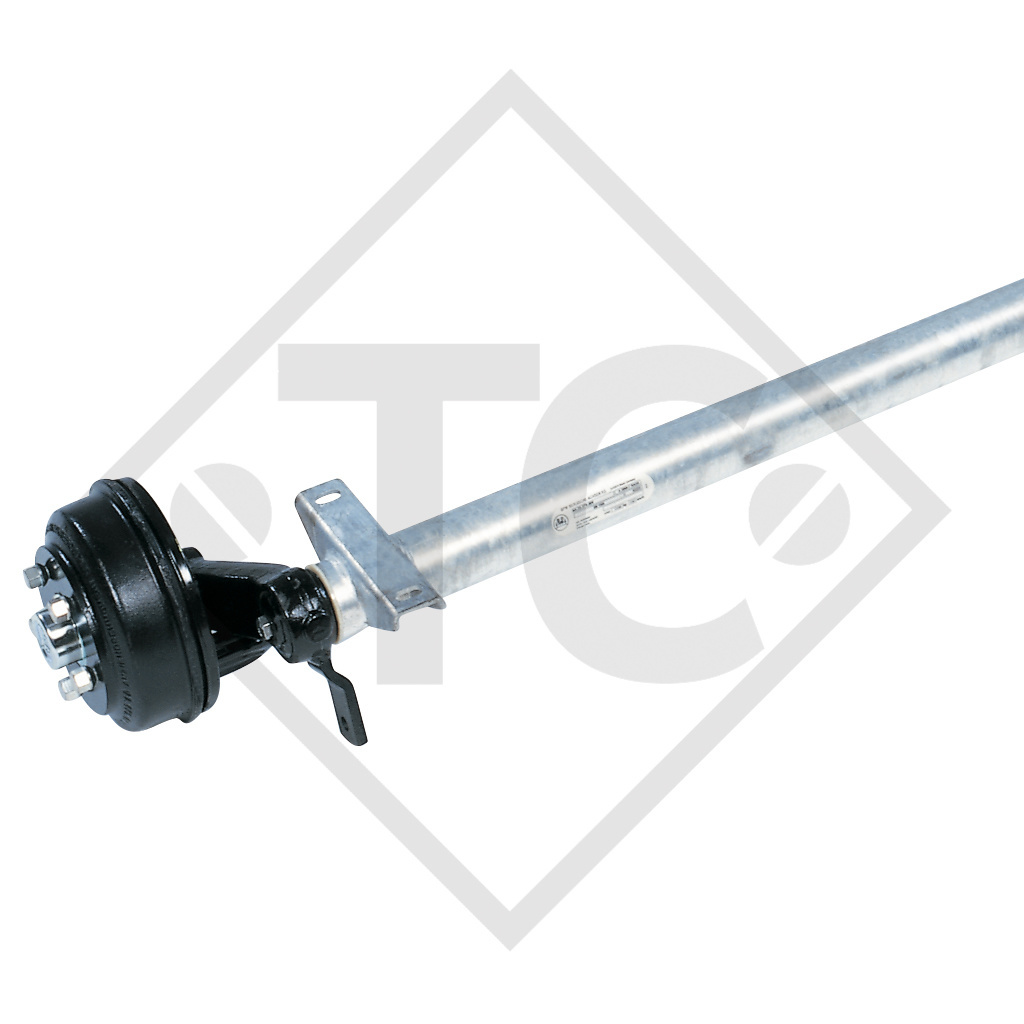

Braked axle 1500kg axle type DB1505 45.27.358.003

BC: dimension AM 1650mm, OHF: dimension FL 2120mm, wheel connection 112x5, wheel brake type RB520, offset (ET) 30mm, swing arm position 15°, axle profile 80mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Price 940,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 45.27.358.003

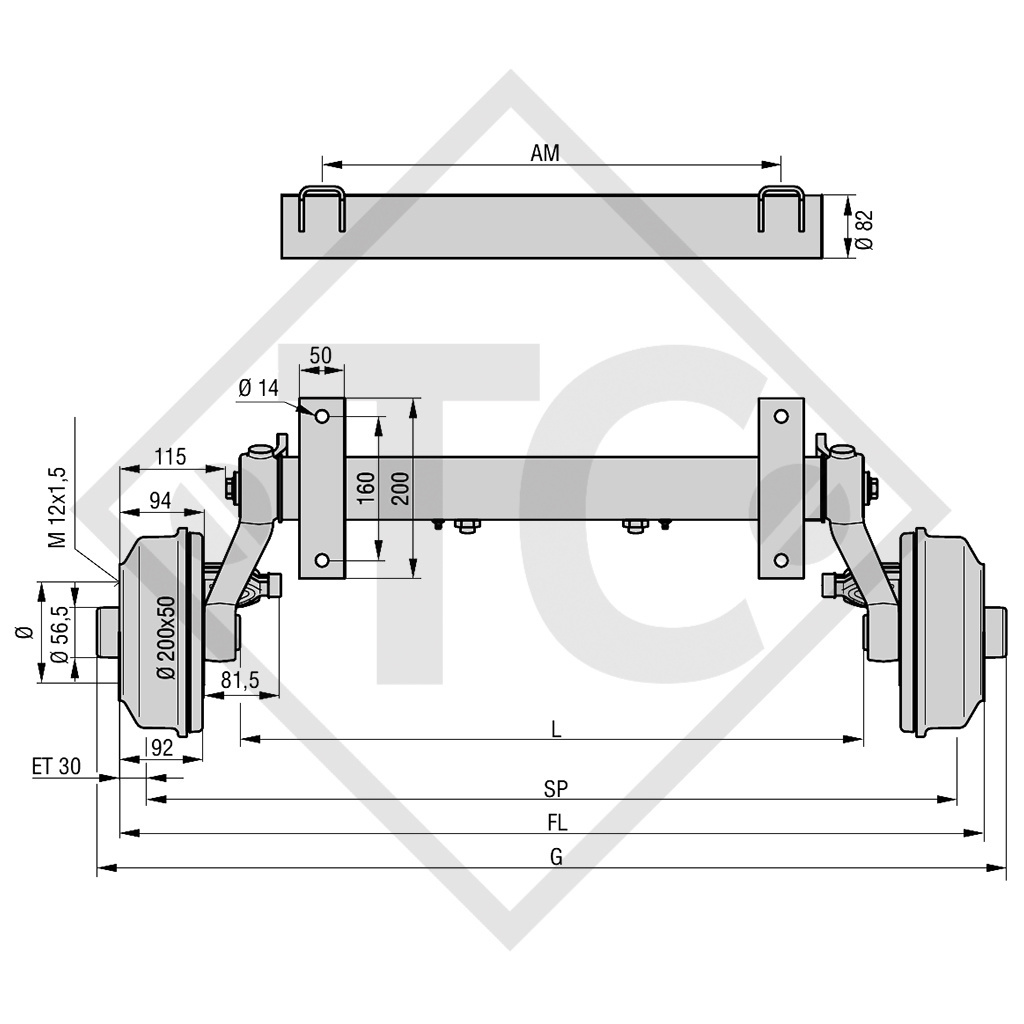

Dimension FL

2120mm

Dimension SP

2050mm

Dimension AM

1650mm

Dimension L

1840mm

Dimension G

2150mm

Model

SCHLEGL

Axle type

SB15

Axle load single axle

1500kg

Axle load: Tandem axel

3000kg

Wheel brake

RB520

Suspension

Square rubber suspension

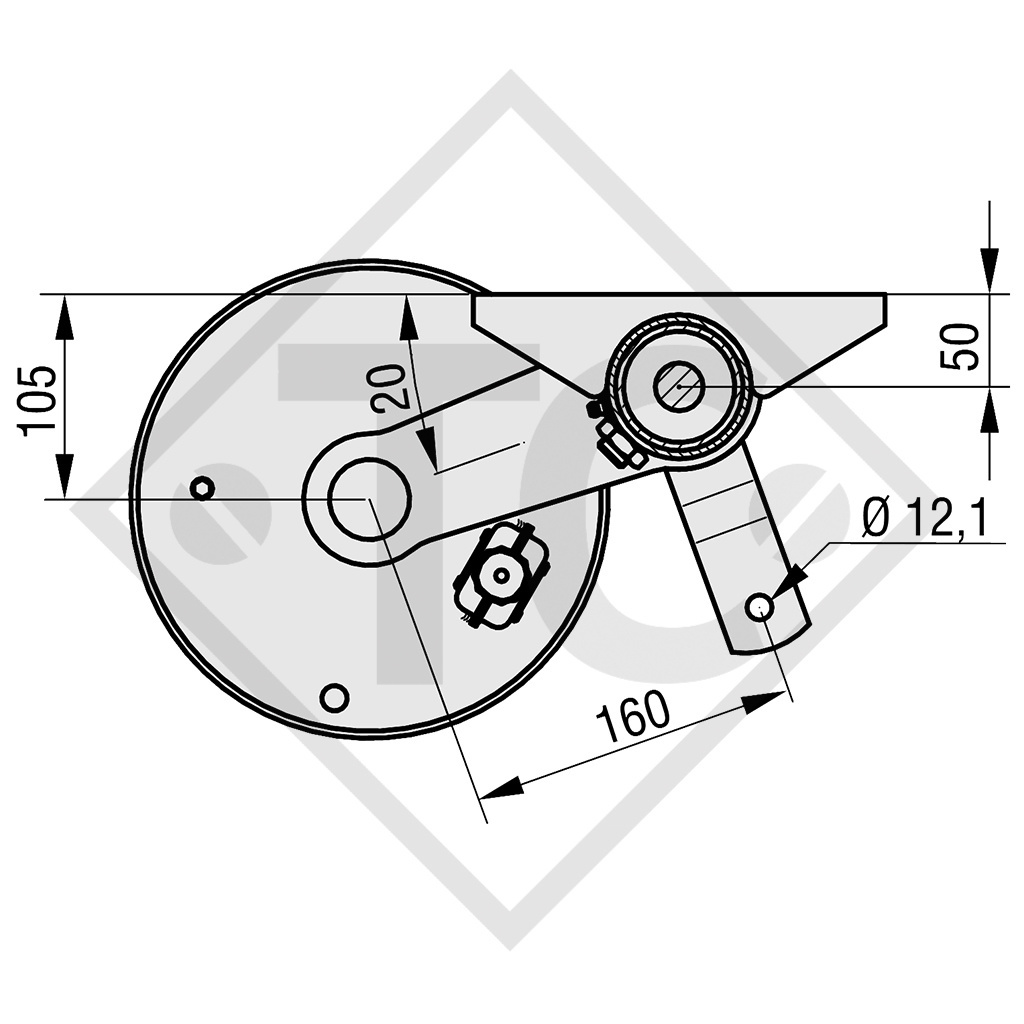

RONDO arm

160mm

Wheel connection

112x5

Wheel bearing

Compact bearings

Centre hole rim

min. 56.5mm

SCOPE OF DELIVERY
Axle incl. bowden cables loose
Welded-on shock absorber brackets
Ball-head wheel bolts M12x1.5 loose

SCHLEGL Braked axle 1500kg axle type DB 1505, 45.27.358.003
