Home / Axle without breaks 1500kg axle type DB 1500, 45.27.000.402

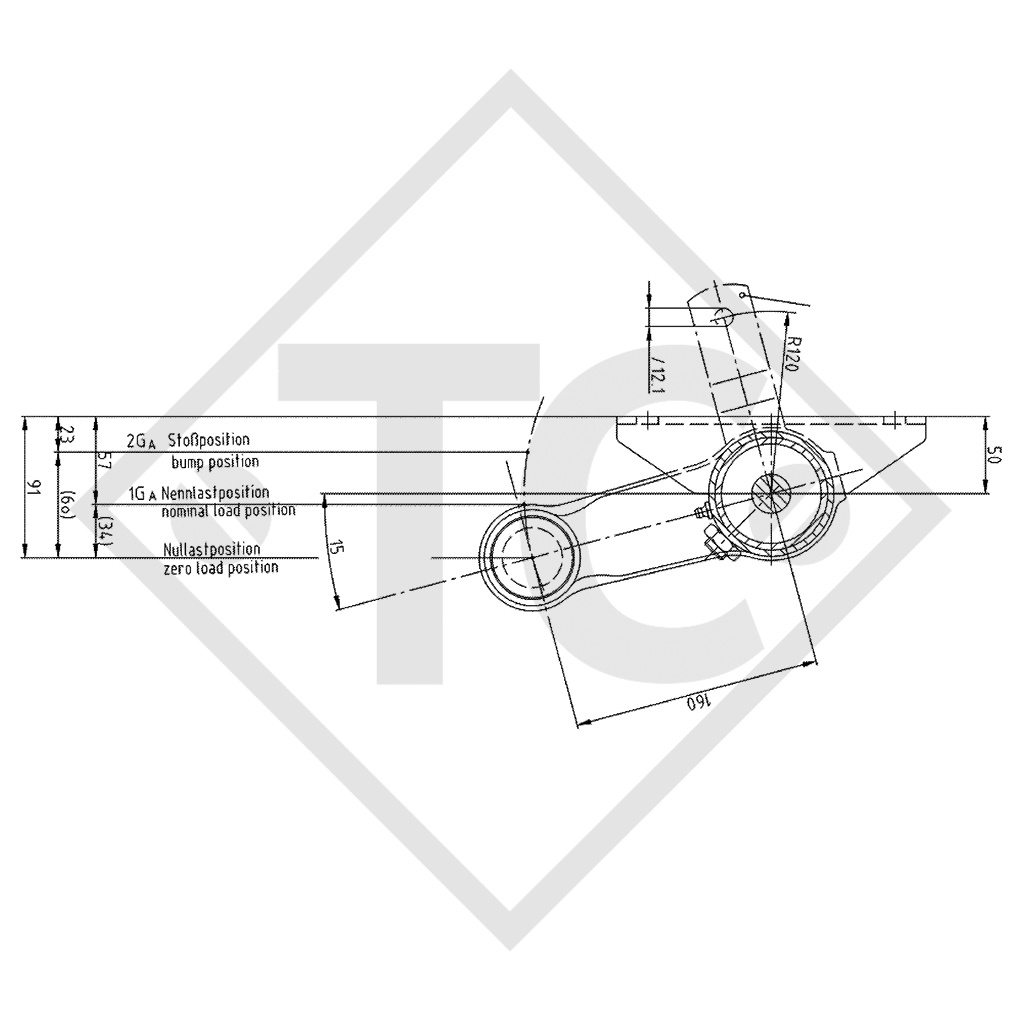

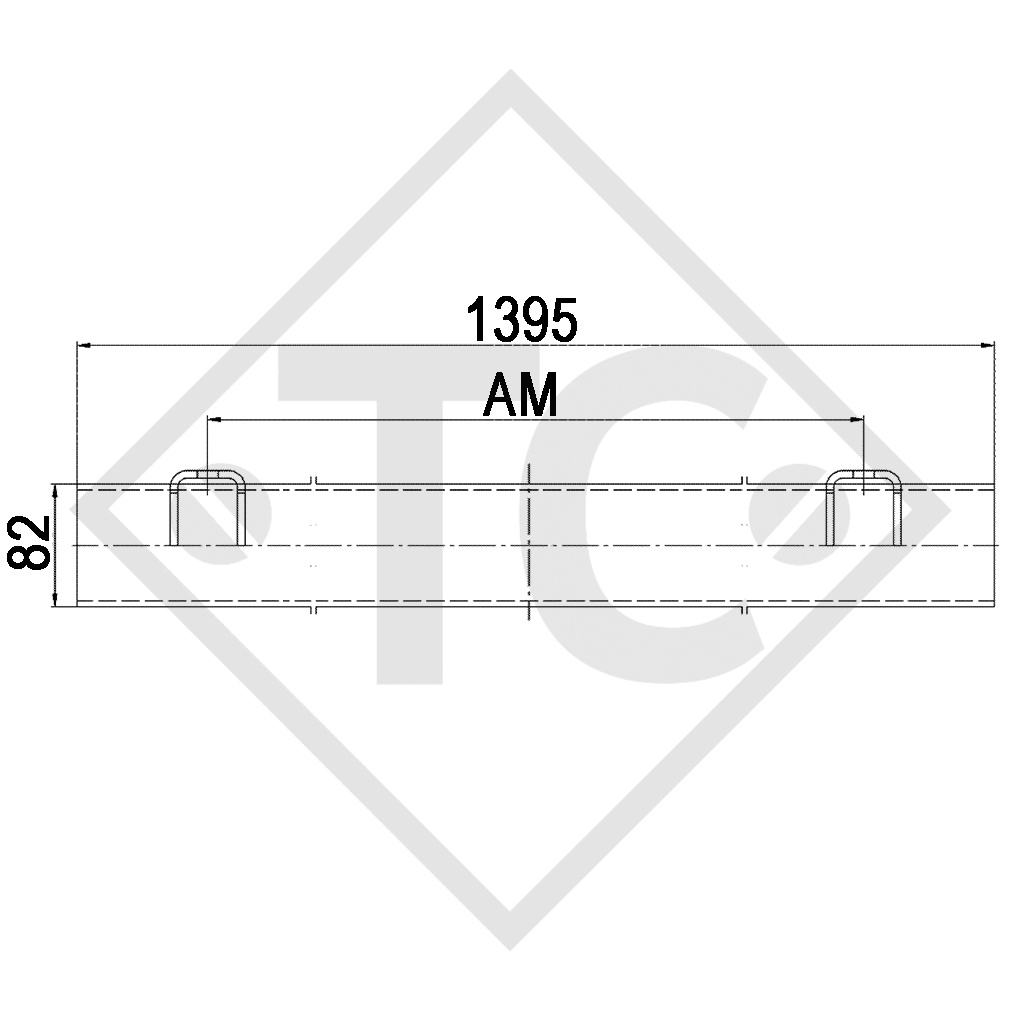

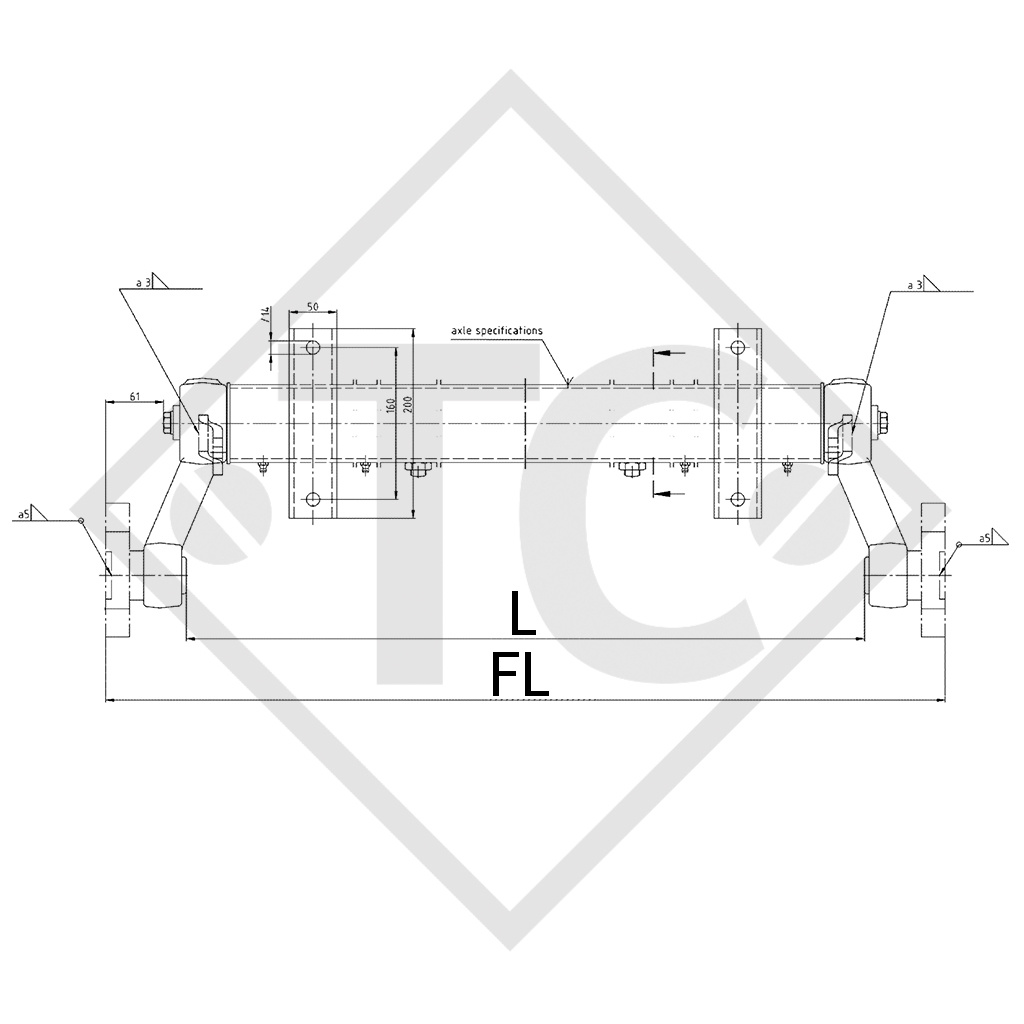

BC: dimension AM 1220mm, OHF: dimension FL 1657mm, swing arm position 15°, axle profile 82mm. Read more...
Part no. OLD 45.27.000.402
Part no. NEW 4012279
| Dimension FL |
1657mm |
| Dimension SP |
- - - |
| Dimension AM |
1220mm |
| Dimension L |
1407mm |
| Dimension G | - - - |
| Model | RONDO |
| Axle type | DB1500 |
| Axle load single axle | 1500kg |
| Axle load: Tandem axel | 3000kg |
| Wheel brake | - - - |
| Suspension | Square rubber suspension |
| RONDO arm | 160mm |
| Wheel connection | - - - |
| Wheel bearing | - - - |
| Centre hole rim | - - - |
Original operating instructions
SCOPE OF DELIVERY
Axle
