BC: dimension A 1575mm, OHF: dimension C 2090mm, wheel connection 112x5, wheel brake type 2361 vers. Ab, offset (ET) 30mm, swing arm position 15°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Part no. 1320811

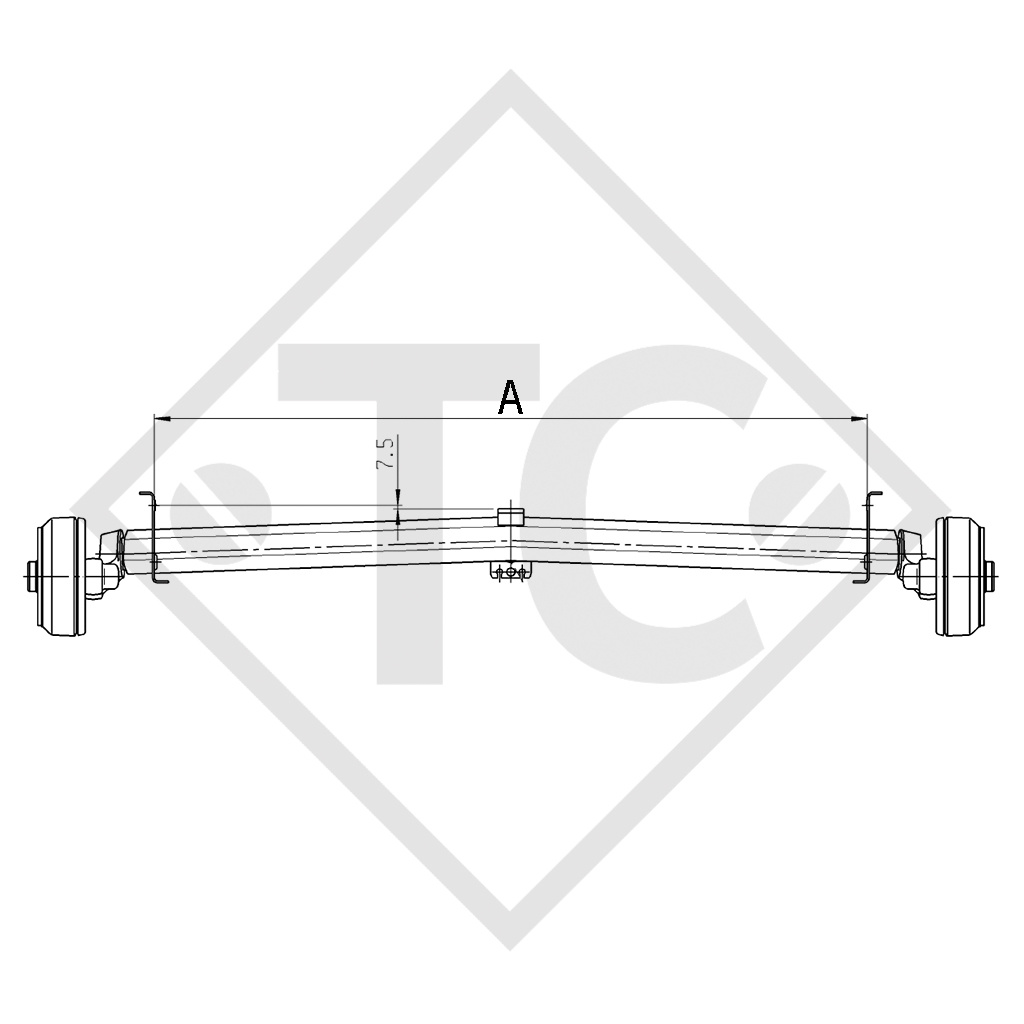

BC: dimension A 1575mm
OHF: dimension C 2090mm
Wheel connection 112x5
Offset (ET) 30mm

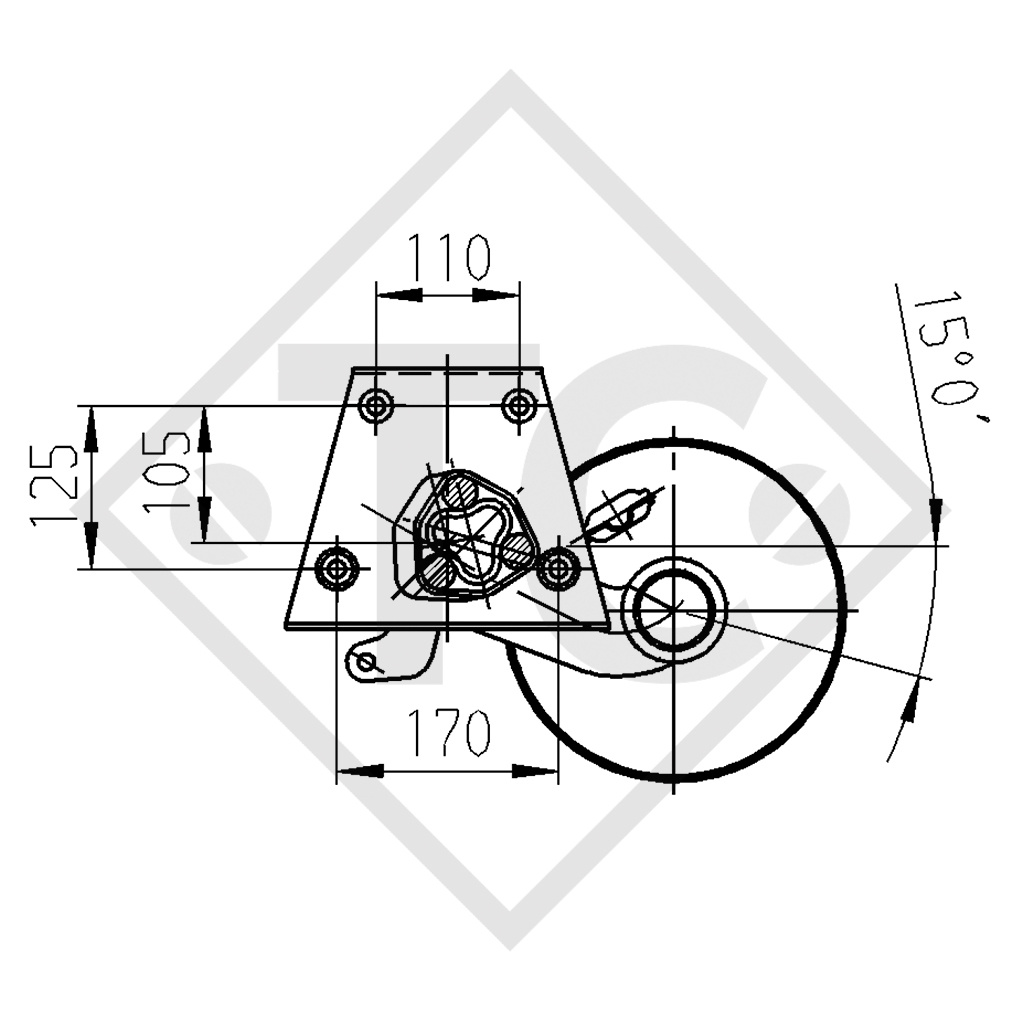

Swing arm position 15°
Axle profile 97mm

Original operating instructions

TECHNOLOGY
Model: EURO Plus
Axle type: DELTA SIN 14-2
Axle load: Single axle 1600kg
Axle load: Tandem axle 3000kg
Wheel brake: 2361
Suspension: Hexagonal rubber suspension
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm

SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber

... ...
