Braked axle 1500kg EURO1 axle type DELTA SIN 14-1 811135

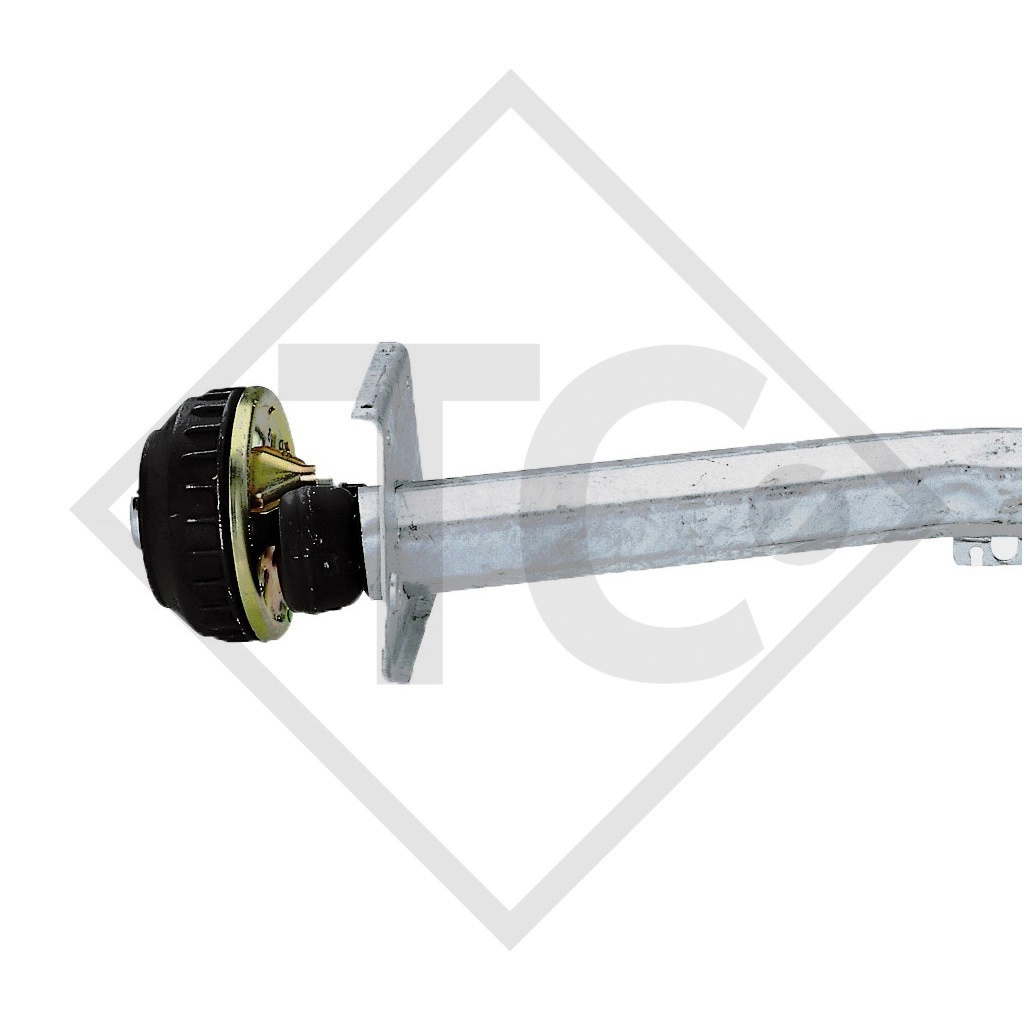

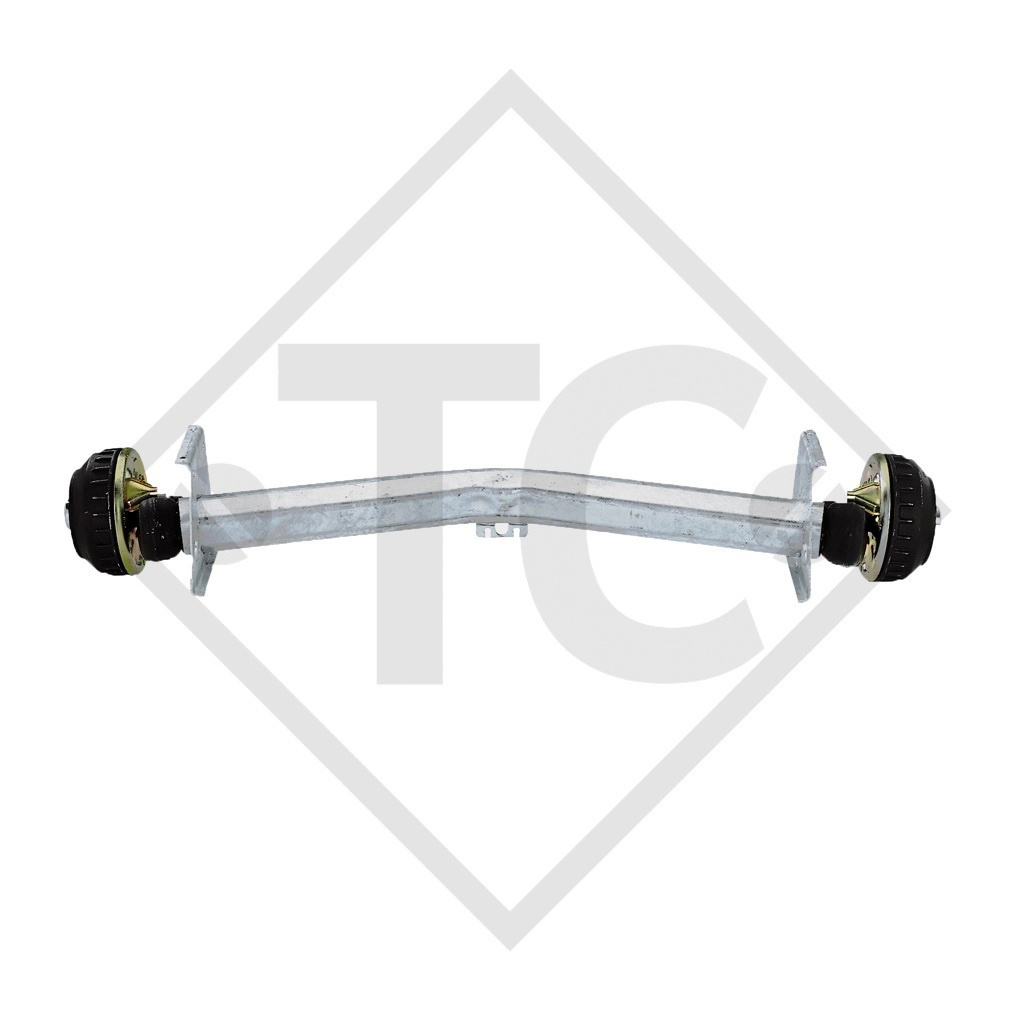

Braked axle 1400kg EURO PLUS axle type DELTA SIN 14-1 - WILK caravan DE LUXE 545

BC: dimension A 1575mm, OHF: dimension C 2090mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 16°, axle profile 97mm. Read more...

Wishlist: Add to comparison:

Price 1.415,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 1521644

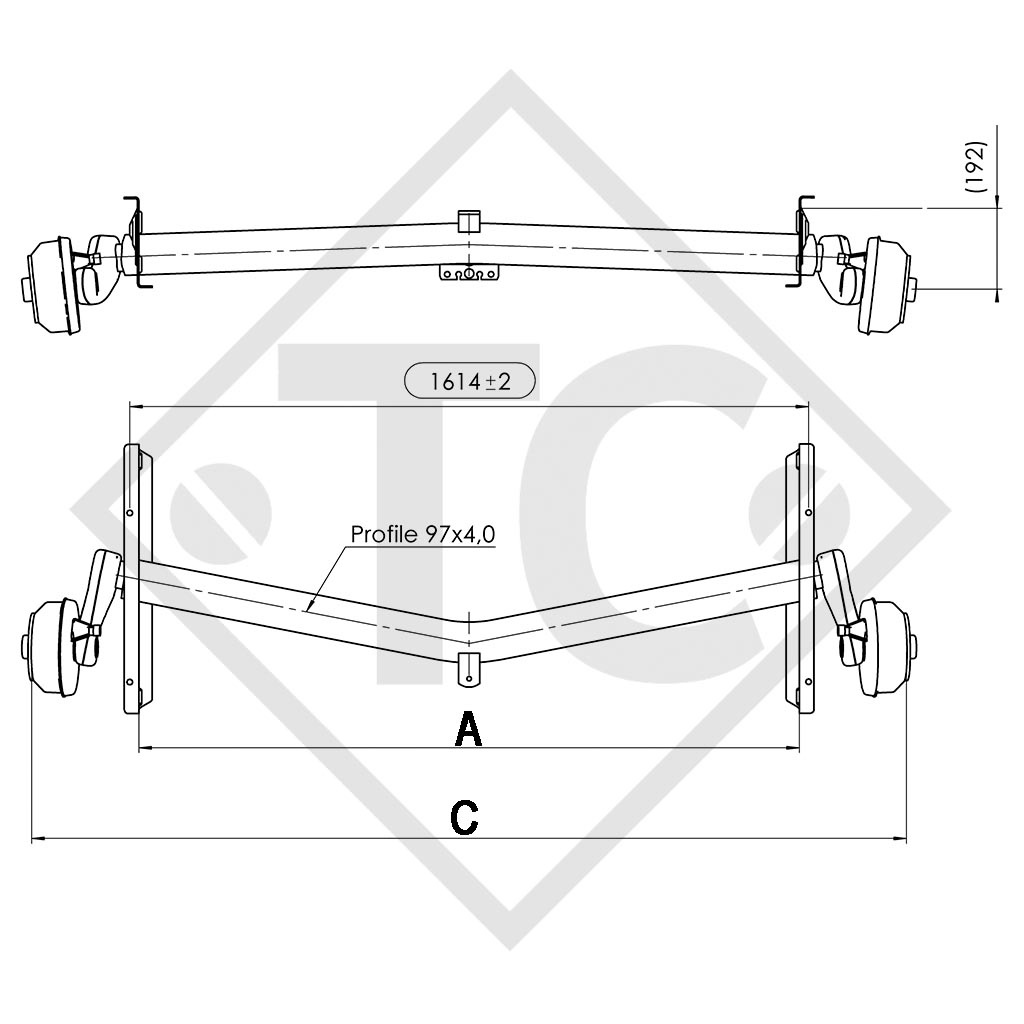

BC: dimension A 1575mm
OHF: dimension C 2090mm
Wheel connection 112x5
Offset (ET) 30mm
Swing arm position 16°
Axle profile 97mm

TECHNOLOGY
Model: EURO PLUS
Axle type: DELTA SIN 14-1
Axle load: Single axle 1400kg
Axle load: Tandem axle 2800kg
Wheel brake: 2361
Suspension: Hexagonal rubber suspension
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm

SCOPE OF DELIVERY
Axle with wheel brake and bowden cables

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber

AL-KO Braked axle 1400kg EURO PLUS axle type DELTA SIN 14-1 - WILK caravan DE LUXE 545
