Home / Braked axle 2000kg EURO1 axle type DELTA SI 18-3 with AAA (automatic adjustment of the brake pads)
BC: dimension A 1573mm, OHF: dimension C 2080mm, wheel connection 112x5, wheel brake type 2361 AAA, offset (ET) 30mm, swing arm position 15°, axle profile 110mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 1424874

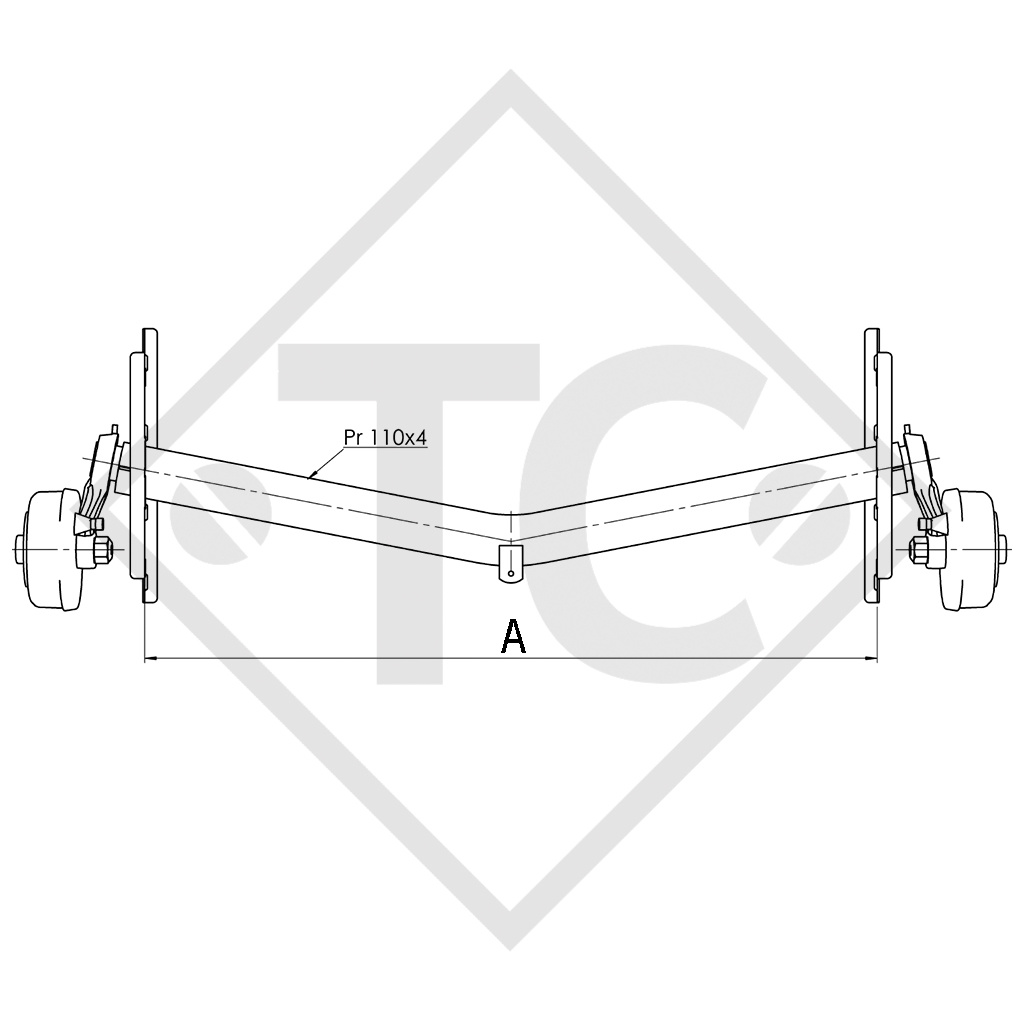

BC: dimension A 1573mm

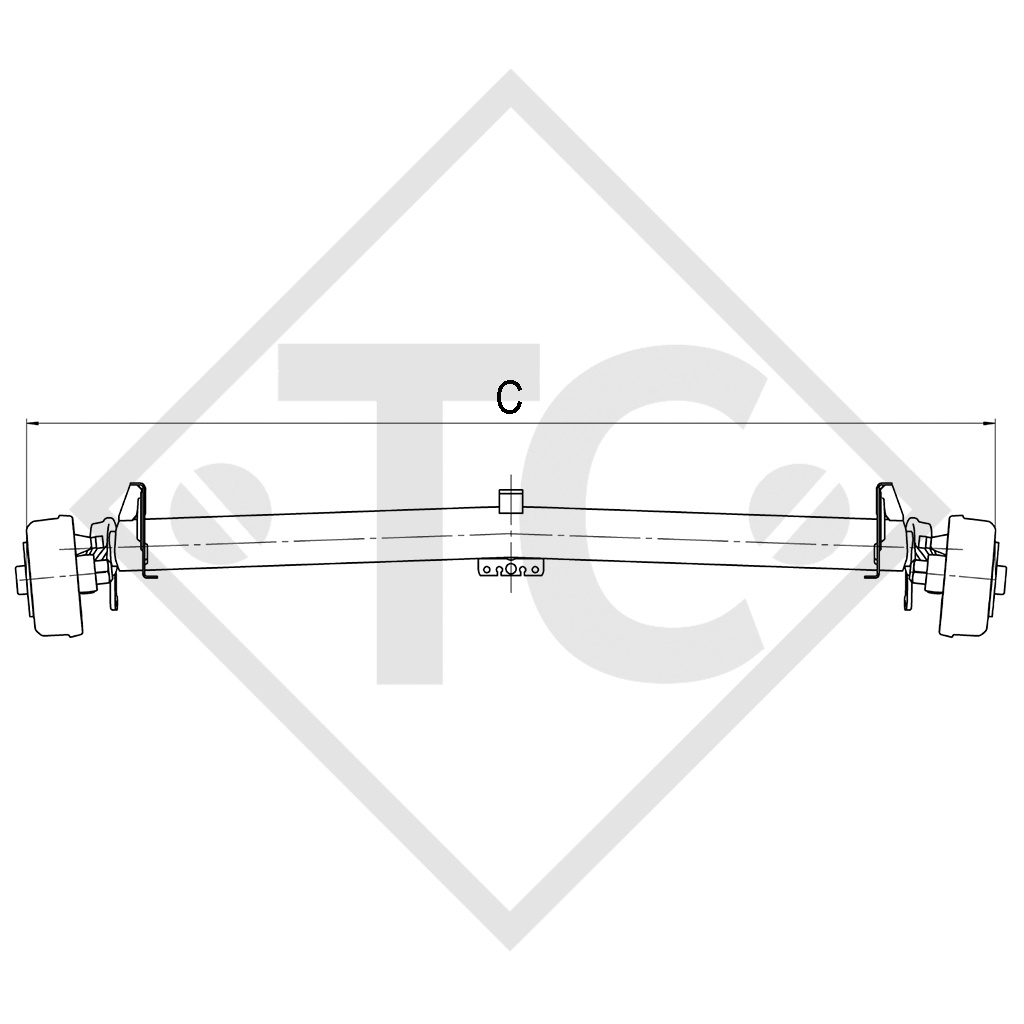

OHF: dimension C 2080mm
Wheel connection 112x5
Offset (ET) 30mm
Swing arm position 15°
Axle profile 110mm
Original operating instructions
Replacement part identification number (ETI) 811731
TECHNOLOGY
Model: EURO1
Axle type: DELTA SI 18-3
Axle load: Single axle 2000kg
Axle load: Tandem axle 3500kg
Wheel brake: 2361 with AAA (automatic adjustment of the brake pads)
Suspension: Hexagonal rubber suspension
Swing arm length: 185mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose

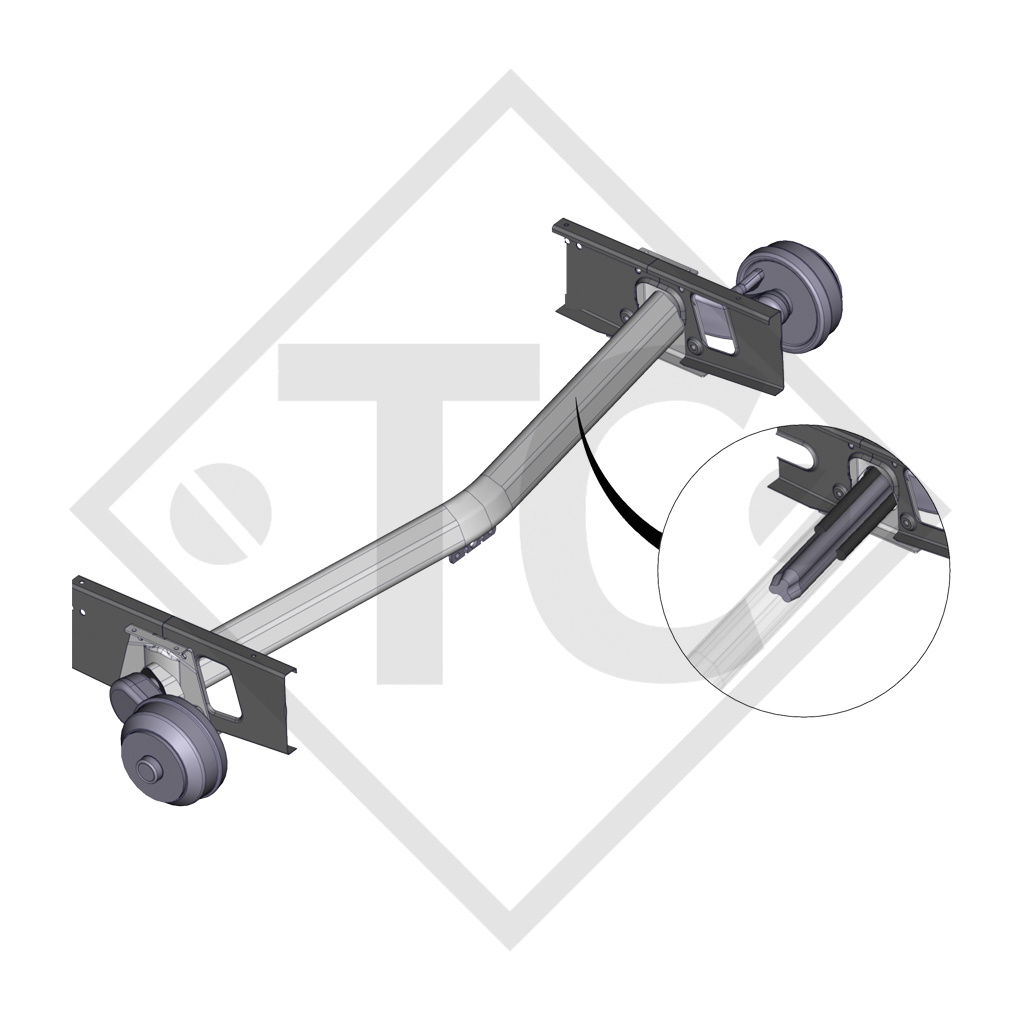

Tandem axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
