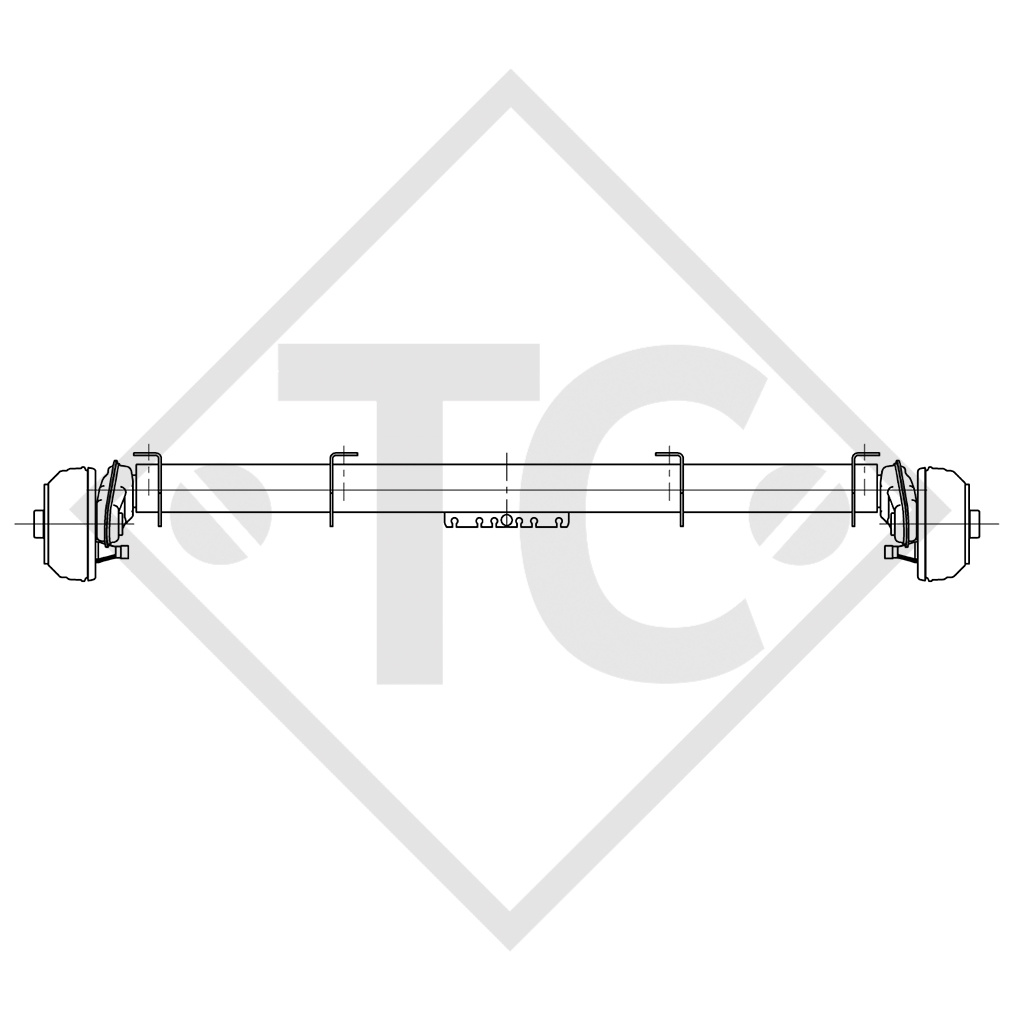

AL-KO Braked axle 1350kg EURO COMPACT axle type B 1200-6 with tandem adapter bracket from below, LIDER

Part no. 1374852

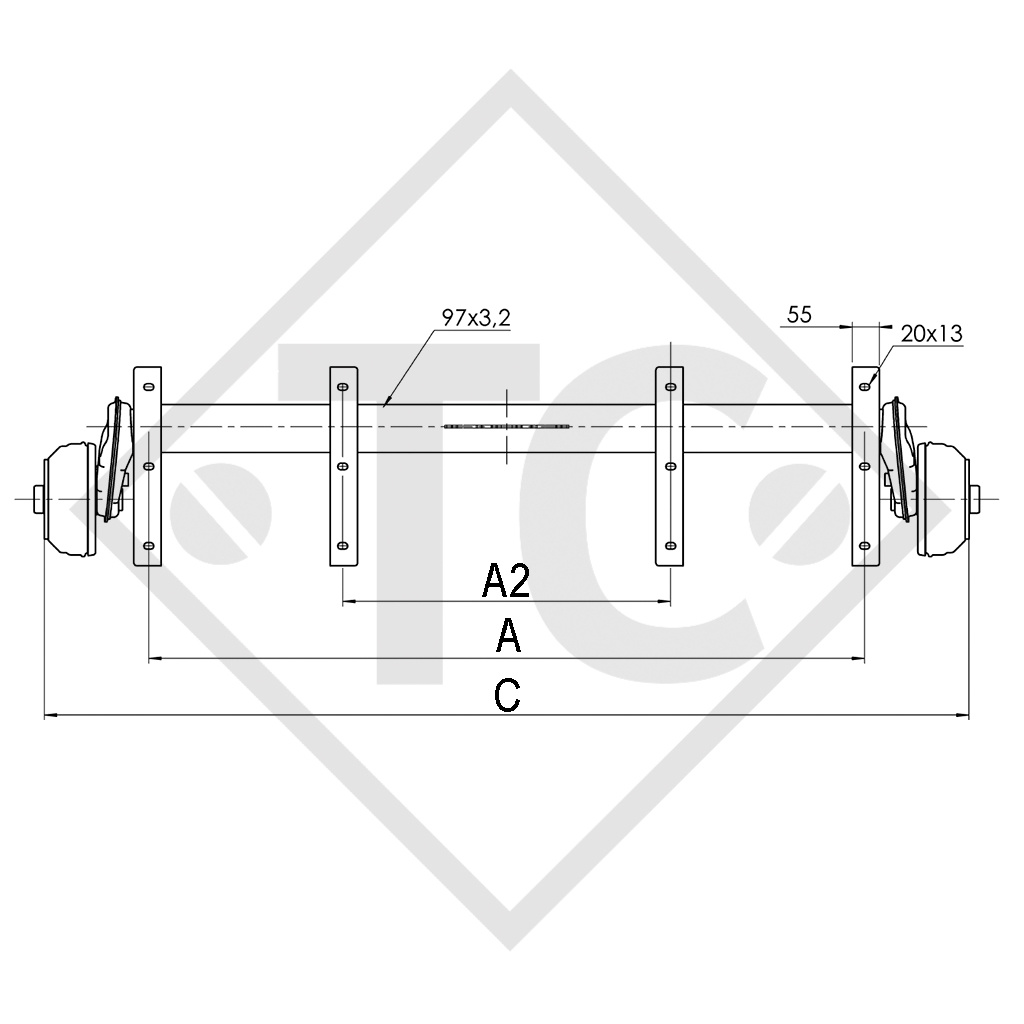

BC: dimension A 1440mm
BC: dimension A2 660mm
OHF: dimension C 1860mm
Wheel connection 112x5
Offset (ET) 30-33mm

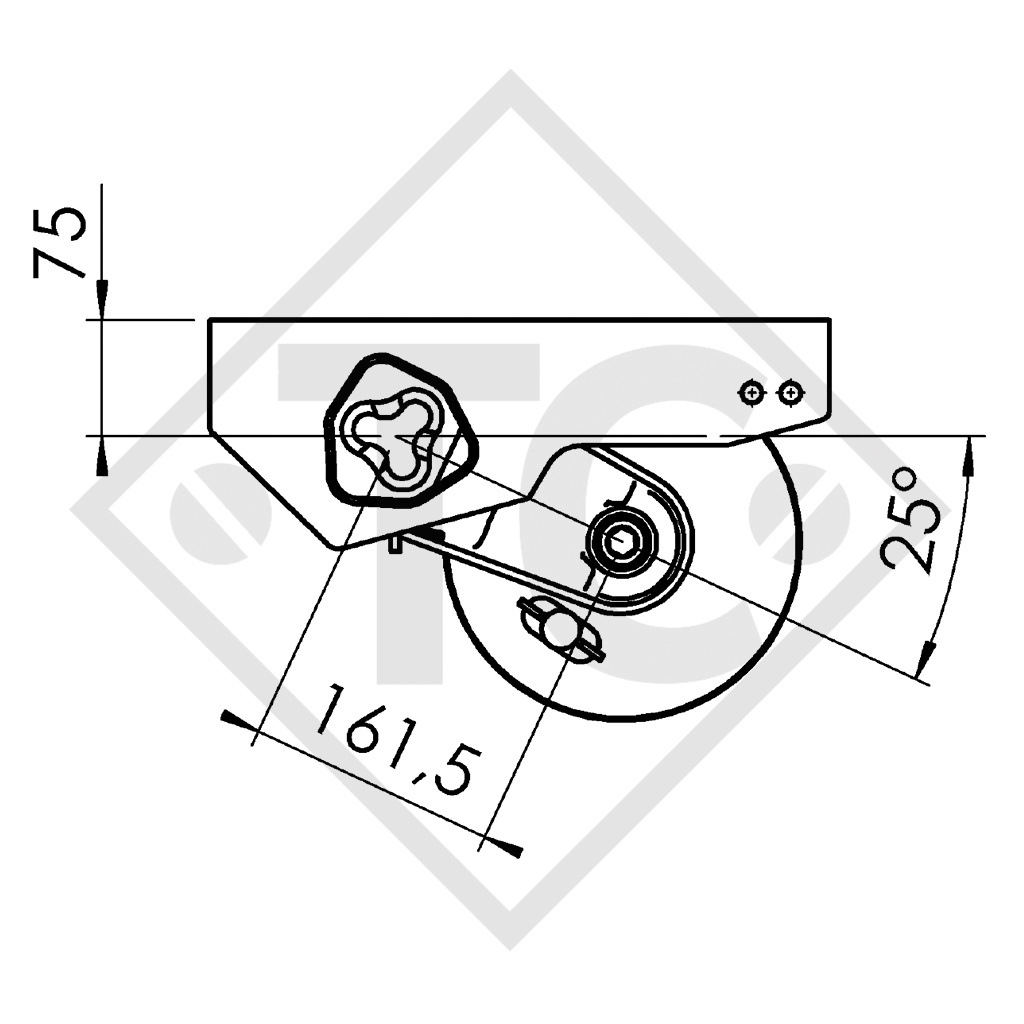

Swing arm position 25°
Axle profile 97mm

Original operating instructions
Replacement part identification number (ETI) OLD 811157
Replacement part identification number (ETI) NEW 811941

TECHNOLOGY
Model: EURO COMPACT
Axle type: B 1200-6
Axle load: Single axle 1350kg
Axle load: Tandem axle 2700kg
Wheel brake: 2051 vers. A
Suspension: Hexagonal rubber suspension
Swing arm length: 161.5mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Tandem axle adapter bracket welded on

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber
