BC: dimension A 1504/1570mm, OHF: dimension C 2025mm, wheel connection 139.7x4, wheel brake type 2051, offset (ET) 25.4mm, swing arm position 25°, axle profile 97mm. Read more...
Part no. 1385333

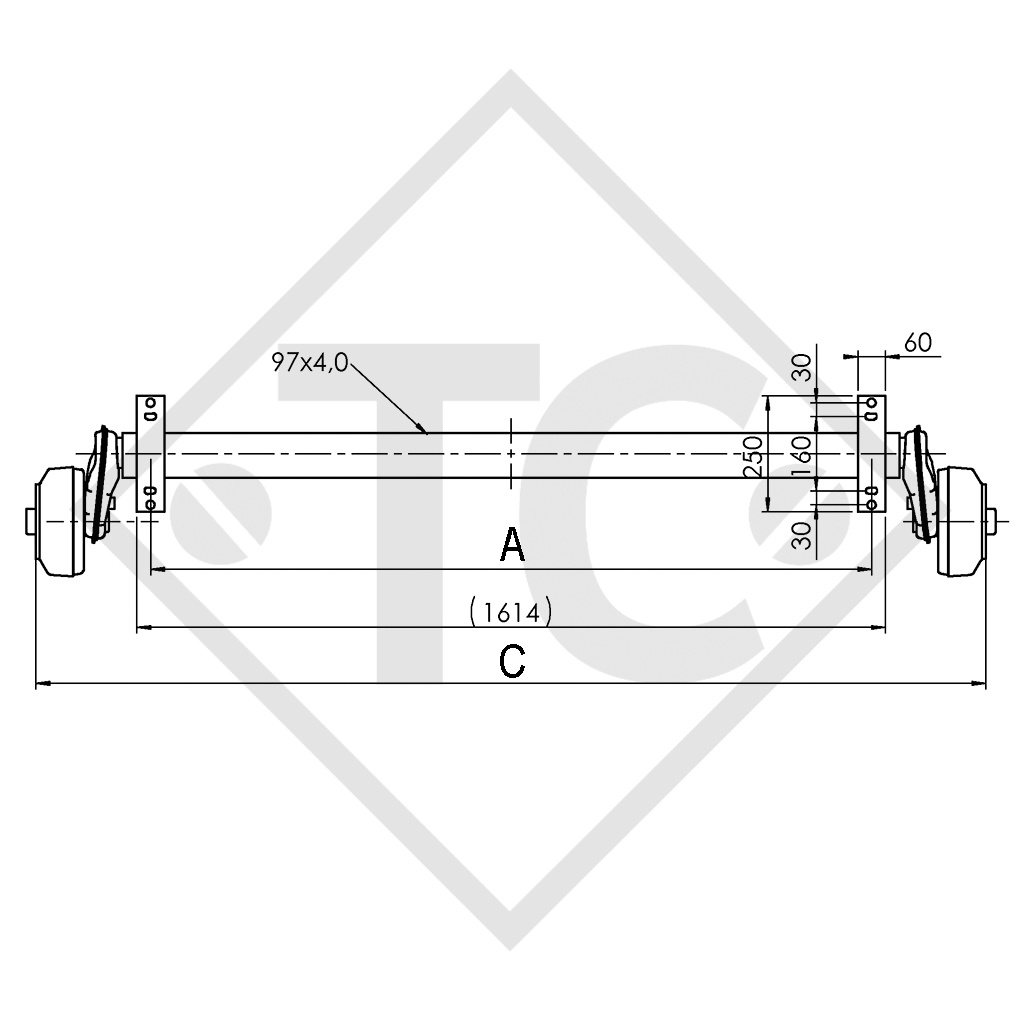

BC: dimension A 1504/1570mm
OHF: dimension C 2025mm
Wheel connection 139.7x4
Offset (ET) 25.4mm

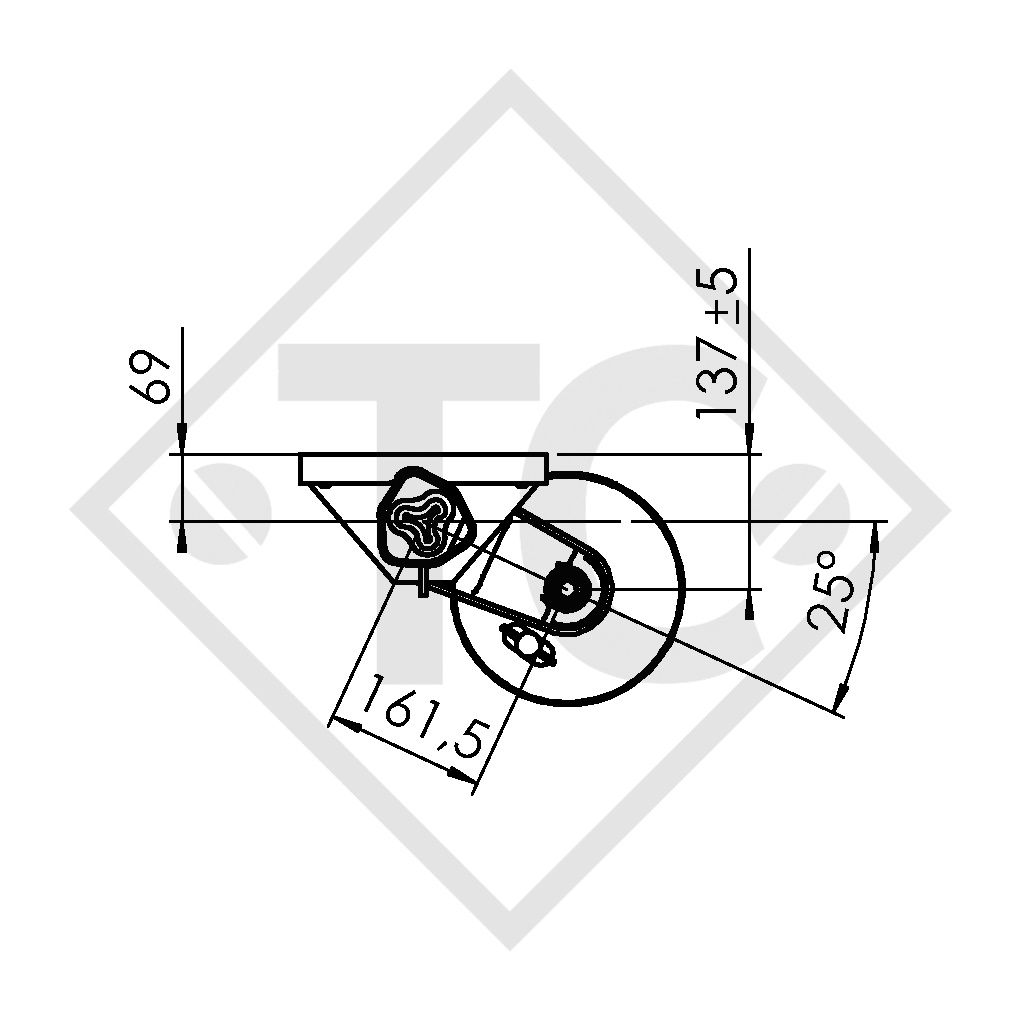

Swing arm position 25°
Axle profile 97mm
TECHNOLOGY
Axle type: B 1600-3
Axle load: Single axle 1500kg
Axle load: Tandem axle 3000kg
Wheel brake: 2051
Suspension: Hexagonal rubber suspension
Swing arm length: 161.5mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle with wheel break
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
