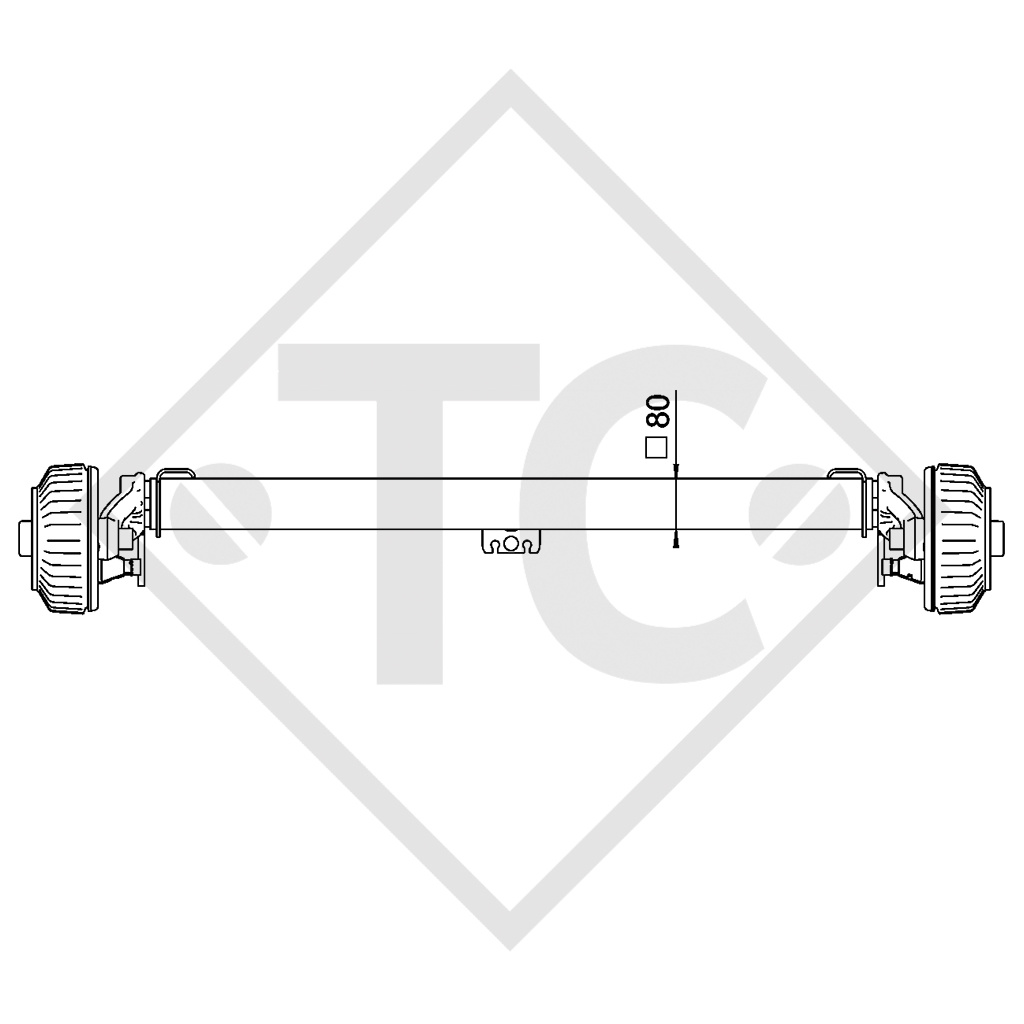

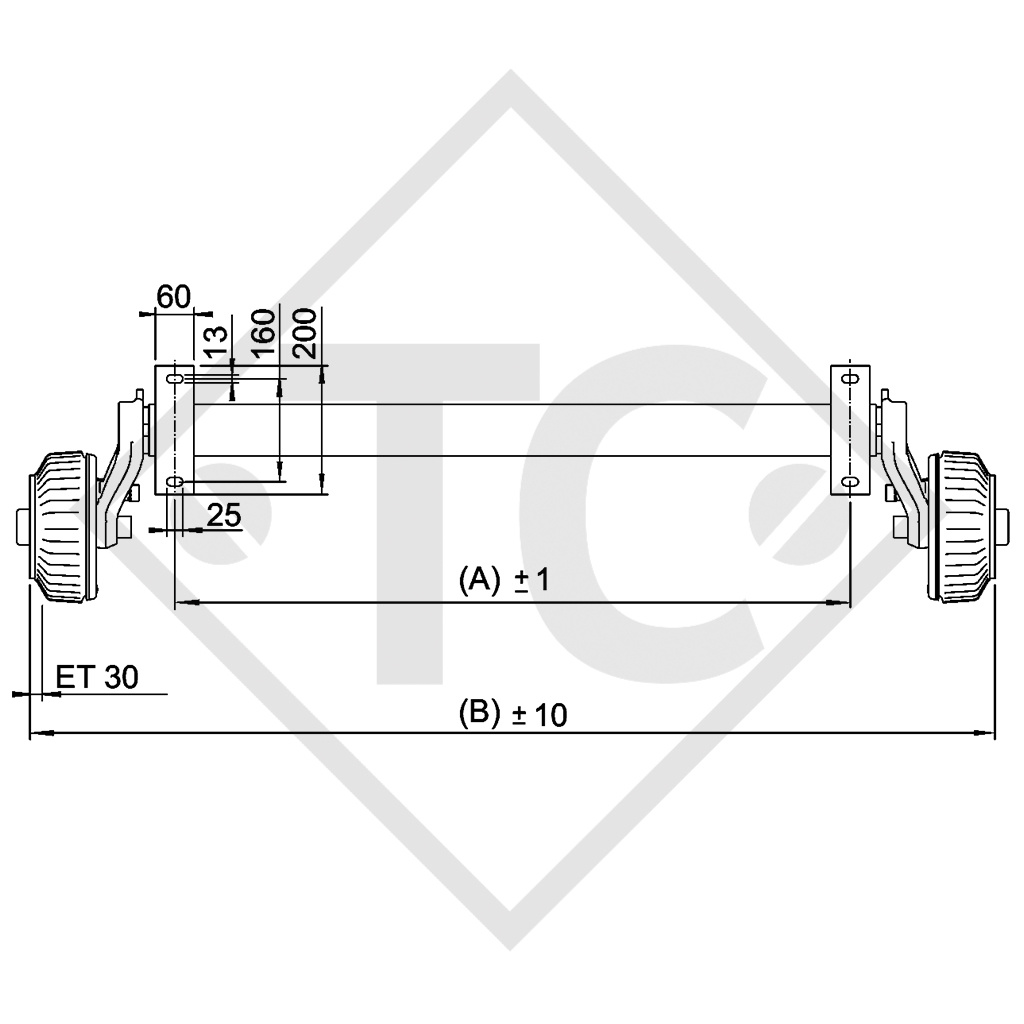

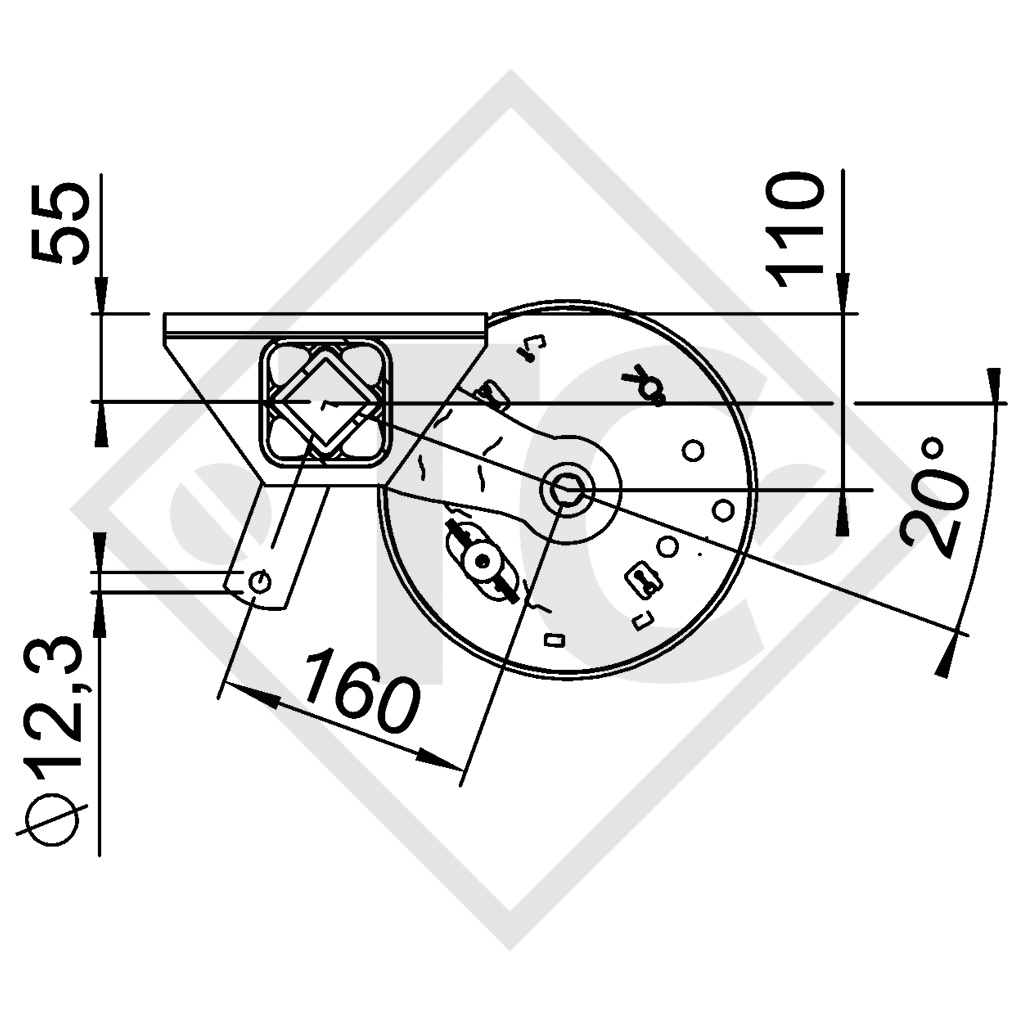

BC: dimension A 800mm, OHF: dimension B 1250mm, wheel connection 112x5, wheel brake type 2051, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Part no. 4023513

BC (A)
800mm
OHF (B)
1250mm
Model BASIC
Axle type
CB1500
Axle load single axle 1500kg
Axle load: Tandem axel 3000kg
Wheel brake 2051
Suspension Square rubber suspension
Swing arm
160mm
Wheel connection
112x5
Wheel bearing
Compact bearings
Centre hole rim
min. 57mm



Replacement part identification number (ETI) 811938

SCOPE OF DELIVERY
Single axle adapter bracket welded on
Welded-on shock absorber brackets
Compensation profile for single axle supplied
Bowden cables loose
Wheel bolts loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
Axle link cataphoretically coated
