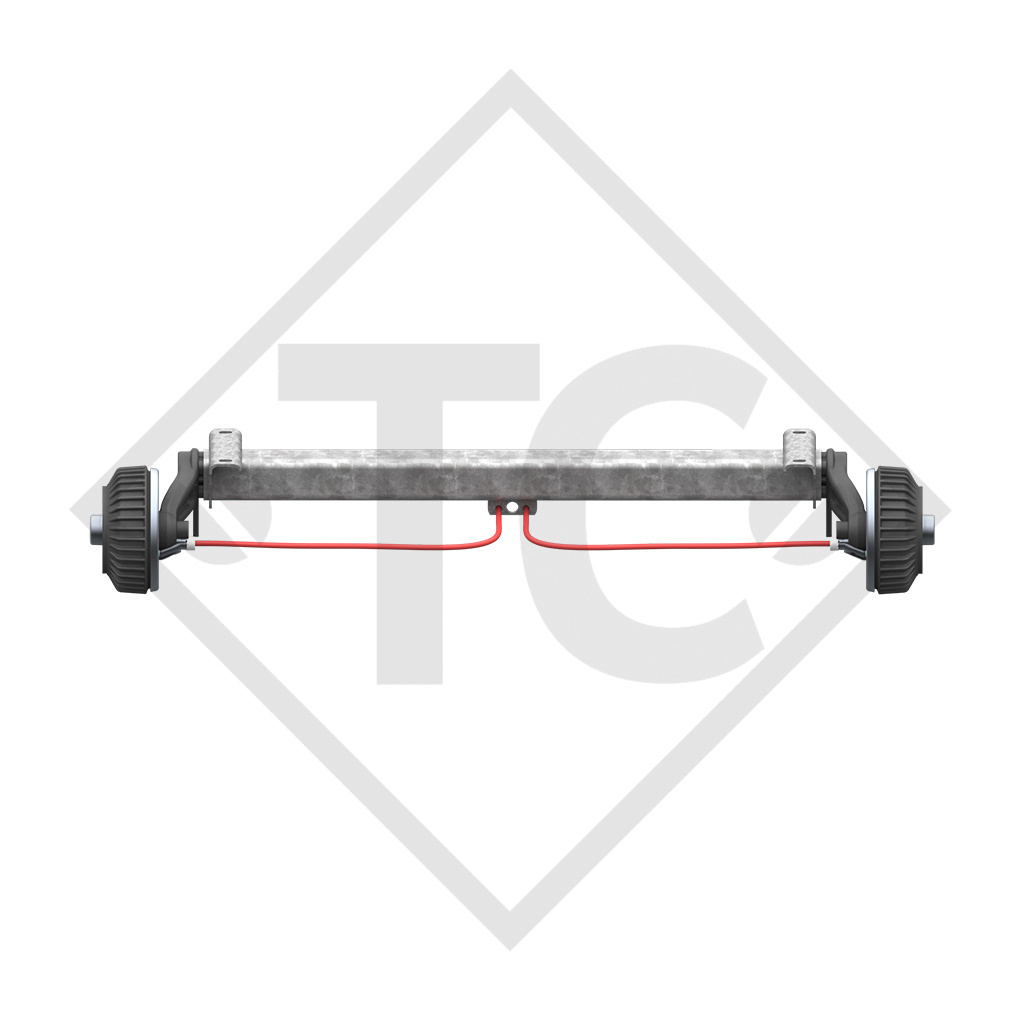

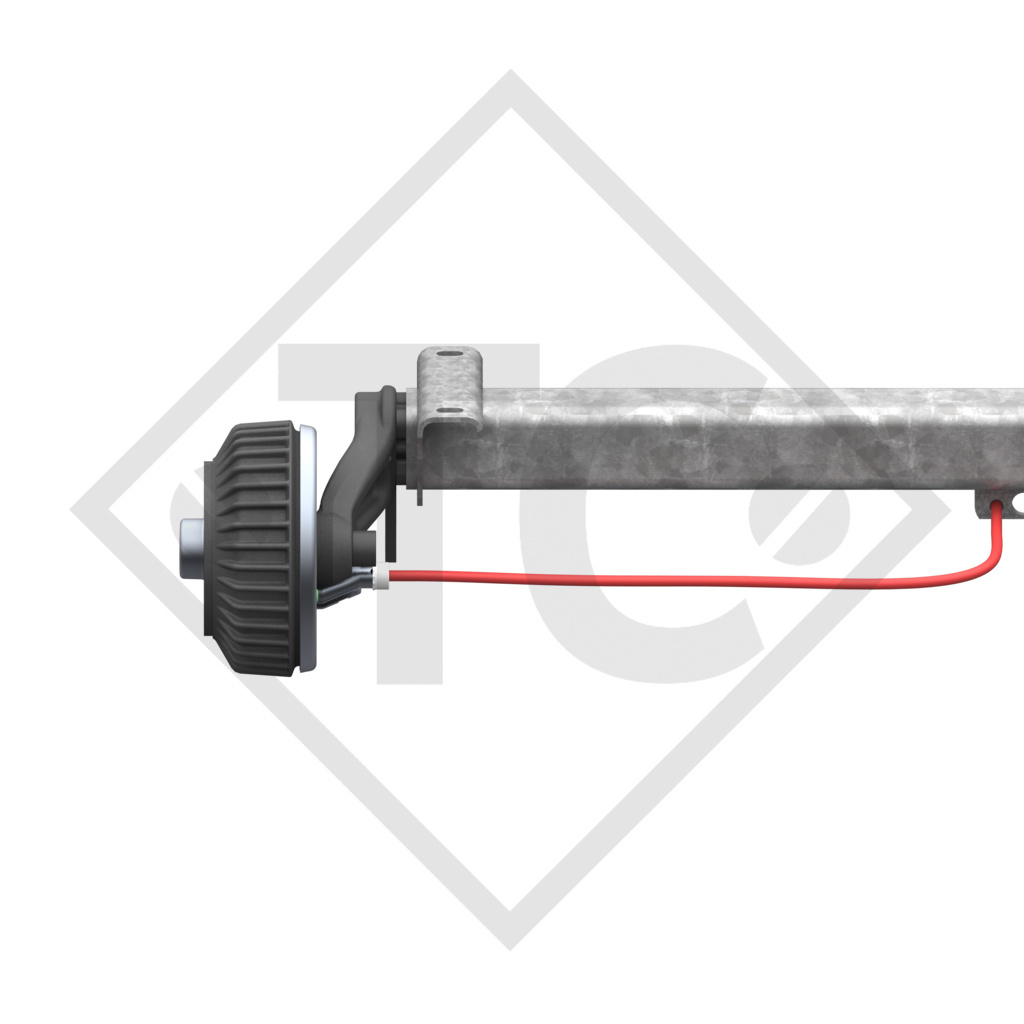

Braked axle 1500kg BASIC axle type CB1500 with AAA, 4023534

Braked axle 1500kg BASIC axle type CB1500 with AAA (automatic adjustment of the brake pads)

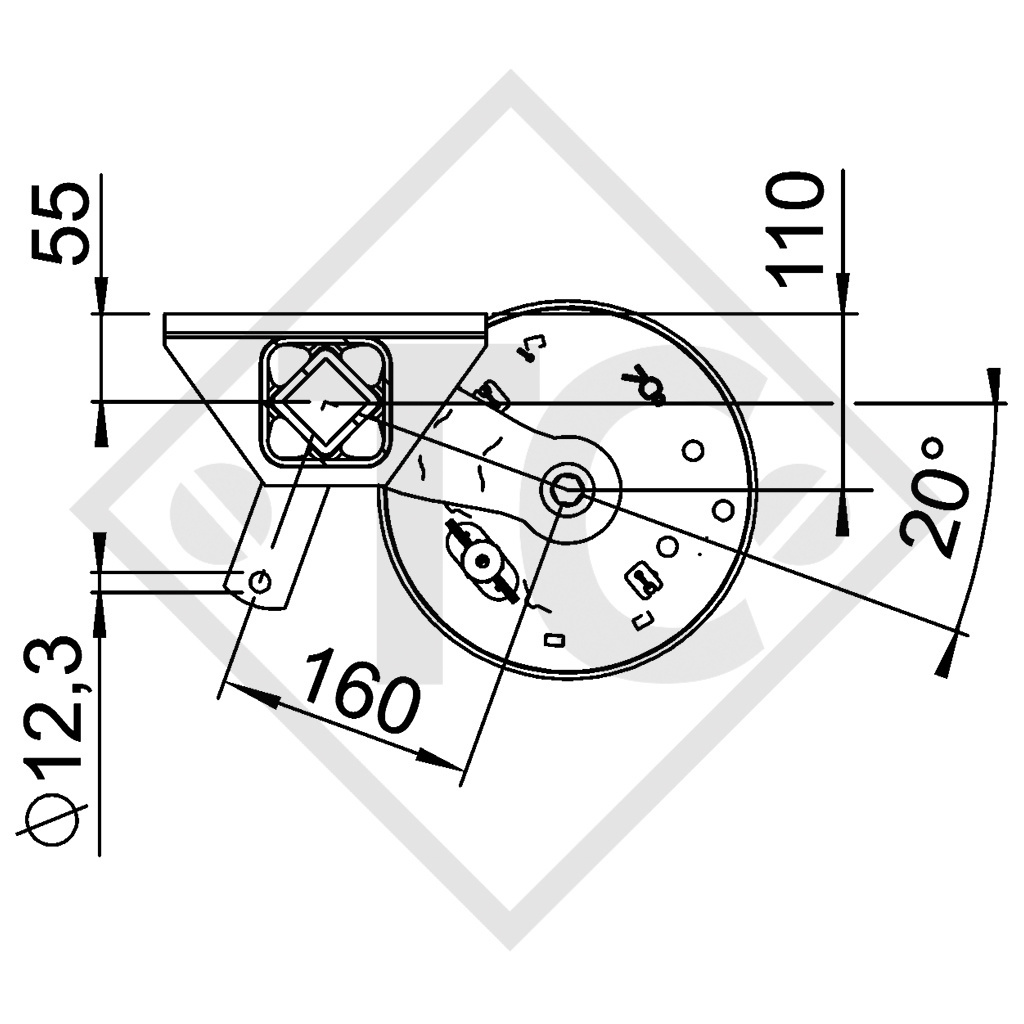

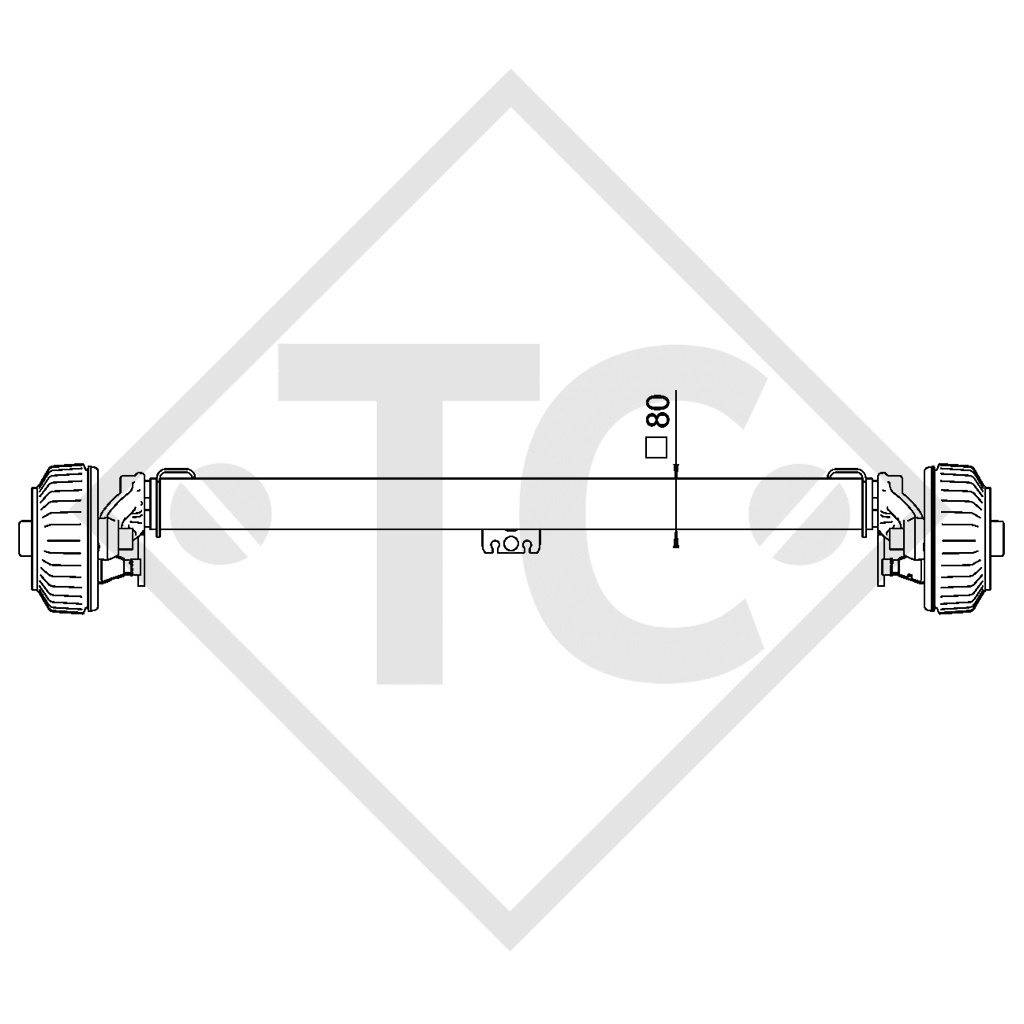

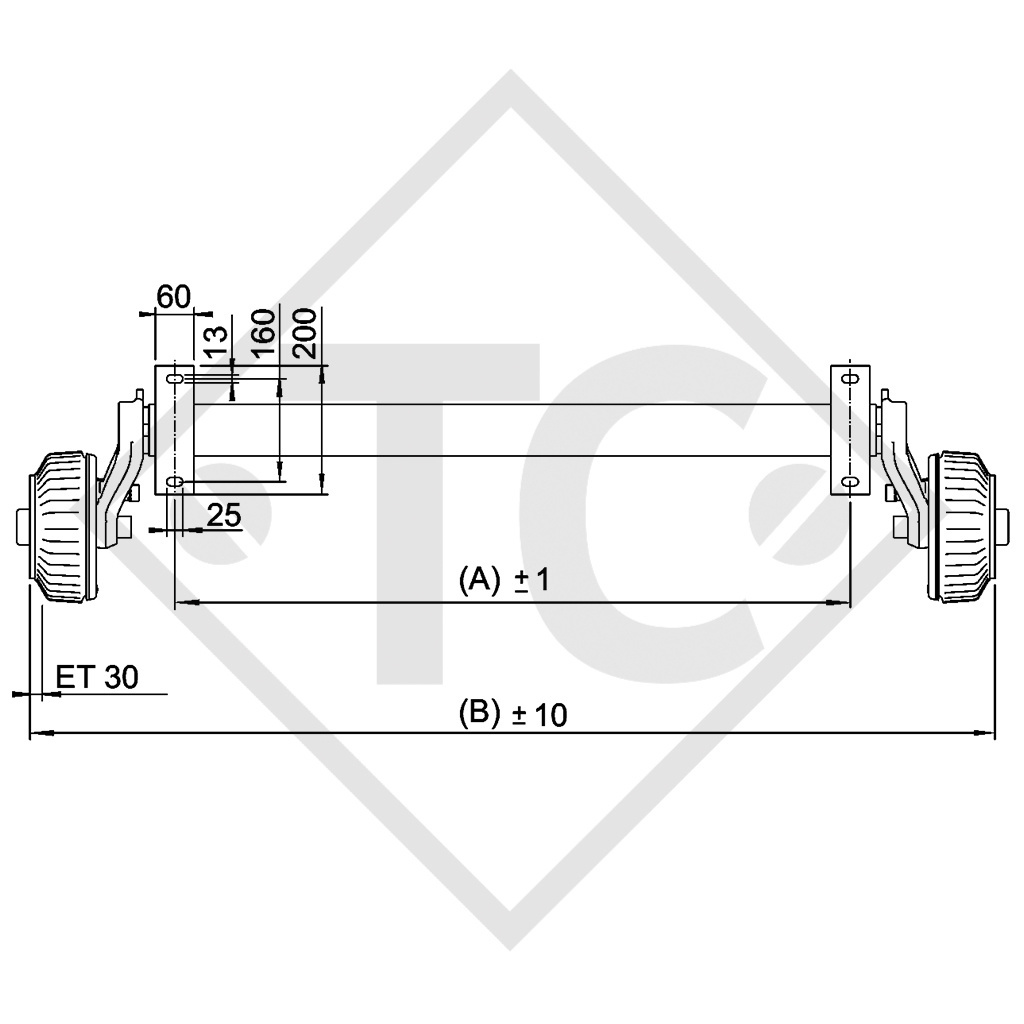

BC: dimension A 1700mm, OHF: dimension B 2150mm, wheel connection 112x5, wheel brake type 2051 with AAA, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Price 793,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 4023534

BC (A)

1700mm

OHF (B)

2150mm

Model

BASIC

Axle type

CB1500

Axle load single axle

1500kg

Axle load: Tandem axel

3000kg

Wheel brake

2051 with AAA

Suspension

Square rubber suspension

Swing arm

160mm

Wheel connection

112x5

Wheel bearing

Compact bearings

Centre hole rim

min. 57mm

Replacement part identification number (ETI) 811961

SCOPE OF DELIVERY
Single axle adapter bracket welded on
Welded-on shock absorber brackets
Compensation profile for single axle supplied
Bowden cables loose
Wheel bolts loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
Axle link cataphoretically coated

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

AL-KO Braked axle 1500kg BASIC axle type CB1500 with AAA (automatic adjustment of the brake pads)
