Home / Brands / BPW / Braked axle 1500kg EURO COMACT axle type B 1600-3, watertight
BC: dimension A 1554mm, OHF: dimension C 2048mm, wheel connection 140x5, wheel brake type 2051 Ab, offset (ET) 30mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M14x1.5. Read more...
Part no. 1422213

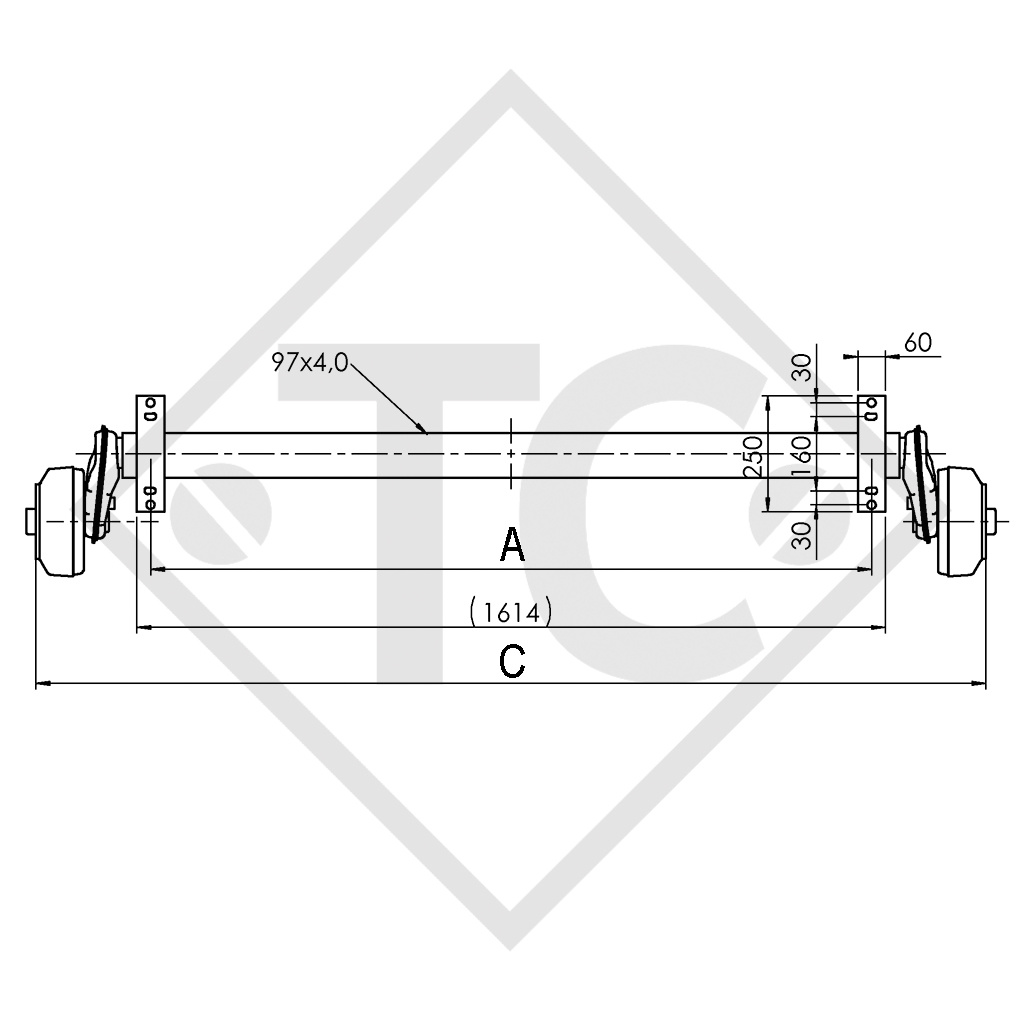

BC: dimension A 1554mm
OHF: dimension C 2048mm
Wheel connection 140x5
Offset (ET) 30mm

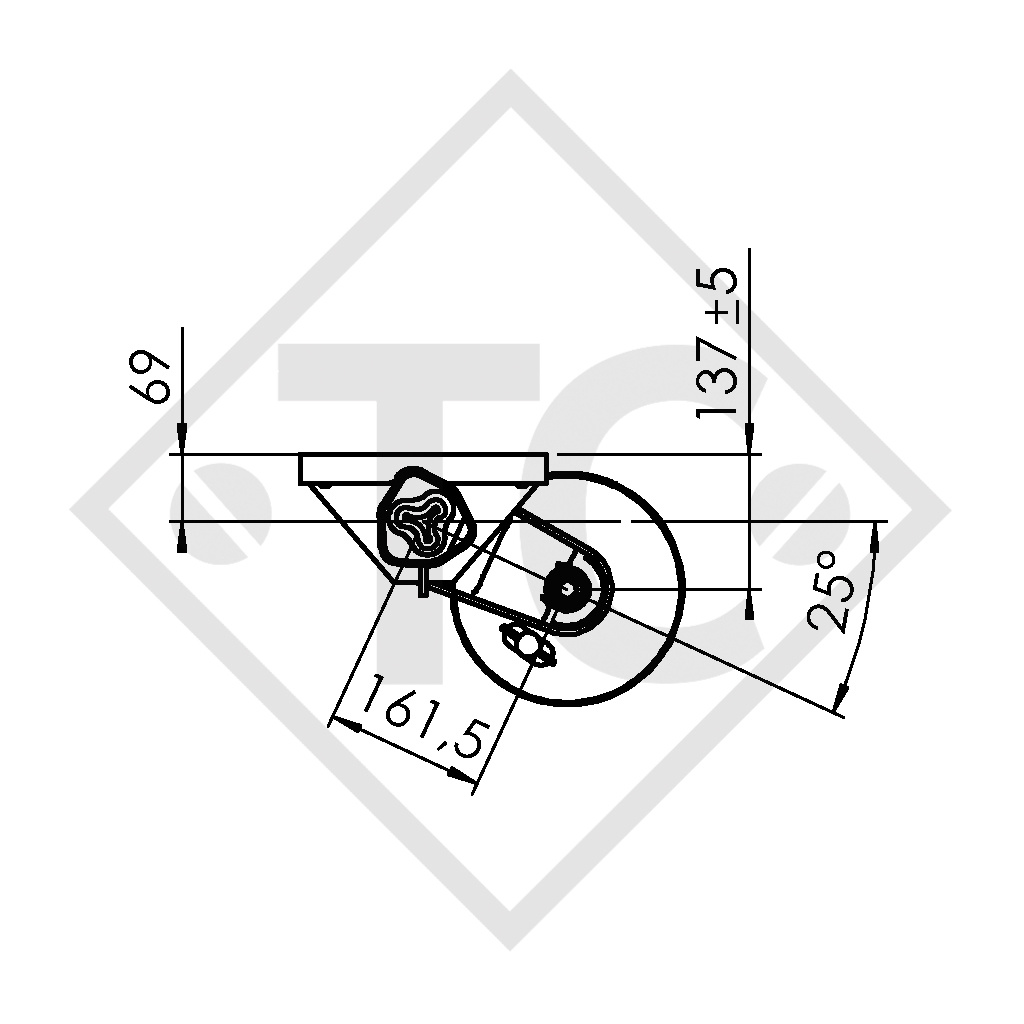

Swing arm position 25°
Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) 811529
TECHNOLOGY
Model: EURO COMPACT
Axle type: B 1600-3
Axle load: Single axle 1500kg
Axle load: Tandem axle 3000kg
Wheel brake: 2051 vers. Ab
Suspension: Hexagonal rubber suspension
Swing arm length: 161.5mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M14x1.5 loose
Tridem axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
