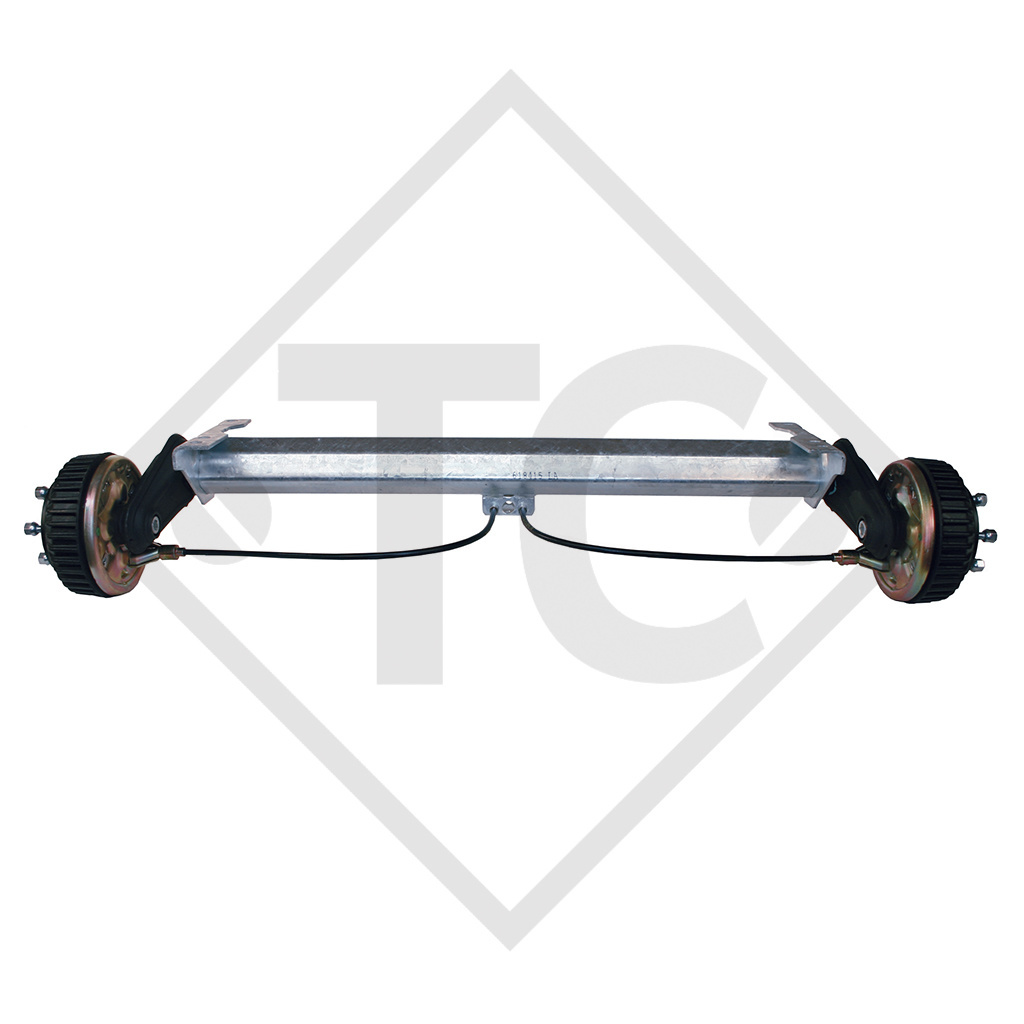

Home / CHASSIS PARTS / CHASSIS PARTS BPW / AXLES / LOWERING AXLES 750 TO 3500KG, AXLE TYPE CB 755, CB 1055, CB 1355, CB 1505, CB1805, DB 2/1355, DB 2/1505 AND DB 2/1805 / LOWERING AXLES DOWN TO 180MM, AXLE TYPE CB 1505, SINGLE AXLE TRAILER TO 1500KG / Braked axle 1500kg BASIC axle type B 1600-3
BC: dimension A 1100mm, OHF: dimension C 1550mm, wheel connection 112x5, wheel brake type 2051 Ab, offset (ET) 30mm, swing arm position 25°, axle profile 97mm, taper-head wheel bolts M12x1.5. Read more...
Part no. 24755702

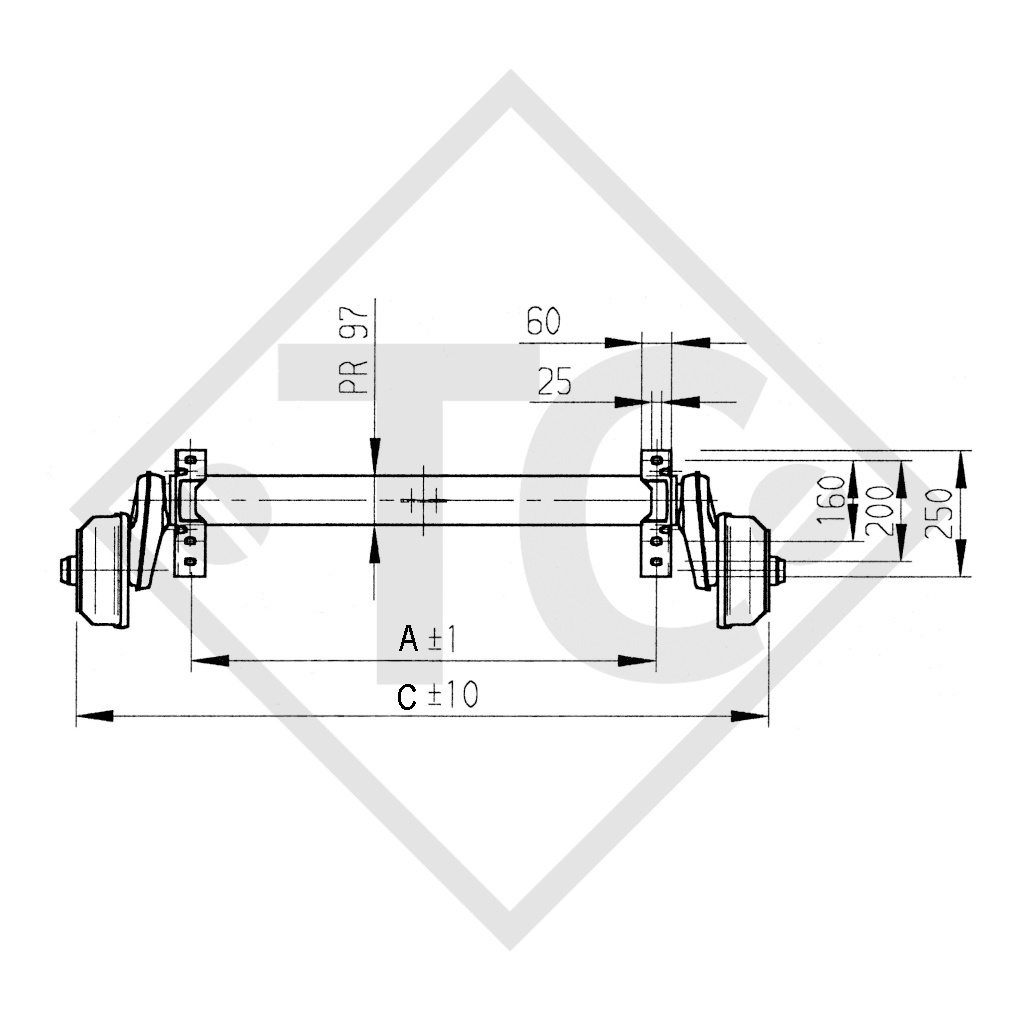

BC: dimension A 1100mm
OHF: dimension C 1550mm
Wheel connection 112x5

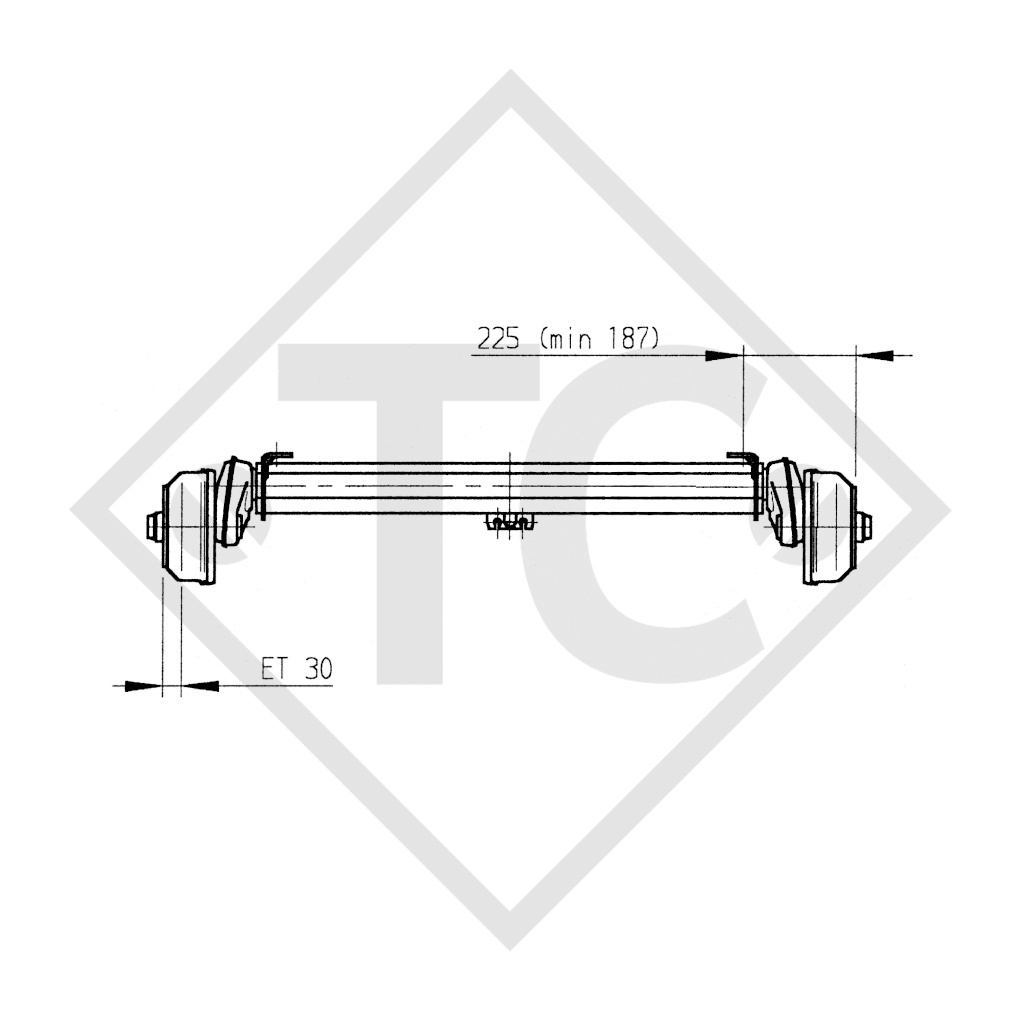

Offset (ET) 30mm
Swing arm position 25°
Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) OLD 811158
Replacement part identification number (ETI) NEW 811938
TECHNOLOGY
Model: BASIC
Axle type: B 1600-3
Axle load: Single axle 1500kg
Axle load: Tandem axle 3000kg
Wheel brake: 2051
Suspension: Hexagonal rubber suspension
Swing arm length: 161.5mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
