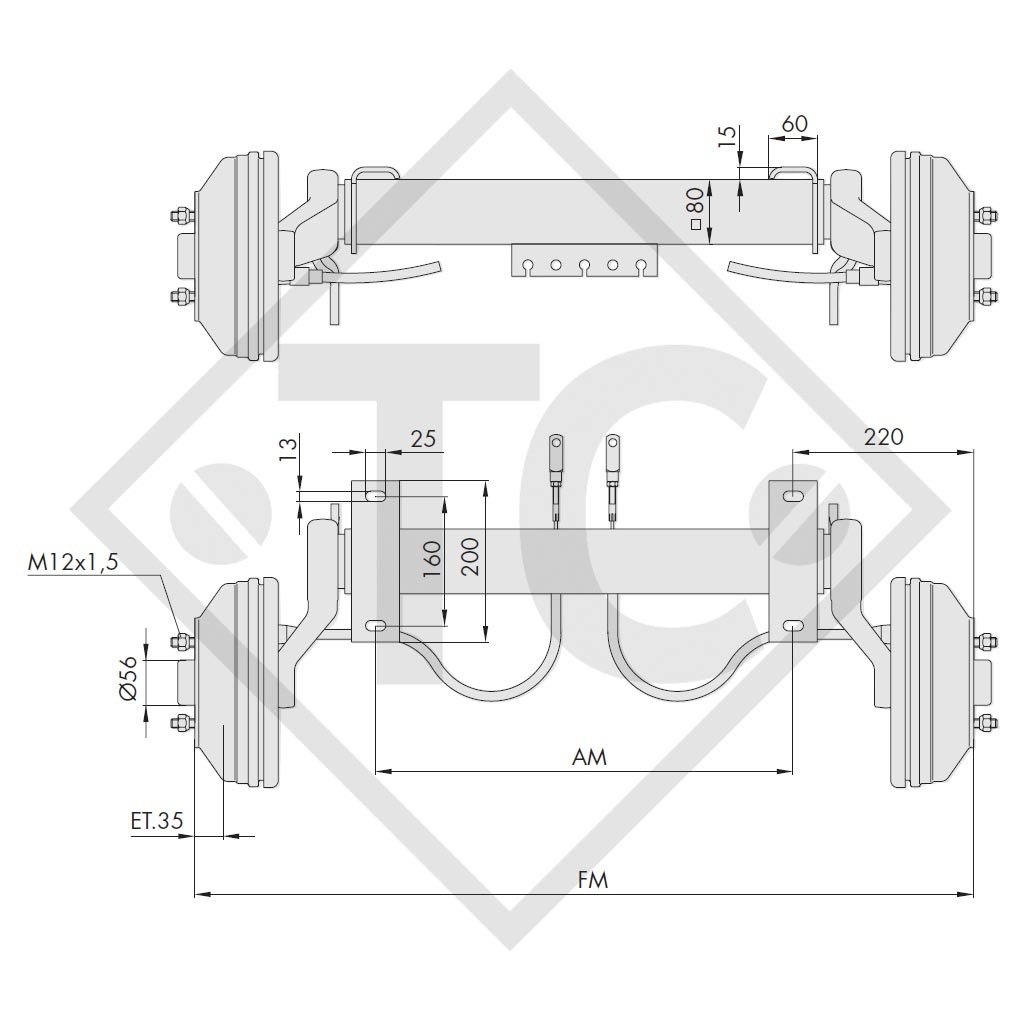

BC: dimension AM 1100mm, OHF: dimension FM 1540mm, wheel connection 100x4, wheel brake type W 205 RS, offset (ET) 35mm, taper-head wheel bolts M12x1.5. Read more...
| Part no. | WAPWAG150B031 |
| Dimension AM |
1100mm |
| Dimension FM |
1540mm |
| Wheel connection | 100x4 |
Spare part list for wheel brake W 205 RS
Bowden cables
TECHNOLOGY
Model: WAG-B
Axle type: WAG 150 B
Axle load: 1500kg
Suspension: Square rubber suspension

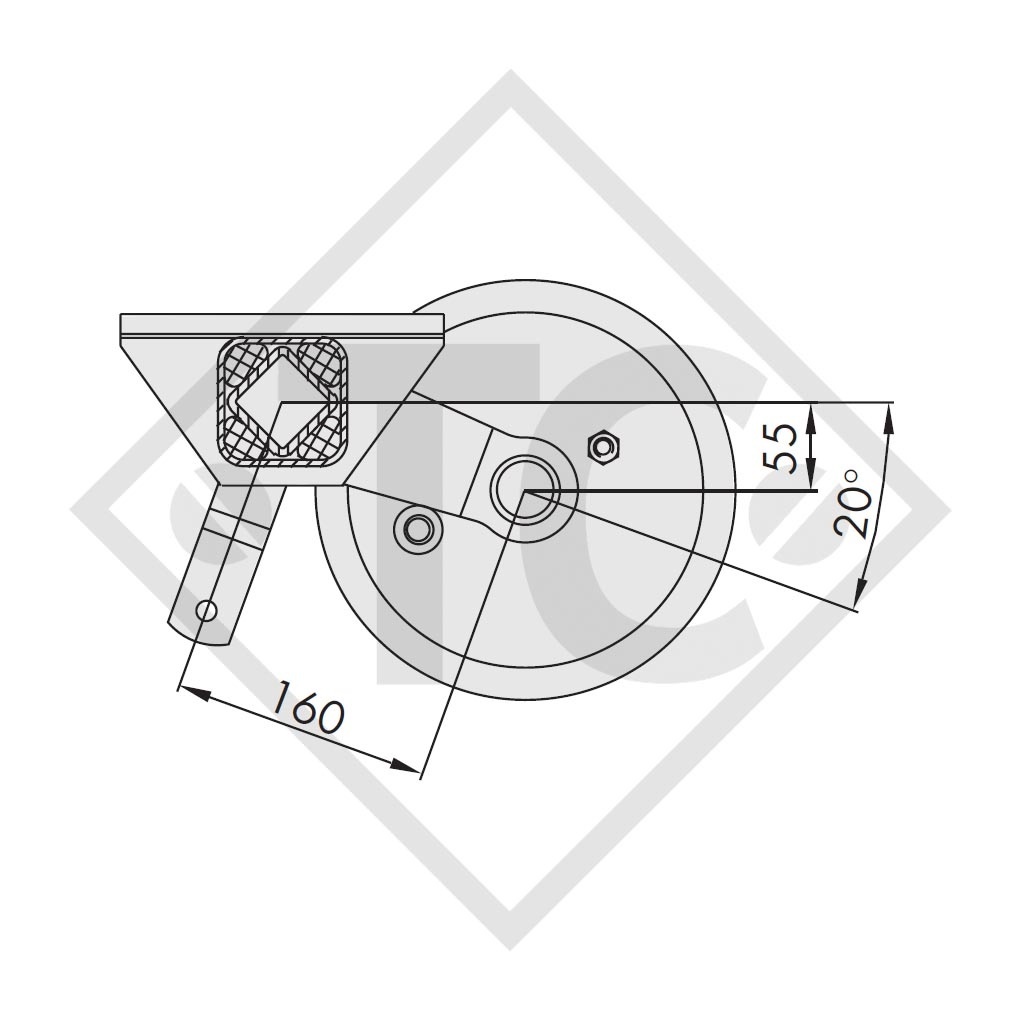

Swing arm length: 160mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle with wheel brake
Taper-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
