Home / Braked axle 1350kg axle type B 1200-6 - Humbaur HUK 272715

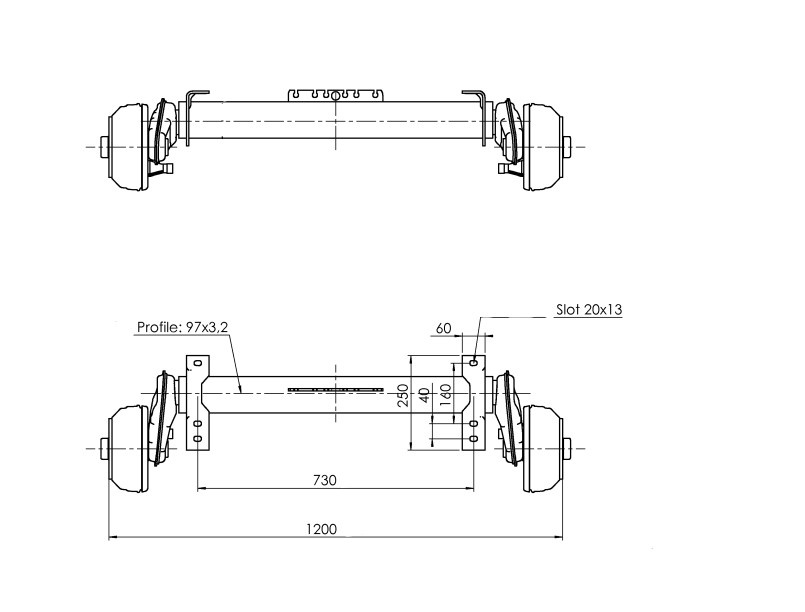

BC: dimension A 730mm, OHF: dimension C 1200mm, wheel connection 112x5, wheel brake type 2051, offset (ET) 30-33mm, swing arm position 25°, axle profile 97mm, ball-head wheel bolts M12x1.5.
