Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / AXLES / BRAKED AXLES & ACCESSORIES / BRAKED AXLES / LOWERING AXLES / LOWERING AXLES DOWN TO 140MM, TANDEM / Braked axle 1500kg axle type H 150 B, 3203787-2 Humbaur

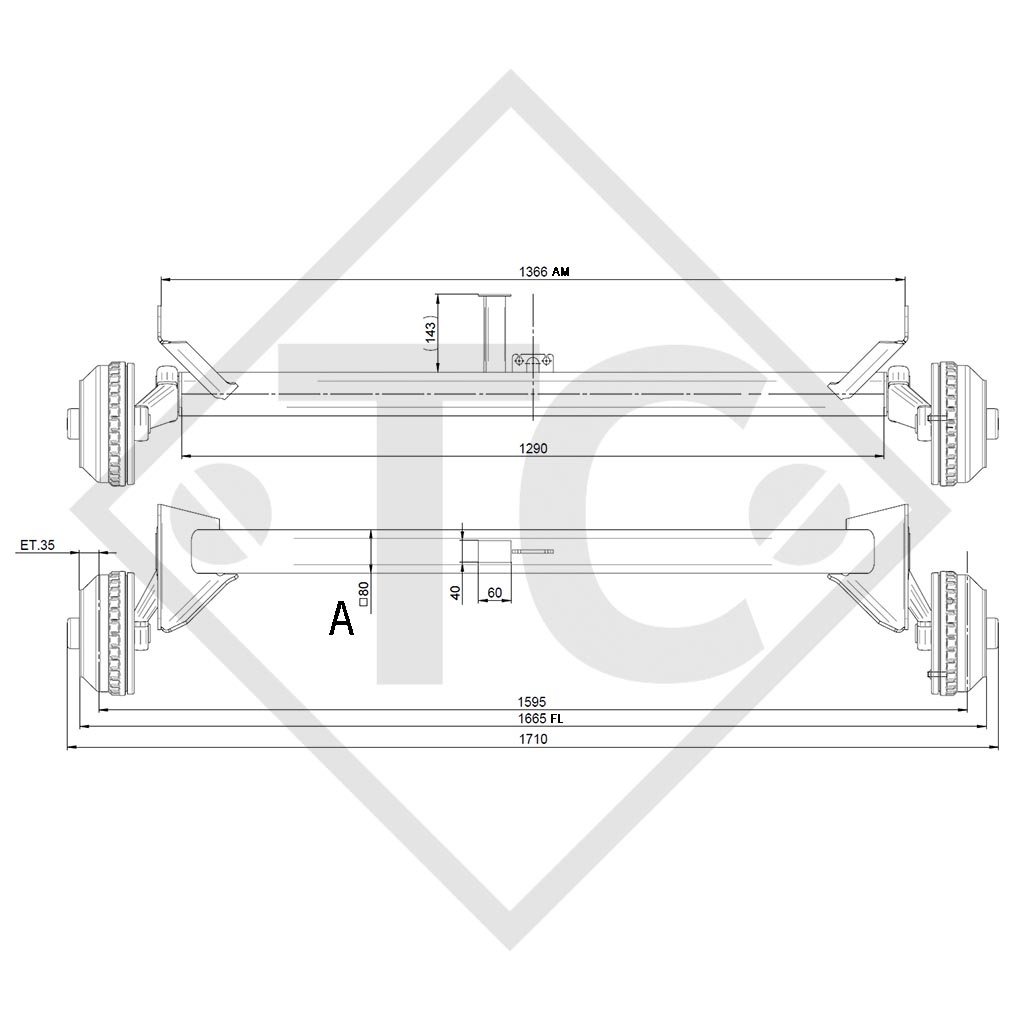

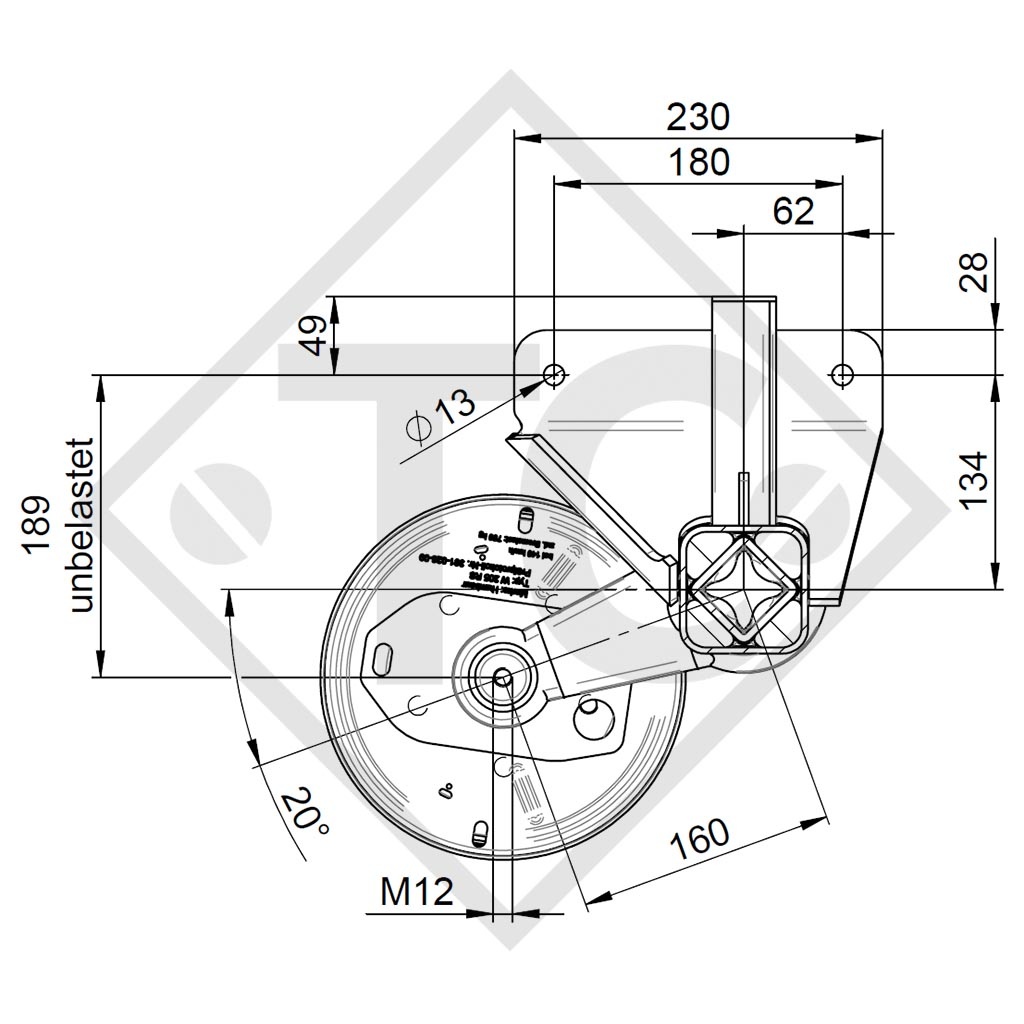

BC: dimension AM 1366mm, OHF: dimension FL 1665mm, wheel connection 112x5, wheel brake type W 205 RS, offset (ET) 35mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5.
