Braked axle 1000kg axle type DELTA SI-N 10 Fendt Platin 650

Braked axle 1000kg EURO1 axle type DELTA SI-N 10, DETHLEFFS

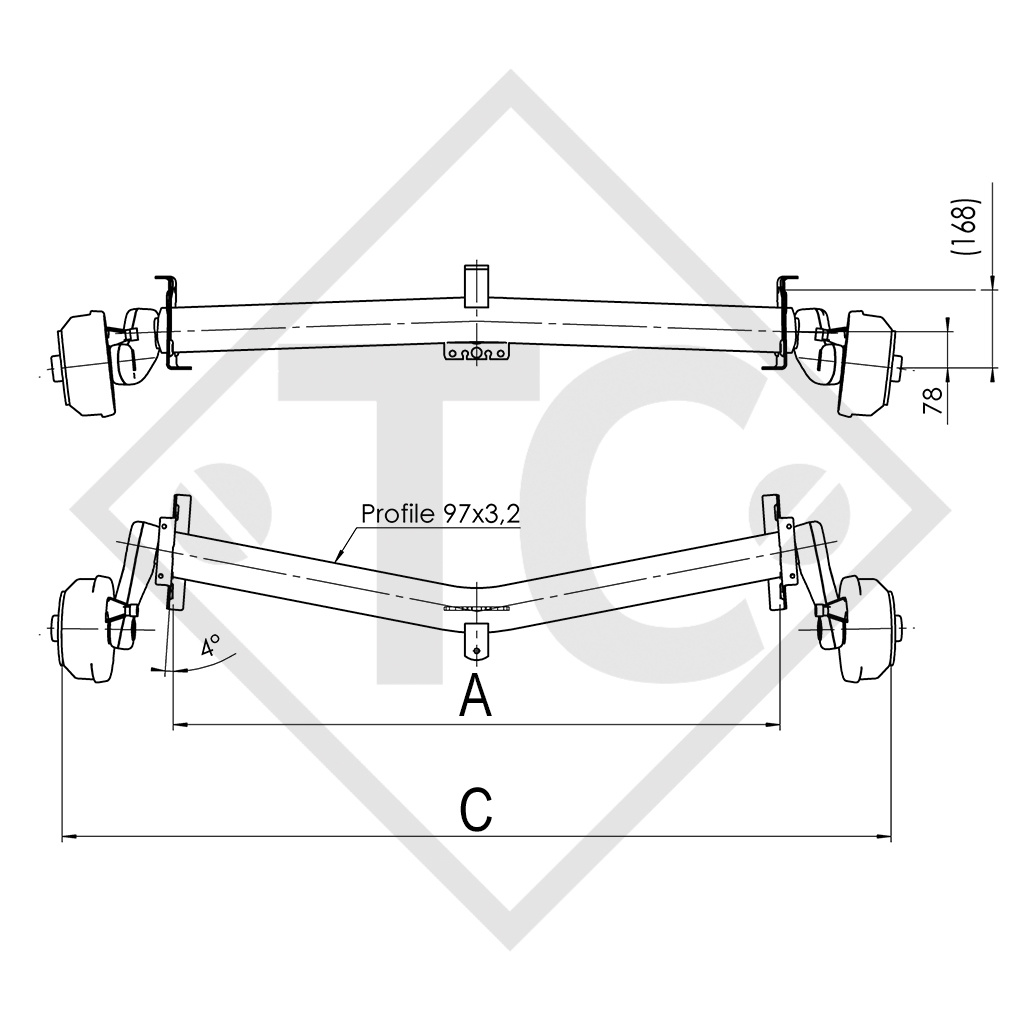

BC: dimension A 1790mm, OHF: dimension C 2270mm, wheel connection 100x4, wheel brake type 2051 vers. Aa, offset (ET) 30mm, swing arm position 16°, axle profile 97mm. Read more...

Wishlist: Add to comparison:

Price 1.315,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 1320609
BC: dimension A 1790mm
OHF: dimension C 2270mm
Wheel connection 100x4
Offset (ET) 30mm
Swing arm position 16°
Axle profile 97mm

Original operating instructions

TECHNOLOGY
Model: EURO1
Axle type: DELTA SI-N 10
Axle load: Single axle 1000kg
Axle load: Tandem axle 2000kg
Wheel brake: 2051 vers. Aa
Suspension: Hexagonal rubber suspension
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm

SCOPE OF DELIVERY
Axle with wheel brake

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber
