Home / Braked axle 1300kg EURO COMPACT axle type B 1200-5 - Cresci N20
BC: dimension A 1470mm, OHF: dimension C 1970mm, wheel connection 98x4, wheel brake type 2051, offset (ET) 26-30mm, swing arm position 25°, axle profile 97mm. Read more...
Part no. 648328

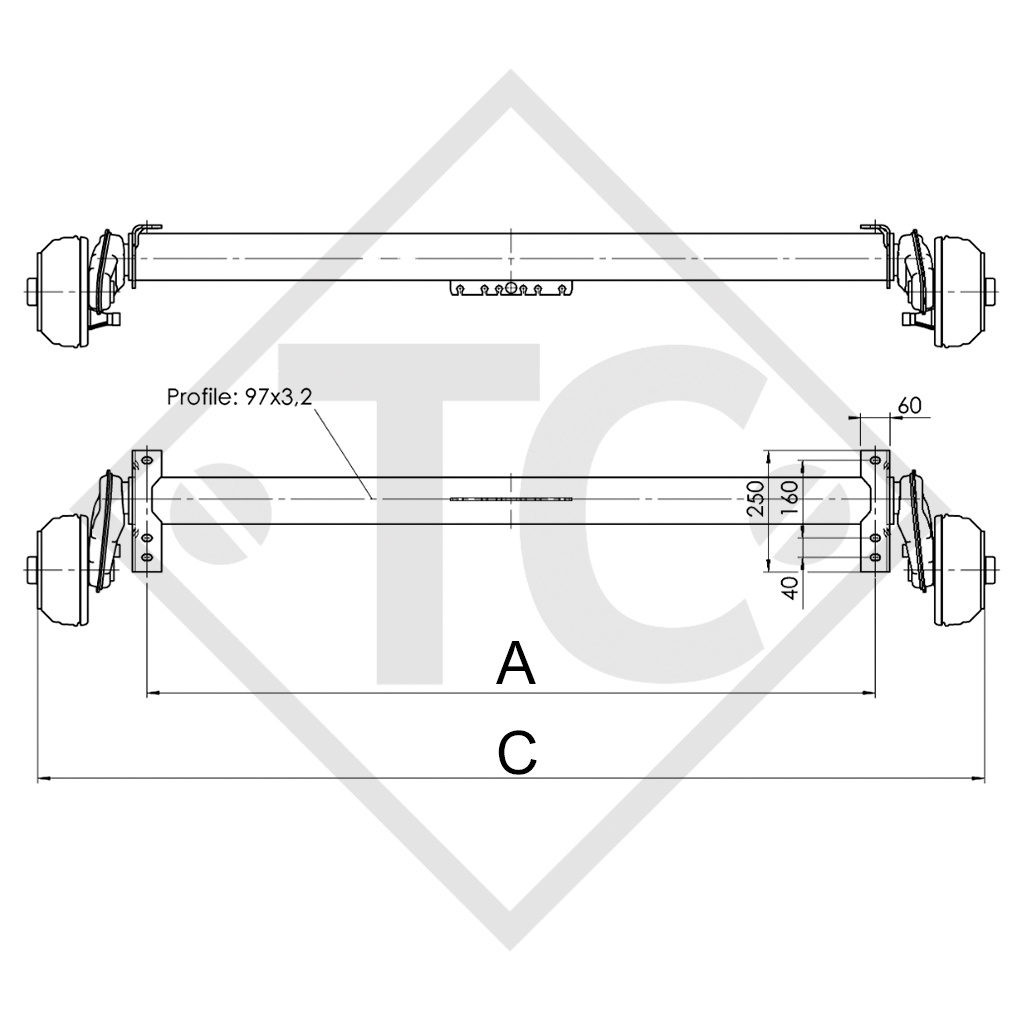

BC: dimension A 1470mm
OHF: dimension C 1970mm
Wheel connection 98x4
Offset (ET) 26-30mm

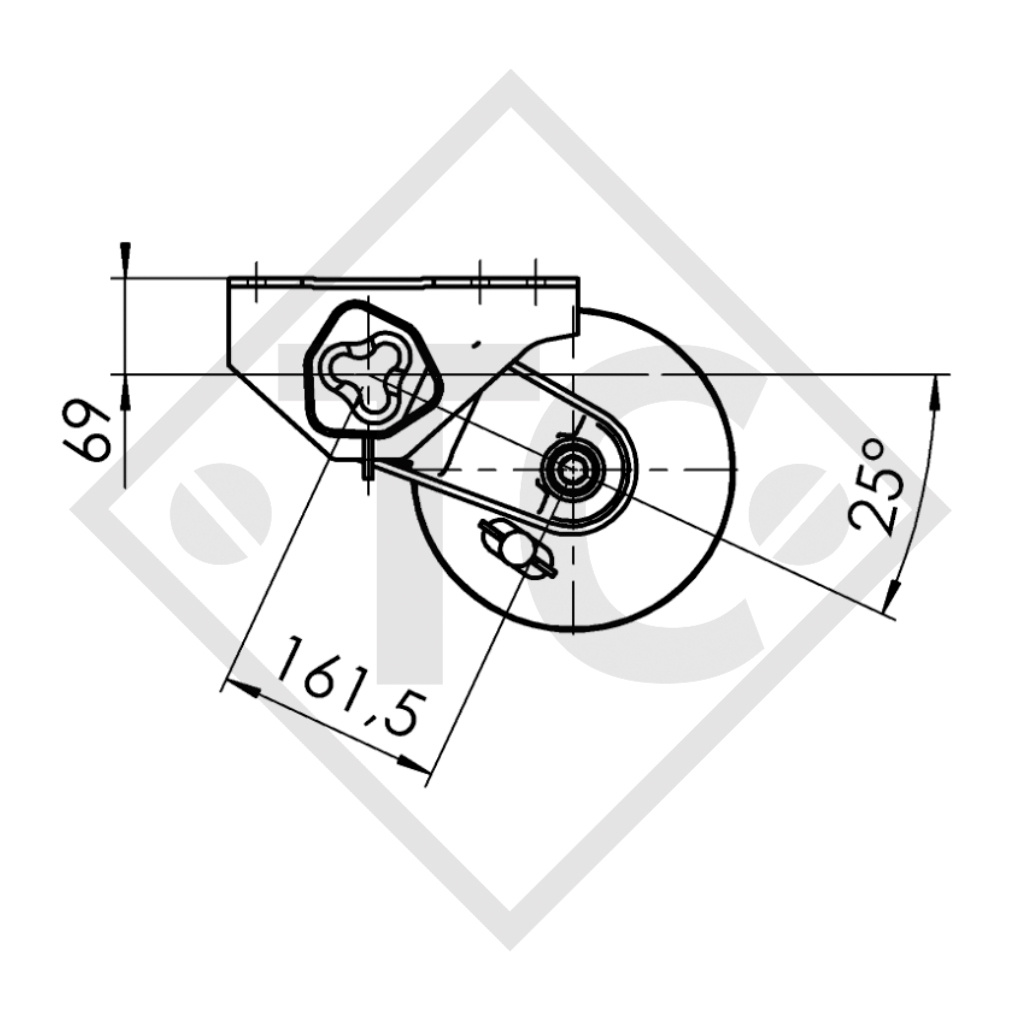

Swing arm position 25°
Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) OLD 811157
Replacement part identification number (ETI) NEW 811941
TECHNOLOGY
Model: EURO COMPACT
Axle type: B 1200-5
Axle load: Single axle 1300kg
Axle load: Tandem axle 2600kg
Wheel brake: 2051
Suspension: Hexagonal rubber suspension
Swing arm length: 160mm
Wheel bearing: Reinforced compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle with brake
Tandem adapter bracket welded on
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
