Braked axle 1050kg RONDO axle type DB 1055, 45.21.379.495
Braked axle 1050kg RONDO axle type DB 1055, 45.21.379.495
Braked axle 1050kg RONDO axle type DB 1055, 45.21.379.495
Braked axle 1050kg RONDO axle type DB 1055, 45.21.379.495

BPW Braked axle 1050kg RONDO axle type DB 1055, 45.21.379.495

Home / Tags / simol / Braked axle 1050kg RONDO axle type DB 1055, 45.21.379.495

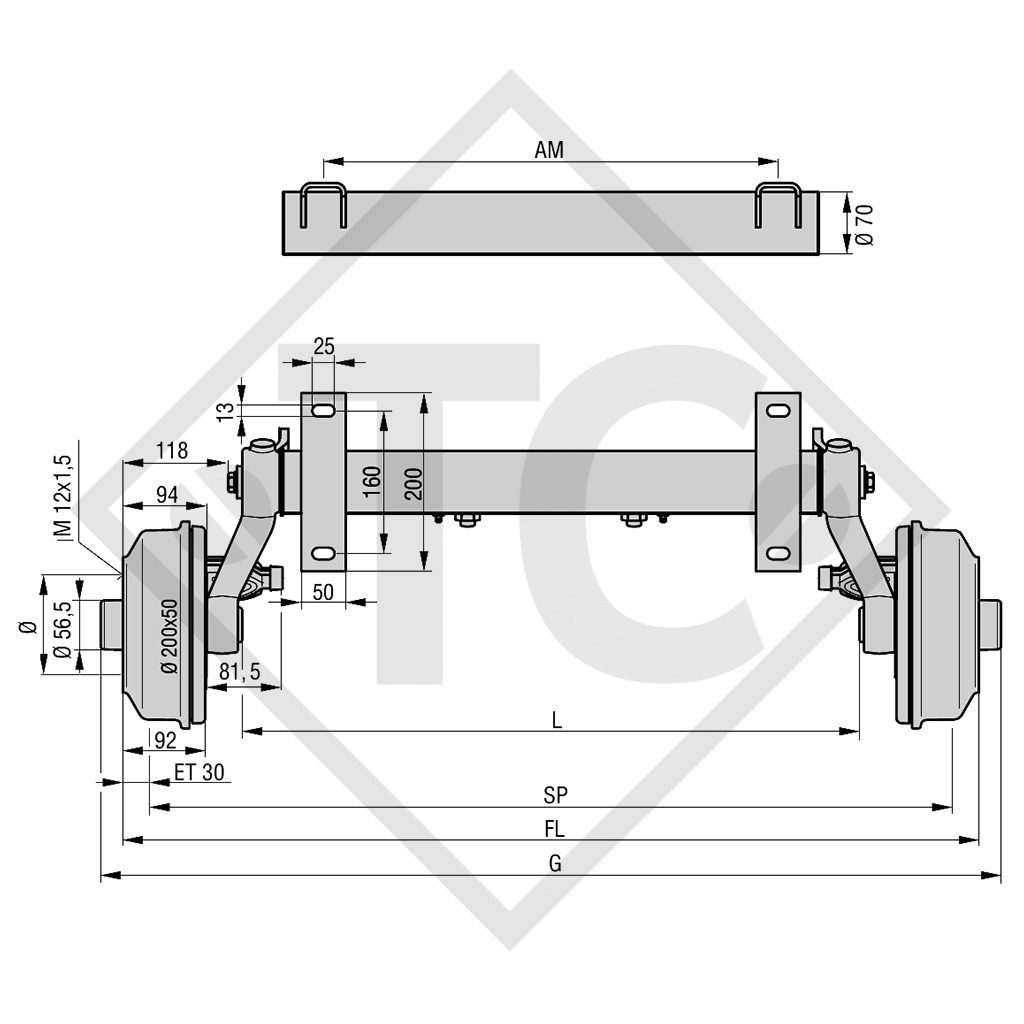

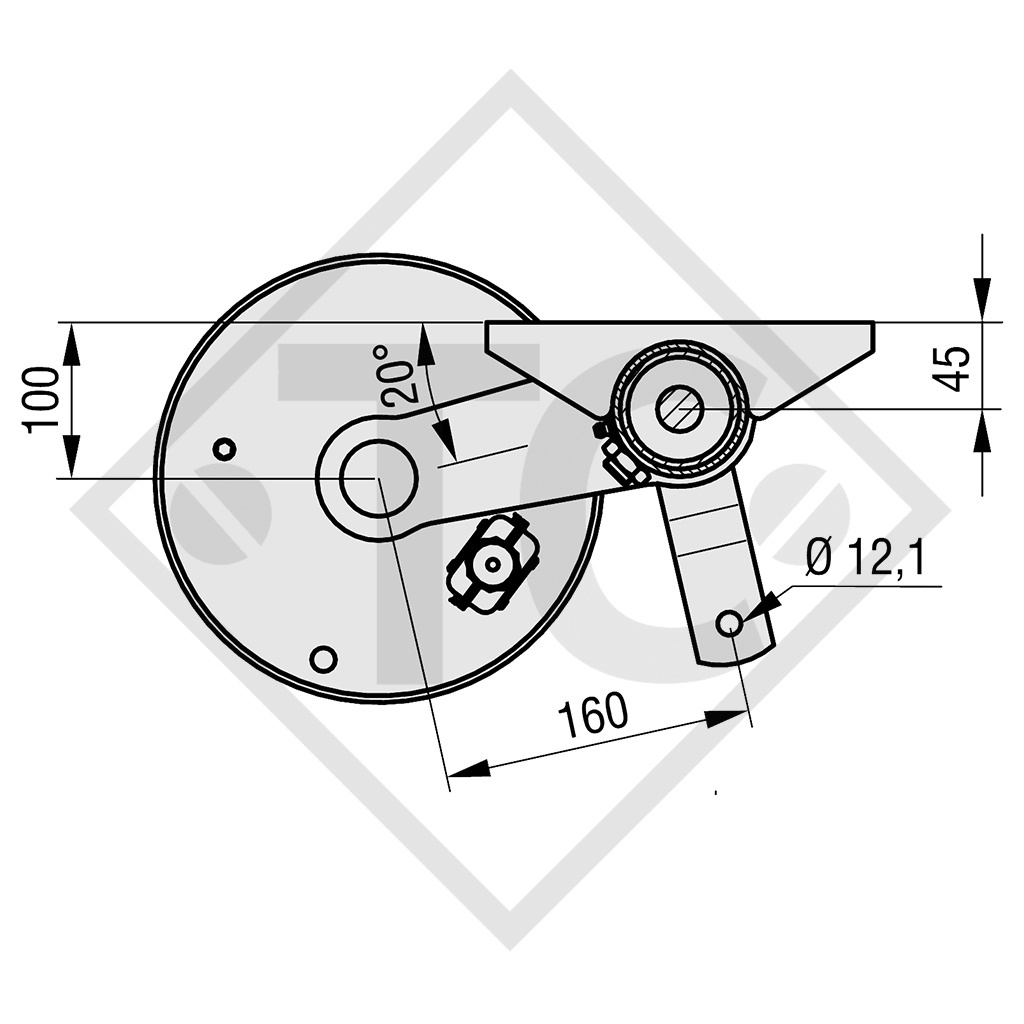

BC: dimension AM 1600mm, OHF: dimension FL 2050mm, wheel connection 112x5, wheel brake type S 2005-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 70mm. Read more...

Wishlist: Add to comparison:

Product description

Part no. OLD 45.21.379.495
Part no. NEW 4022255

Dimension FL
 2050mm
Dimension SP
 1990mm
Dimension AM
 1600mm
Dimension L
 1782mm
Dimension G 2100mm
Model RONDO
Axle type DB1055
Axle load single axle 1050kg
Axle load: Tandem axel 2100kg
Wheel brake S 2005-7 RASK
Suspension Square rubber suspension
Swing arm 160mm
Wheel connection 112x5
Wheel bearing Compact bearings
Centre hole rim min. 56.5mm



Original operating instructions
Replacement part identification number (ETI) OLD XX.XX.379.XXX
Replacement part identification number (ETI) NEW 827030

SCOPE OF DELIVERY
Axle with brake

DETAILS

  • Speed up to 140 km/h
  • Drawbar connection: Clamping shells see Accessories
  • Axle shock absorber see Accessories
  • Wheel connections: 98x4, 130x4, 120x5, 140x5 on demand
  • Special axle mounts and drawbar connections on demand
  • Also available with watertight bearings
  • Axle body fully hop-dip galvanised: Permanent surface protection
  • Independent wheel suspension: Optimum compensation of uneven road surfaces
  • Maintenance-free suspension: Lower maintenance costs
  • Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
  • Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
  • Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
  • Incl. shock absorber bracket
