Home / Brands / BPW / Braked axle 1400kg axle type SB14 - 4023371 - REPRODUCTION, NO LONGER AVAILABLE AS ORIGINAL!

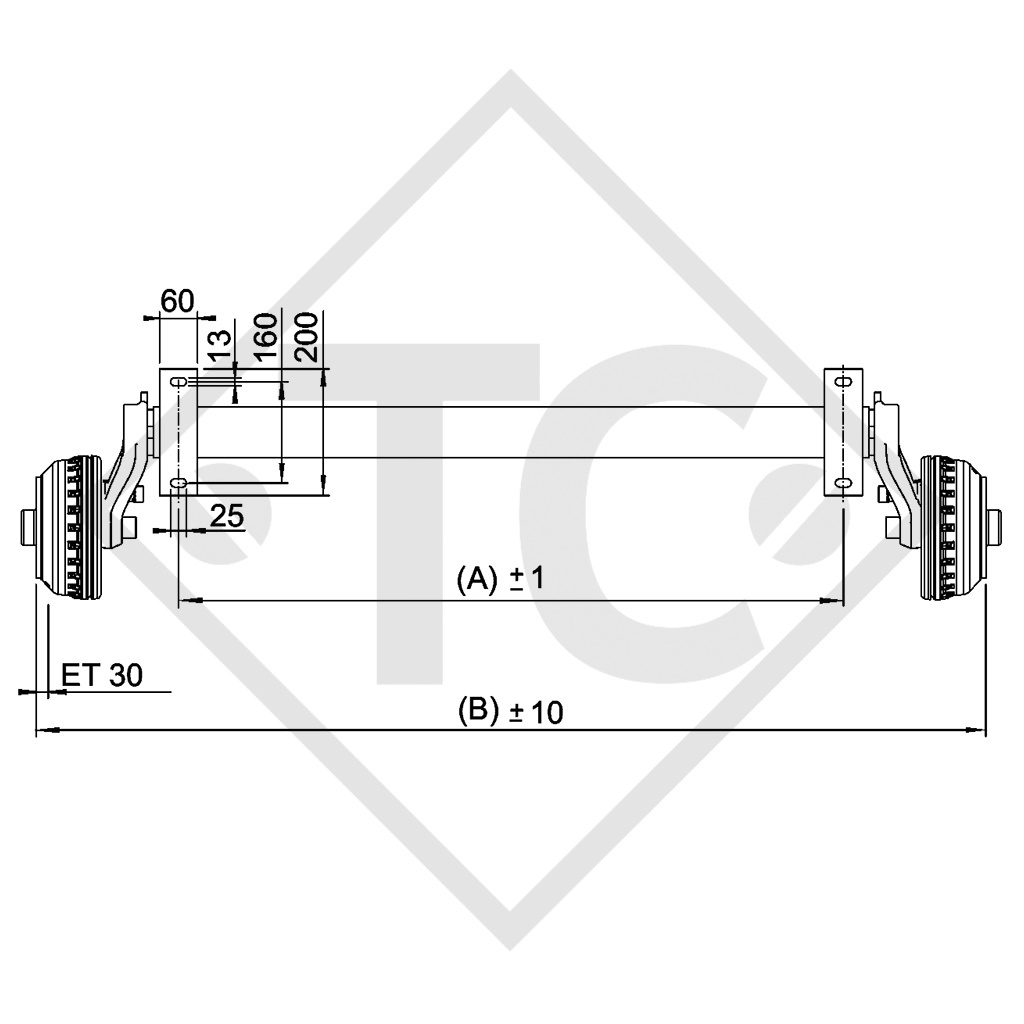

BC: dimension A 1000mm, OHF: dimension B 1450mm, wheel connection 112x5, wheel brake RB520, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 2024-40664 (4023371)
| BC (A) |
1000mm |
| OHF (B) |
1450mm |
| Axle type |
SB14 |
| Axle load single axle | 1050kg |
| Axle load: Tandem axel | 2100kg |
| Wheel brake | RB520 |
| Suspension | Square rubber suspension |
| Swing arm |
165mm |
| Wheel connection |
112x5 |
| Wheel bearing |
Compact bearings |
| Centre hole rim |
min. 57mm |
SCOPE OF DELIVERY
Single axle adapter bracket welded on
Welded-on shock absorber brackets
Compensation profile for single axle supplied
Bowden cables loose
Wheel bolts loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
Axle link cataphoretically coated
