Part no. 1942722

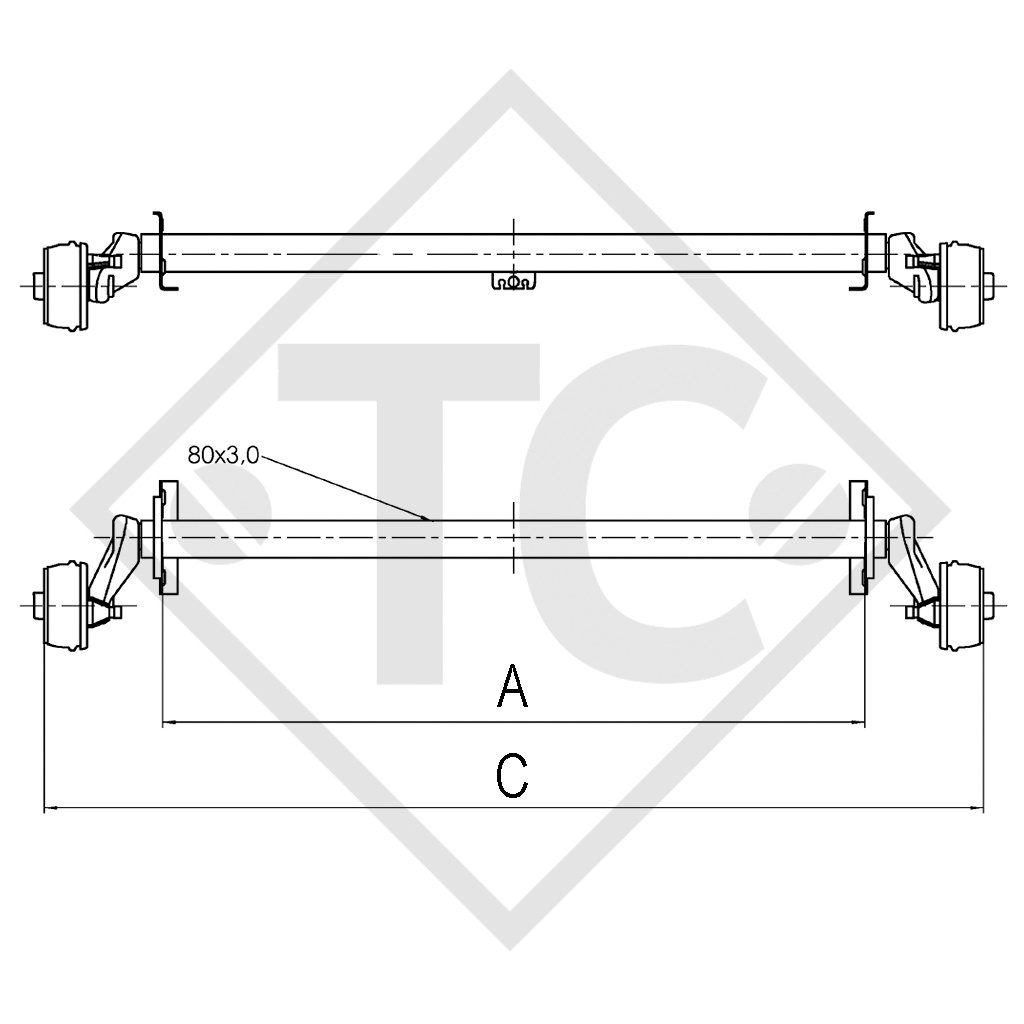

BC: dimension A 1350mm
OHF: dimension C 1835mm
Wheel connection 100x4
Offset (ET) 27-33mm

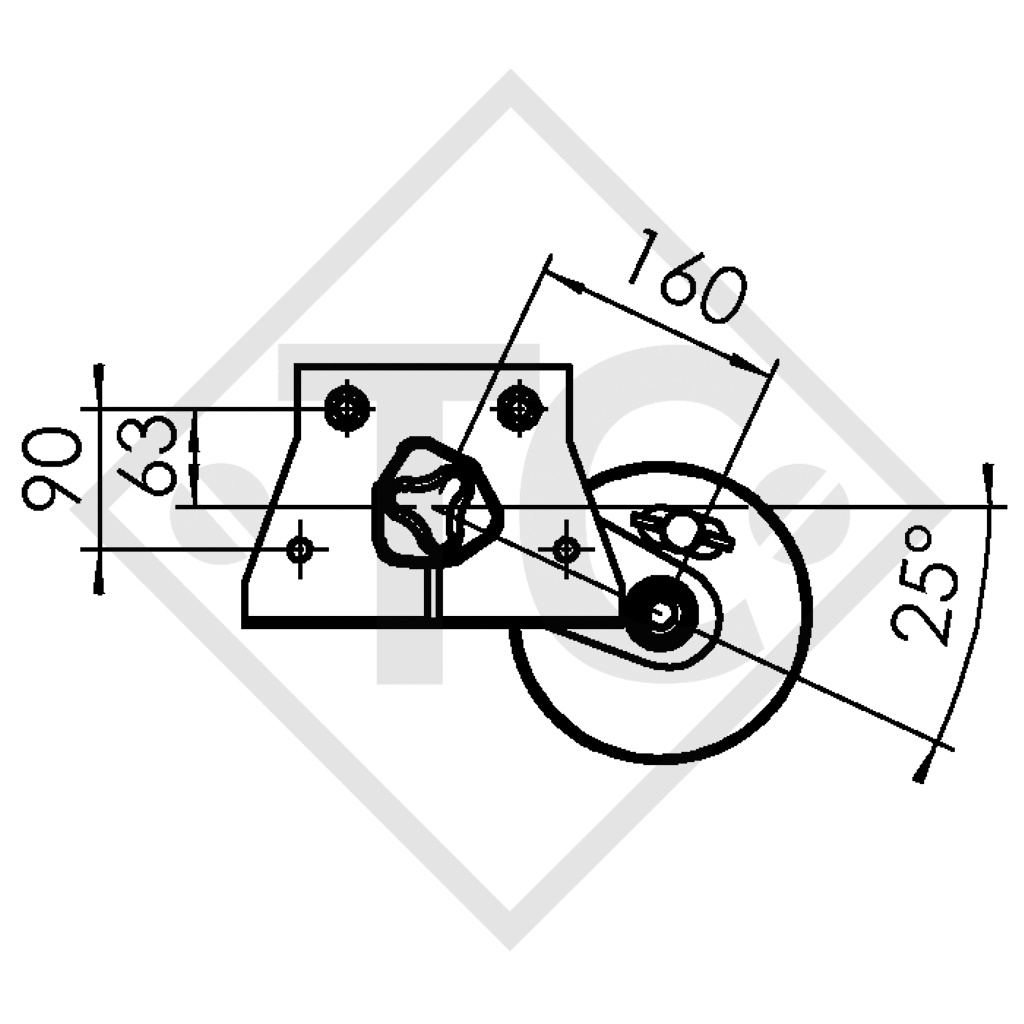

Swing arm position 25°
Axle profile 80mm

Original operating instructions
Replacement part identification number (ETI) OLD 811267
Replacement part identification number (ETI) NEW 811944

TECHNOLOGY
Model: EURO1
Axle type: B 850-10
Axle load: Single axle 1000kg
Axle load: Tandem axle 1600kg
Wheel brake: 1637
Suspension: Hexagonal rubber suspension
Swing arm length: 160mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY

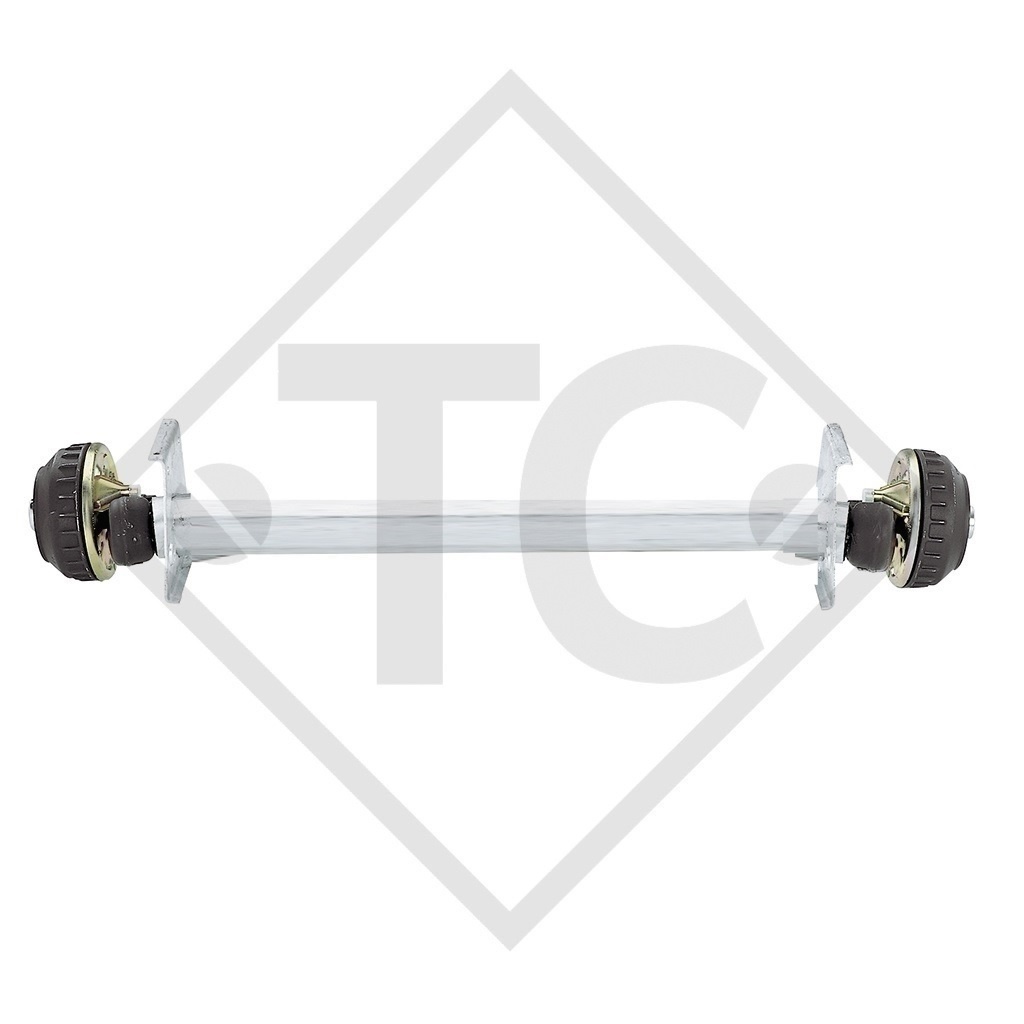

Axle with brake

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
