Home / Brands / BPW / Braked axle 1000kg EURO COMPACT axle type B 1000-3 - FITZEL 20-19

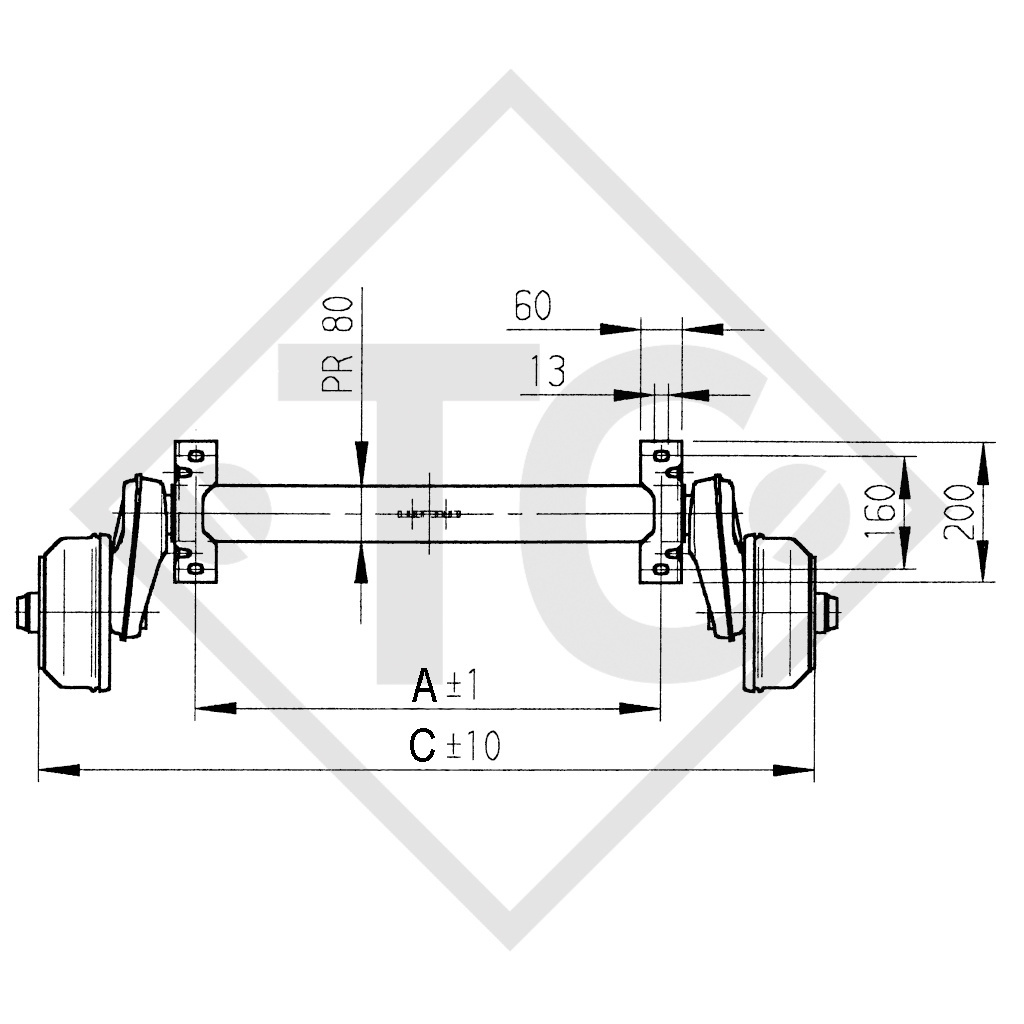

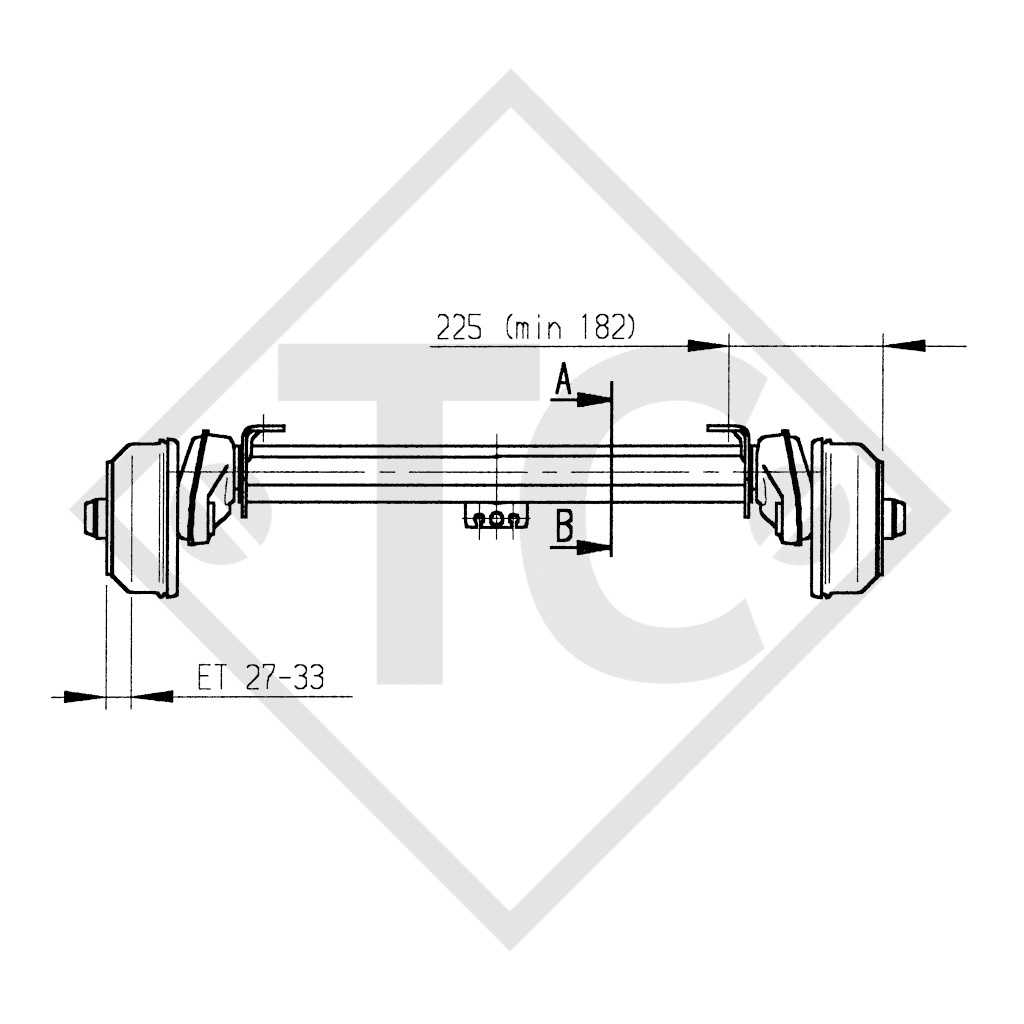

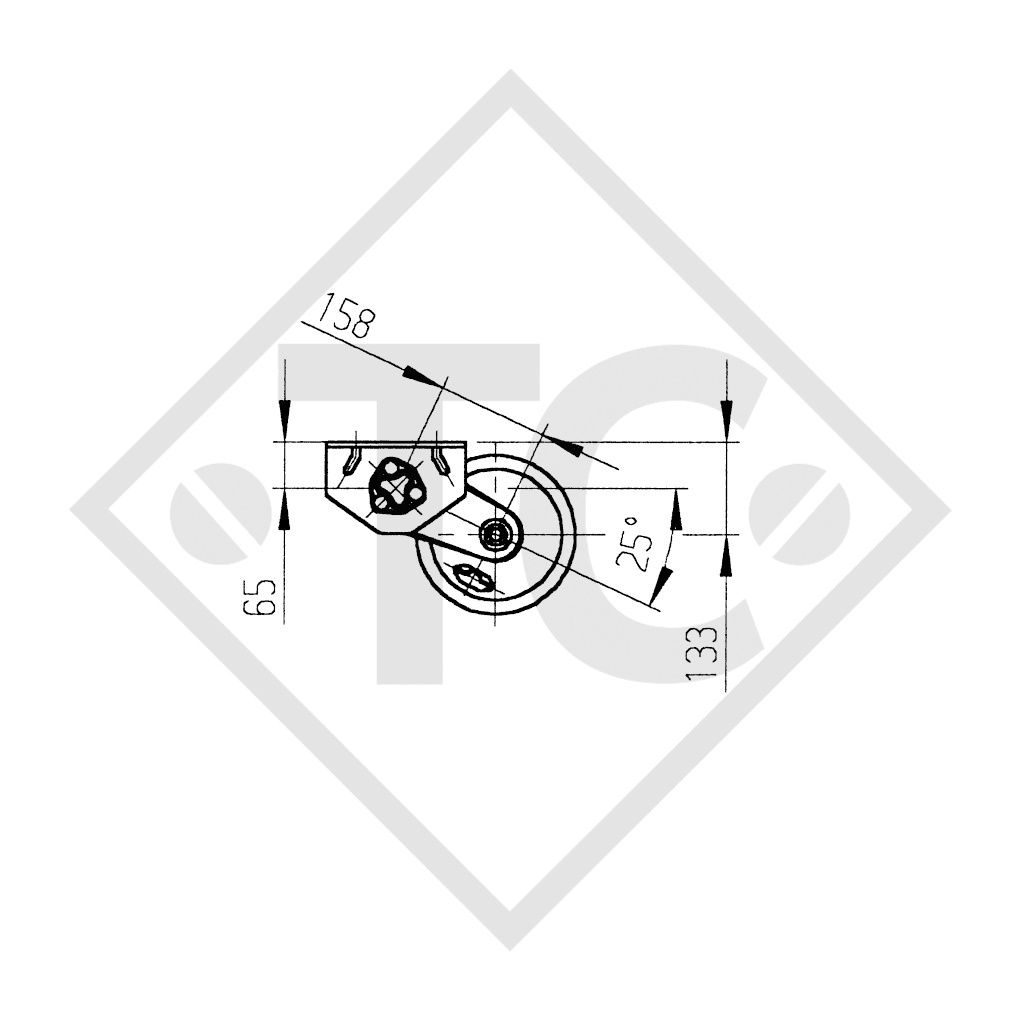

BC: dimension A 1070mm, OHF: dimension C 1750mm, wheel connection 100x4, wheel brake type 2051 A, offset (ET) 27-33mm, swing arm position 25°, axle profile 97mm. Read more...
TECHNOLOGY
Model: EURO COMPACT
Axle type: B 1000-3
Axle load: Single axle 1000kg
Axle load: Tandem axle 2000kg
Wheel brake: 2051 A
Suspension: Hexagonal rubber suspension
Swing arm: 161,5mm
Wheel connection: 100x4 (112x5 or 98x4)
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle with brake
Separate order for tandem
Bolt-on tandem adapter bracket 249236
Tandem compensation 238576
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
Simply send us a photo of your axle type plate, together with your address and telephone number to
[email protected]
|
