Braked axle 1000kg axle type B 1000-3 Humbaur

Braked axle 1000kg EURO COMPACT axle type B 1000-3 - Humbaur

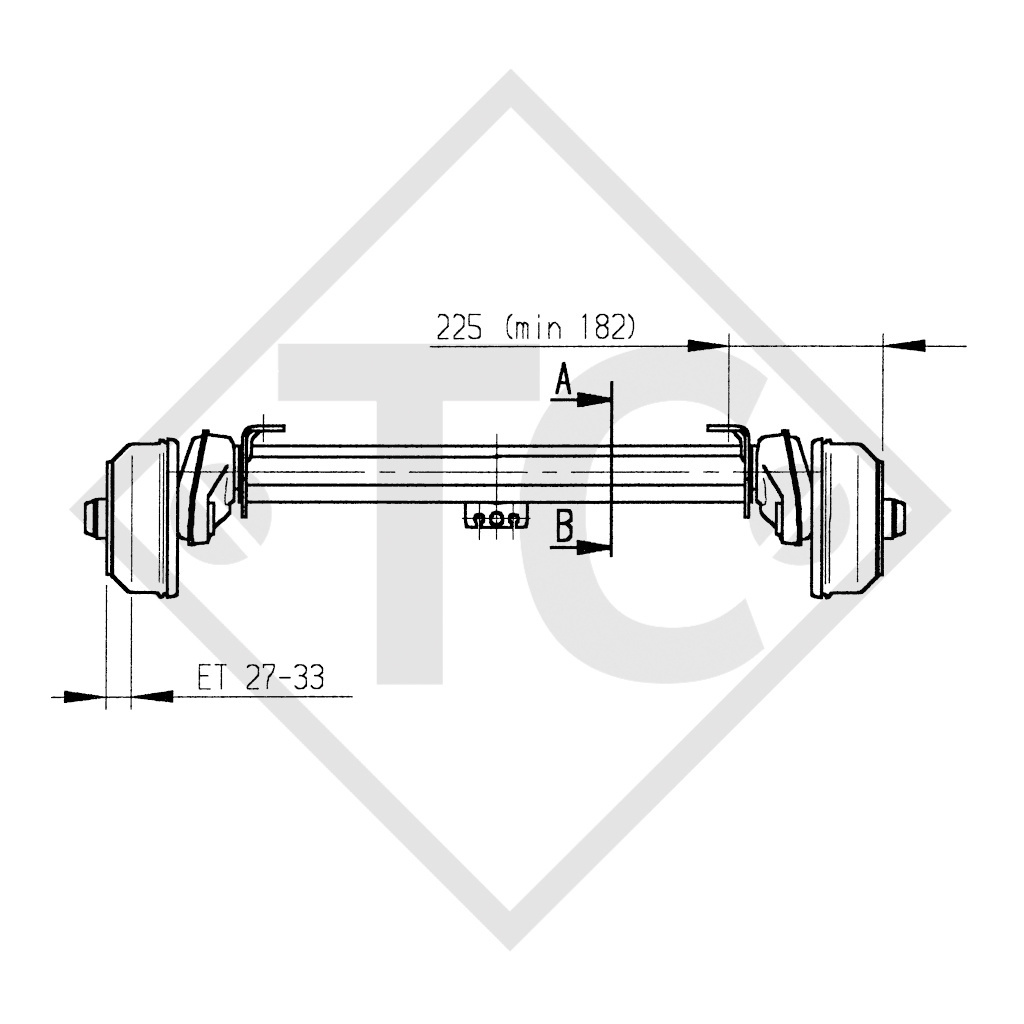

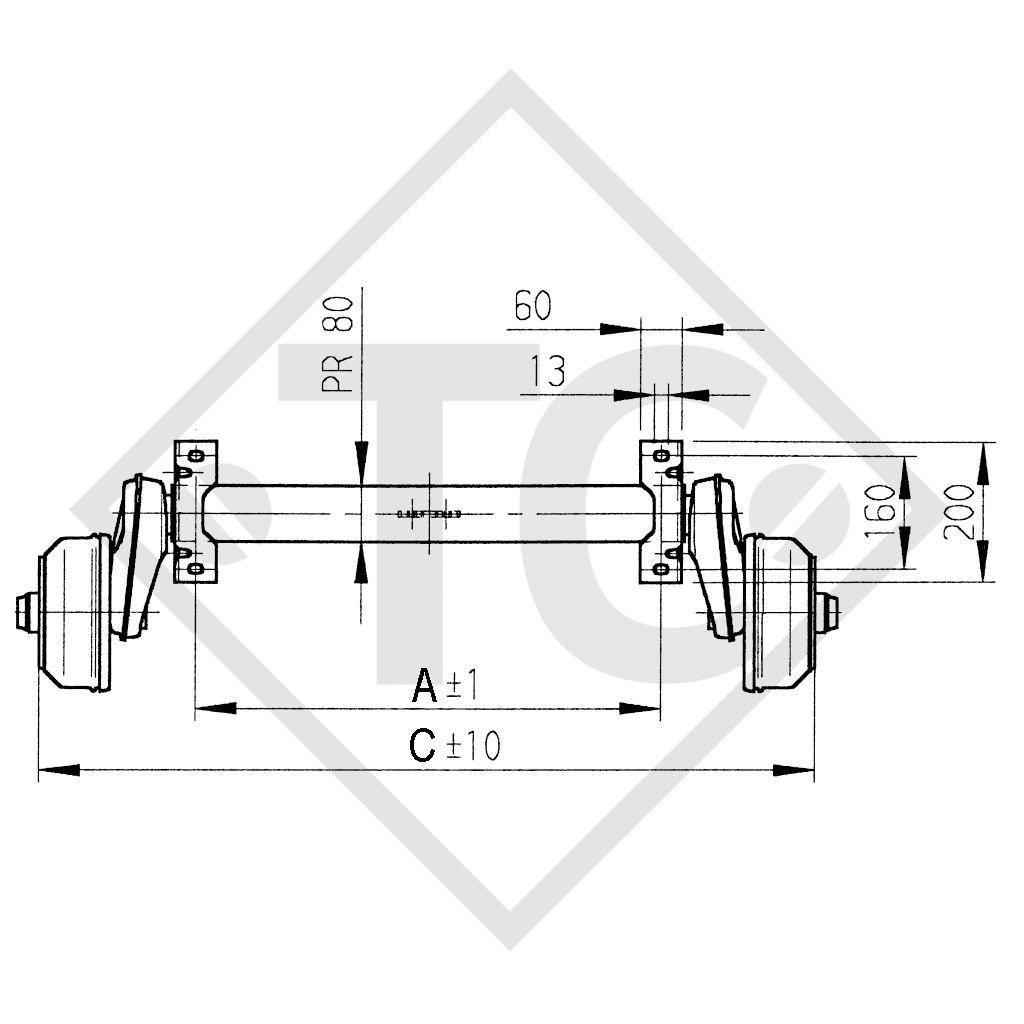

BC: dimension A 1350mm, OHF: dimension C 1800mm, wheel connection 112x5, wheel brake type 2051, offset (ET) 27-33mm, swing arm position 5°, axle profile 97mm. Read more...

Wishlist: Add to comparison:

Price 860,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20-25 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

TECHNOLOGY
Model: EURO COMPACT
Axle type: B 1000-3
Axle load: Single axle 1000kg
Axle load: Tandem axle 2000kg
Wheel brake: 2051
Suspension: Hexagonal rubber suspension

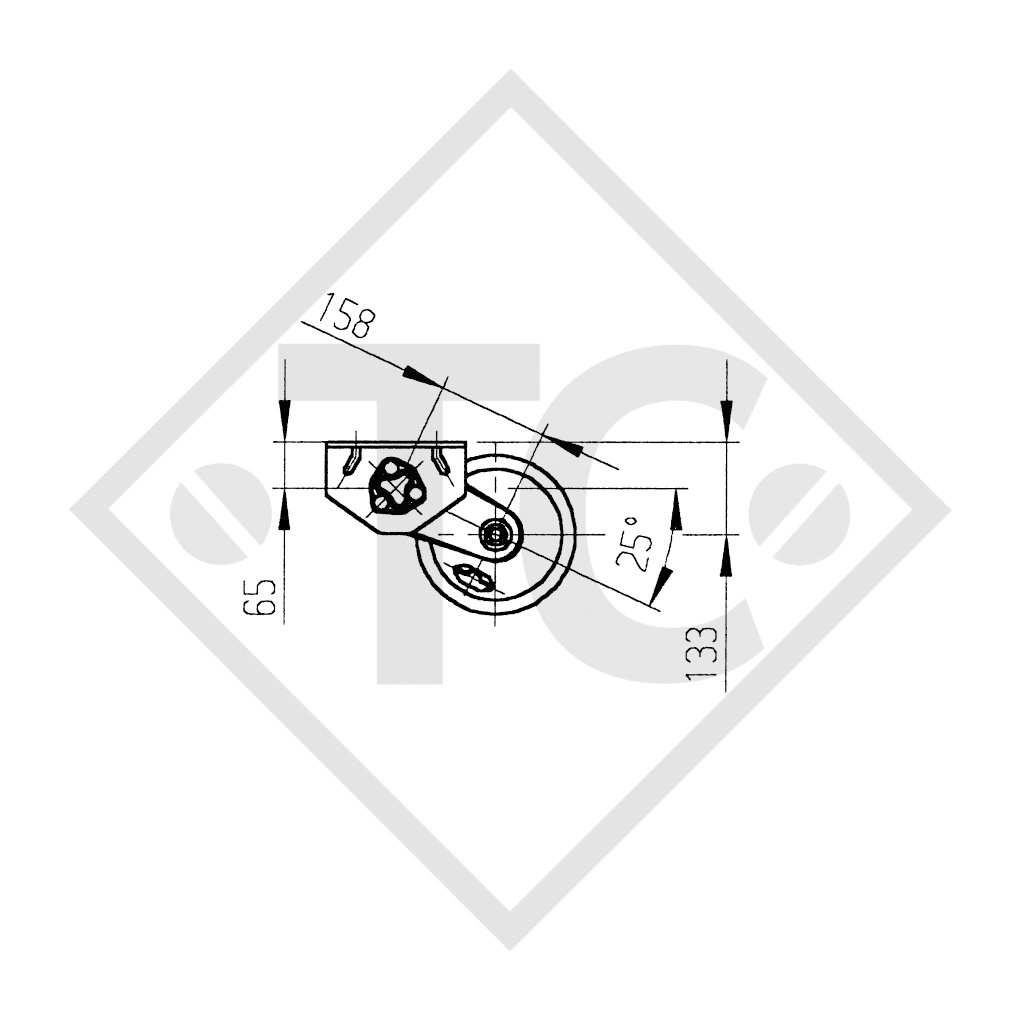

Swing arm: 161,5mm
Wheel connection: 112x5 (100x4 or 98x4)
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle with brake, bowden cables and ball head screw bolts.

Separate order for tandem
Bolt-on tandem adapter bracket 249236
Tandem compensation 238576

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber

AL-KO Braked axle 1000kg EURO COMPACT axle type B 1000-3 - Humbaur

Product description

Simply send us a photo of your axle type plate, together with your address and telephone number to

[email protected]

Please feel free to avail of our service and request a non-binding offer by email today!
