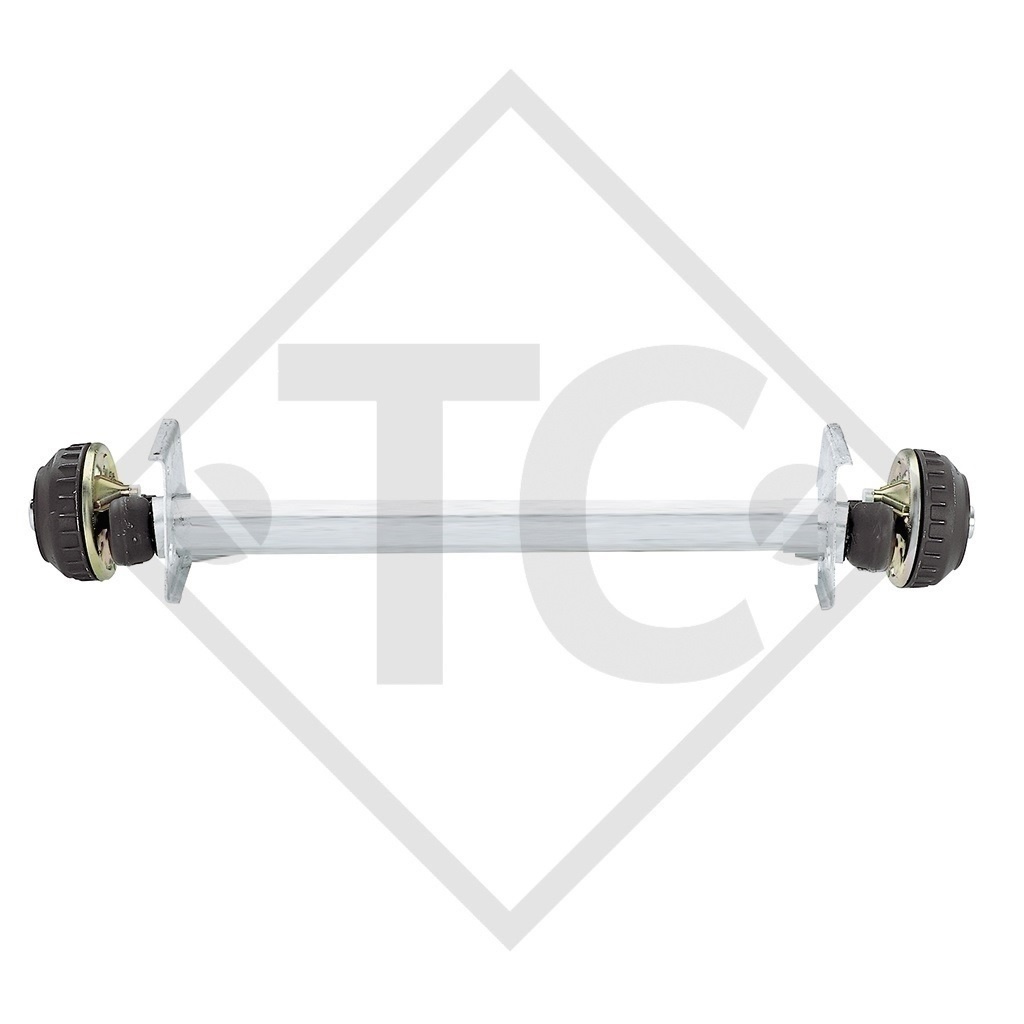

Braked axle 1000kg EURO Compact axle type B 1000-3

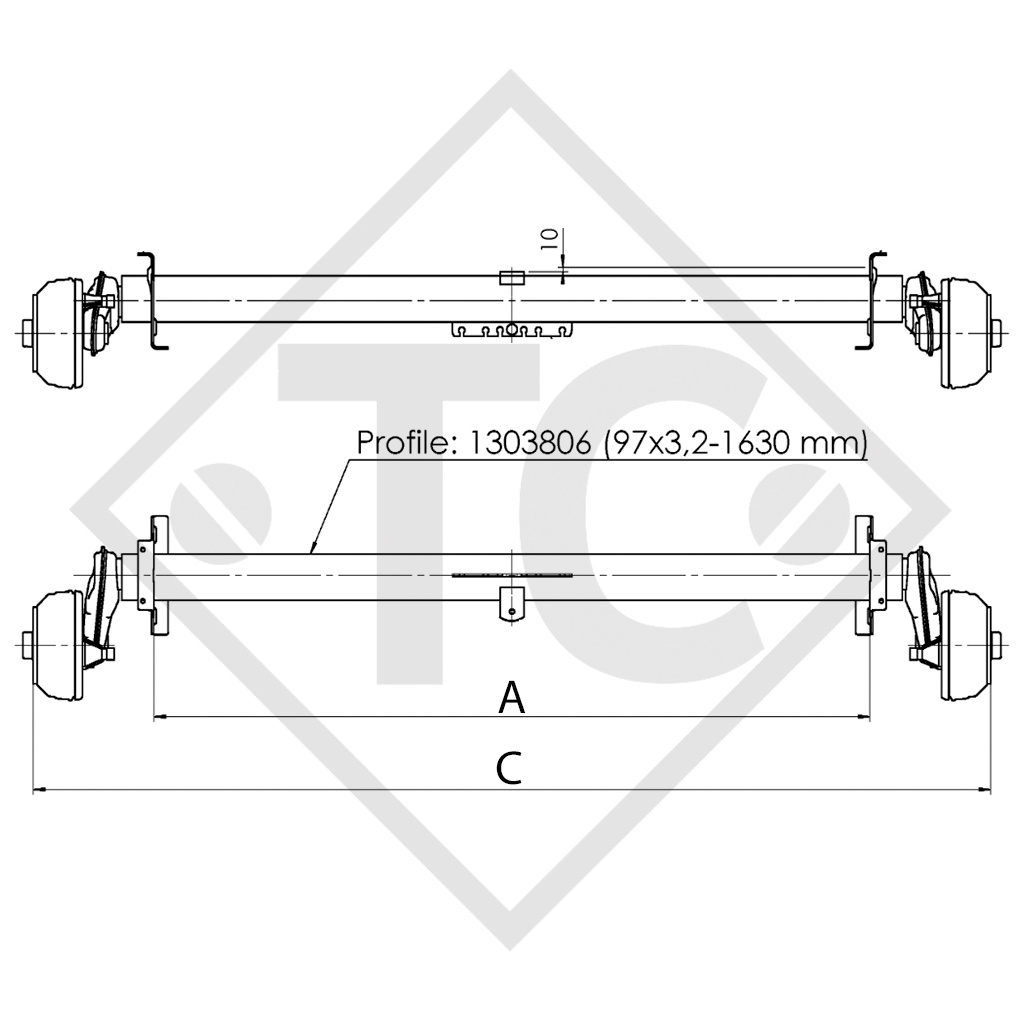

BC: dimension A 1010mm, OHF: dimension C 1505mm, wheel connection 100x4, wheel brake type 2051 vers. A, offset (ET) 27-33mm, swing arm position 25°, axle profile 97mm. Read more...

Wishlist: Add to comparison:

Price 685,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 249400 (619112)
BC: dimension A 1010mm
OHF: dimension C 1505mm
Wheel connection 100x4
Offset (ET) 27-33mm
Swing arm position 25°
Axle profile 97mm

TECHNOLOGY
Model: EURO Compact
Axle type: B 1000-3
Axle load: Single axle 1000kg
Axle load: Tandem axle 2000kg
Wheel brake: 2051 vers. A
Suspension: Hexagonal rubber suspension
Swing arm length: 161.5mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle with brake and wheel bolts

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

AL-KO Braked axle 1000kg EURO Compact axle type B 1000-3
