BC: dimension A 1100mm, OHF: dimension C 1540mm, wheel connection 112x5, wheel brake type 2051, offset (ET) 27-33mm, swing arm position 25°, axle profile 80mm. Read more...
Part no. 185006656_112x5_2051

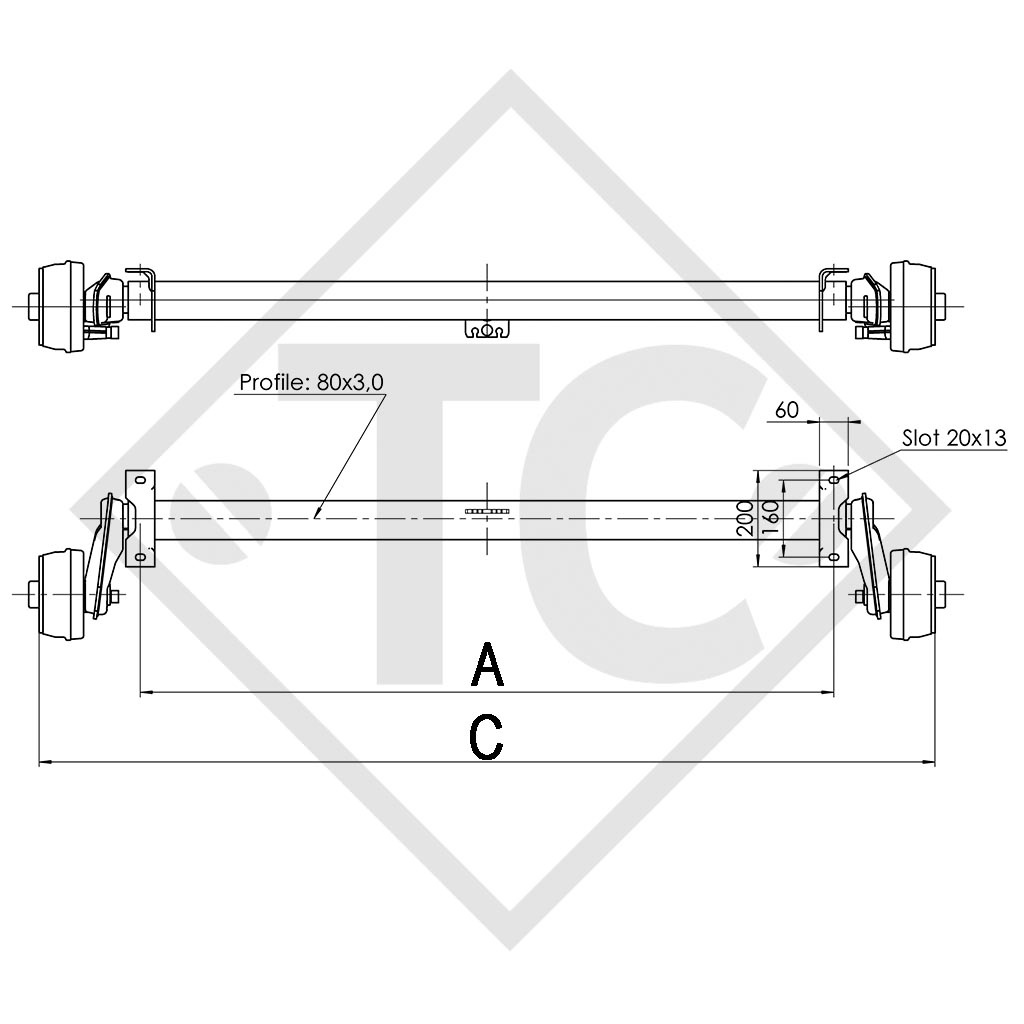

BC: dimension A 1100mm
OHF: dimension C 1540mm
Wheel connection 112x5
Offset (ET) 27-33mm
Swing arm position 25°
Axle profile 80mm
TECHNOLOGY
Model: EURO Compact
Axle type: B 850-10
Axle load: Single axle 1000kg
Axle load: Tandem axle 2000kg
Wheel brake: 2051
Suspension: Hexagonal rubber suspension

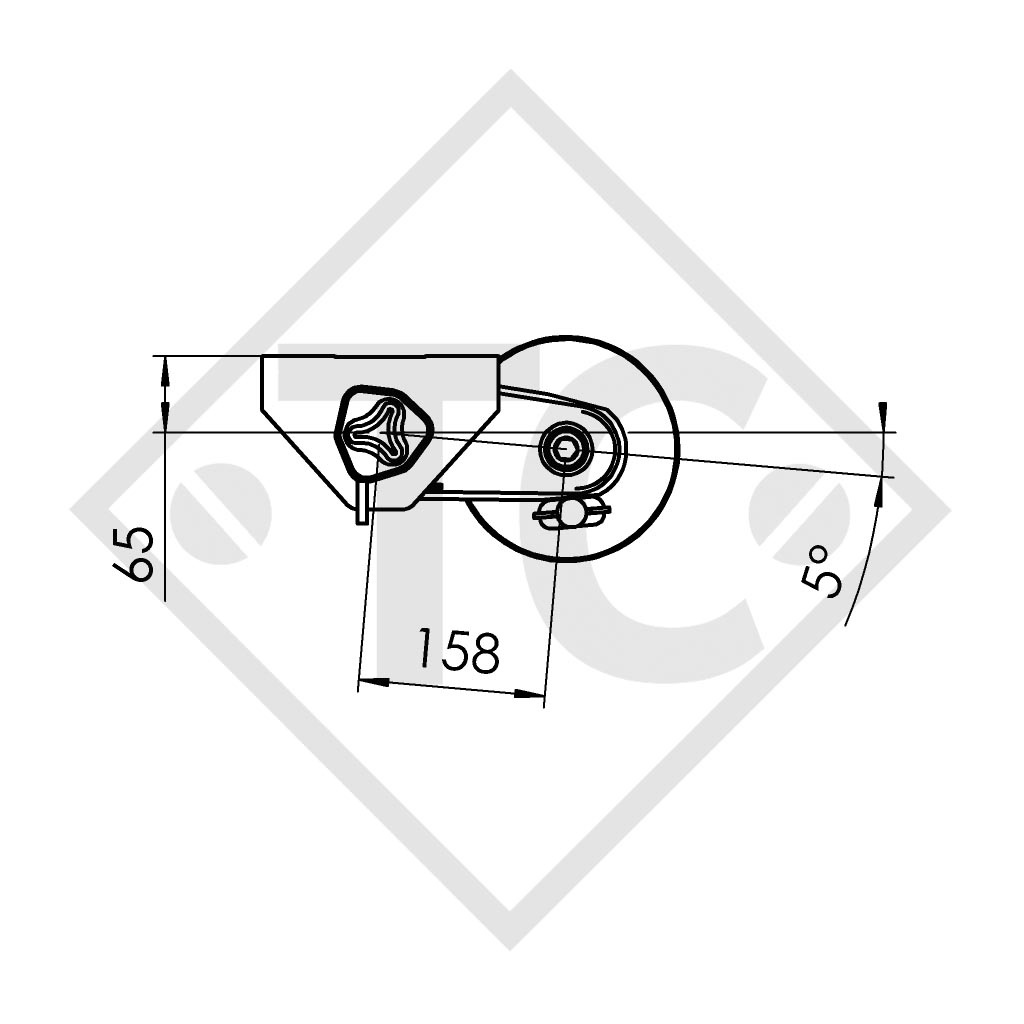

Swing arm length: 158mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle with wheel brake
Single axle adapter bracket welded on
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
