Home / CHASSIS PARTS / CHASSIS PARTS BPW / OVERRUN DEVICES / HEIGHT-ADJUSTABLE OVERRUN DEVICES / OVERRUN DEVICES HEIGHT-ADJUSTABLE PRODUCT LINE ZKV WITH DRAWBAR EYE DIN / HEIGHT-ADJUSTABLE OVERRUN DEVICES TYPE ZKV 13.1 A AK 1308 WITH DRAWBAR SECTION CRANKED 650 TO 1300KG / Braked axle 1100kg EURO axle type B 1000-5, Bürstner
BC: dimension A 1415mm, OHF: dimension C 1895mm, wheel connection 100x4, wheel brake type 2051, offset (ET) 27-33mm, swing arm position 25°, axle profile 97mm, taper-head wheel bolts M12x1.5. Read more...
Part no. 244782

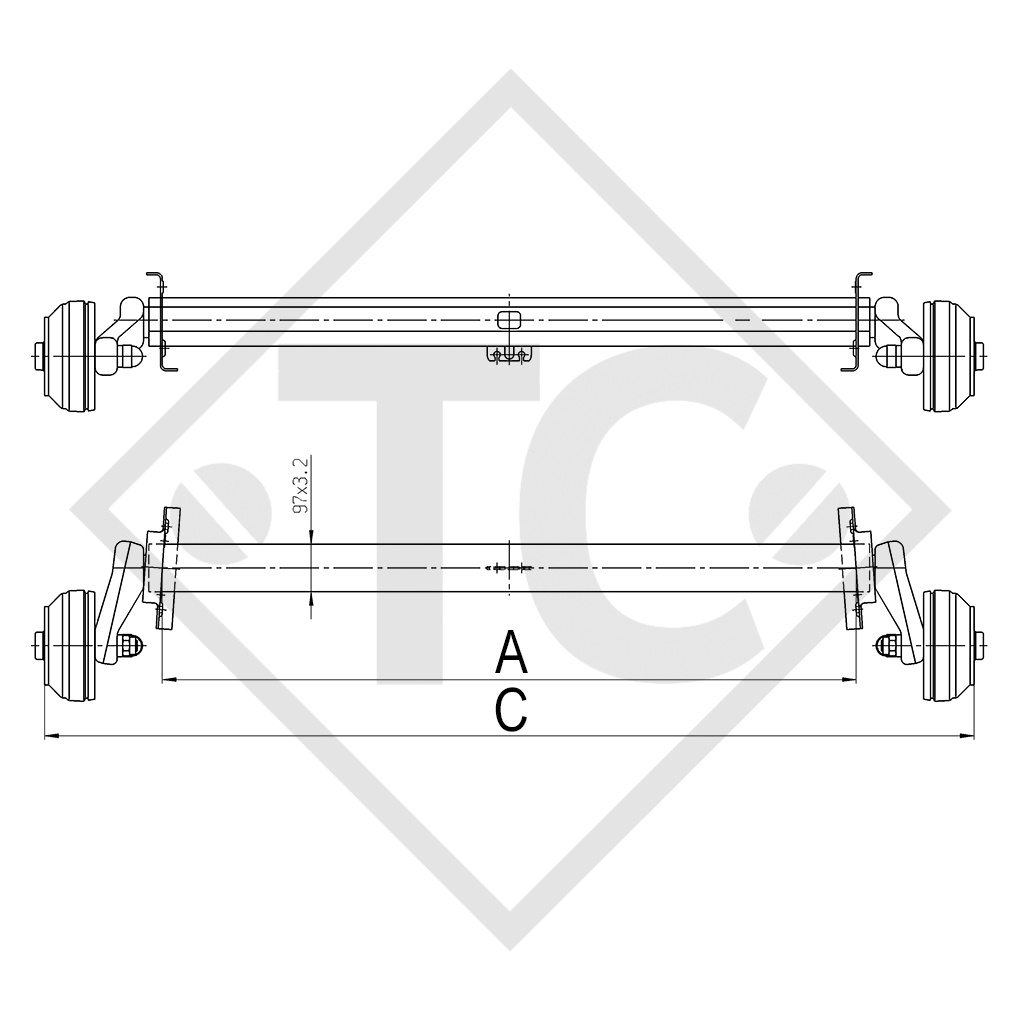

BC: dimension A 1415mm
OHF: dimension C 1895mm
Wheel connection 100x4
Offset (ET) 27-33mm

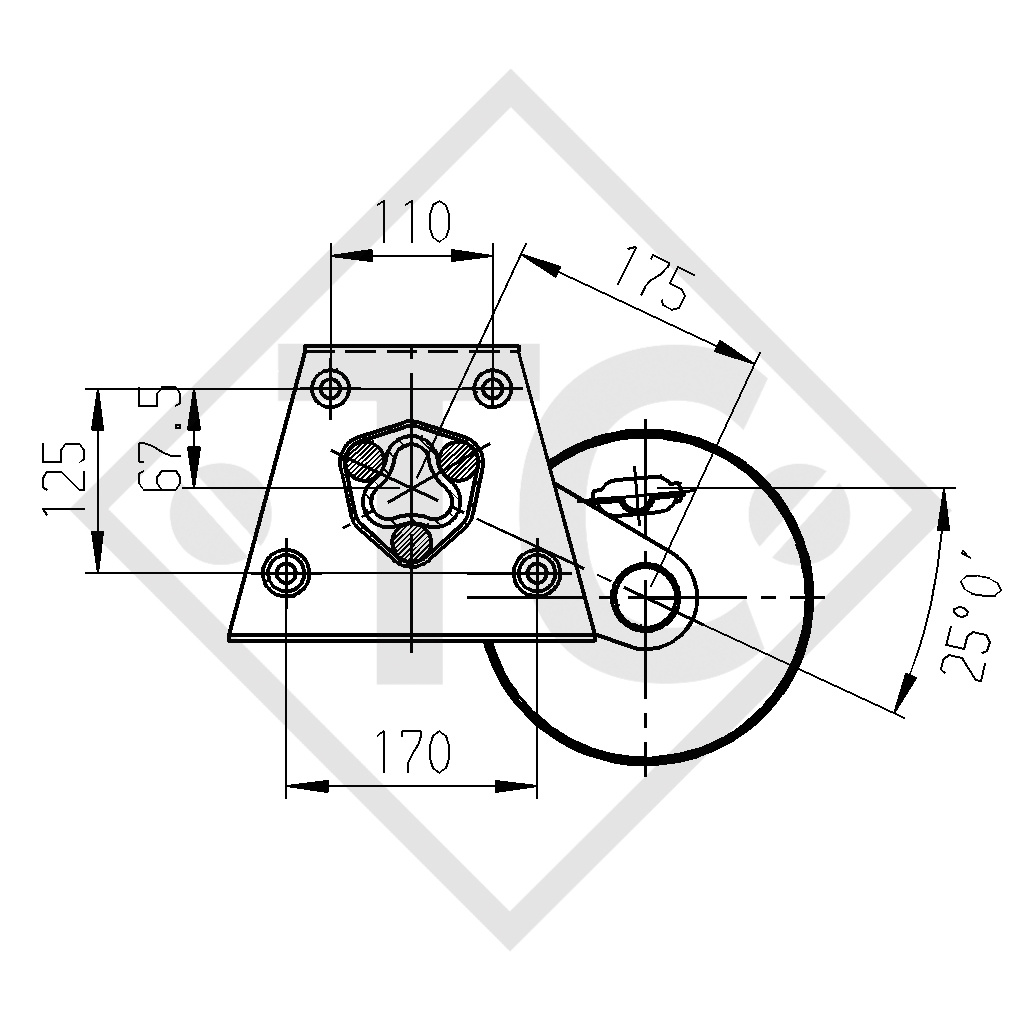

Swing arm position 25°
Axle profile 97mm
TECHNOLOGY
Model: EURO Compact
Axle type: B 1000-5
Axle load: Single axle 1100kg
Axle load: Tandem axle 2000kg
Wheel brake: 2051
Suspension: Hexagonal rubber suspension
Swing arm length: 175mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
