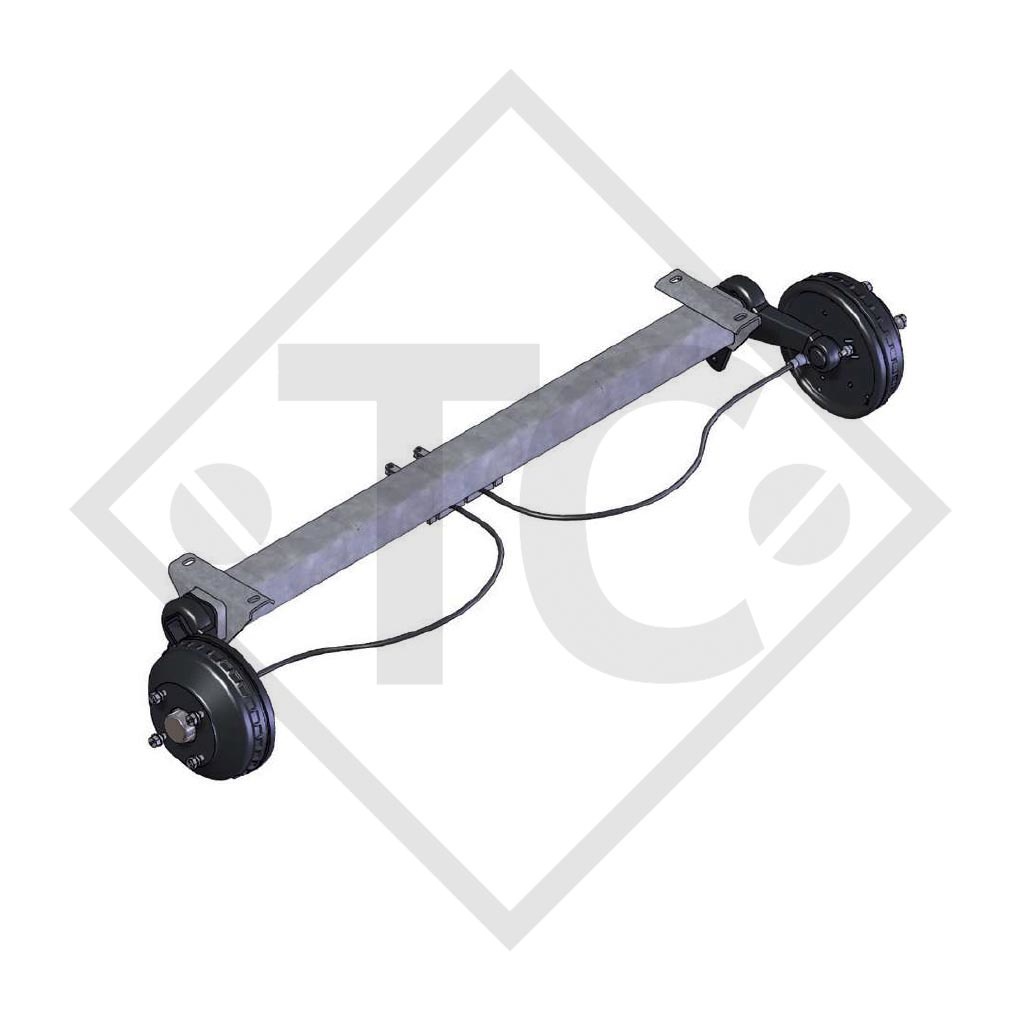

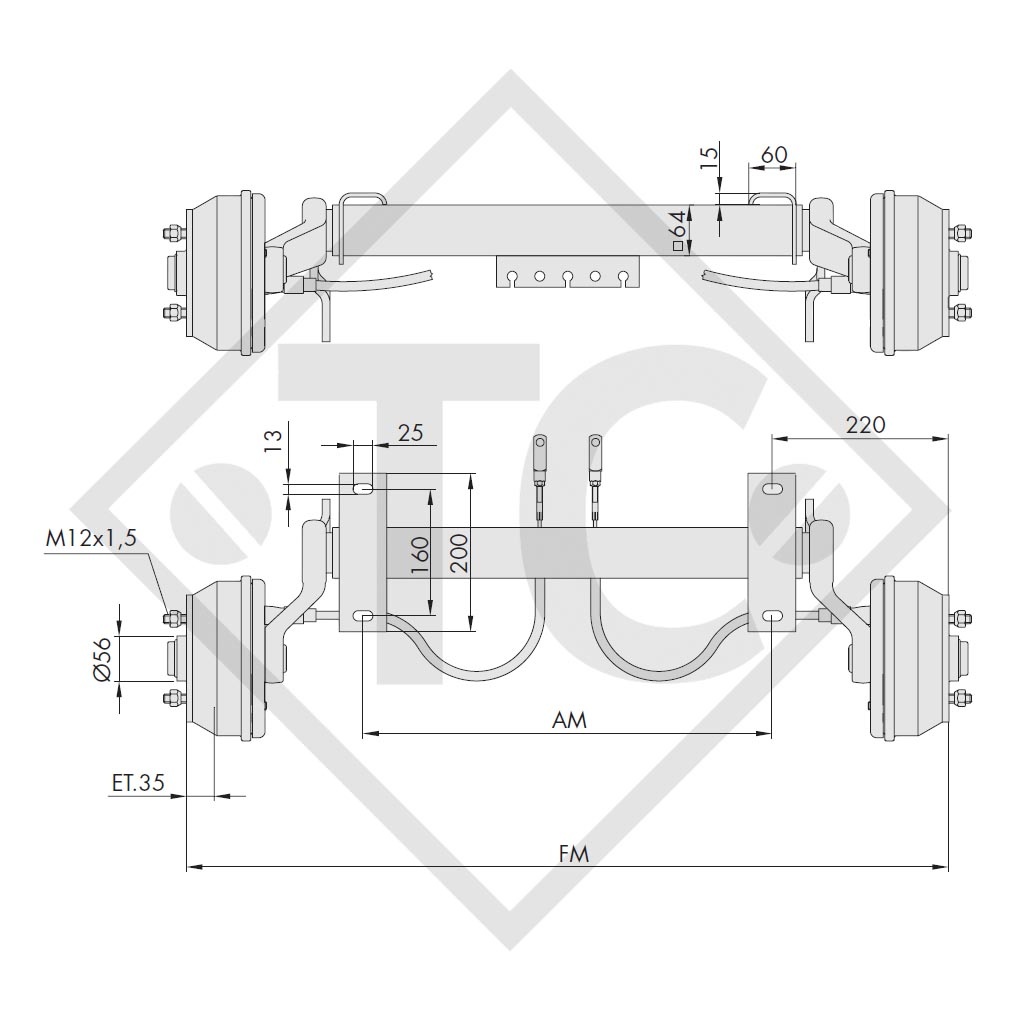

BC: dimension AM 800mm, OHF: dimension FM 1240mm, wheel connection 100x4, wheel brake type W 184 RS, offset (ET) 35mm, taper-head wheel bolts M12x1.5. Read more...
| Part no. | WAPWAG100B025 |
| Dimension AM |
800mm |
| Dimension FM |
1240mm |
| Wheel connection | 100x4 |
TECHNOLOGY
Model: WAG-B

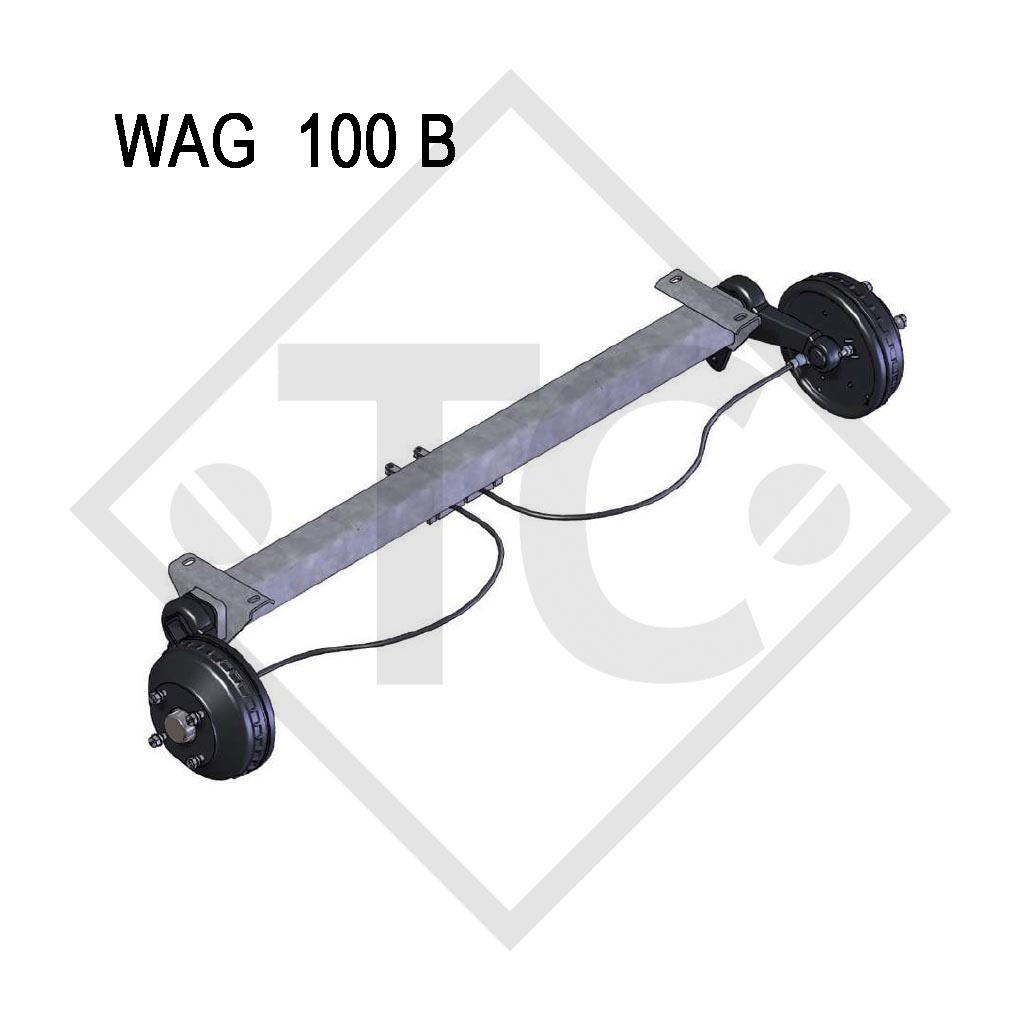

Axle type: WAG 100 B
Axle load: 1000kg
Suspension: Square rubber suspension

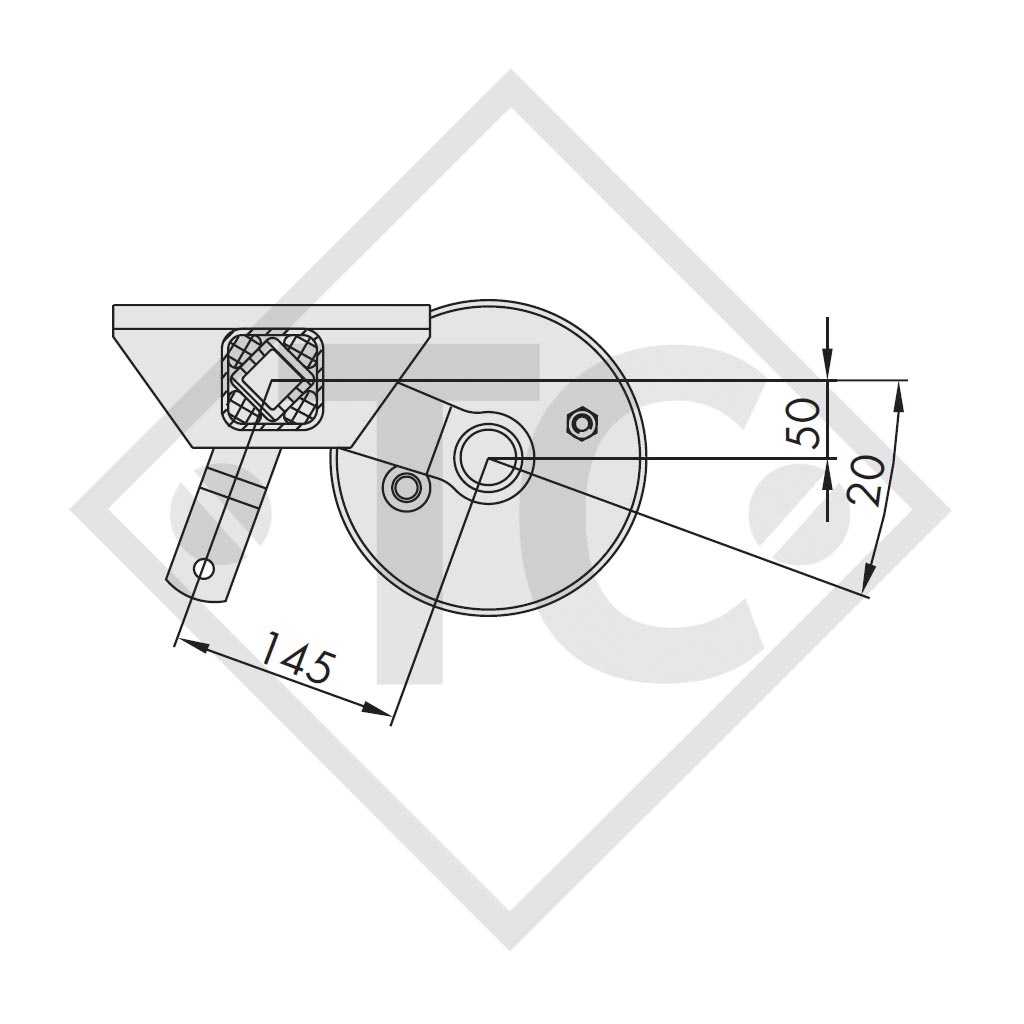

Swing arm length: 145mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

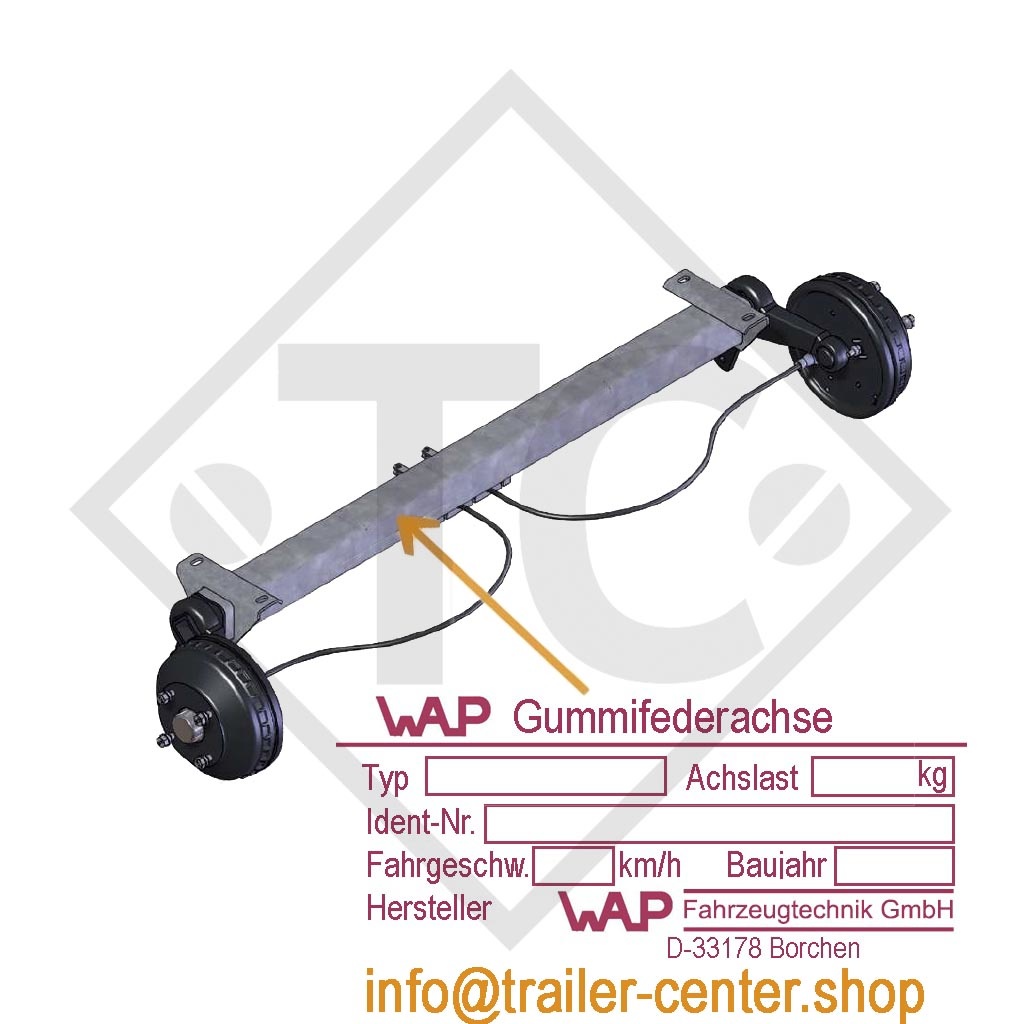

Simply send us a photo of your axle type plate, together with your address and telephone number to
[email protected]
|
