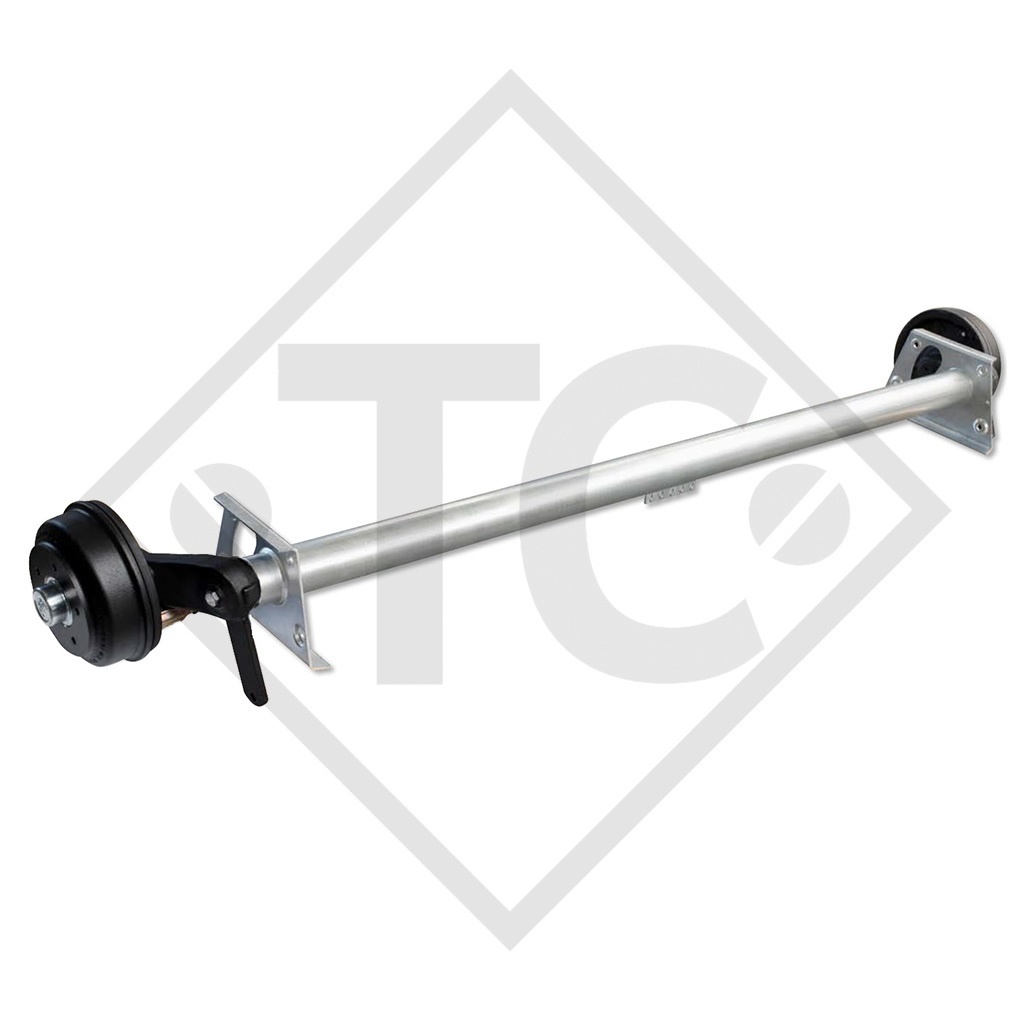

Braked axle 1000kg axle type DB 1004, 45.20.382.001

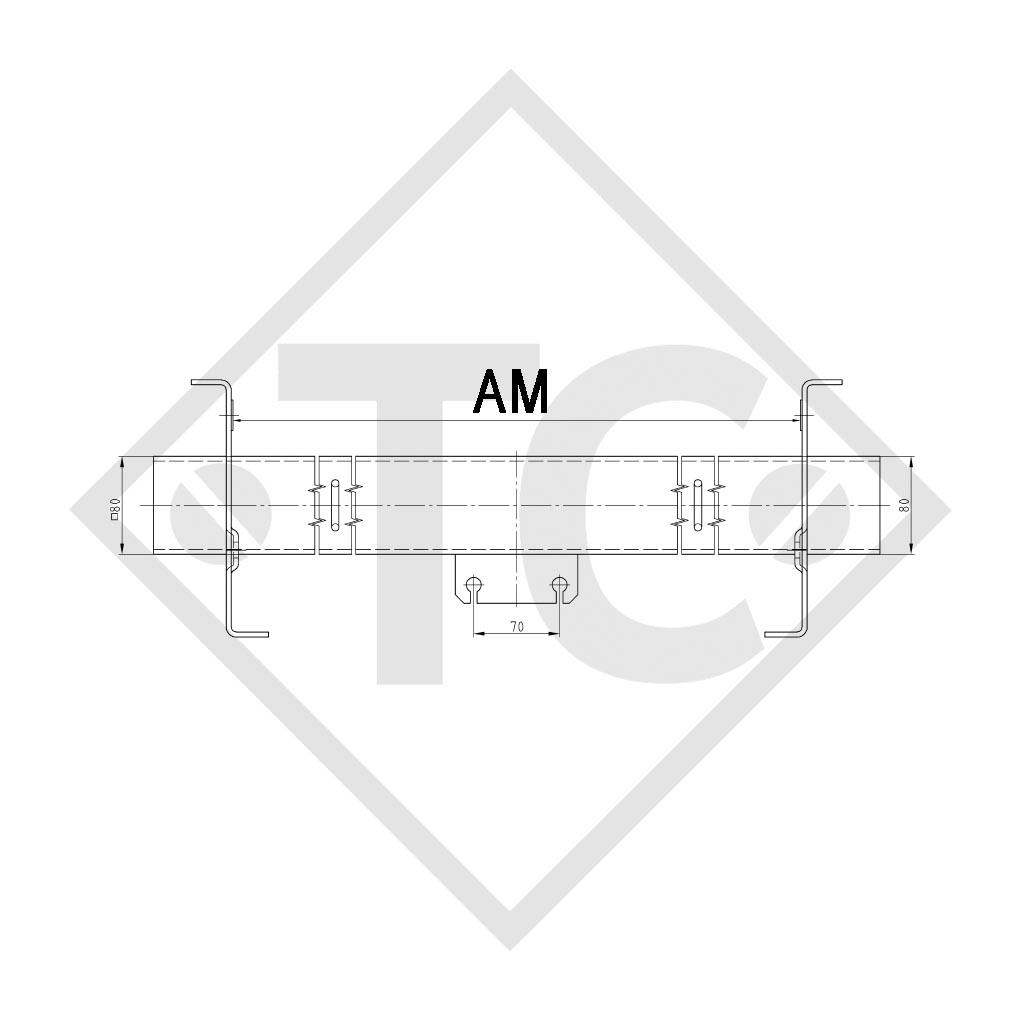

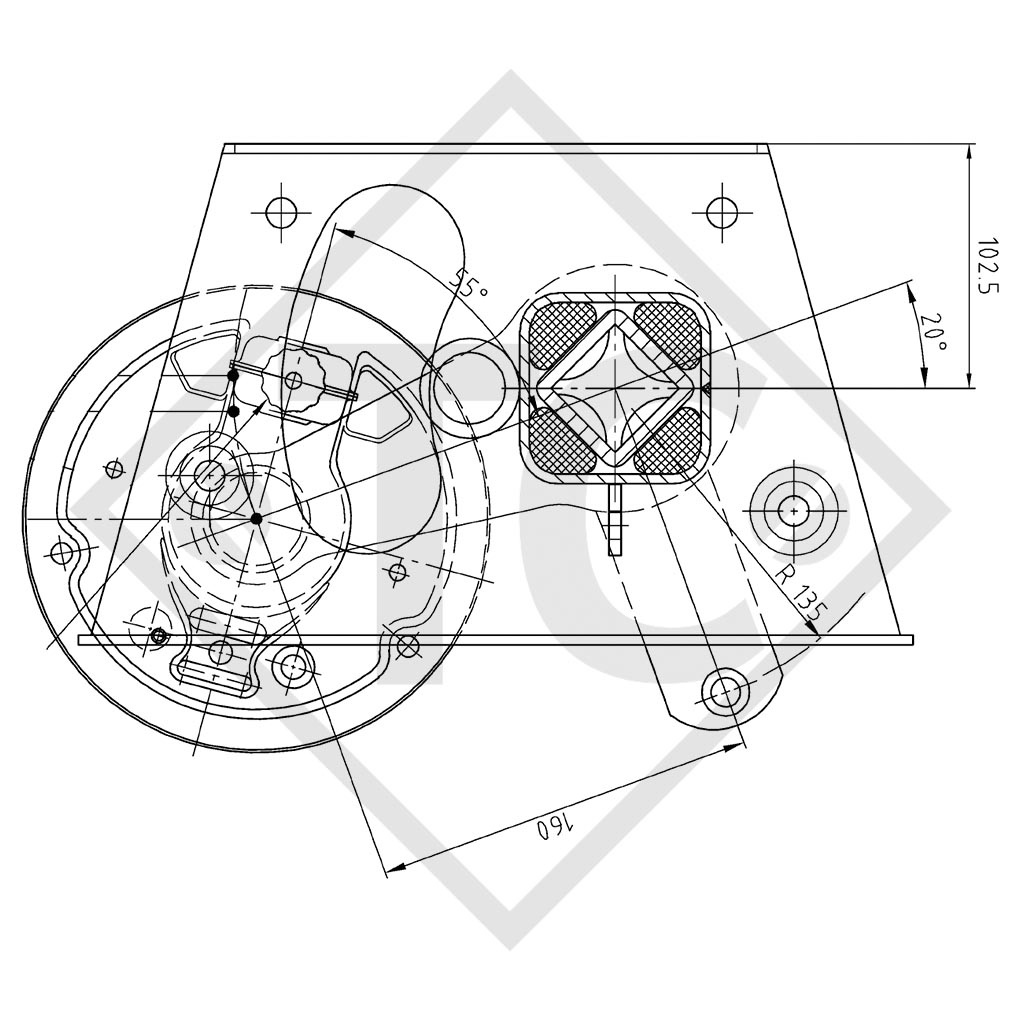

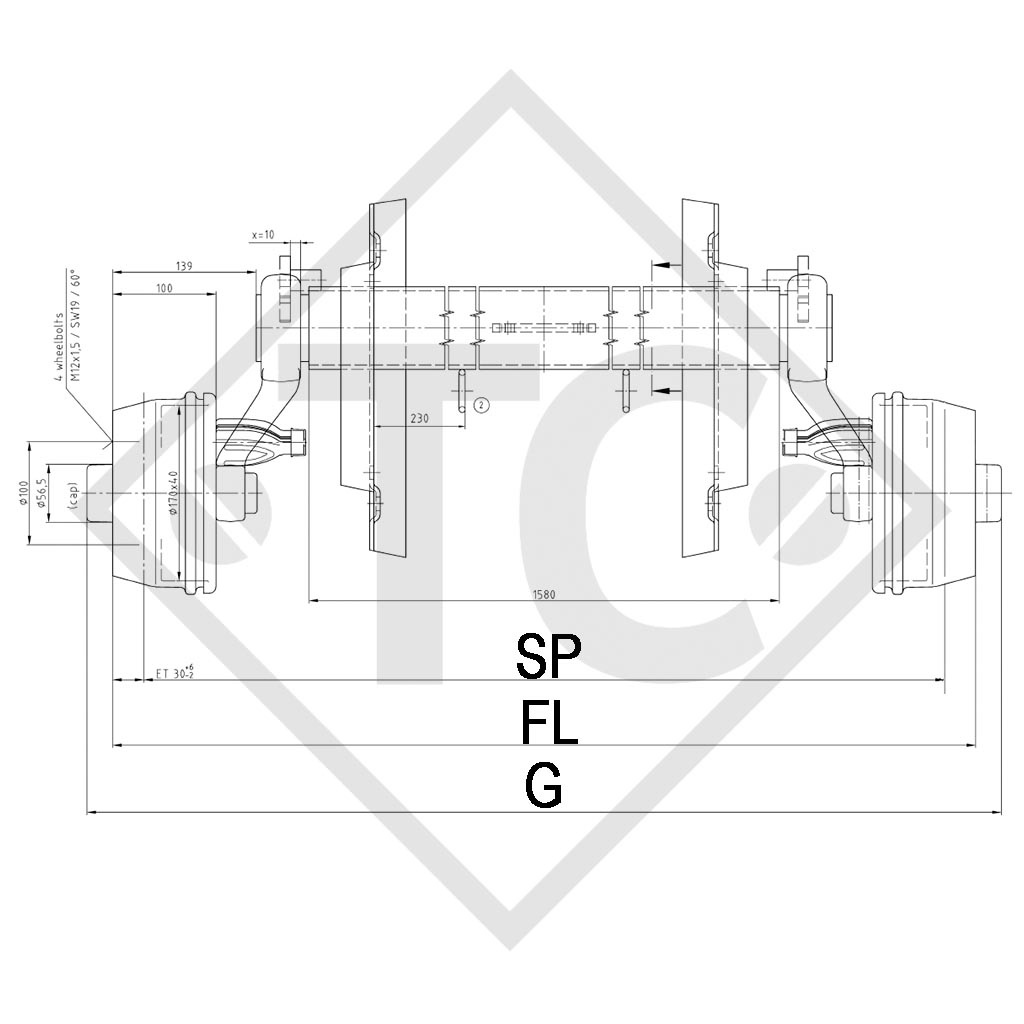

BC: dimension AM 1400mm, OHF: dimension FL 1920mm, wheel connection 100x4, wheel brake type S 1704-7 RASK, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, taper-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Price 1.330,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20-25 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 45.20.382.001

SCOPE OF DELIVERY
Axle incl. bowden cables loose
Taper-head wheel bolts M12x1.5 loose

DETAILS

Speed up to 140 km/h
Drawbar connection: Clamping shells see Accessories
Axle shock absorber see Accessories
Wheel connections: 98x4, 130x4, 112x5, 120x5, 140x5 on demand
Special axle mounts and drawbar connections on demand
Also available with watertight bearings
Axle body fully hop-dip galvanised: Permanent surface protection
Independent wheel suspension: Optimum compensation of uneven road surfaces
Maintenance-free suspension: Lower maintenance costs
Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
Incl. shock absorber bracket
